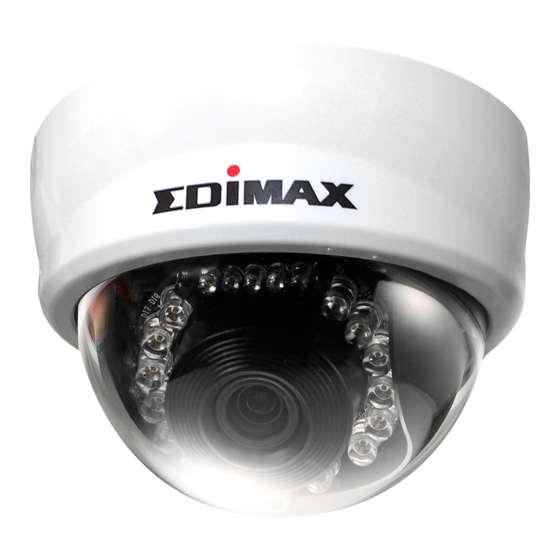

H.264 PoE True Day & Night P/T & Fixed
Mini Dome Network Camera
Quick Installation Guide
Thank you for purchasing this product.
Before you use the product, please check the
package contents. If any item is missing,
contact your dealer of purchase to claim the
missing item(s).
Package Contents:
No.
Description
1
Network IP camera
2
Power adapter
3
CDROM with user manual,
QIG and EdiView 32
4
QIG
5
Tools package
6
RJ45 Female
Quantity
1
1
1
1
1
1
Advertisement
Table of Contents
Related Manuals for Edimax H.264 PoE
Summary of Contents for Edimax H.264 PoE
- Page 1 H.264 PoE True Day & Night P/T & Fixed Mini Dome Network Camera Quick Installation Guide Thank you for purchasing this product. Before you use the product, please check the package contents. If any item is missing, contact your dealer of purchase to claim the missing item(s).
- Page 2 Installation of the network IP camera Please follow the instructions below to setup your new network camera. 1. Attach the network camera with the included stand. 2. Place the camera on a ceiling or wall. Use screws to fix the network camera to a ceiling or wall.
- Page 3 3. Power over Ethernet (PoE) Using a PoE-enabled switch The network camera is PoE-compliant, allowing transmission of power and data via a single Ethernet cable. Follow the below illustration to connect the network camera to a PoE-enabled switch via Ethernet cable. 4.
- Page 4 Search for the camera on your network You can use a web browser to access the network IP camera’s user interface (U.I.) and view images from the network IP camera. The system requirements to view the network IP camera are: ˙OS: Microsoft Windows XP/Vista/7 ˙Browser: IE7, 8, 9 (32Bit) ˙Cell phone: 3GPP player...
- Page 5 access the camera by your web browser. 3. When you are finished, click “Done” to close the utility. Access the camera’s U.I. and install ActiveX plugin For initial access to the network camera in Windows, your web browser may prompt for permission to install a new plug-in for the network camera.
- Page 6 click on to proceed. Click “Install” and “Run” ActiveX controls...
- Page 7 The video will be displayed...
-
Page 8: Declaration Of Conformity
Declaration of Conformity We, Edimax Technology Co., Ltd., declare under our sole responsibility, that the equipment described below complies with the requirements of the European EMC directive (2004/108/EC). Equipment: PoE Mini PT/Fixed Dome Network Camera Model No.: PT-112E; PT-111E; MD-111E Report No.:...
