Getting Started

Connection instructions

Not all A/V devices have the ability to connect to a TV, please refer to the user's manual of your A/V device for compatibility
and connections procedure.
When connecting any external A/V device, do not connect the mains cable to the mains socket until all other connections are
complete.
Best Video
Performance
YP P and Audio and VIDEO are connected by headphone-RCA changing cable.
B R

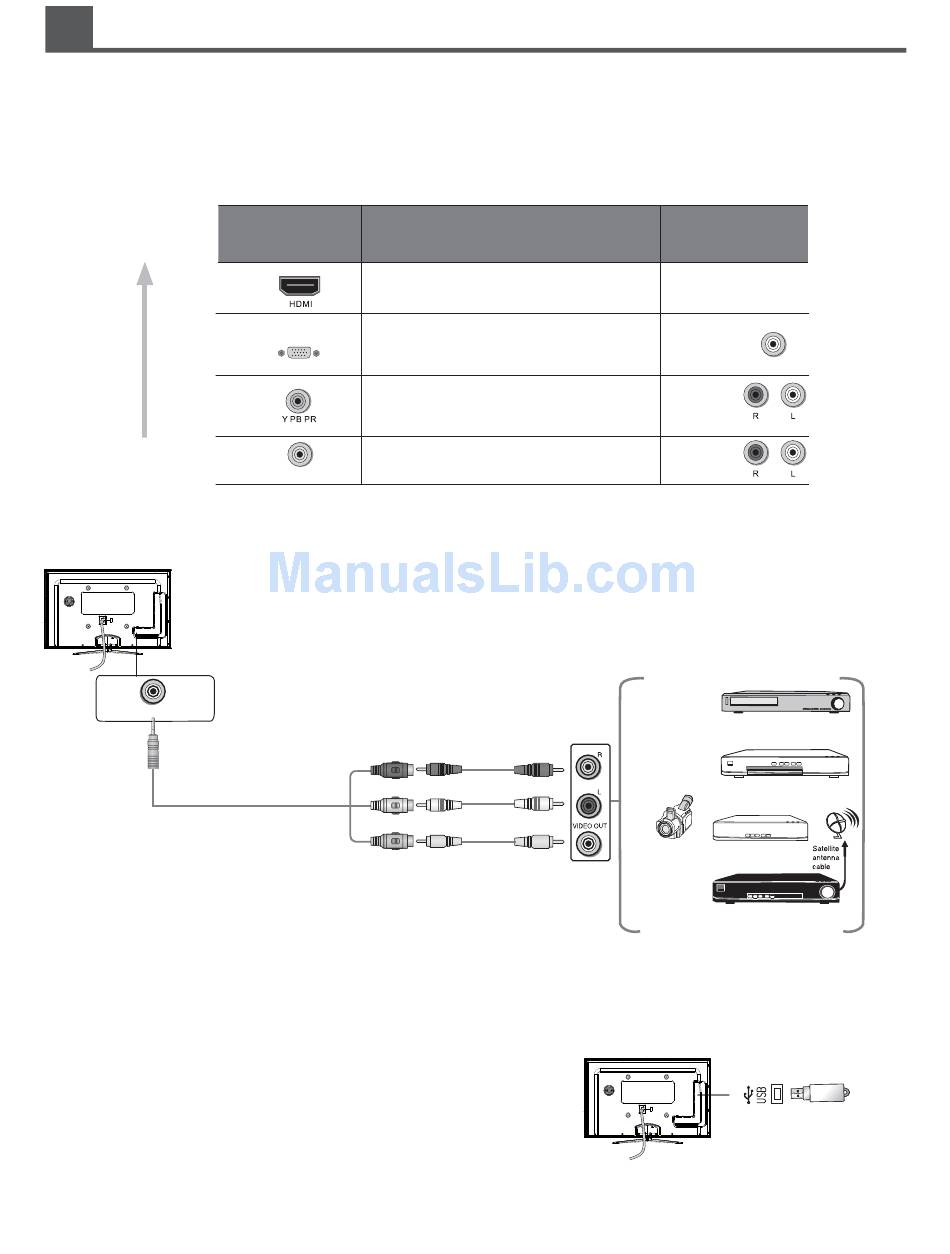

Connecting an A/V Device with Composite Cable
AV IN
AV Cable (not included)
1. Use the audio and video cables to connect the external A/V device's composite video/audio jacks to the Tv's
(Video = yellow, Audio Left = white, and Audio Right = red)
2. Plug the connected devices into the mains socket before switching on the TV.
3. Select the corresponding source from the TV.
Connecting a USB Device
You can either use the USB connection cord or directly insert the
USB into the USB port at the side of the TV.
Connector Type
HDMI
(480i/480p/576i/576p/720p/1080i/1080p)
VGA
YP P Video
B R
(480i/480p/576i/576p/720p/1080i/1080p)
Composite Video
AV IN
Red (R)
White (L)
Yellow (VIDEO)
Red (R)
White (L)
Yellow (VIDEO)
Video Camera
12
Separate audio
connection required
No
Yes
PC AUDIO
Yes
Yes
VCR
DVD Player / Recorder
Set-top Box
Satellite Receiver
Equipment with A/V jacks
jacks.
