Summary of Contents for Hisense p69 Series

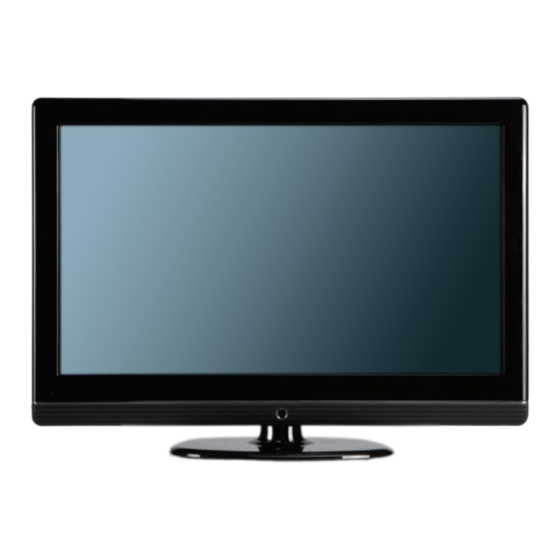

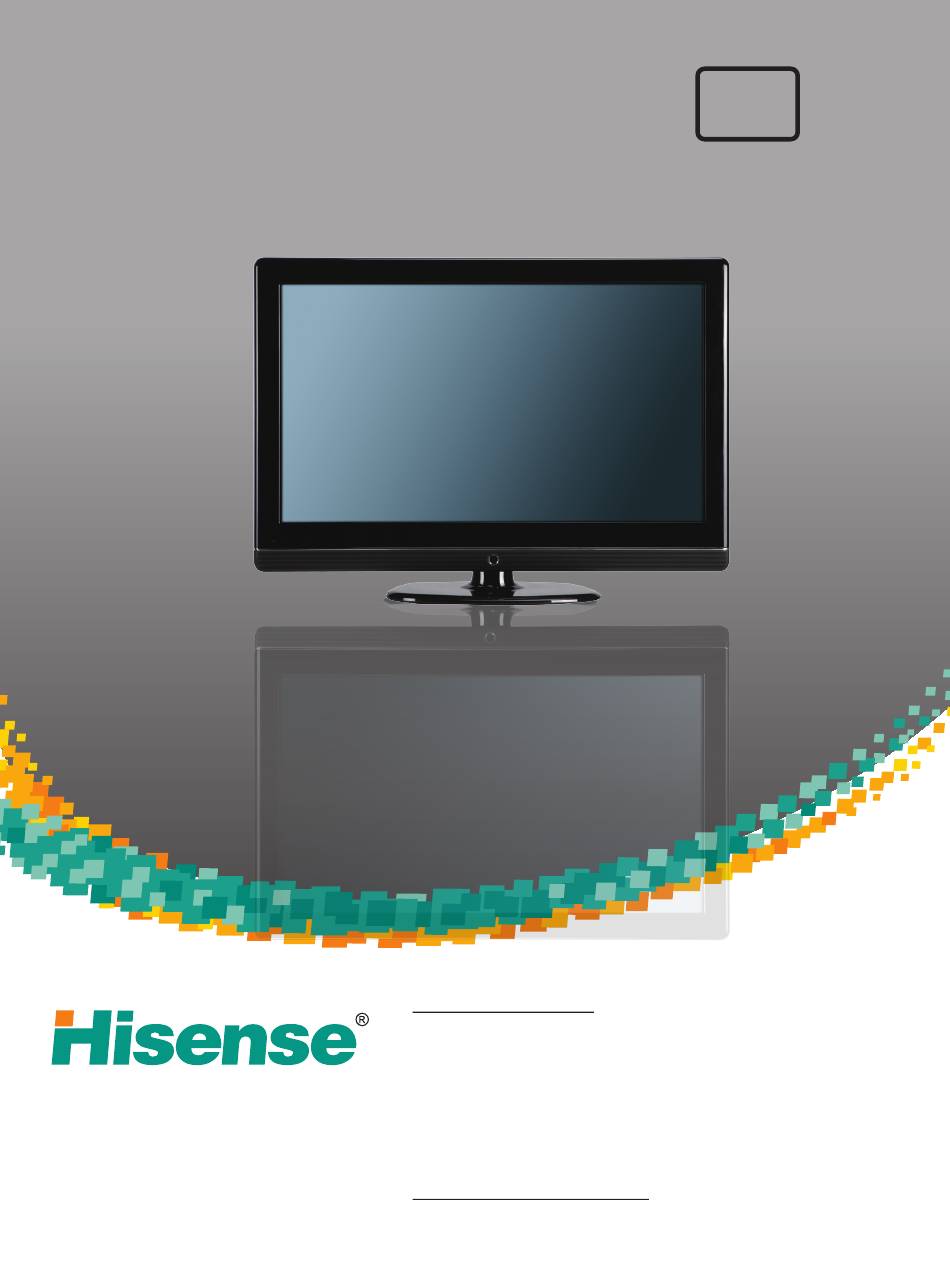

- Page 1 User’s manual Please read this manual carefully before operating your TV set and retain it for further reference. HLD66P69 HLD81P69 Model Number: Part Number: IES090807 Http://www.hisense.com.au...
- Page 2 HISENSE WARRANTY TERMS AND CONDITIONS 1. HISENSE Australia will provide parts and labour to you the Customer as set b. costs of attendance and testing where no mechanical or electrical out herein. failure is identified; 2. Nothing in the warranty, limits any rights you may have under the trade c.
- Page 3 *The faulty DVD drive must be returned to Hisense Australia or you may be liable for the cost of the part and freight Before making a claim, please make sure that you understand the terms and conditions of the warranty •...
-
Page 4: Table Of Contents
Table of Contents Table of Contents Important safety precautions..............4 Safeguards..................4 Setting Up....................7 Accessories..................7 Installing the Stand................7 TV Front...................8 TV Rear....................9 Special Feature of DVD Module............10 Disc Information................11 Rear TV Connectors...............12 Connection Instructions..............13 Using the Remote Control................15 Installing the remote control batteries..........15 Remote control range..............15 The Remote Control Panel.............16 Quick starts..................17... -
Page 5: Important Safety Precautions
Important safety precautions Safeguards This symbol alerts user about the presence of ATTENTION a dangerous voltage not isolated inside the product which can be sufficiently powerful to RISK OF SHOCK constitute a risk of electrocution. ELECTRIC This symbol alerts user about the presence of Do not open the back cover important operating instructions and In no case the user is allowed to operate inside the TV set. - Page 6 Important safety precautions Safeguards Please read the following safeguards for your TV and retain for future reference. Always follow all warnings and instructions marked on the television. 1. A note about safety and operating instructions Read and follow all safety and operating instructions, and retain them safely for future reference. 2.
- Page 7 Important safety precautions Safeguards 12.Power Lines An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. Where installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
-
Page 8: Setting Up
Setting Up Accessories/Installing the Stand Accessories list ALCD101 Batteries Remote Manual Book Installing the Stand 1. Place the TV faced down on a soft cloth or cushion on a table. 2. Attach the stand to the TV set as shown in the picture. 3. -
Page 9: Tv Front
Setting Up TV Front TV Front No. Component Component Description Press to turn the main power ON or OFF. POWER Switch Red indicates standby mode. Blue shows that the POWER Indicator unit is on.There will be no light when the power switch is in the off position. -
Page 10: Tv Rear
Setting Up TV Rear TV Rear AC INPUT HDMI1 HDMI2 HDMI3 OPTICAL AUDIO IN... -
Page 11: Special Feature Of Dvd Module
Setting Up Special Feature of DVD Module Your TV comes equipped with a removable DVD module. Please follow the procedures below to remove or install the DVD module. Note: Before removing or installing the DVD module, ensure that the television is unplugged and turned off. DVD module removal: Refer to the illustration below and follow the procedures below to remove the DVD module from the unit:... -
Page 12: Disc Information
Setting Up Disc Information Discs Supported DISC LOGO CONTENTS SIZE MAXIMUM TIME 133min(SS-SL) 242min(SS-DL) Audio+Video 12cm (active picture) 266min(DS-SL) 484min(DS-DL) Audio 12cm 74min JPEG Still high resolution 12cm The operating method of some DVD discs is specified by the software maker. Please refer to the instruction manual of the disc. -
Page 13: Rear Tv Connectors
Setting Up Rear TV Connectors Connectors Brief Description Cables ANT 75Ω Connect an outdoor VHF/UHF antenna Yellow Video Connect a composite video cable and left-right audio cables from optical equipment. Video White (Audio connectors are shared with S-Video.) Input Yellow Video Connect a composite video cable and left-right audio cables to optical equipment for monitoring or recording video. -
Page 14: Connection Instructions
Setting Up Connection Instructions ■ Connecting an Aerial (For analogue and Digital signals) To view television channels correctly, a signal must be received by the set from the following source: -An outdoor VHF/UHF antenna ■ Connecting External A/V Devices -Connect a Video RCA or S-VIDEO cable to an appropriate external A/V device such as a VCR, DVD or Camcorder. - Page 15 Setting Up Connection Instructions ■ Connecting AUDIO -Connect RCA audio cables to “R -AUDIO - L” on the rear of your set and the other ends to corresponding audio in connectors on the Amplifier or DVD Home Theater. ■ Connecting USB Connector Devices -Connect a USB device for browsing photos and reading text files also used for servicing ■...
-
Page 16: Using The Remote Control
Using the remote Control Installing batteries Installing the remote control batteries 1. Open the battery cover on the back of the remote control. 2. Install two AAA size(1.5V) batteries. Match the “+” and “-” signs on the batteries to the signs on the battery compartment. -
Page 17: The Remote Control Panel
Using the Remote Control The Remote Control Panel The Remote Control Panel Buttons instructions(from up to down) (1) Remote sensing Window. (2) The White colour button:Indicates when the button is pushed. (3) D/A: Digital /Analog TV. (4) Power Standby: Power button(The red big button). (5) Source: Available source selection. -
Page 18: Quick Starts
Using the Remote Control Quick starts ■ Turning your TV on and off To turn your TV on: Connect the TV to an AC power outlet and an external antenna, then turn on the power via switch located below the front right hand side of unit. The power indicator will initially be red and then will change to blue. - Page 19 Using the Remote Control Quick starts ■ Selecting the picture mode ● To select a picture mode: Press the [Picture] button to select between 4 different pre-adjusted picture modes: Dynamic, Standard, Mild and User (configurable mode). The User mode automatically preserves your personal settings after adjusting brightness, colour and contrast etc.
-
Page 20: Changing The Tv Settings
Changing the TV Settings Using the Channel Menu ● Press [Menu] to open the main menu. Channel ● Press [◄/►] to select Channel, then press [▼/OK] to Auto Tuning enter the Channel menu. DTV Manual Tuning ATV Manual Tuning ● Press [▲/▼] to select an option. Program Edit ●... - Page 21 Changing the TV Settings Using the Channel Menu ■ Editing channels from memory After you scan for channels, you can delete a channel from memory if you want to skip the channel when you press [▲/▼]. You can still select the skipped channels using the number buttons. You can also rename the channels, lock or unlock the channels from memory.
-
Page 22: Using The Picture Menu
Changing the TV Settings Using the Picture Menu ● Press [Menu] to open the main menu. Picture ● Press [◄/►] to select Picture, then press [▼/OK] to Brightness enter the Picture menu. Contrast ● Press [▲/▼] to select an option. Color ●... -
Page 23: Using The Audio Menu
Changing the TV Settings Using the Sound Menu ● Press [Menu] to open the main menu. Sound ● Press [◄/►] to select Sound, then press [►/OK] to Balance Balance enter the Sound menu. Treble Treble ● Press [▲/▼] to select an option. Bass Bass ●... -
Page 24: Using The System Menu
Changing the TV Settings Using the Option Menu ● Press [Menu] to open the main menu. ● Press [◄/►] to select Option, then press [▼/OK] to Option enter the Option menu. Blue Screen ● Press [▲/▼] to select an option. Osd Settings ●... -
Page 25: Using The Lock Menu
Changing the TV Settings Using the Lock Menu ● Press [Menu] to open the main menu. Lock ● Press [◄/►] to select Lock, then press [▼/OK] to enter the Lock menu. Child Lock ● Press [▲/▼] to select an option. Set Password ●... - Page 26 DTV,TV,AV,S-Video,Component, PC-RGB,HDMI1,HDMI2,HDMI3,DMP and DVD to be locked out.
-
Page 27: Using The Screen Menu
Changing the TV Settings Using the Screen Menu ● Press [Menu] to open the main menu. ● Press [◄/►] to select Screen, then press [▼/OK] to Screen enter the Screen menu. Image Position ● Press [▲/▼] to select an option. H Size ●... -
Page 28: Pc Setting
Changing the TV Settings PC Setting PC Setting Set the PC Software properly to match one of the below options. Supported VGA Modes: VGA____ (640×480 60Hz) SVGA___ (800×600 60Hz) XGA____ (1024×768 60Hz) SXGA___ (1280×1024 60Hz) Note: Your PC/Notebook may not be able to display some of these resolutions. Take Windows XP as an example, and the Windows system display setting is as illustrated: 1. -
Page 29: Using The Dmp Menu
Changing the TV Settings Using the DMP Menu ● Press [DMP] to open the DMP menu. ● Press [◄/►] to select PHOTO or TEXT, then press [OK] to enter PHOTO or TEXT file. PHOTO TEXT ● Press [▲/▼] to select the files. PHOTO ●... -
Page 30: Using The Dvd Player
Using the DVD player DVD Playback Operation Basic operation Prior to play, make sure to complete the following preparatory operations. 1. Switch on TV and select DVD source. 2. Gently insert the CD/DVD into the Disc tray slot with the label facing the front of the unit insert it halfway then the disc will be drawn into the tray and load automatically . - Page 31 Using the DVD player DVD Playback Operation GOTO During DVD disc playback, press the GOTO button on the remote control once, there will be a menu displayed on the screen. You can set or select items for your preference. Use the ▲▼direction buttons to select items and press the ENTER button to enter and use the ▲▼...
-
Page 32: General Setup Page
Using the DVD player GENERAL SETUP PAGE ● Press [DVD Setup] button to enter DVD main interface. ● Press [＜/＞]button to select item. -- GENERAL SETUP PAGE -- ● Press [∨/OK ] button to enter. TV DISPLAY ● Press [∧/∨] button to select the option, OSD LANGUAGE SCREEN SAVER press [＞/OK] button to enter, then press... -
Page 33: Audio Setup Page
Using the DVD player AUDIO SETUP PAGE ● Press [DVD Setup] button to enter DVD main interface. ● Press [◄/ ►]button to select item. -- AUDIO SETUP PAGE -- ● Press [▼/OK ] button to enter. ANALOG AUDIO SETUP ● Press [▲/▼] button to select the option, DIGITAL AUDIO SETUP press [►/OK] button to enter, then press DOLBY DIGITAL SETUP... -
Page 34: Video Setup Page
Using the DVD player VIDEO SETUP PAGE ● Press [DVD Setup] button to enter DVD main interface. ● Press [◄/ ►]button to select item. -- VIDEO SETUP PAGE -- ● Press [▼/OK ] button to enter. COLOR SETTING ● Press [▲/▼] button to select the option, press [►/OK] button to enter, then press [▲/▼] button to adjust the option. -
Page 35: Preference Page
Using the DVD player PREFERENCE PAGE ● Press [DVD Setup] button to enter DVD main interface. ● Press [◄/ ►]button to select item. -- PREFERENCE PAGE -- ● Press [▼/OK ] button to enter. TV TYPE NTSC AUDIO ● Press [▲/▼] button to select the option, SUBTITLE press [►/OK] button to enter, then press DISC MENU... -
Page 36: Appendix
Appendix Trouble shooting When there is something wrong with your TV, you can try turning off the TV and then restart it. You can also operate according to the following chart. If the problem still cannot be solved,please contact the professional technicians. Remedy Symptom 1. -
Page 37: Specifications
12.5 Kg Weight withbase 10.2 Kg 14.5Kg Environmental Temperature 5˚C~35˚C Conditions Humidity : 20%-80%RH Humidity : 20%-80%RH Atmospheric pressure: 86kPa-106kPa Note: Hisense is committed to continued product improvement which may result in changes to specifications and appearance without previous notice. - Page 38 HLD66P69 HLD81P69 Http://www.hisense.com.au...
