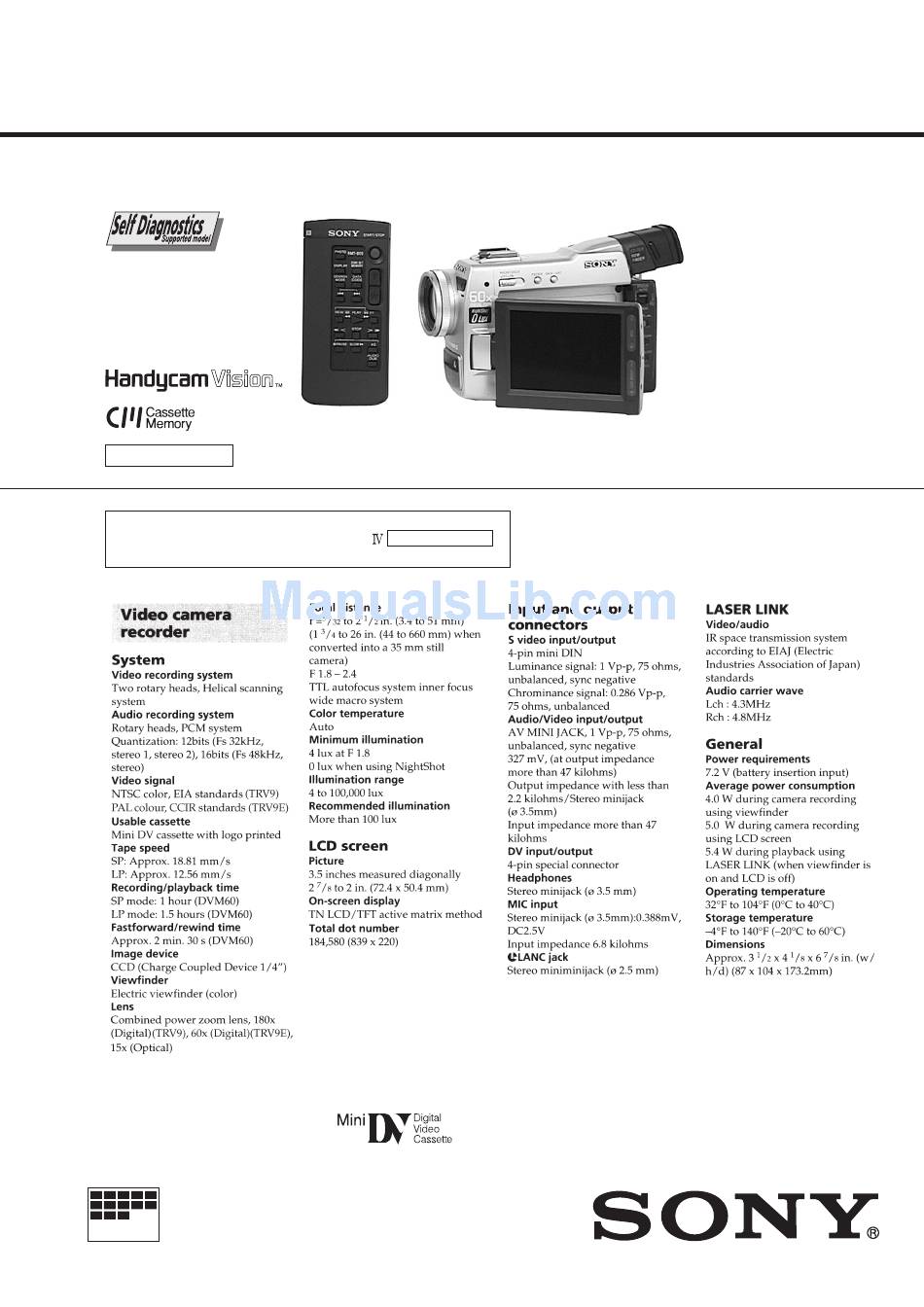

SERVICE MANUAL
Ver 1.0 1998.04
C MECHANISM
For MECHANISM ADJUSTMENTS, refer to the "DV
MECHANICAL ADJUSTMENT MANUAL
(9-974-050-11)
MICROFILM
DCR-TRV9/TRV9E
Photo: DCR-TRV9E
RMT-809
C MECHANISM "
SPECIFICATIONS
DIGITAL VIDEO CAMERA RECORDER
RMT-808/809
US Model
Canadian Model
DCR-TRV9
AEP Model
UK Model
Australian Model
Chinese Model
DCR-TRV9E
E Model
Hong Kong Model
Tourist Model
DCR-TRV9/TRV9E
NTSC model: DCR-TRV9
PAL model:
DCR-TRV9E
— Continued on next page —
