HONEYWELL MODEL 700/800 SIGNAL PROCESSOR AND VIEWING HEAD
8-19/64
(211)
21/64 (8)
1-31/64
(38)

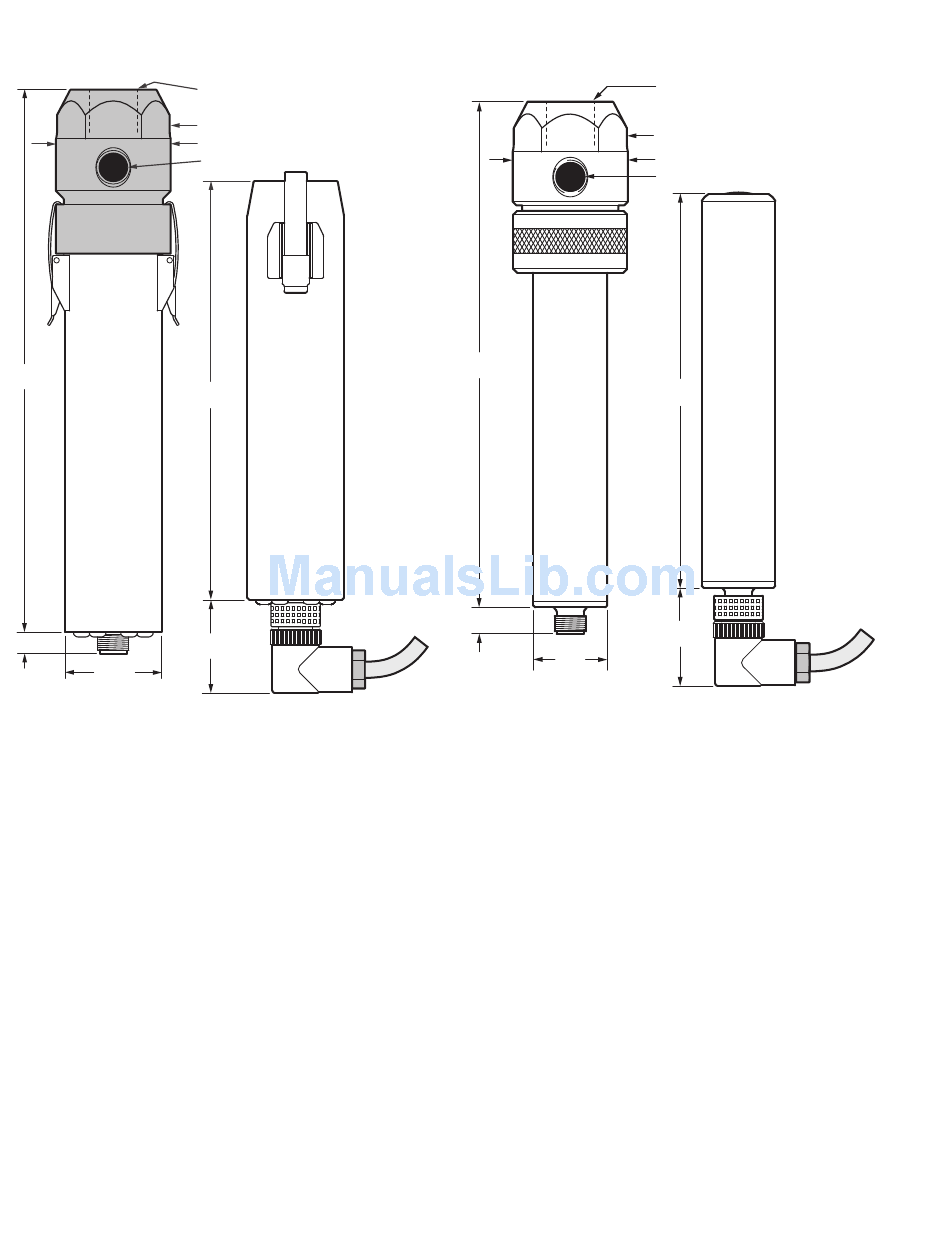

Fig. 8. Models S702 and S706 Viewing Heads.
66-2069—01
1/2 (13) 14 NPT FOR SIGHTING PIPE
HEX 1-1/2 (38) ACROSS FLATS
1-49/64 (45) DIA MOUNTING BLOCK
1/4 (6) 18 NPT FOR PURGE AIR
6-13/32
(163)
1-27/64
(36)
7-23/32
(196)
13/32 (10)
1-1/8
(29) DIA
M34283
Fig. 9. Models S802 and S806 Viewing Heads.
20
1/2 (13) 14 NPT FOR SIGHTING PIPE
HEX 1-1/2 (38) ACROSS FLATS
1-49/64 (45) DIA MOUNTING BLOCK
1/4 (6) 18 NPT FOR PURGE AIR
6
(153)
1-1/2
(38)
M34284
