Leviton Decora HCM10-1DW Product Specifications

Product
Specifications

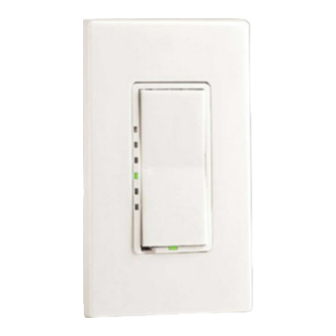

Decora ® Home Controls
1000-Watt Scene-Capable
Dimming Wall Switch
Receiver
APPLICATION
Fits in standard wallboxes and replaces regular switches or
dimmers to provide local and remote ON/OFF and
BRIGHT/DIM switching in response to: local manual control,
commands sent from Leviton DHC controllers or other X-10
compatible controllers and programmers set to the same
address as this receiver.
The HCM10-1DW also will accept scene commands from
Leviton scene controllers and programmers providing the
capability to create elegant "one-touch" lighting scenes
The HCM10-1DW utilizes existing 60Hz 120V AC house wiring
for "No New Wires" installation. Leviton DHC products use the
home's power wiring to transmit command and control
signals, providing networked home control systems without
the need for additional wiring to be present
Single-Pole or 3-Way when used with MS00R-10 Multi-
Remote unit.
Neutral connection required (except for incandescent loads.)
FEATURES AND BENEFITS
• Features Leviton's classic Decora style rocker to blend
seamlessly with other Decora devices. HCM10-1DW is
compatible with Decora screwless and Decora standard
designer wallplates.
• Decora-style operation – push top of rocker to brighten;
bottom to dim.
• Preset feature turns lights ON at last selected brightness
level or at user-programmable minimum brightness level,
whichever is greater.
• Double tap to top of rocker switch brings light to full
output without affecting preset levels.
• Soft ON/Fade OFF feature for smooth brightness
level changes and prolonged bulb life
• Green LED display alongside rocker indicates selected
brightness level.
• Green locator LED illuminates when load is OFF.
SPECIFICATION SUBMITTAL
JOB NAME:
JOB NUMBER:
Leviton Mfg. Co., Inc.
59-25 Little Neck Pkwy • Little Neck, NY 11362-2591 • Tech Line: 1-800-824-3005 • Fax: 1-800-832-9538
Visit our Website at: www.leviton-lin.com
• Protected memory maintains light levels during minor
power fluctuations.
• Use inexpensive MS00R-10 remote for three and four way
applications where traditional "traveler" wiring is present
• HCM10-1DW responds to Leviton's DHC controllers as well as
any X-10 compatible controllers from any other manufacturer.
• This device provides one-button programming through
address capturing.
• Leviton's patented Intellisense™ Technology greatly improves
reliability and reduces false responses compared to other
manufacturers' products by virtually eliminating signal
problems due to noise.
• Color change kits allow fast color changeovers.
Devices ship in White only. See chart for
Color Change Kits (must be purchased separately).
CATALOG NUMBERS:
HCM10-1DW
Cat. No. HCM10-1DW
