Built-in cooktop 36" gas
Hide thumbs

Advertisement

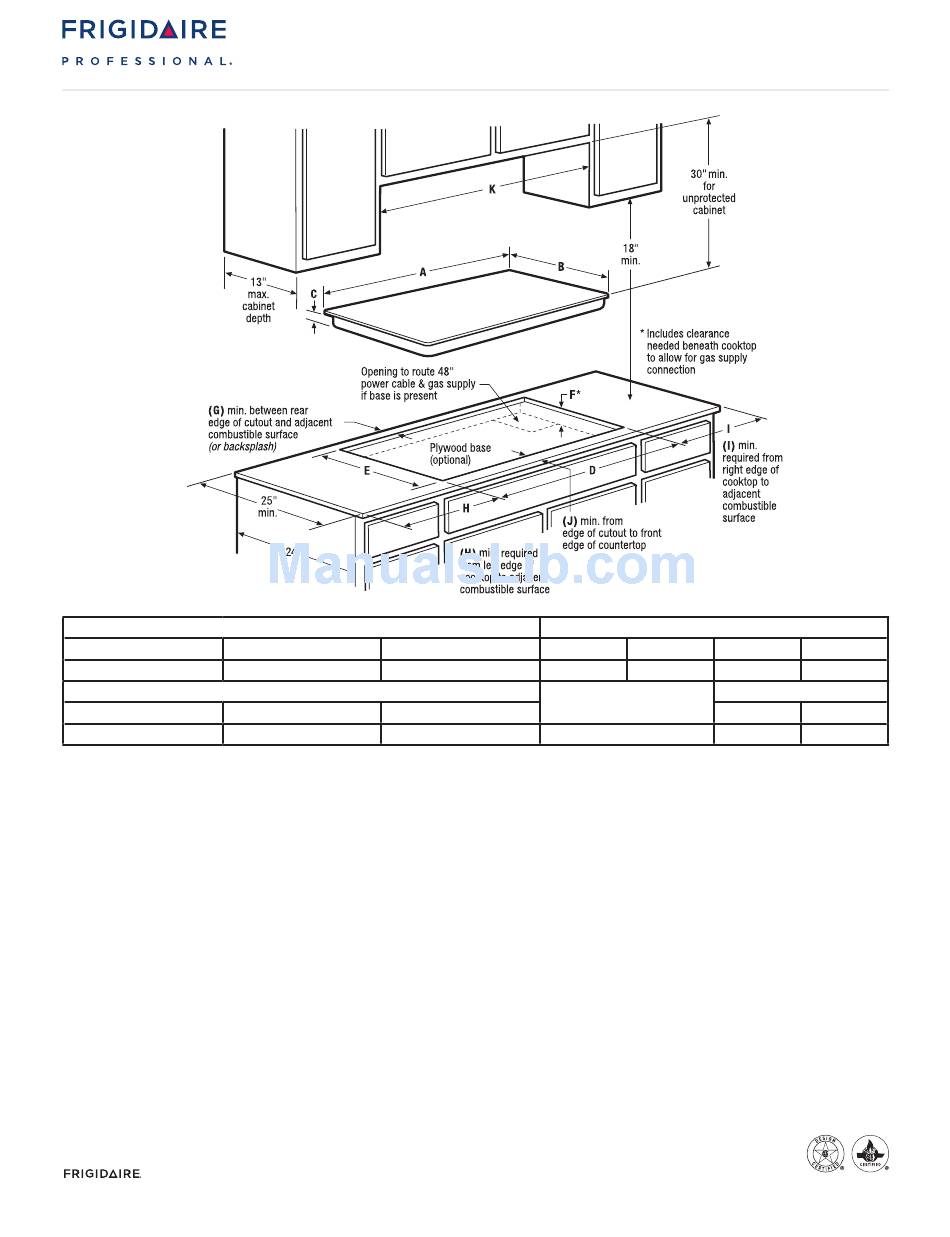

A - Width
36"
Product Cutout Dimensions
D - Width (min. - max.)
33-7/8" - 34-1/4"
Built-In Cooktop Specifications
Product Shipping Weight (approx.) – 60 Lbs.
Voltage Rating – 120V / 60 Hz / 15 Amps
For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.
Amps @ 120 Volts = 1.0
Always consult local and national electric and gas codes.
Cooktop cutout height includes clearance needed beneath cooktop
to allow for gas supply connection. Recommended location for
grounded 120V outlet is on rear wall in an 8"-wide by 10"-high area,
positioned 22" above floor surface and 4" from right side of cooktop
centerline. Access to underside of cooktop and junction box must
be provided for inspection and service.
Cooktop ships with 3/4" factory regulator.
LP Gas conversion kit supplied.
Overhead cabinetry should not exceed a 13" maximum depth.
Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than 36".
Allow 30" minimum clearance between top of cooktop platform and
bottom of unprotected wood or metal overhead cabinet.
Allow 2" minimum distance between rear edge of cutout and adjacent
combustible surface (or backsplash).
USA
10200 David Taylor Drive
Charlotte, NC 28262
CANADA
5855 Terry Fox Way
Mississauga, ON L5V 3E4
FPGC3685K 01/12
Product Dimensions
B - Depth
21-3/4"
E - Depth (min. - max.)
F - Height (min.)*
19-1/8" - 19-3/4"
1-800-FRIGIDAIRE
frigidaire.com
1-800-265-8352
frigidaire.ca
© 2012 Electrolux Home Products, Inc.
C - Height
G (min.)
4-1/4"
2"
K - Cabinet Opening Width
(min.)
8"
Allow 7" minimum required clearance from left edge of cooktop to
adjacent combustible surface and 7" minimum from right edge of
cooktop to adjacent combustible surface.
Installation of drawer beneath cooktop requires 6-1/2" minimum
clearance beneath countertop surface, and assured clearance for gas
and electrical connections.
To reduce risk of fire when using overhead cabinetry, install range
hood that projects horizontally a recommended minimum of 5"
beyond bottom of cabinets.
Gas Built-In Cooktop model FPGC3685K is approved to be used
over any Frigidaire® Electric Single Wall Oven. (Refer to Gas Cooktop
Installation Over 30" / 27" Electric Single Wall Oven Specifications
page on web.)
Gas Built-In Cooktop model FPGC3685K is approved to be used in
combination with Frigidaire® 36" Downdraft Vent E36DD75ESS or
PL36DD50EC. (Refer to model-specific Downdraft Vent product page
on web for detailed countertop preparation specifications.)
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
Granite Countertop Installation Kit – (PN # 903103-9010).
Built-In Cooktop
FPGC3685K S
Required Clearances
H (min.)
I (min.)
7"
7"
Utility Connection Locations
Power Supply
36"
Right Rear
Accessories information available
on the web at frigidaire.com
36" Gas
J (min.)
2-1/4"
Gas Supply
Right Rear
Specifications
subject to change.
