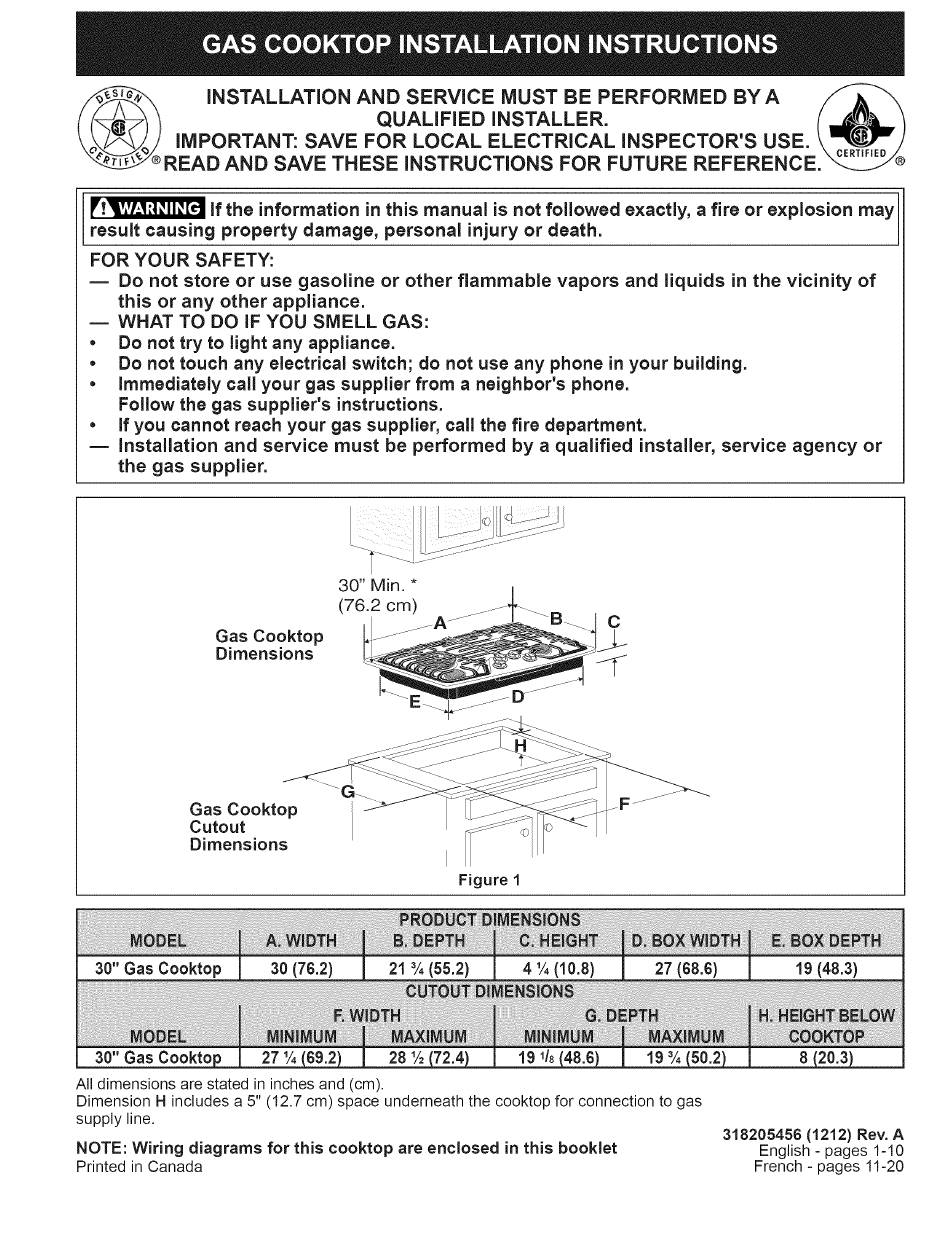

Frigidaire FPGC3087MSB Installation Instructions Manual

_! iNSTALLATION AND SERVICE MUST BE PERFORMED BY A /F_'X,
QUALiFiED iNSTALLER. (_._/i_ ']
iMPORTANT: SAVE FOR LOCAL ELECTRICAL iNSPECTOR'S USE. ",_-_'J
READ AND SAVE THESE iNSTRUCTIONS FOR FUTURE REFERENCE. "-.:L_®
if the information in this manual is not followed exactly, a fire or explosion may
result causing property damage, personal injury or death.
FOR YOUR SAFETY:
= Do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other appliance.
= WHAT TO DO iF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• immediately call your gas supplier from a neighbor's phone.
Follow the gas supplier's instructions.
• if you cannot reach your gas supplier, call the fire department.
= installation and service must be performed by a qualified installer, service agency or
the gas supplier.
30" Min. *
(76.2 cm)
....A C
Gas Cooktop
Dimensions
Gas Cooktop
Cutout
Dimensions
Figure 1
30" Cookto 28 1/= 19 1/8
All dimensions are stated in inches and (cm).
Dimension H includes a 5" (12.7 cm) space underneath the cooktop for connection to gas
supply line,
NOTE: Wiring diagrams for this cooktop are enclosed in this booklet
Printed in Canada
8
318205456 (1212) Rev. A
English - pages 1-10
French - pages 11-20
