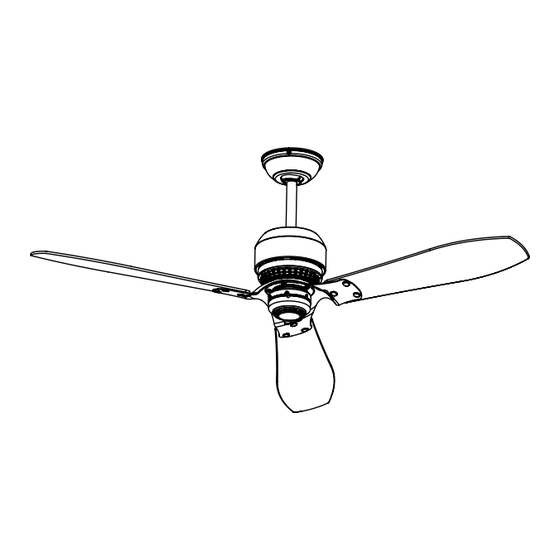

Casablanca 59500 Parts Manual

Hardware Hardware
(Drawn to Scale) (Drawn to Scale)
x 2
3" Wood Screw
x 2
Flat Washer
x 2
Canopy Screw
x 1
Setscrew
x 4
Mounting Isolator
Decorative
x 10
Screw
Screw, Blade
x 5
Iron Armature
x 10
Barrel Nut
Allen
x 1
Wrench
Screw,
x 3
Machine, 6-32
Balancing
x 1
Kit
Screw, Switch
x 3
Housing Assembly
Wire
Screw, Switch
x 4
Connector
x 2
Housing Cap
Screw, Switch Housing
x 2
Cap (optional)
Fan Parts Fan Parts
(Not Drawn to Scale) (Not Drawn to Scale)
Hanger
Bracket
Assembly
Blade
Assembly
Switch
Housing
Assembly
PARTS GUIDE
PARTS GUIDE
Using this Parts Guide, make sure all
parts are included in the box.
If parts are missing, DO NOT RETURN
THIS ITEM TO THE STORE, call 888-227-2178 for assistance.
THIS PARTS GUIDE IS FOR REFERENCE ONLY.
REFER TO THE INSTALLATION MANUAL FOR FULL ASSEMBLY INSTRUCTIONS.
Model #

Parts List

Asm. Dwg. # K0348-01
Finish Snow White
Item Name Qty.
Hanging System Kit 1 K0319-01
Ceiling Bracket
Canopy
Canopy Screw
Wood Screw
Wire Connector
Flat Washer
Mounting Isolator
Hanger Ball / Downrod Assembly 1 K0071-11
Switch Housing Assembly 1 K0058-01
Cap, Switch Housing 1 K0188-01
Cap, Switch Housing (optional) 1 K0182-03
Wire Harness Assembly 1 K0165-05
Blade Iron Set 1 K0301-01
Blade Set 1 K0344-03-016
Decorative Ring 1 K0343-01
Hardware Kit 1 K0348-00-860
Screw, Blade Iron Armature
Screw, Decorative
Nut, Barrel
Setscrew
Screw, Machine, 6-32
Screw, Switch Housing Assembly
Screw, Switch Housing Cap
Screw, Switch Housing Cap (op-
tional)
Balancing Kit 1 K0118-01
Allen Wrench 1 64801-01
Fandangle with Pull Chain 1 K0185-03
