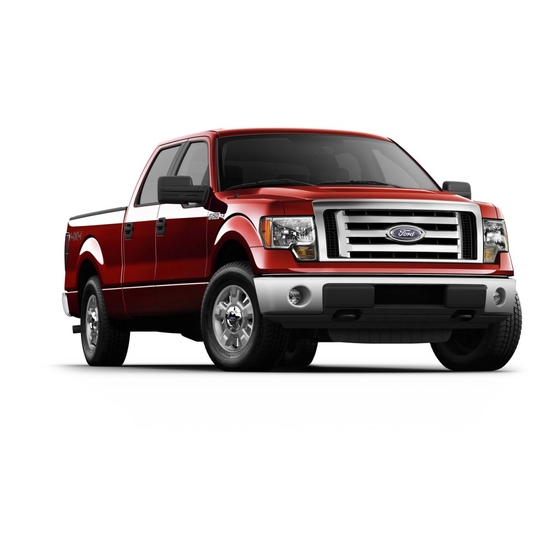

Ford F-150 Owner's Manual

Ford F-150 Owner's Manual

2013

Hide thumbs Also See for F-150:

Owner's manual (657 pages)

,

Manual (135 pages)

,

Supplement manual (39 pages)

Table of Contents

Advertisement

Quick Links

See also: Workshop Manual , Owner's Manual

Child seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Child seat positioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Booster seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Installing child safety seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Child safety locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Fastening the safety belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Safety belt height adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Safety belt warning light and indicator chime . . . . . . . . . . . . . . . . . .44

Safety belt-minder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Child restraint and safety belt maintenance . . . . . . . . . . . . . . . . . . .47

Personal Safety System

Supplementary Restraints System

Driver and passenger airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Side airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

Safety canopy curtain airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

Crash sensors and airbag indicator . . . . . . . . . . . . . . . . . . . . . . . . .61

Airbag disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

Keys and Remote Control

General information on radio frequencies. . . . . . . . . . . . . . . . . . . . .63

Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

Replacing a lost key or remote control. . . . . . . . . . . . . . . . . . . . . . .68

2013 F-150 (f12)

Owners Guide gf, 1st Printing

USA (fus)

Table of Contents

1

9

17

37

48

49

63

Advertisement

Table of Contents

Need help?

Need help?

Do you have a question about the F-150 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ford F-150

Page 1: Table Of Contents
Keys ..........64 Replacing a lost key or remote control..... . .68 2013 F-150 (f12) Owners Guide gf, 1st Printing...
Page 2 Interior lamps ........93 2013 F-150 (f12)
Page 3: Table Of Contents
Rear window defroster ....... . .157 2013 F-150 (f12) Owners Guide gf, 1st Printing...
Page 4 Four wheel drive ........212 2013 F-150 (f12)
Page 5: Table Of Contents
Snowplowing ........281 2013 F-150 (f12)
Page 6 Changing a bulb ........333 2013 F-150 (f12)
Page 7: Table Of Contents
Accessories .........395 Ford Extended Service Plan Scheduled Maintenance Normal scheduled maintenance and log .
Page 8 Errors and omissions excepted. © Ford Motor Company 2012 2013 F-150 (f12) Owners Guide gf, 1st Printing...
Page 9: Introduction
Introduction ABOUT THIS MANUAL Thank you for choosing Ford. We recommend that you take some time to get to know your vehicle by reading this manual. The more that you know about it, the greater the safety and pleasure you will get from driving it.
Page 10 Do not open tether anchor control when hot Engine air Engine Engine filter coolant coolant temperature Engine oil Explosive gas Fan warning Fasten safety Front airbag Front fog belt lamps 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 11 In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may...
Page 12 Introduction Ford Motor Company, Ford of Canada, and service and repair facilities may access or share among them data for vehicle improvement purposes. For U.S. only (if equipped), if you choose to use the SYNC Vehicle Health Report, you consent that certain diagnostic information may also...
Page 13 Introduction they have access to the vehicle or the EDR. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority.
Page 14 See www.dtsc.ca.gov/hazardouswaste/perchlorate for more information. FORD CREDIT (U.S. ONLY) Ford Credit offers a full range of financing and lease plans to help you acquire your vehicle. If you have financed or leased your vehicle through Ford Credit, thank you for your business.
Page 15 Genuine Ford and Motorcraft replacement parts are the only replacement parts that benefit from a Ford Warranty. Damage caused to your vehicle as a result of the failure of non-Ford parts may not be covered by the Ford Warranty. For additional information, see the terms and conditions of the Ford Warranty.
Page 16 WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that you use extreme caution when using any device or feature that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle.
Page 17: Child Safety
NHTSA and other safety organizations, or are the minimum requirements of law. Ford recommends checking with a NHTSA Certified Child Passenger Safety Technician (CPST) and consulting your pediatrician to make sure your child seat is appropriate for your child, and is compatible with and properly installed in your vehicle.
Page 18 See Front Passenger Sensing System in the Supplementary Restraints System chapter for more information. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 19: Child Seats
WARNING: Never let a passenger hold a child on his or her lap while your vehicle is moving. The passenger cannot protect the child from injury in a collision, which may result in serious injury or death. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 20 Rear-facing Up to child seat 48 lb (21 kg) Forward- Up to facing 48 lb child seat (21 kg) Forward- Over facing 48 lb child seat (21 kg) 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 21: Booster Seats
• Is the shoulder belt centered on the shoulder and chest? • Can the child stay seated like this for the whole trip? Always use booster seats in conjunction with your vehicle lap and shoulder belt. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 22 • High back booster seats If, with a backless booster seat, you cannot find a seating position that adequately supports your child’s head, a high back booster seat would be a better choice. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 23 Do not introduce any item thicker than this under the booster seat. Check with the booster seat manufacturer’s instructions. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 24: Installing Child Safety Seats
• Place your vehicle seat back in the upright position. • Put the safety belt in the automatic locking mode. See Step 5. This vehicle does not require the use of a locking clip. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 25 3. While holding the shoulder and lap belt portions together, route the tongue through the child seat according to the child seat manufacturer’s instructions. Be sure the belt webbing is not twisted. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 26 Force the seat down with extra weight, e.g., by pressing down or kneeling on the child restraint while pulling up on the shoulder belt in order to force slack from the belt. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 27 There should be no more than 1 inch (2.5 cm) of movement for proper installation. Ford recommends checking with a NHTSA Certified Child Passenger Safety Technician (CPST) to make certain the child restraint is properly installed.
Page 28 Be sure that the belt webbing is not twisted. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 29 There should be no more than 1 inch (2.5 cm) of movement for proper installation. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 30 The shoulder belt must be snug to keep the lap belt tight during a collision. Ford recommends checking with a NHTSA Certified Child Passenger Safety Technician (CPST) to make certain the child restraint is properly installed. In Canada, check with your local St. John Ambulance office for referral to a CPST.
Page 31 The lower anchors at the center of the second row rear seat are spaced 25.7 inches (652 mm) apart. The standardized spacing for LATCH lower anchors is 11 inches (280 mm) center to center. A child seat with rigid 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 32 The rear seat in the SuperCab and SuperCrew has three straps along the top of the seat back that function as both routing loops for the tether straps and anchor loops. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 33 The tether strap anchors in your vehicle are in the following positions (shown from top view): • F-150 Regular Cab • F-150 SuperCrew and SuperCab Attach the tether strap only to the appropriate tether anchor as shown. The tether strap may not work properly if attached somewhere other than the correct tether anchor.
Page 34 4. Tighten the child safety seat tether strap according to the manufacturer’s instructions. If the safety seat is not anchored properly, the risk of a child being injured in a collision greatly increases. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 35 If using the driver’s side, pass the strap behind the shoulder belt mounting for the center seat. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 36: Child Safety Locks
If the safety seat is not anchored properly, the risk of a child being injured in a collision greatly increases. If your child restraint system is equipped with a tether strap, and the child restraint manufacturer recommends its use, Ford also recommends its use. CHILD SAFETY LOCKS...
Page 37: Safety Belts
3) Never use a single belt for more than one person. WARNING: When possible, all children 12 years old and under should be properly restrained in a rear seating position. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 38 In frontal collisions, the safety belt pretensioners can be activated alone or, if the collision is of sufficient severity, together with the front airbags. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 39: Fastening The Safety Belts
Before you can reach and latch a lap and shoulder belt having a cinch tongue into the buckle, you may have to lengthen the lap belt portion of 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 40 However, if you brake hard, turn hard, or if your vehicle receives an impact of 5 mph (8 km/h) or more, the safety belt will become locked and help reduce your forward movement. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 41 Failure to replace the belt and retractor assembly could increase the risk of injury in collisions. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 42 Allow the belt to retract. As the belt retracts, you will hear a clicking sound. This indicates the safety belt is now in the automatic locking mode. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 43: Safety Belt Height Adjustment
1. Pull on the center button and slide the height adjuster up or down. 2. Release the button and pull down on the height adjuster to make sure it is locked in place. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 44: Safety Belt Warning Light And Indicator Chime
If the Belt-Minder warnings have expired (warnings for approximately five minutes) for one occupant (driver or front passenger), the other occupant can still activate the Belt-Minder feature. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 45 25 seconds, repeating for (9.7 km/h) and more than approximately five minutes or until 1-2 minutes have elapsed since the safety belts are buckled. the ignition switch has been turned to on... 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 46 • This will disable the Belt-Minder feature for that seating position if it is currently enabled. • This will enable the Belt-Minder feature for that seating position if it is currently disabled. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 47: Child Restraint And Safety Belt Maintenance
Read the child restraint manufacturer’s instructions for additional inspection and maintenance information specific to the child restraint. Ford Motor Company recommends that all safety belt assemblies in use in vehicles involved in a collision be replaced. However, if the collision was minor and an authorized dealer finds that the belts do not show damage and continue to operate properly, they do not need to be replaced.
Page 48: Personal Safety System
During a crash, the restraints control module may activate the safety belt pretensioners and/or either one or both stages of the dual-stage airbag supplemental restraints based on crash severity and occupant conditions. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 49: Supplementary Restraints System
WARNING: If the airbag has deployed, the airbag will not function again and must be replaced immediately. If the airbag is not replaced, the unrepaired area will increase the risk of injury in a collision. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 50 The horn and lamps will turn off when: • the hazard control button is pressed • the panic button (if equipped) is pressed on the remote entry transmitter, or • your vehicle runs out of power. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 51: Driver And Passenger Airbags
(25 centimeters) between an occupant’s chest and the driver airbag module. To properly position yourself away from the airbag: • Move your seat to the rear as far as you can while still reaching the pedals comfortably. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 52 This provides lap and shoulder belt protection for all occupants, and airbag protection for the adults. A child or infant properly restrained in the center front seat should not incur risk of serious injury from the airbags. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 53 The system works with sensors that are part of the passenger’s seat and safety belt to detect the presence of a properly seated occupant and determine if the front passenger’s frontal airbag should be enabled or not. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 54 OFF lamp is lit, it is possible that the person isn’t sitting properly in the seat. If this happens: • Turn your vehicle off and ask the person to place the seat back in the full upright position. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 55 • Objects hanging off the seat back • Objects stowed in the seatback map pocket (if equipped) • Objects placed on the occupant’s lap • Cargo interference with the seat 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 56 If it is necessary to modify an advanced front airbag system to accommodate a person with disabilities, contact the Ford Customer Relationship Center at the phone number shown in the Customer Assistance section of this owner’s manual.
Page 57 This will allow the system to detect that person and enable the passenger’s frontal airbag. • If the indicator lamp remains lit even after this, the person should be advised to ride in the rear seat. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 58: Side Airbags
If it is necessary to modify an advanced front airbag system to accommodate a person with disabilities, contact the Ford Customer Relationship Center at the phone number shown in the Customer Assistance section of this owner’s manual.
Page 59 Side Airbag Technical Working Group. These recommended testing procedures help reduce the risk of injuries related to the deployment of side airbags. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 60: Safety Canopy Curtain Airbags
Safety Canopy will be activated, regardless of which seats are occupied. The Safety Canopy is designed to inflate between the side window area and occupants to further enhance protection provided in side impact collisions and rollover events. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 61: Crash Sensors And Airbag Indicator
The restraints control module also monitors the readiness of the above safety devices plus the crash and occupant sensors. The readiness of the safety system is indicated by a warning indicator light in the instrument 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 62: Airbag Disposal
AIRBAG DISPOSAL Contact your authorized dealer as soon as possible. Airbags MUST BE disposed of by qualified personnel. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 63: Keys And Remote Control
You can lock and unlock the doors with the key. Note: Make sure your vehicle is locked before leaving it unattended. Note: If you are in range, the remote control will operate if you press any button unintentionally. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 64: Remote Control
(1). 2. Carefully peel up the rubber gasket (2) from the transmitter if it does not come off with the battery cover. 3. Remove the old battery (3). 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 65 Continue to hold until a second tone is heard. 2. Within three seconds press the unlock button on the remote control. Repeat this procedure for each additional transmitter if desired. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 66 • the feature has been disabled • the hood is not closed • two remote vehicle starts have already been attempted within the last hour • the vehicle is not in P 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 67 The parking lamps will remain on and the vehicle will run for 5, 10, or 15 minutes, depending on the setting. Refer to the Information Displays chapter to select the duration of the remote start system. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 68: Replacing A Lost Key Or Remote Control
Your dealer can program the transmitters to your vehicle or you may be able to program them yourself. See the Security chapter for information on programming your transmitters. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 69: Mykey
• Vehicle speed warning of 45, 55 or 65 mph (75, 90, or 105 km/h). Visual warnings are displayed followed by an audible tone when the preselected vehicle speed is exceeded. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 70: Creating
The key is successfully programmed. Make sure you label it so you can distinguish it from the admin keys. To program optional settings for the key(s), see the Programming/Changing Optional Settings chapter. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 71: Clearing
1. Access the main menu and select Settings, then MyKey. 2. Scroll to Clear All and press the OK button. 3. Hold the OK button until ALL MYKEYS CLEARED is displayed. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 72: System Status
USING MYKEY WITH REMOTE START SYSTEMS MyKey is NOT compatible with non-Ford-approved aftermarket remote start systems. If you choose to install a remote start system please see your Ford authorized dealer for a Ford-approved remote start system. MYKEY TROUBLESHOOTING Condition Potential Causes •...
Page 73 (push button start). a MyKey • The MyKey programmed key is not being MyKey miles do not accumulate. used by the intended user. • The key system has been reset. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 74: Locks
Note: If any door is not closed, or if the hood is not closed on vehicles equipped with an anti-theft alarm or remote start, the horn will chirp twice and the lamps will not illuminate. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 75 3. Switch the ignition off. 4. Press the power door unlock button three times. 5. Switch the ignition on. The horn will chirp indicating the programming mode has been entered. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 76 It will turn off the interior lamps after 10 minutes if the dome lamp switch is left off. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 77: Securicode™ Keyless Entry Keypad
• Do not set a code that uses five of the same number. • Do not use five numbers in sequential order. • The factory set code will work even if you have set your own personal code. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 78 The anti-scan feature will turn off after: • one minute of keypad inactivity • pressing the unlock button on the remote control • the ignition is turned on. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 79 3. Insert the second key into the ignition and turn the ignition on. The factory set code will display for a few seconds. Note: The code may not display until after any other warning messages first display. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 80: Security
Security SECURILOCK PASSIVE ANTI-THEFT SYSTEM (IF EQUIPPED) Note: The system is not compatible with non-Ford aftermarket remote start systems. Use of these systems may result in vehicle starting problems and a loss of security protection. Note: Metallic objects, electronic devices or a second coded key on the same key chain may cause vehicle starting issues if they are too close to the key when starting the engine.
Page 81 Steps 1 through 8. Take your vehicle to your authorized dealer to have the new key programmed if you are still unsuccessful. Wait 20 seconds and then repeat this procedure from Step 1 to program an additional key. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 82: Anti-Theft Alarm
Note: If the driver’s door is unlocked with a key, a chime will sound when you open the door. You will have 12 seconds to disarm the alarm using any of the actions above, otherwise the alarm will trigger. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 83: Steering Wheel
WARNING: Do not adjust the steering wheel when your vehicle is moving. Note: Make sure that you are sitting in the correct position. Refer to Sitting in the Correct Position in the Seats chapter. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 84: Steering Wheel Controls
This feature can be switched on or off in the information display. AUDIO CONTROL (IF EQUIPPED) Type 1 A. Volume up B. Seek up or next C. Media D. Seek down or previous E. Volume down 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 85 • tune the radio to the next station up or down the frequency band • seek through a track. VOICE CONTROL (IF EQUIPPED) A. Voice recognition B. Phone mode C. Confirm selection See the SYNC or MyFord Touch chapter. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 86 Steering Wheel CRUISE CONTROL (IF EQUIPPED) See the Cruise Control chapter. CNCL INFORMATION DISPLAY CONTROL Type 1 INFO CNCL SETUP INFO RESET RESET SETUP Type 2 See the Information Displays chapter. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 87: Pedals
B. Closer The pedal positions are saved and recalled with the memory feature (if equipped). Refer to the Seats chapter. The pedals should only be adjusted when the vehicle is parked. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 88: Wipers And Washers
This feature can be turned on or off using the information display. Keep the outside of the windshield clean, especially the area around the interior mirror where the sensor is located, or sensor performance may be affected. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 89: Windshield Washers
10 seconds. A wipe will occur a few seconds after washing to clear any remaining washer fluid. This feature can be turned on and off in the information display. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 90: Lighting
Pull the lever fully again switch the high beams off. Headlamp Flasher Pull the lever toward you slightly and release it to flash the headlamps. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 91: Autolamps
• Press and hold the right of the control to the full on position to activate the “dome on” feature. This will turn on the interior courtesy lights. • Press and hold the left of the control to turn off the interior courtesy lights. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 92: Daytime Running Lamps
• To operate the right turn signal, push the lever up until it stops and release. • To manually cancel turn signal operation, push the lever again in either direction. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 93: Interior Lamps
• ON: The dome light will stay on. • DOOR or middle position: The dome light will only come on if a door is opened. • OFF: The lamp will not come on at all. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 94 • If the control is moved to the left position, the lamp will stay on. • If the control is moved to the right position, the lamp will not come on at all. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 95: Windows And Mirrors
2. Hold the switch until the glass reaches the stall position and continue to hold for two seconds. 3. Press the switch down and operate the window to the full down position. One-touch up will now be functional. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 96 WARNING: Do not leave children unattended in the vehicle and do not let children play with the power sliding back window. They may seriously injure themselves. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 97: Exterior Mirrors
1. Select the mirror you want to adjust. 2. Move the control in the direction you want to tilt the mirror. 3. Return the control to the center position to lock mirrors in place. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 98 You can save and recall the mirror positions through the memory function. See Memory function in the Seats chapter. Auto-Dimming Feature (If Equipped) The driver’s side exterior mirror will automatically dim when the interior auto-dimming mirror is activated. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 99 When the mirrors are fully extended, it is normal to hear the telescoping motors running as long as you continue to hold the switch. To telescope the mirrors in, press and hold the right side of the switch. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 100 (B). The vehicle will transition to your peripheral field of view as it leaves the blind spot mirror (C). 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 101: Interior Mirrors
SUN VISORS Rotate the visor toward the side window and extend it rearward for extra sunlight coverage. Illuminated Visor Vanity Mirror (If Equipped) Lift the cover to switch on the lamp. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 102: Moonroof
Venting the Moonroof Press and release the TILT control to move the moonroof to the vent position. Pull and hold the TILT control to close the moonroof. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 103: Instrument Cluster
If the needle falls below the normal range, stop the vehicle, turn off the engine and check the engine oil level. Add oil if needed. If the oil level is correct, have your vehicle checked at your authorized dealer. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 104 Located in the bottom of the information display Registers the accumulated distance your vehicle has travelled. Trip Computer See Trip A/B in Information Displays. Vehicle Settings and Personalization See Information Displays. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 105: Warning Lamps And Indicators
Have the vehicle checked by your authorized dealer as soon as possible. Driving extended distances with the parking brake engaged can cause brake failure and the risk of personal injury. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 106 Check the engine oil level. Note: Do not resume your journey if it illuminates despite the level being correct. Have the system checked by your authorized dealer. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 107 Powertrain Malfunction/Reduced Power/Electronic Throttle Control Illuminates when a powertrain fault has been detected. Contact your authorized dealer as soon as possible. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 108 Illuminates when the Tow/Haul feature has been activated. Refer to the Transmission chapter for transmission function and operation. If the light flashes steadily, have the system serviced immediately, damage to the transmission could occur. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 109: Audible Warnings And Indicators
Sounds when you have left the parking brake on and drive your vehicle. If the warning chime remains on after you have released the parking brake, have the system checked by your authorized dealer immediately. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 110: Information Displays
GENERAL INFORMATION WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device or feature that may take their focus off the road. Your primary responsibility is the safe operation of the vehicle.
Page 111 Press and hold RESET to reset the timer. • TBC GAIN (if equipped): Displays the level of trailer brake gain or if the trailer is not connected. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 112 CREATE MYKEY / MYKEY SETUP / CLEAR MYKEY RESET FOR press the On or Off REMOTE START RESET button 5, 10, 15 minutes (if equipped) Climate On or Off Quiet On or Off 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 113 • COURTESY WIPE: This feature allows for an extra swipe of the wipers after a wipe/wash cycle. • EASY ENTRY / EXIT: This feature automatically moves the driver’s seat rearward and adjusts the steering wheel for easy exit/entry from the vehicle. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 114 • Press the right arrow button to enter a sub-menu. • Press the left arrow button to exit a menu. • Press the OK button to choose and confirm a setting/messages. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 115 OK to set the mode. 2–speed Auto Displays power distribution between the front and rear wheels. More power to either front or rear wheels will be displayed by more area filled in. Blank 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 116 10, 30 minutes of driving. duration time can be changed. • Instant MPG: shows instantaneous fuel usage. • Miles to empty: shows the approximate distance the vehicle can travel before running out of fuel. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 117 4X4 System Info AdvanceTrac 2–speed Auto 4X4 ELD (Electronic Locking Differential) Hill Descent Control Off-Road Mode Off-Road Camera Press OK to Enable / Camera Disabled / Disable (SVT Enabled Raptor) 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 118 Press the left arrow to go back and change a previously selected character. When finished with the new trailer name, press OK to accept the new trailer name. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 119 OK to accept the change. Reset Trailer Use the up/down buttons Mileage / to select a trailer, then Kilometers press and hold OK to reset (if equipped) the trailer mileage (kilometers). 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 120 On/Off Guidelines Fixed/Off Zoom Levels (This Off, Level 1–3 will only be shown when Reverse (R) is selected. Trailer Brake Electric or Elect. Over Hydraulic Mode Trailer Sway On/Off Control 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 121 Front Defrost Auto/Off Control Rear Defrost Driver Seat Passenger Seat Heater-A/C Auto/ Last Setting Duration 5, 10 or 15 minutes, Off Quiet Start On/Off Wipers Courtesy Wipe On/Off Rain Sensing On/Off wipers 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 122 In this mode, you can view different vehicle system information and perform a system check. Information MyKey Admin Keys (Number of admin keys) MyKeys (Number of MyKeys programmed) MyKey Miles (km) (Distance traveled using a programmed MyKey) 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 123: Information Messages
Contact your authorized dealer as soon as possible. ADVANCETRAC Displayed when the AdvanceTrac system has been disabled by the driver. Displayed when the AdvanceTrac system has ADVANCETRAC ON been enabled by the driver. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 124 12 second chime expires. SECURITY SYSTEM Displayed when the security system has detected a fault. See your authorized dealer FAULT for service. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 125 If the warning stays on or continues SYSTEM to come on, contact your authorized dealer as soon as possible. PARK BRAKE Displayed when the parking brake is set and the vehicle is in motion. ENGAGED 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 126 Displayed when the electronic locking LOCKING differential request the accelerator to be DIFFERENTIAL released in order to engage. RELEASE ACCELERATOR PEDAL Displays as a reminder to shift into park. SHIFT TO PARK 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 127 See your authorized dealer. The power steering system has disabled power POWER STEERING steering assist due to a system error. See your ASSIST FAULT authorized dealer. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 128 (Reverse) and the park aid is disabled. REAR PARK AID Displayed when the rear park aid is disabled by the driver. REAR PARK AID ON Displayed when the rear park aid is enabled. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 129 SYSTEM COOLING HILL DESCENT Displayed when the hill descent control switch is turned on. CONTROL READY CAMERA Displayed when the front camera is not operating properly. MALFUNCTION 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 130 Disregard this status if your vehicle is not equipped with a factory installed trailer brake controller. This message may appear when an aftermarket TBC is used even when the trailer is connected. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 131 Displayed when 2WD is selected while the vehicle is operating in 4X4 LOW. SLOW TO 3 MPH May display when shifting to or from 4X4 SHIFT DELAYED LOW. PULL FORWARD 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 132 Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Note: CDs with homemade paper (adhesive) labels should not be inserted into the CD player as the label may peel and cause the CD to become jammed.
Page 133 (all .mp3 files are played, regardless of being in a specific folder). In folder mode, the system only plays the .mp3 files in the current folder. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 134: Audio System Am/Fm Stereo
AUDIO WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that you use extreme caution when using any device or feature that may take your focus off the road. Your primary responsibility is the safe operation of the vehicle.
Page 135: Am/Fm Stereo With Cd/Mp3
SIRIUS WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that you use extreme caution when using any device or feature that may take your focus off the road. Your primary responsibility is the safe operation of the vehicle.
Page 136 • All Seat Mode/Driver Seat Mode optimizes sound quality for the chosen seating position. • DSP Mode (if equipped) allows you to choose between STEREO SURROUND mode and STEREO mode. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 137 • In SIRIUS mode, switch between turning the most recently selected satellite radio category on or off. • In MP3 mode, use the SEEK buttons to access the previous or next folder. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 138 SEEK buttons to view the additional display text. U. LOAD: This control is not operational. To load a CD, insert the disc, label side up, into the CD slot. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 139: Myford System
TUNE WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that you use extreme caution when using any device or feature that may take your focus off the road. Your primary responsibility is the safe operation of the vehicle.
Page 140 Menu structure later in this section. M. PHONE: Access SYNC phone features. N. AUX: Access your auxiliary input jack. See Auxiliary input jack later in this chapter. O. SIRIUS: Access SIRIUS satellite radio features. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 141 Alerts Select to enable/disable an alert for a song, artist or team. The system alerts you when the selection is playing on another channel. Save up to 20 alerts. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 142 Display Settings Dimming Select to change display brightness. Select to display the language in English, Language French or Spanish. Temp. Setting Select to display the outside temperature in Fahrenheit or Celsius 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 143 MENU WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that you use extreme caution when using any device or feature that may take your focus off the road. Your primary responsibility is the safe operation of the vehicle.
Page 144: Auxiliary Input Jack
AUXILIARY INPUT JACK WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that you use extreme caution when using any device or feature that may take your focus off the road. Your primary responsibility is the safe operation of the vehicle.
Page 145: Usb Port
USB PORT (IF EQUIPPED) WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that you use extreme caution when using any device or feature that may take your focus off the road. Your primary responsibility is the safe operation of the vehicle.
Page 146: Satellite Radio Information
Satellite radio signal Your display may show ACQUIRING . . . to interference indicate the interference and the audio system may mute. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 147 Note: SIRIUS reserves the unrestricted right to change, rearrange, add or delete programming including canceling, moving or adding particular channels, and its prices, at any time, with or without notice to you. Ford Motor Company shall not be responsible for any such programming changes.
Page 148 No Channels Available All the channels in the Using the channel selected category are guide, unlock or skipped or locked. unskip the channels. Subscription Updated SIRIUS has updated No action required. the channels available for your vehicle. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 149: Climate Control
Distributes air through the windshield defroster vents, demister vents and floor vents. Distributes air through the instrument panel vents. Distributes air through the instrument panel vents, floor vents, and demister vents. Distributes air through the floor vents. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 150 I. Power: Press to turn the system on and off. When the system is off, outside air is prevented from entering the vehicle. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 151 Distributes air through the windshield defroster vents, demister vents and floor vents. Distributes air through the instrument panel vents. Distributes air through the instrument panel vents, floor vents, and demister vents. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 152 Turn to select the desired temperature. I. Power: Press to turn the system on and off. When the system is off, outside air is prevented from entering the vehicle. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 153: Dual Automatic Temperature Control
D. Air distribution control: Press to set the air distribution to a position listed below: Distributes air through the windshield defroster vents, demister vents and floor vents. Distributes air through the instrument panel vents. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 154 K. Fan speed control - : Press to decrease the volume of air circulated in your vehicle. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 155 5. Direct the outer instrument panel vents toward the side windows. 6. To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 156 5. Direct the outer instrument panel vents toward the side windows. 6. To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 157: Rear Window Defroster
• heated seats • cooled seats • heated mirrors • heated rear window. You can adjust the settings using the information display controls. See the Information Displays chapter. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 158 These devices (if available, and selected to AUTO in the information displays) may also be switched on during remote start. Heated devices are typically switched on during cold weather, and cooled devices during hot weather. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 159: Seats
• Position the shoulder strap of the safety belt over the center of your shoulder and position the lap strap tightly across your hips. Make sure that your driving position is comfortable and that you can maintain full control of your vehicle. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 160: Head Restraints
For occupants of extremely tall stature, adjust the head restraint to its full up position. Front Seat Head Restraints Rear Seat Outboard Head Restraints 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 161 Fold Note: The rear seat outboard head restraints may fold forward for improved visibility. 1. Press and hold button E. 2. Pull it back up to reset. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 162 1. Adjust the seat back to an upright driving/riding position. 2. Tilt the head restraint forward by gently pulling the top of the head restraint. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 163: Manual Seats
Instead, continue tilting it forward until the head restraint releases to the upright position. MANUAL SEATS Moving the Seats Backward and Forward Recline Adjustment Manual Lumbar Turn the control to adjust your support. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 164: Power Seats
Power Lumbar (if equipped) The control is located on the outboard side of the seat. Press the forward or rearward side of the control for more or less support. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 165: Memory Function
The memory positions are also recalled when you press your remote entry transmitter unlock button (if the transmitter is programmed to a memory position) or, when you enter a valid personal entry code that is 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 166: Rear Seats
The rear seat has a split 60/40 cushion. Each seat cushion can be flipped up into a vertical storage position. 1. Pull the control to release the seat cushion. 2. Rotate the seat cushion up until it locks into the vertical storage position. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 167 Note: The handle on the bottom of the seat cushion does not need to be pulled to lift the seat cushion to the storage position. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 168 • Operate the seat heater if water or any other liquid is spilled on the seat. Allow the seat to dry thoroughly. The rear seat heat controls are located on the rear door armrest. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 169 The indicator light will illuminate when the heated seats have been activated. REAR SEAT ARMREST (IF EQUIPPED) Pull the strap located on the center seat back to access the armrest and cupholders. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 170: Heated Seats
• Operate the heated seats unless the engine is running. Doing so could drain your vehicle’s battery. Press to cycle through the various heat settings and off. Warmer settings are indicated by more indicator lights. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 171: Heated And Cooled Seats
If the engine falls below 350 rpm while the cooled seats are on, the feature will turn itself off and will need to be reactivated. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 172 2. Push in on the center of the outside edge of the filter and rotate clockwise into the housing until it clips into position. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 173 (if equipped) To gain access to the storage compartment (if equipped) under the center seat cushion, lift the latch to open the lid. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 174: Universal Garage Door Opener (If Equipped)
April 1, 1982). Note: Before you begin the programming process, park your vehicle in front of the garage door opener motor or other device you want to program. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 175 Additional system information can be found on-line at www.learcar2U.com or by calling the toll-free help line on 1-866-572-2728. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 176 The LED lamp above the selected button will illuminate to confirm that the system is responding to the button command. To program another rolling code device, repeat Steps 1 through 6, substituting a different function button in Step 4. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 177 5–55 seconds before observing movement of the garage door. 7. When the garage door moves, release the button within one second. When the button is released, the LED lamp will flash slowly. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 178 U.S. Federal Safety Standards (this includes any garage door opener manufactured before April 1, 1982). Note: Make sure you keep the original remote control transmitter for use in other vehicles as well as for future system programming. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 179: Homelink Wireless Control System
3. Press and hold both the button on the sun visor you want to program and the hand-held transmitter button until the indicator light on the sun visor changes from flashing slowly to rapidly, then release. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 180 20 seconds until the indicator lights above the buttons flash rapidly. 2. When the indicator lights flash, release the buttons. The codes for all buttons are erased. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 181 4. Press and hold both the programmed Genie button on the hand-held transmitter and the button on the sun visor you want to program. The indicator light on the sun visor will flash rapidly when the programming is successful. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 182 5. Press and hold the previously programmed button on the sun visor for 2 seconds. Repeat this step up to 3 times until the garage door moves. Programming is now complete. At this point, programming is complete. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 183 Changes or modifications to your device not expressly approved by the party responsible for compliance can void the user’s authority to operate the equipment. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 184: Auxiliary Power Points
• on the rear of the first-row center seat (if equipped) • inside the center console storage compartment (if equipped) • on the rear of the center console (if equipped). 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 185 • Measuring devices, which process precise data, such as medical equipment, measuring equipment, etc. • Other appliances requiring an extremely stable power supply: microcomputer-controlled electric blankets, touch sensor lamps, etc. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 186 • on — power point is ready to supply power • off — power point power supply is off; ignition is not on • blinking — power point is in fault mode 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 187: Storage Compartments
• 110 volt AC power point outlet on the rear of the console • Front and rear cupholders • Rear passenger air registers 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 188: Starting And Stopping The Engine
When starting your vehicle, avoid pressing the accelerator pedal before and during operation. Only use the accelerator pedal when you have difficulty starting the engine. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 189: Ignition Switch
• Turn the key to on without turning the key to start. Some warning lights briefly illuminate. Note: Do not touch the accelerator pedal. 1. Fully press the brake pedal. 2. Select position P or N. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 190 Your vehicle is designed to operate on E-85 ethanol alone, unleaded gasoline alone, or any mixture of the two. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 191: Engine Block Heater
The equipment includes a heater element (installed in the engine block) and a wire harness. You can connect the system to a grounded 120 volt A/C electrical source. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 192 It achieves maximum temperature after approximately three hours of operation. Using the heater longer than three hours does not improve system performance and unnecessarily uses electricity. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 193: Fuel And Refueling
• Avoid inhaling fuel vapors. Inhaling too much fuel vapor of any kind can lead to eye and respiratory tract irritation. In severe cases, excessive or prolonged breathing of fuel vapor can cause serious illness and permanent injury. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 194: Fuel Quality
If you exclusively use E85 fuel, it is recommended to fill the fuel tank with regular unleaded gasoline at each scheduled oil change. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 195 • The service engine soon indicator may come on. For more information on the service engine soon indicator, refer to the Instrument Cluster chapter. See Settings in the Instrument Cluster chapter for information on calculating DTE (Distance to empty). 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 196 Do not use aftermarket funnels; they will not work with the Easy Fuel system and can damage it. The included funnel has been specially designed to work safely with your vehicle. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 197: Refueling
3. Insert the fuel plug key (if equipped) into the locking plug and turn it counterclockwise to unlock it. 4. Slowly insert the fuel filler nozzle fully into the fuel system, and leave the nozzle fully inserted until you are done pumping. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 198: Fuel Consumption
2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 199 This provides an accurate estimate of the vehicle’s fuel economy under current driving conditions. Additionally, keeping records during summer and winter show how temperature impacts fuel economy. In general, lower temperatures mean lower fuel economy. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 200 Information are essential to the life and performance of your vehicle and to its emissions system. If other than Ford, Motorcraft or Ford-authorized parts are used for maintenance replacements or for service of components affecting emission control, such non-Ford parts should be equivalent to genuine Ford Motor Company parts in performance and durability.
Page 201 OBD-II may not have symptoms that are apparent, continued driving with the service engine soon indicator on can result in increased emissions, lower fuel economy, reduced engine and transmission smoothness, and lead to more costly repairs. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 202 If the vehicle is still not ready for I/M testing, the above driving cycle will have to be repeated. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 203: Transmission
Hold the brake pedal down while in this position. D (Drive) with Tow/Haul Off The normal driving position for the best fuel economy. Transmission operates in gears one through six. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 204 The amount of downshift braking provided will vary based upon the amount the brake pedal is pressed. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 205 Moving the gearshift lever from drive position D (Drive) to M (Manual) gives you the ability to manually change gears. The current gear will be displayed in the instrument cluster. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 206 In order to prevent the engine from running at too low an RPM, which may cause it to stall, the SST will still automatically make some downshifts if it has determined that you have not downshifted in time. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 207 To avoid unwanted vehicle movement, always fully set the parking brake prior to doing this procedure. Use wheel chocks if appropriate. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 208 5. Remove the top half of the shroud. 6. Remove the three fasteners under the column that secure the lower shroud half to the column. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 209 Refer to the Fuses chapter for more information. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 210 If your vehicle gets stuck in mud or snow, it may be rocked out by shifting between forward and reverse gears, stopping between shifts in a steady pattern. Press lightly on the accelerator in each gear. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 211: Hill Start Assist
This hold time will automatically be extended if you are in the process of driving off. 4. Drive off in the normal manner. The brakes will be released automatically. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 212: Four-Wheel Drive (If Equipped)
(2-Speed Automatic 4WD vehicles only) 4X4 HIGH - Continuously illuminates when 4H is selected. 4X4 LOW - Continuously illuminates when 4L is selected. CHECK 4X4 - Displays when a 4X4 fault is present. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 213 Note: Do not use 4L (4X4 LOW) on dry, hard surfaced roads. Doing so can produce excessive noise and increased tire wear. 4L (4X4 LOW) is only intended for consistently slippery or loose surfaces. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 214 Note: Some noise may be heard as the system shifts or engages; this is normal. Note: 4x4 low mode is not intended for use on dry pavement. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 215 4L (4X4 LOW) will not engage while the vehicle is moving above 3 mph (5 km/h); this is normal and should be no reason for concern. Refer to Shifting to/from 4L (4X4 LOW) for proper operation. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 216 If any of the above shift conditions are not met, the shift will not occur and the message center will display information guiding the driver through the proper range of shifting procedures. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 217 If the required conditions for ELD activation are not met when the switch is actuated, the instrument cluster will display the appropriate information guiding the driver through the proper ELD activation process. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 218 Avoid sharp turns, excessive speed and abrupt maneuvers in these vehicles. Failure to drive cautiously could result in an increased risk of loss of vehicle control, vehicle rollover, personal injury and death. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 219 4WD (when you select a 4WD mode) uses all four wheels to power the vehicle. This increases traction, enabling you to drive over terrain and road conditions that a conventional two-wheel drive vehicle cannot. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 220 Remember, your safety and the safety of others should be your primary concern. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 221 Remember, you may be able to back out the way you came if you proceed with caution. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 222 Ford Motor Company joins the U.S. Forest Service and the Bureau of Land Management in encouraging you to help preserve our national forest and other public and private lands by treading lightly.
Page 223 The front wheels have to be turning in order to steer the vehicle. If your vehicle has anti-lock brakes, apply the brakes steadily. Do not pump the brakes. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 224 WARNING: Always set the parking brake fully and make sure the gearshift is latched in P (Park). Turn the ignition to the off position and remove the key whenever you leave your vehicle. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 225 Ford Motor Company recommends that caution be used with any vehicle equipped with a high load or device (such as ladder racks or pickup box cover).
Page 226: Brakes
Brake assist detects when you brake heavily by measuring the rate at which you press the brake pedal. It provides maximum braking efficiency as long as you press the pedal. Brake assist can reduce stopping distances in critical situations. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 227: Hints On Driving With Anti-Lock Brakes
The BRAKE warning lamp will illuminate and will remain illuminated until the parking brake is released. To release, pull the brake release lever located at the lower left side of the instrument panel. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 228: Traction Control
The stability control off light temporarily illuminates on engine start-up and stays on when the traction control system is turned off or if a problem occurs in the stability system. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 229 The traction control system (TCS) helps avoid drive wheel spin and loss of traction. For details on TCS operation, see the Traction Control chapter. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 230: Stability Control Advancetrac
See the Traction Control chapter. AdvanceTrac with RSC Features Stability Button control functions OFF light Illuminated Default at during bulb Enabled Enabled Enabled start-up check Button pressed Illuminated Enabled Enabled Disabled momentarily solid 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 231 Control switch is not pressed. Stability control light turned on when 4WD low locked transfer case mode selected. Engine traction control and two-wheel spin brake traction control functions are disabled. Single wheel spin traction control is always enabled. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 232: Terrain Response
Whether accelerating or decelerating, once the desired descent speed is reached, remove your feet from the pedals and the chosen vehicle speed will be maintained. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 233 FOR HILL CNTRL, SELECT GEAR will be displayed in the message center for several seconds. Refer to Warning lamps and indicators in the Instrument Cluster chapter for hill descent control messages. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 234: Parking Aids
RSS will be disabled. When the vehicle is shifted into reverse, the message center display will remain in the Rear Park Aid Off selection. For more information on the TBC, refer to the Towing chapter. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 235 • and moving at a speed of less than 3 mph (5 km/h) and a moving object is approaching the rear of the vehicle at a speed of less than 3 mph (5 km/h). 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 236: Rear-View Camera System
1. Fixed guidelines: Show the actual path the vehicle is moving in while reversing in a straight line, which can be helpful when backing into a parking space or aligning the vehicle with another object behind the vehicle. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 237 The guidelines options are FIXED and OFF. If the vehicle is equipped with a rearview mirror display and a standard instrument cluster, the fixed guidelines will always remain on. There is no option to turn the fixed guidelines off. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 238 Refer to Adjusting the Rear View Camera Settings above on how to enable or disable the visual park alert feature. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 239 Selectable settings for this feature are ON and OFF. The default setting for the rear camera delay is OFF. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 240: Cruise Control
Setting a Speed 1. Accelerate to the desired speed. 2. Press and release SET +. 3. Take your foot off the accelerator pedal. The indicator will change colors in the instrument cluster. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 241 Press and release RSM. Switching Cruise Control Off Note: You will erase the set speed if you switch the system off. Press and release OFF or switch the ignition off. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 242: Driving Aids
Extreme continuous steering may increase the effort it takes for you to steer. This occurs to prevent internal overheating and 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 243 • loose or worn suspension components • loose or worn steering components • improper vehicle alignment A high crown in the road or high crosswinds may also make the steering seem to wander/pull. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 244: Load Carrying
Tire Label in order to determine the new payload. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 245 Once you have reached the maximum payload of your vehicle, do not add more cargo, even if there is space available. Overloading or improperly loading your vehicle can contribute to loss of vehicle control and vehicle rollover. Example only: 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 246 GVWR (Gross Vehicle Weight Rating) – is the maximum allowable weight of the fully loaded vehicle (including all options, equipment, passengers and cargo). The GVWR is shown on the Safety Compliance Certification Label. The label shall be affixed to 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 247 WARNING: Exceeding the Safety Compliance Certification Label vehicle weight rating limits could result in substandard vehicle handling or performance, engine, transmission and/or structural damage, serious damage to the vehicle, loss of control and personal injury. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 248 0.15 and 0.25 to obtain a proper king pin load range of 1,725 to 2,875 lb. (782 to 1,304 kg) WARNING: Do not exceed the GVWR or the GAWR specified on the Safety Compliance Certification Label. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 249 In metric units, the calculation would be: 635 kg - (5 x 99 kg) - (5 x 13.5 kg) = 635 - 495 - 67.5 = 72.5 kg. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 250 Your vehicle can haul more cargo and people than most passenger cars. Depending upon the type and placement of the load, hauling cargo and people may raise the center of gravity of the vehicle. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 251: Tailgate
3. Partially lower the tailgate and carefully feed the tailgate harness up through the gap between the pickup box and the bumper. Place the tailgate harness out of the way under the pickup box. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 252 • Keep the step clean from contamination before use (e.g. snow, mud). • Keep the step load (you plus the load) below 350 pounds (159 kilograms). • Never drive with the step deployed. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 253 • Replace the slip resistance tape (serviceable item) if worn out. • Replace the handle molding (serviceable item) if damaged. • Do not tow with the grab handle or step frame. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 254 To stow the box side step, push the box side step under the truck with your foot until it is fully latched. Do not push on the button while stowing the box side step. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 255 To open the bed extender into tailgate mode: 1. Pull the locking pin toward the center of the vehicle. 2. Open the latches to release the panels. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 256 6. Reverse steps for storage of the bed extender. To open the bed extender into grocery mode, follow Steps 1–4 by rotating the panels away from the tailgate. Close the tailgate. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 257 The running boards automatically move when the doors are opened to assist entering and exiting the vehicle. Automatic Power Deploy The running boards will extend down and out when the doors are opened. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 258 Bounce-Back If an object is in the way of the moving running board, it will reverse direction and move to the end of travel. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 259: Towing
Load limit in the Load Carrying chapter and in the RV & Trailer Towing Guide, available at your authorized dealer. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 260 The maximum trailer weights listed may be limited to this specified weight, as the vehicle’s electrical system may not include the wiring connector needed to activate electric trailer brakes. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 261 2WD 126” wheelbase 3.7L 3.55 10400 (4717) 3.73 10900 (4944) 5.0L 3.31 12900 (5851) 3.55 13300 (6033) 4WD 126” wheelbase 3.7L 3.73 10900 (4944) 5.0L 3.55 12900 (5851) 3.73 13300 (6033) 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 262 Payload Package) SuperCab Engine Rear axle ratio Maximum GCWR - lb (kg) 4WD 133” wheelbase 6.2L (SVT Raptor) 4.10 12500 (5670) 2WD 145” wheelbase 3.5L 3.15 14000 (6350) 3.55 15200 (6895) 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 263 3.5L (MAX Trailer Tow 3.73 17100 (7756) Package) 5.0L 3.31 13500 (6123) 3.55 14900 (6759) 5.0L (Heavy Duty 3.73 15300 (6940) Payload Package) 4WD 163” wheelbase 3.5L 3.31 14000 (6350) 3.55/3.73 15400 (6985) 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 264 6.2L (MAX Trailer Tow 3.73 17100 (7756) Package) 4WD 145” wheelbase 3.5L (Limited) 3.73 13400 (6078) 3.5L 3.31 14000 (6350) 3.55/3.73 15500 (7031) 3.5L (MAX Trailer Tow 3.73/4.10 17100 (7756) Package) 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 265 3.5L 3.31 14000 (6350) 3.55/3.73 15500 (7031) 3.5L (MAX Trailer Tow 3.73/4.10 17100 (7756) Package) 3.5L (Heavy Duty 3.73 17100 (7756) Payload Package) 5.0L 3.55 13500 (6123) 3.73 15100 (6849) 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 266 Doing so will defeat the function of the weight-distributing hitch, which may cause unpredictable handling, and could result in serious personal injury. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 267 The braking system of the tow vehicle is rated for operation at the GVWR not GCWR. Separate functioning brake systems are required for safe control of towed vehicles and trailers weighing more than 1500 pounds (680 kilograms) when loaded. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 268: Trailer Brake Controller-Integrated
Towing Integrated Trailer Brake Controller (If Equipped) WARNING: The Ford TBC has only been verified to be compatible with trailers having electric-actuated drum brakes (one to four axles) and some electic-over-hydrualic (EOH) brakes. It will not activate hydraulic surge-style trailer brakes. It is the...
Page 269 Locked trailer wheels may lead to trailer instability. 1. Make sure the trailer brakes are in good working condition, functioning normally and properly adjusted. See your trailer dealer if necessary. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 270 Note: Your TBC can be diagnosed by your authorized dealer to determine exactly which trailer fault has occurred. However, if the fault is with the trailer this diagnosis is not covered under your Ford warranty. TRAILER BRAKE MODULE FAULT: Displays in response to faults sensed by the TBC (accompanied by a single chime).
Page 271 • The TBC is only a factory-installed or dealer-installed item. Ford is not responsible for warranty or performance of the TBC due to misuse or customer installation.
Page 272 AdvanceTrac™ with RSC activations during typical cornering maneuvers with a heavily loaded trailer; this is normal. Cornering at a slower speed while towing reduces the tendency of the AdvanceTrac™ stability enhancement system to activate. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 273 Replace the rear axle lubricant anytime the rear axle has been submerged in water. Water may have contaminated the rear axle lubricant, which is not normally checked or changed unless a leak is suspected or other axle repair is required. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 274: Wrecker Towing
It is recommended that your vehicle be towed with a wheel lift and dollies or flatbed equipment. Do not tow with a slingbelt. Ford Motor Company has not approved a slingbelt towing procedure. If the vehicle is towed incorrectly, or by any other means, vehicle damage may occur.
Page 275: Recreational Towing
1. Turn the ignition to the on position. Do not start the engine. 2. Press and hold the brake pedal. 3. Shift the 4WD switch to 2H. 4. Shift the transmission to position N. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 276 Note: Four-wheel-down towing status can be checked at any time by opening the driver’s door or turning the ignition to the accessory or on position and verifying the NEUTRAL TOW ENABLED message is displayed in the cluster. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 277 D to make sure the transfer case is out of N (Neutral). 7. If the transfer case will not successfully shift out of position N, set the parking brake until the vehicle can be serviced. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 278: Driving Hints
• Use the air conditioner or front defroster. • Use the speed control in hilly terrain. • Rest your foot on the brake pedal while driving. • Drive a heavily loaded vehicle or tow a trailer. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 279 Once through the water, always try the brakes. Wet brakes do not stop the vehicle as effectively as dry brakes. Drying can be improved by moving your vehicle slowly while applying light pressure on the brake pedal. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 280: Floor Mats
• Always make sure that objects cannot fall into the driver footwell while the vehicle is moving. Objects that are loose can become trapped under the pedals causing a loss of vehicle control. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 281: Snowplowing
For F-150 snowplow applications, Ford recommends the F-150 4x4 Regular Cab, SuperCrew Cab and SuperCab equipped with the 6.2 liter engine. Note: The F-150 3.5 liter, and F–150 5.0 liter are not recommended for snowplowing. Installing the Snowplow Weight limits and guidelines for selecting and installing the snowplow can be found in the Ford Truck Body Builders Layout Book, snowplow section, found at www.fleet.ford.com/truckbbas.
Page 282 Note: Do not use your vehicle for snow removal until it has been driven at least 500 miles (800 kilometers). Ford recommends vehicle speed does not exceed 45 mph (72 km/h) when snowplowing. The attached snowplow blade restricts airflow to the radiator, and may...
Page 283 WARNING: Do not attempt to service, repair, or modify the air bag supplemental restraint system (SRS) or its fuses. See your Ford or Lincoln Mercury dealer. WARNING: Additional equipment such as snowplow equipment may effect the performance of the air bag sensors increasing the risk of injury.
Page 284 A Ford Wiring Kit (XXXX-XXXXX-XX) is available to relocated the OAT sensor to the plow blade frame below the headlamp to provide accurate outside air temperature readings.
Page 285: Roadside Emergencies
ROADSIDE ASSISTANCE Vehicles Sold in the U.S. : Getting Roadside Assistance To fully assist you should you have a vehicle concern, Ford Motor Company offers a complimentary roadside assistance program. This program is separate from the New Vehicle Limited Warranty. The service is available: •...
Page 286: Hazard Warning Flashers
Roadside Emergencies If you need to arrange roadside assistance for yourself, Ford Motor Company will reimburse a reasonable amount for towing to the nearest dealership within 35 miles (56 kilometers). To obtain reimbursement information, U.S. Ford vehicle customers call 1-800-241-3673. Customers will be asked to submit their original receipts.
Page 287: Jump-Starting The Vehicle
Ensure that vent caps are tight and level. 3. Turn the heater fan on in both vehicles to protect from any electrical surges. Turn all other accessories off. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 288 Ensure that the cables are clear of fan blades, belts, moving parts of both engines, or any fuel delivery system parts. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 289 After the disabled vehicle has been started and the jumper cables removed, allow it to idle for several minutes so the engine computer can relearn its idle conditions. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 290: Customer Assistance
A reasonable time must be allowed to perform a repair after taking your vehicle to the authorized dealer. Repairs will be made using Ford or Motorcraft parts, or remanufactured or other parts that are authorized by Ford.
Page 291 • The name of the authorized dealer and city where located • The vehicle’s current odometer reading. In some states, you must directly notify Ford in writing before pursuing remedies under your state’s warranty laws. Ford is also allowed a final repair attempt in some states.
Page 292 California Civil Code Section 1793.22(b) or the Magnuson-Moss Warranty Act, resorting to BBB AUTO LINE is not required by those statutes. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 293 BBB Auto Line dispute, and decision, are admissible in the court action. Should you choose to accept the BBB AUTO LINE decision, Ford is then bound by the decision, and must comply with the decision within 30 days of receipt of your acceptance letter.
Page 294 (CANADA ONLY) This pertains to vehicles delivered to authorized Canadian dealers. In those cases, where you continue to feel that the efforts by Ford of Canada and the authorized dealer to resolve a factory-related vehicle service concern have been unsatisfactory, Ford of Canada participates in an impartial third party mediation or arbitration program administered by the Canadian Motor Vehicle Arbitration Plan (CAMVAP).
Page 295 Telephone: 1–313–594-4857 For customers in Guam, the Commonwealth of the Northern Mariana Islands (CNMI), America Samoa, and the U.S. Virgin Islands, please feel free to call our Toll-Free Number: 1–800–841-FORD (3673). FAX: 1–313–390-0804 Email: expcac@ford.com If your vehicle must be serviced while you are traveling or living in Puerto Rico, contact the nearest authorized dealer.
Page 296 If you buy your vehicle in North America and then relocate to any of the above locations, register your vehicle identification number (VIN) and new address with Ford Motor Company Export Operations & Global Growth Initiatives by emailing expcac@ford.com. If you are in another foreign country, contact the nearest authorized dealer.
Page 297: Reporting Safety Defects (U.s. Only)
However, NHTSA cannot become involved in individual problems between you, your dealer, or Ford Motor Company. To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1–888–327–4236 (TTY: 1–800–424–9153);...
Page 298: Fuses
Natural — Natural Natural Green Green Green Pink Pink — — Orange Green Green — — — — Blue Yellow Yellow — — — Brown — — Natural Black Black 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 299: Fuse Specification Chart
Vehicle Battery in the Maintenance chapter. The high-current fuses are coded as follows: Fuse/Relay Fuse Amp Protected Components Number Rating — Powertrain control module relay (3.7L, 5.0L and 6.2L engines) — Starter relay 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 300 Upfitter 2 (SVT Raptor) 20A** 4x4 module (electronic shift) 30A** Trailer tow battery charge relay power 20A** Auxiliary power point (instrument panel) — A/C clutch relay — Not used — Not used 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 301 Trailer tow right stop/turn relay — Trailer tow back-up lamps relay — Electric fan relay 15A* Front camera washer (SVT Raptor) Run/start relay coil 15A* Trailer tow back-up lamp relay power 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 302 15A* Heated mirrors — Not used — Not used — Not used — Not used — Not used — Wiper motor relay 25A** Electric fan relay power — Not used 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 303 Voltage power 2 (General powertrain components, Mass air flow/Intake air temp sensor) (3.7L, 5.0L, 6.2L engines) 20A* Powertrain control module – Voltage power 2 (General powertrain components, Canister vent solenoid) (3.5L engine) 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 304 To remove the fuse box cover, press in the tabs on both sides of the cover, then pull the cover off. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 305 SYNC , Display module (8 inch) Passenger side front window Interior lamps Memory module Not used (spare) 7.5A Power mirror switch, Memory seat module Not used (spare) Radio display, GPS module, Electric finish panel module 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 306 Steering wheel control module Datalink connector, Steering wheel control module Not used (spare) Radio frequency module Not used (spare) Ignition switch Radio Front parking lamps Brake on/off – Instrument panel, Engine 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 307 Not used (spare) Not used (spare) Not used (spare) Climate controls module Fog lamps, Exterior mirror turn signals 30A Circuit Power windows, Power sliding Breaker back window Relay Delayed accessory 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 308 Fuse/Relay Fuse amp Description location rating — Upfitter 1 relay — Upfitter 2 relay — Upfitter 3 relay — Upfitter 4 relay — Front camera washer relay — Not used 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 309: Maintenance
Have your vehicle serviced regularly to help maintain its roadworthiness and resale value. There is a large network of Ford authorized dealers that are there to help you with their professional servicing expertise. We believe that their specially trained technicians are best qualified to service your vehicle properly and expertly.
Page 310: Opening And Closing The Hood
2. Go to the front of the vehicle and release the auxiliary latch that is located on the front bumper under the grill. 3. Lift the hood until the lift cylinders hold it open. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 311: Under Hood Overview
C. Engine oil dipstick (out of view) D. Brake fluid reservoir E. Engine coolant reservoir F. Air filter assembly G. Engine oil filler cap (out of view) H. Power distribution box 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 312 A. Windshield washer fluid reservoir B. Battery C. Engine oil filler cap D. Engine oil dipstick E. Brake fluid reservoir F. Engine coolant reservoir G. Air filter assembly H. Power distribution box 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 313 B. Engine oil dipstick C. Brake fluid reservoir D. Engine coolant reservoir E. Air filter assembly F. Power steering fluid reservoir G. Power distribution box H. Engine oil filler cap I. Battery 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 314 A. Windshield washer fluid reservoir B. Battery C. Engine oil filler cap D. Engine oil dipstick E. Brake fluid reservoir F. Engine coolant reservoir G. Air filter assembly H. Power distribution box 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 315: Engine Oil Dipstick
Oil levels above the upper hole or the MAX mark may cause engine damage. Some oil must be removed from the engine by an authorized dealer. 7. Put the dipstick back in and ensure it is fully seated. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 316: Engine Coolant Check
1. Check the engine oil level. 2. If the engine oil level is not within the normal range, add engine oil that meets Ford specifications. See Capacities and Specifications for more information. Remove the engine oil filler cap and use a funnel to pour the engine oil into the opening.
Page 317 Note: For best results, coolant concentration should be tested with a refractometer such as Rotunda tool 300-ROB75240 available from your dealer. Ford does not recommend the use of hydrometers or coolant test strips for measuring coolant concentrations. Note: Automotive fluids are not interchangeable; do not use engine coolant/antifreeze or windshield washer fluid outside of its specified function and vehicle location.
Page 318 Severe Climates If you drive in extremely cold climates: • It may be necessary to have a Ford authorized dealer increase the coolant concentration above 50%. • A coolant concentration of 60% will provide improved freeze point protection.
Page 319 Maintenance If you drive in extremely hot climates: • It may be necessary to have a Ford authorized dealer decrease the coolant concentration to 40%. • A coolant concentration of 40% will provide improved overheat protection. Engine coolant concentrations below 40% will decrease the corrosion/freeze protection characteristics of the engine coolant and may cause engine damage.
Page 320 Your vehicle has been designed to pull a trailer, but because of the added load, the vehicle’s engine may temporarily reach higher temperatures during severe operating conditions such as ascending a long or steep grade while pulling a trailer in hot ambient temperatures. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 321 5. If the coolant is low, add coolant, restart the engine and take your vehicle to an authorized dealer. See Adding engine coolant in this chapter for more information. Refer to fail-safe cooling for additional information. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 322: Automatic Transmission Fluid Check
3. Add only enough fluid through the filler opening so that the fluid level is at the bottom of the opening. Use only fluid that meets Ford specifications. Refer to the Capacities and Specifications section. 2013 F-150 (f12) Owners Guide gf, 1st Printing...
Page 323: Brake Fluid Check
Add fluid to fill the reservoir if the level is low. Only use a washer fluid that meets Ford specifications. See the technical specifications chart in the Capacities and Specifications chapter. State or local regulations on volatile organic compounds may restrict the use of methanol, a common windshield washer antifreeze additive.
Page 324: Battery
Your vehicle is equipped with a Motorcraft maintenance-free battery which normally does not require additional water during its life of service. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 325 If the battery has been disconnected or a new battery has been installed, the clock and radio settings must be reset once the battery is reconnected. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 326 When a battery replacement is required, the battery should only be replaced with a Ford recommended replacement battery which matches the electrical requirements of the vehicle. After battery replacement, or in some cases after charging the battery with the external charger, the BMS requires eight hours of vehicle sleep time (key off with doors closed) to relearn the new battery state of charge.
Page 327: Checking The Wiper Blades
The layer of ice has many sharp edges and can damage the micro edge of the wiper rubber element. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 328: Air Filter(S)
2. Reposition the locking clip on the connector (connector shown from below for clarity), squeeze the connector and pull it off of the air outlet tube. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 329 9. Slip the air tube onto the air filter housing and tighten the air-tube clamp bolt snugly, but do not overtighten it. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 330 7. Remove the air filter element from the air filter housing. 8. Install a new air filter element. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 331: Adjusting The Headlamps
(a piece of masking tape works well). 3. Turn on the low beam headlamps to illuminate the wall or screen and open the hood. Cover one of the headlamps so no light hits the wall. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 332 5. Repeat Steps 3–4 for the other headlamp. 6. Close the hood and turn off the lamps. HORIZONTAL AIM IS NOT REQUIRED FOR THIS VEHICLE AND IS NOT ADJUSTABLE. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 333: Changing A Bulb
1. Make sure that the headlamp control is in the off position and open the hood. 2. Remove the pushpin that holds the air deflector/protective cover to the upper inboard corner of the lamp. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 334 The low beam headlamps on your vehicle use a “high intensity discharge” source. These lamps operate at a high voltage. When the bulb is burned out, the bulb and starter capsule assembly must be replaced by your authorized dealer. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 335 1. Make sure the headlamp control is in the off position. 2. Open the tailgate to expose the lamp assembly and remove the two bolts from the tail lamp assembly. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 336 3. Disconnect the electrical connector from the fog lamp bulb. Install the new bulb in reverse order. Replacing exterior mounted mirror turn signal indicator lamp bulbs For bulb replacement, see your authorized dealer. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 337 Headlamps, high intensity discharge (HID) (if equipped) Front park/turn lamps 3157NAK LCP (natural amber) Front side marker Fog lamps 9140 Backup lamp Rear stop/turn/side marker/tail 3057K LCP lamp High-mount brake lamp 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 338 (if equipped) Puddle lamp (if equipped) See your dealer All replacement bulbs are clear in color except where noted. To replace all instrument panel lights - see your authorized dealer 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 339: Vehicle Care
Vehicle Care GENERAL INFORMATION Your Ford or Lincoln authorized dealer has many quality products available to clean your vehicle and protect its finishes. CLEANING PRODUCTS For best results, use the following products or products of equivalent quality: Motorcraft Bug and Tar Remover (ZC-42)
Page 340 Rear leaf springs or other suspension components may emit squeak or popping noises while operating the vehicle if particles, such as dirt, rocks, or other debris, are present in the components. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 341: Waxing
• Never wash or rinse any ignition coil, spark plug wire or spark plug well, or the area in and around these locations. • Cover the battery, power distribution box, and air filter assembly to prevent water damage when cleaning the engine. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 342: Cleaning The Windows And Wiper Blades
WARNING: On vehicles equipped with seat-mounted airbags, do not use chemical solvents or strong detergents. Such products could contaminate the side airbag system and affect performance of the side airbag in a collision. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 343: Cleaning The Instrument Panel And Instrument Cluster Lens
• Do not allow air fresheners and hand sanitizers to spill on interior surfaces. If a spill occurs, wipe off immediately. Damage may not be covered by your warranty. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 344 (ZC-53-A), Motorcraft Paint Sealant (ZC-45), or Motorcraft Custom Clear Coat Polish (ZC-8-A). Note: Removal of deep scuffs and scratches should be performed by an authorized dealer or an experienced repair facility. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 345 Regular cleaning and conditioning will maintain the appearance of the leather. Cleaning For dirt, use a vacuum cleaner then use a clean, damp cloth or soft brush. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 346: Cleaning The Alloy Wheels
In order to maintain their shine: • Clean weekly with Motorcraft Wheel and Tire Cleaner. Heavy dirt and brake dust accumulation may require agitation with a sponge. Rinse thoroughly with a strong stream of water. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 347: Vehicle Storage
• Lubricate all hood, door and trunk lid hinges, and latches with a light grade oil. • Cover interior trim to prevent fading. • Keep all rubber parts free from oil and solvents. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 348 Note: If battery cables are disconnected, it will be necessary to reset memory features. Brakes • Make sure brakes and parking brake are fully released. Tires • Maintain recommended air pressure. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 349 • If the battery was removed, clean the battery cable ends and inspect. Contact your authorized dealer if you have any concerns or issues. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 350: Wheels And Tires
Utility vehicles, vans and trucks are not designed for cornering at speeds as high as passenger cars any more than low-slung sports cars are designed to perform satisfactorily under off-road conditions. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 351 These sounds are normal as the front drivetrain comes up to speed and is not cause for concern. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 352 These differences that make your vehicle so versatile also make it handle differently than an ordinary passenger car. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 353: Tire Care
10 to 12 inches or limited production tires as defined in Title 49 Code of Federal Regulations Part 575.104(c)(2). U.S. Department of Transportation-Tire quality grades: The U.S. Department of Transportation requires Ford Motor Company to give you the following information about tire grades exactly as the government has written it.
Page 354 • Tire Identification Number (TIN): A number on the sidewall of each tire providing information about the tire brand and manufacturing plant, tire size and date of manufacture. Also referred to as DOT code. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 355 • Rim: The metal support (wheel) for a tire or a tire and tube assembly upon which the tire beads are seated. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 356 In general, the larger the number, the wider the tire. C. 65: Indicates the aspect ratio which gives the tire’s ratio of height to width. D. R: Indicates a radial type tire. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 357 Note: For tires with a maximum speed capability over 149 mph (240 km/h), tire manufacturers sometimes use the letters ZR. For those with a maximum speed capability over 186 mph (299 km/h), tire manufacturers always use the letters ZR. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 358 • Temperature: The temperature grades are A (the highest), B and C, representing the tire’s resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a specified indoor laboratory test wheel. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 359 D. Maximum Load Single lb (kg) at psi (kPa) cold: Indicates the maximum load and tire pressure when the tire is used as a single; defined as two tires (total) on the rear axle. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 360 You will find a Tire Label containing tire inflation pressure by tire size and other important information located on the B-Pillar or the edge of the driver’s door. See the payload description and graphic in the Load Carrying chapter. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 361 You are strongly urged to buy a reliable tire pressure gauge, as automatic service station gauges may be inaccurate. Ford recommends the use of a digital or dial-type tire pressure gauge rather than a stick-type tire pressure gauge.
Page 362 6. Visually inspect the tires to make sure there are no nails or other objects embedded that could poke a hole in the tire and cause an air leak. 7. Check the sidewalls to make sure there are no gouges, cuts or bulges. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 363 1/16th of an inch (2 millimeters ). When the tire tread wears down to the same height as these wear bars, the tire is worn out and must be replaced. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 364 2000 the numbers go to four digits. For example, 2501 means the 25th week of 2001. The numbers in between are identification codes used for traceability. This information is used to contact customers if a tire defect requires a recall. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 365 B-Pillar or edge of the driver’s door. If this information is not found on these labels, then you should contact your authorized dealer as soon as possible. Use of any tire or wheel not recommended by Ford can affect the safety and performance of your vehicle, which could result in an increased risk of loss of vehicle control, vehicle rollover, personal injury and death.
Page 366 The tire pressure sensors mounted in the wheels (originally installed on your vehicle) are not designed to be used in aftermarket wheels. The use of wheels or tires not recommended by Ford Motor Company may affect the operation of your tire pressure monitoring system.
Page 367 Rotating your tires at the recommended interval (as indicated in the Scheduled Maintenance chapter) will help your tires wear more evenly, providing better tire performance and longer tire life. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 368 USING SNOW CHAINS WARNING: Snow tires must be the same size, load index, speed rating as those originally provided by Ford. Use of any tire or wheel not recommended by Ford can affect the safety and performance of your vehicle, which could result in an increased risk of loss of vehicle control, vehicle rollover, personal injury and death.
Page 369: Tire Pressure Monitoring System (Tpms)
TPMS from functioning properly. Always check the TPMS malfunction 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 370 When one of your road tires needs to be replaced with the temporary spare, the TPMS will continue to identify an issue to remind you that the damaged road wheel/tire needs to be repaired and put back on your vehicle. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 371 Tire rotation On vehicles with different front and without sensor rear tire pressures, the TPMS must be training retrained following every tire rotation. See Tire rotation in this chapter. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 372 Check air pressure in the road tires. If any tire is under-inflated, carefully drive the vehicle to the nearest location where air can be added to the tires. Inflate all the tires to the recommended inflation pressure. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 373 • To reduce the chances of interference from another vehicle, the TPMS reset procedure should be performed at least three feet (one meter) away from another Ford Motor Company vehicle undergoing the TPMS reset procedure at the same time. • Do not wait more than two minutes between resetting each tire sensor or the system will time-out and the entire procedure will have to be repeated on all four wheels.
Page 374 11. Set all four tires to the recommended air pressure as indicated on the Safety Compliance Certification Label (affixed to either the door 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 375: Changing A Road Wheel
Ford. If the dissimilar spare tire or wheel is damaged, it should be replaced rather than repaired.
Page 376 • use more than one dissimilar spare tire and wheel at a time. • use commercial car washing equipment. • use snow chains on the end of the vehicle with the dissimilar spare tire and wheel. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 377 WARNING: Never get underneath a vehicle that is supported only by a jack. If the vehicle slips off the jack, you or someone else could be seriously injured. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 378 SuperCab Attached to a floor bracket under the rear seat on the driver’s side SuperCrew In a plastic box in the floor under the rear seat 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 379 3. Turn the handle counterclockwise until tire is lowered to the ground, the tire can be slid rearward and the cable is slightly slack. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 380 6. Loosen each wheel lug nut one-half turn counterclockwise, but do not remove them until the wheel is raised off the ground. Note: For the F-150 SVT Raptor, install the saddle extension on the jack as shown in the jack usage and storage instructions.
Page 381 11. Remove the jack and fully tighten the lug nuts in the order shown. See Wheel Lug Nut Torque Specifications later in this chapter for the proper lug nut torque specification: • Six lug nut wheel 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 382 Try to push or pull, then turn the tire to be sure it will not move. Loosen and retighten, if necessary. Failure to properly stow the spare tire may result in failure of the winch cable and loss of the tire. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 383: Technical Specifications
N•m M14 x 2.0 * Torque specifications are for nut and bolt threads free of dirt and rust. Use only Ford recommended replacement fasteners. Note: Inspect the wheel pilot hole and mounting surface prior to installation. Remove any visible corrosion or loose particles.
Page 384: Capacities And Specifications
Coil on plug Coil on plug system Spark plug .049-.053 in. .049-.053 in. .041-.047 in. .030-.033 in. 1.25-1.35 mm 1.25-1.35 mm 1.04-1.20 mm .75-.85 mm Compression 10.5:1 10.5:1 9.8:1 10.0:1 ratio 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 385: Engine Drivebelt
Capacities and Specifications Engine Drivebelt Routing 3.7L engine 5.0L engine 6.2L engine 3.5L EcoBoost engine 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 386 Capacities and Specifications 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 387 Capacities and Specifications 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 388 Capacities and Specifications 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 389 Capacities and Specifications 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 390 Capacities and Specifications 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 391 Capacities and Specifications 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 392: Part Numbers
Note: Replace the spark plugs with ones that meet Ford material and design specifications for your vehicle, such as Motorcraft or equivalent replacement parts. The customer warranty may be void for any damage to the engine if such spark plugs are not used.
Page 393: Vehicle Identification Number
Weight Rating (GVWR) / Restraint Devices and their location C. Make, vehicle line, series, body type D. Engine type E. Check digit F. Model year G. Assembly plant H. Production sequence number. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 394: Vehicle Certification Label
TRANSMISSION CODE DESIGNATION You can find a transmission code on the Safety Compliance Certification Label. The following table tells you which transmission each code represents. Description Code Six-speed automatic (6R80) 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 395: Accessories
Accessories.Ford.com (U.S. only). Ford Custom Accessories are available for your vehicle through your local Ford or Ford of Canada dealer. Ford Motor Company will repair or replace any properly dealer-installed Ford Custom Accessories found to be defective in factory-supplied materials or workmanship during the warranty period, as well as any component damaged by the defective accessories.
Page 396 Ford Motor Company engineering requirements. Contact your Ford dealer for details regarding the manufacturer’s limited warranty and/or a copy of the FLA product limited warranty offered by the accessory manufacturer.
Page 397 • Any non-Ford custom electrical or electronic accessories or components that are added to the vehicle by the authorized dealer or the owner, may adversely affect battery performance and durability, and may also adversely affect the performance of other electrical systems in the vehicle.
Page 398: Ford Extended Service Plan
BaseCare – Covers 84 components. PowertrainCare – Covers 29 critical components. Ford ESP is honored by all Ford and Lincoln Dealers in the U.S. and Canada. It is the only extended service plan authorized and backed by Ford Motor Company. That means you get: •...
Page 399 Protect Yourself from the Rising Cost of Vehicle Repairs with a Ford Extended Service Plan To learn more, call our Ford ESP specialists at 800–367–3377, and do not forget to ask about our interest free payment program, allowing you all the security and benefits Ford ESP has to offer while paying over time.
Page 400 Ford ESP coverage. This information is subject to change. For more information, visit your local Ford of Canada dealer or www.ford.ca to find the Ford Extended Service Plan that is right for you. 2013 F-150 (f12) Owners Guide gf, 1st Printing...
Page 401: Scheduled Maintenance
Motor Company’s specifications. Parts installed at your dealership carry a nationwide, 12 month/12000 mile (20000 kilometer) parts and labor limited warranty. If you do not use Ford authorized parts, they may not meet Ford specifications and, depending on the part, it could affect emissions compliance.
Page 402 Ford Motor Company has recommended maintenance intervals for various parts and component systems based upon engineering testing. Ford Motor Company relies upon this testing to determine the most appropriate mileage for replacement of oils and fluids to protect your vehicle at the lowest overall cost to you and recommends against maintenance schedules that deviate from the scheduled maintenance information.
Page 403 Scheduled Maintenance additives not approved by Ford Motor Company are not recommended as part of normal maintenance. Please consult your warranty information. Oils, Fluids and Flushing In many cases, fluid discoloration is a normal operating characteristic and, by itself, does not necessarily indicate a concern or that the fluid needs to be changed.
Page 404 In order to keep your vehicle running right, it is important to have the systems on your vehicle checked regularly. This can help identify potential issues and prevent major problems. Ford Motor Company recommends the following multi-point inspection be performed at every scheduled maintenance interval to help make sure your vehicle keeps running great.
Page 405 Scheduled Maintenance 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 406: Normal Scheduled Maintenance And Log
5000-7499 – Mountainous or off-road conditions (8000-11999) – Extended idling – Extended hot or cold operation Extreme 3000-4999 – Maximum load or towing (4000-7999) – Extreme hot or cold operation 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 407 Do not exceed one year or 10000 miles (16000 kilometers) between service intervals. Reset your Intelligent Oil-Life Monitor after each engine oil and filter change. See the Instrument Cluster chapter. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 408 Initial replacement at six years or 100000 miles (160000 kilometers), then every three years or 50000 miles (80000 kilometers). After initial inspection, inspect every other oil change until replaced. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 409 Inspect steering linkage, ball joints, suspension, tie-rod ends, driveshaft and U-joints. Lubricate if equipped with grease fittings. The SVT Raptor has a specific tire rotation interval. See the supplement for more information. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 410 100000 miles (160000 km). Initial replacement at six years or 105000 miles (168000 kilometers), then every three years or 45000 miles (72000 kilometers). If not replaced, inspect every 15000 miles (24000 kilometers). 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 411 ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 412 ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 413 ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 414 Normal Scheduled Maintenance chart. Inspect frequently, Replace engine air filter. service as required Every 60000 miles Replace spark plugs. (96000 km) Change transfer case fluid (4WD vehicles). 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 415 (2WD vehicles). Every 60000 miles Change transfer case fluid (4WD vehicles). (96000 km) Reset your Intelligent Oil-Life Monitor after each engine oil and filter change. See the Instrument Cluster chapter. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 416 Every 60000 miles Change transfer case fluid (4WD vehicles). (96000 km) Reset your oil life monitoring system after each engine oil and filter change. See the Instrument Cluster chapter. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 417 Every 60000 miles Change transfer case fluid (4WD vehicles). (96000 km) Reset your oil life monitoring system after each engine oil and filter change. See the Instrument Cluster chapter. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 418 See the Instrument Cluster chapter. Exclusive Use of E85 (Flex Fuel Vehicles only) Every oil change If ran exclusively on E85, fill the fuel tank full with regular unleaded fuel. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 419 ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 420 ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 421 Normal vehicle axle maintenance: Rear axles and power take-off (PTO) units with synthetic fluid and light-duty trucks equipped with Ford-design axles are lubricated for life; do not check or change fluid unless a leak is suspected, service is required or the assembly has been submerged in water.
Page 422 ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 423: Sync
• Access phonebook contacts and music via voice commands. • Stream music from your connected phone. • Text message. • Use the advanced voice recognition system. • USB device charging (if your device supports this). 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 424 Safety Information WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. Your primary responsibility is the safe operation of the vehicle.
Page 425 Master Reset to erase all stored information. System data cannot be accessed without special equipment and access to the vehicle’s SYNC module. Ford Motor Company and Ford of Canada do not access the system data for any purpose other than as described...
Page 426 The default setting is to a higher level of interaction in order to help you learn to use the system. You can change these settings at any time. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 427 • After pressing the voice icon, wait until after the tone sounds and Listening appears before saying a command. Any command spoken prior to this does not register with the system. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 428: Pairing Your Phone For The First Time
2. When Add Bluetooth Device appears, press OK. 3. When Find SYNC appears in the display, press OK. 4. Put your phone into Bluetooth discovery mode. See your phone’s user guide if necessary. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 429 “Call <name> on mobile OR cell” “Call <name> on other” “Phone book <name> at home” “Phone book <name> on mobile OR cell” “Call history outgoing” “Phone book <name> on Other” 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 430 “(Phone) settings (set) ringer off” “Battery” “Phone name” “Signal” “Text message inbox” Words in ( ) are optional and do not have to be spoken for the system to understand the command. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 431 When receiving a call, you can: • Answer the call by pressing the phone button. • Reject the call by pressing and holding the phone button. • Ignore the call by doing nothing. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 432 Access your phonebook contacts. Phonebook 1. Press OK to select, then scroll through your phonebook contacts. 2. Press OK again when the desired selection appears in the display. 3. Press the phone button. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 433 Note: The system attempts to automatically re-download your phone book and call history each time your phone connects to SYNC (if the auto download feature is on and your Bluetooth-enabled cellular phone supports this feature). 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 434 Exit the phone menu by pressing OK. Menu This is a phone-dependent feature. This is a phone-dependent and speed-dependent feature. If equipped, U.S. only. If equipped, U.S. and Canada only. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 435 2. Scroll until Text Message appears and press OK. 3. Scroll to select from the following options: Send Text Message? enables you to send a new text message based on a pre-defined set of 15 messages. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 436 6. Press OK when the contact appears and press OK again to confirm when the system asks if you would like to send the message. Each text message is sent with the following signature: “This message was sent from my <Ford or Lincoln>”. Pre-defined text message options Can’t talk right now...
Page 437 Message Notification Have the option of hearing an audible tone to notify you when a text message arrives. 1. Press OK to select and scroll between Message Notification On or Message Notification Off. 2. Press OK to select. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 438 Note: Downloading times are phone- and quantity-dependent. Note: When auto download is on, any changes, additions or deletions saved since your last download are deleted. Exit the current menu. Return 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 439 Press OK and scroll to toggle between On and Off. On/Off When the desired selection is chosen, press OK. Note: Turning Bluetooth off disconnects all Bluetooth devices and deactivates all Bluetooth features. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 440 2. Press OK when the desired selection appears in the display. If you change the language setting, the display indicates that the system is updating. When complete, SYNC takes you back to the Advanced menu. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 441 • Vehicle Health Report (if equipped, U.S. only): Provides a diagnostic and maintenance report card of your vehicle. • SYNC AppLink™: Allows you to connect to and use certain applications such as Pandora and Stitcher (if your phone is compatible). 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 442: 911 Assist
For more information about 911 Assist, visit www.SYNCMyRide.com, www.SYNCMyRide.ca or www.syncmaroute.ca. • For information on airbag deployment, see the Supplementary Restraints System chapter. • For information on the fuel pump shut-off, see the Roadside Emergencies chapter. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 443 • SYNC says the following, or a similar message: “SYNC will attempt to call 911, to cancel the call, press Cancel on your screen or press and hold the phone button on your steering wheel.” 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 444: Vehicle Health Report
Note: This feature may not function properly if you have enabled caller ID blocking on your mobile phone. Before running a report, review the Vehicle Health Report privacy notice. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 445 Mileage Intervals: Press OK. Scroll to select between 5000, 7500 or 10000 mile intervals and press OK to make your selection. Return: Press OK to exit the menu. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 446 Vehicle Health Report Privacy Notice When you run a Vehicle Health Report, Ford Motor Company may collect your cellular phone number (to process your report request) and diagnostic information about your vehicle. Certain versions or updates to Vehicle Health Report may also collect additional vehicle information.
Page 447 For more information, see SYNC Services Terms and Conditions at www.SYNCMyRide.com. If you do not want Ford or its service providers to collect the vehicle travel information or other information identified in the Terms and Conditions, do not activate or use the service.
Page 448 You can save address points such as work or home. You can also save favorite information like sports teams or a news category. To learn more, log onto www.SYNCMyRide.com. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 449 Once an app is running through AppLink, you can control main features of the app through voice commands and steering wheel controls. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 450 4. The app should start. While an app is running through SYNC, you can press the voice button and speak commands specific to the app, such as “Play Station Quickmix”. Say “Help” to discover available voice commands. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 451 • Genres • Playlists • Tracks • Explore USB • Similar Music • Return When the desired selection appears in the display, press OK to build your desired music selection. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 452 “Play song <name>” “Play track <name>” “Refine album <name>” “Refine artist <name>” “Refine song <name>” “Refine track <name>” “Repeat off” “Repeat on” “Search album <name>” “Search artist <name>” “Search genre <name>” 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 453 USB port using indexed metadata information. “Search/Play The system searches for a specific Artist/Track/Album” artist/track/album from the music indexed through the USB port. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 454 You can also choose to Explore USB to view the supported digital music files on your playing device. See Play Menu later in this section for more information. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 455 Note: If you have already connected a device to the USB port, you cannot access the line in feature. Some digital media players require both USB and line in ports to stream data and music separately. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 456 Advanced menu listings (prompts, languages, defaults, master reset, install application and system information). Note: See System Settings for more information. Press OK to exit the media menu. Exit Media Menu 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 457 1. Press OK to enter the album menu and select from playing all albums or from any individual indexed album. 2. Scroll until the desired album is chosen and press OK. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 458 SYNC; other files saved are not visible. Press OK to select. Then scroll to explore indexed media on your flash drive. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 459 Bluetooth on and off. 1. Press AUX and then MENU to enter the Media Menu. 2. Scroll until System Settings appears and select OK. 3. Scroll until Bluetooth Devices appears. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 460 Press OK and scroll to select the device. Press OK to confirm. Delete all previously paired devices. Delete All Devices Press OK to select. Exit the current menu. Return This is a speed-dependent feature 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 461 (phonebook, call history, text messages and paired devices). 1. Press OK to select and then press OK again when Restore Defaults? appears in the display. 2. Press OK to confirm. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 462 During a call, I Possible phone Try turning off the device, can hear the malfunction. resetting the device, removing other person but the device’s battery, then trying they cannot hear again. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 463 SYNC is empty or stored on your SIM card, try is missing moving them to the device contacts. memory. • Remove any pictures or special ring tones associated with the missing contact. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 464 • Try turning off the device, SYNC. feature, OR • Possible phone resetting the device or removing malfunction. the device’s battery, then trying again. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 465 MTP class. information, OR • The file may be corrupted, OR • The song may have copyright protection which does not allow it to play. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 466 Information. ID blocker active. you by your phone number. • Make sure the currently connected phone is the same one that is registered on your SyncMyRide account. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 467 • If the songs are saved in all CAPS, you have to spell them. LOLA requires you to say, “Play L-O-L-A”. • Do not use special characters in the title as the system does not recognize them. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 468 • If contacts are saved in CAPS, characters, OR • Your you have to spell them. JAKE phonebook requires you to say, “Call contacts may be J-A-K-E”. saved in CAPS. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 469: Myford Touch (If Equipped)
INTRODUCTION WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device or feature that may take their focus off the road. Your primary responsibility is the safe operation of the vehicle.
Page 470 • SD Card • A/V In CLIMATE Press to select any of the following: • Driver Settings • Recirculated Air • Auto • Dual • Passenger Settings • A/C • Defrost 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 471 If dirt or finger prints are still visible, apply a small amount of alcohol to the cloth. Do not pour or spray alcohol onto the display. Do not use detergent or any type of solvent to clean the display. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 472 Safety information WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. Your primary responsibility is the safe operation of the vehicle.
Page 473 Composing text messages Viewing received text messages Editing preset text messages Navigation Using the keyboard to enter a destination Demo navigation route Adding or Editing Address Book entries or Avoid Areas 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 474: Privacy Information
Master Reset to erase all information stored in SYNC . SYNC data cannot be accessed without special equipment and access to the vehicle’s SYNC module. Ford Motor Company and Ford of Canada will not access SYNC data for any purpose other than as described...
Page 475 • Press the voice icon; after the tone, speak your command clearly: Voice Command List “Audio list of commands” “Bluetooth audio list of commands” “Browse list of commands” “CD list of commands” “Climate control list of commands” “List of commands” 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 476 If turned off, the system simply makes a best guess as to what you requested and you may still occasionally be asked to confirm settings. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 477 From the Navigation home screen, you can choose from the following: • My Home • Favorites • Previous Destinations • Point of Interest (POI) • Emergency • Street Address • Intersection • Cancel Route. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 478 If you choose Points of Interest from the navigation screen, you can choose from the following: • Search Area • Search By Name • Fuel Station • ATM • All Restaurants • Accommodations • Parking. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 479 “Line 2”. If a command is not understood or there are multiple options, the system returns a list for you to choose from. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 480: Listening To Music
If equipped with SIRIUS satellite radio. For a complete list of “Browse” voice commands, see USB and SD card voice commands and Bluetooth audio voice commands in the following sections. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 481 Turn the feature on. This enables you to receive radio broadcasts digitally (where available), providing free, crystal-clear sound. See HD Radio information later in this chapter. Scan Go to the next strong AM or FM radio station. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 482 , the tags appear to remind you of the songs you would like to download. See HD Radio information later in this chapter. Direct Tune Enter the desired station number when prompted. Press Enter. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 483 The system allows you to tag up to approximately 100 songs. For a list of devices that support tagging, see www.SYNCMyRide.com, www.SYNCMyRide.ca or www.syncmaroute.ca. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 484 As with any saved radio station, you cannot access the saved station if your vehicle is outside the station’s reception area. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 485 HD Radio technology. Every station is independently owned and operated. These stations are responsible for ensuring all audio streams and data fields are accurate. See the following chart for potential station issues. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 486 HD Radio™ Technology manufactured under license from iBiquity Digital Corp. U.S. and foreign patents. HD Radio™ and the HD and HD Radio logos are proprietary trademarks of iBiquity Digital Corp. Ford Motor Company and iBiquity Digital Corp. are not responsible for the content sent using HD Radio technology.
Page 487 “FM autoset preset <#>” “<530–1710>” “FM preset <#>” “AM” “FM1” “AM <530–1710>” “FM 1 preset <#>” “AM autoset” “FM2” “AM autoset preset <#>” “FM 2 preset <#>” “AM preset <#>” “HD <#>” 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 488 3. Press play or pause to play or pause the audio. 4. Press Replay again to return to live audio if you have been using the replay feature to replay audio. Scan Hear a brief sampling of channels. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 489 Note: SIRIUS does not support the Alert feature on all channels. Ford Motor Company shall not be responsible for Alert feature variation. Electronic Serial Number (ESN) is required when communicating with SIRIUS about your account.
Page 490 “Tune to the <team city> <team name> game” “Tune to the <team name> game” “Help” “TUNE” “<0–233>” “<Channel name>” “Preset <#>” “SAT” “SAT 1” “SAT 1 preset <#>” “SAT 2” “SAT 2 preset <#>” 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 491 Note: SIRIUS reserves the unrestricted right to change, rearrange, add or delete programming including canceling, moving or adding particular channels, and its prices, at any time, with or without notice to you. Ford Motor Company shall not be responsible for any such programming changes.
Page 492 SIRIUS tower to the you move into an open vehicle antenna. area, the signal should return. Updating. Update of channel None. The process programming in may take up to three progress. minutes. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 493 Volume settings. Compression: Turn the compression feature on and off. Browse Look through all available audio sources. You can also advance and reverse the current track or current folder (if applicable). 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 494 To access and play music from your SD card slot, press the lower left corner of the touchscreen. SD logo is a trademark of SD-3C, LLC. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 495 Play music on the selected album or folder in random order. Similar Music Choose music similar to that which is currently playing. More Info Displays information, such as current track, artist name, album and genre. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 496 “USB” or “SD card”, then any of the commands in the following chart. “USB” or “SD CARD” “Browse” “Play podcast episode <name>” “Next” “Play similar music” “Pause” “Play song <name>” 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 497 “All composers” “Composer <name>” “All folders” “Folder <name>” “All genres” “Genre <name>” “All movies” “Playlist <name>” “All music videos” “Podcast <name>” “All playlists” “TV show <name>” “All podcasts” “Video <name>” 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 498 “Browse genre “Play podcast episode <name>” <name>” “Browse all ”Browse playlist “Play similar music” audiobooks” <name>” “Browse all authors” ”Browse podcast “Play song <name>” <name>” “Browse all “Next” “Previous” composers” 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 499 2. Attach one end of the audio extension cable to the headphone output of your player and the other end into the adapter in one of the two left A/V input jacks (white or red) inside the center console. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 500 • The portable music player must be controlled in the same manner when it is used with headphones as the AIJ does not provide control (play, pause, etc.) over the attached portable music player. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 501: Phone Features
Pairing Your Phone for the First Time WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. Your primary responsibility is the safe operation of the vehicle.
Page 502 Reject the call by pressing Reject on the touchscreen or by pressing and holding the phone button on your steering wheel control. Ignore the call by doing nothing. SYNC logs it as a missed call. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 503 Favorites or Quick Dial. This is a phone-dependent feature. If your phone does not support downloading call history using Bluetooth, SYNC keeps track of calls made with the SYNC system. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 504 You can then preview the message and verify the recipient as well as update the message list and send it to a connected device (i.e., USB drive). 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 505 Press Phone > Settings, then select from the following settings: If you select: You can: Bluetooth Devices Connect, disconnect, add or delete a device, as well as save it as a favorite. Bluetooth Turn Bluetooth on or off. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 506 Roaming Warning Be alerted to when your phone is in roaming mode. If compatible. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 507: Information Menu
“Reply to text messages” “Help” INFORMATION Under the Information menu, you can access features, such as: • SYNC Services • SIRIUS Travel Link™ • Alerts • Calendar • SYNC Applications. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 508 For more information, see SYNC Services Terms and Conditions at www.SYNCMyRide.com. If you do not want Ford or its service providers to collect the vehicle travel information or other information identified in the Terms and Conditions, do not activate or use the service.
Page 509 SYNC Services subscription. For more information on Operator Assist, visit www.SYNCMyRide.com/support. 2. Follow the voice prompts to select your Destination. After the route download is complete, the phone call is automatically ended. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 510 Press the voice button at any time (while you are connected to SYNC TDI Services) to interrupt a voice prompt or an audio clip (such as a sports report) and say your voice command. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 511 SIRIUS Travel Link (If Equipped and If Activated) WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device or feature that may take their focus off the road. Your primary responsibility is the safe operation of the vehicle.
Page 512 SIRIUS Travel Link. Note: Neither SIRIUS nor Ford is responsible for any errors or inaccuracies in the SIRIUS Travel Link services or its use in vehicles. SIRIUS Travel Link (if activated) can help you locate the best gas prices, find movie listings, get current traffic alerts, access the current weather map, get accurate ski conditions and scores to current sports games.
Page 513 “Golf schedule” “NBA scores” forecast” “Baseball headlines” “MLS headlines” “NFL headlines” “Baseball schedule” “MLS schedule” “NFL schedule” “Baseball scores” “MLS scores” “NFL scores” “College basketball “Motor sports” “NHL headlines” headlines” 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 514 When the messages are read or deleted, the icon returns to white. Calendar Press the Information button, then select Calendar. You can view the current calendar by day, week or month. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 515 For more information about 911 Assist, visit www.SYNCMyRide.com, www.SYNCMyRide.ca or www.syncmaroute.ca. • For information on airbag deployment, see the Supplementary Restraints System chapter. • For information on the fuel pump shut-off, see the Roadside Emergencies chapter. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 516 Be prepared to provide your name, phone number and location immediately, because not all 911 systems are capable of receiving this information electronically. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 517 Note: In order to allow a break-in period for your vehicle, you may not be able to create a Vehicle Health Report until your vehicle odometer has reached 200 miles. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 518 Certain versions or updates to Vehicle Health Report may also collect additional vehicle information. Ford may use the vehicle information it collects for any purpose. If you do not want to disclose your cellular phone number or vehicle information, do not run the feature or set up your Vehicle Health Report profile at www.SYNCMyRide.com.
Page 519: Settings
Auto Dim feature on or off and changing the Auto Dim Manual Offset feature. Edit Wallpaper • You can have your touchscreen display the default photo or upload your own. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 520 Active Park Assist (If Equipped) When activated, your system displays directions for you regarding the active park assist process. For complete information on this system, see Active park assist in the Driving Aids chapter. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 521 1. Press the Settings icon > Vehicle > Enable Valet Mode. 2. When prompted, enter a four-digit PIN. After you press Continue, the system is locked until the correct PIN is entered again. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 522 QWERTY or ABC format. Install Applications Install any downloaded applications or view the current software licenses. Master Reset Select to restore factory defaults. This erases all personal settings and personal data. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 523 Candidate lists are possible results from your Lists voice commands. If these are turned off, the system simply makes a best guess at your request. Voice Control Volume Allows you to adjust the voice volume level. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 524 Cover Art Priority With this feature on, cover art is pulled from the Gracenote Database for your music files. This overrides any art from your device. This feature defaults to Media Player. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 525 Have the system display where there may be reduced visibility. Have the system turn on your radio for traffic announcements. Avoid Areas Enter specific areas that you would like to avoid on planned navigation routes. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 526 Access features, such as automatic phonebook download, re-download your phonebook, add contacts from your phone as well as delete or upload your phonebook. Roaming Warning Have the system alert you when in Roaming mode. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 527 Press ? for more information. Gateway (Access Point) Settings View and change settings for using SYNC as the internet gateway. Gateway (Access Point) Device List View who has connected to your Wi-Fi connection recently. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 528 Order and have the system either always attempt to connect using a USB mobile broadband or using Wi-Fi. The Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi Alliance. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 529 To access Help using the voice commands, press the voice button, then, after the tone, say “Help”. The system provides voice commands that can be used in the current mode. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 530: Climate Features
A/C operation. MAX A/C: • Distributes air through instrument panel vents. • Is more economical and efficient than normal A/C mode. • May help reduce odors from entering the vehicle. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 531 • Touch the heated seat icon to control the heated seat. See the Seats chapter. • Touch and hold MyTemp to select a temperature you would like the vehicle to remember and maintain for you. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 532 “Fan decrease” “Temperature” “Fan increase” “Temperature <15.5–29.5> degrees” “Floor on” “Temperature <60–85> degrees” “Max A/C off” “Temperature decrease” “Max A/C on” “Temperature high” “My temp” “Temperature increase” “Off” “Temperature low” 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 533: Navigation System
Press the green corner of your touchscreen, then the Dest button when it appears. Choose any of the following: Destination Selections My Home Street Address Favorites Intersection Previous Destinations City Center Point of Interest 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 534 During route guidance, the talking bubble icon that appears in the upper right navigation corner (green bar) can be pressed if the user wants the system to repeat a route guidance instruction. Instructions decrease with each press. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 535 To expand these listings, press the + in front of the POI listing. The system also allows you to sort the POIs alphabetically, by distance or by cityseekr listings (if available). 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 536 Press More Information for a longer review, a list of services and facilities, the average room or meal price as well as the website link. This screen displays the POI icon, such as: Hotel Coffeehouse Food & Drink Nightlife Attraction 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 537 For hotels, cityseekr can provide information, such as star rating, price category, review, check-in and check-out times, hotel service icons and website address. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 538 Navigation Choose prompts to be either voice or tone Preferences only. Have the system automatically fill in the state and province based on the information already entered into the system. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 539 3D landmarks appear as clear, visible objects which are typically recognizable and have a certain tourist value. The 3D landmarks appear in 3D map mode only. Coverage varies, and improves with updated map releases. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 540 To turn the feature off, just press the + or - button again. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 541 No GPS symbol indicates that insufficient GPS satellite signals are available for accurate map positioning. This icon may be intermittently displayed under normal operation in an area with poor GPS access. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 542 Navteq by going to http://mapreporter.navteq.com. Navteq evaluates all reported map errors and responds with the result of their investigation by e-mail. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 543 Annual navigation map updates are available for purchase through your dealership, by calling 1-800-NAVMAPS (in Mexico, call 01–800–557–5539) or going to www.navigation.com/ford. You need to specify the make and model of your vehicle to determine if there is an update available.
Page 544 “Destination street address”, the system asks you to say the full address. The system displays an example on-screen. You can then speak the address naturally, such as “One two three four Main Street, Anytown”. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 545: Appendices
SYNC End User License Agreement (EULA) • You have acquired a device (“DEVICE”) that includes software licensed by FORD MOTOR COMPANY from an affiliate of Microsoft Corporation (“MS”). Those installed software products of MS origin, as well as associated media, printed materials, and “online” or electronic documentation (“MS SOFTWARE”) are protected by international...
Page 546 Neither FORD MOTOR COMPANY nor its suppliers shall be liable for any damages arising out of errors in the speech recognition process.
Page 547 SOFTWARE after the date you obtain your initial copy of the SOFTWARE (“Supplemental Components”). If FORD MOTOR COMPANY or third party software and services suppliers provide or make available to you Supplemental Components and no other EULA terms are provided along with the Supplemental Components, then the terms of this EULA shall apply.
Page 548 DEVICE. UPGRADES AND RECOVERY MEDIA: If the SOFTWARE is provided by FORD MOTOR COMPANY separate from the DEVICE on media such as a ROM chip, CD ROM disk(s) or via web download or other means, and is labeled “For Upgrade Purposes Only” or For Recovery Purposes...
Page 549 For additional information, see http://www.microsoft.com/exporting/. TRADEMARKS: This EULA does not grant you any rights in connection with any trademarks or service marks of FORD MOTOR COMPANY, MS, Microsoft Corporation, third party software or service providers, their affiliates or suppliers.
Page 550 End user notice Microsoft Windows Mobile for Automotive Important Safety Information This system Ford SYNC™ contains software that is licensed to Manufacturer FORD MOTOR COMPANY by an affiliate of Microsoft Corporation pursuant to a license agreement. Any removal, reproduction, reverse engineering or other unauthorized use of the software from this system in violation of the license agreement is strictly prohibited and may subject you to legal action.
Page 551 Maps used by this system may be inaccurate because of changes in roads, traffic controls or driving conditions. Always use good judgment and common sense when following the suggested routes. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 552 You agree to indemnify and hold TeleNav harmless against all claims resulting from any dangerous or otherwise inappropriate use of the TeleNav Software in any moving vehicle, including as a result of your failure to comply with the directions above. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 553 TeleNav, its licensors and suppliers, or agents or employees of any of the foregoing, be liable for any decision made or action taken by you or anyone else in reliance on the information provided by the TeleNav 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 554 LIMITED TO THE AMOUNT ACTUALLY PAID BY YOU FOR THE TELENAV SOFTWARE. SOME STATES AND/OR JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 555 Agreement are intended to, or shall be, granted or conferred by implication, statute, inducement, estoppel or otherwise, and TeleNav and its suppliers and licensors hereby reserve all of their respective rights other than the licenses explicitly granted in this Agreement. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 556 Data, you must contact your retailer or NAVTEQ North America, LLC (“NT”) within thirty (30) days of purchase for a refund of your purchase price. To contact NT, please visit www.navteq.com. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 557 (e.g., the CD-ROM or DVD you purchased), all original packaging, all Manuals and other documentation. Specifically, Multi-disc sets may only be transferred or sold as a complete set as provided to you and not as a subset thereof. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 558 THE NATURE OF THE CAUSE OF THE CLAIM, DEMAND OR ACTION ALLEGING ANY LOSS, INJURY OR DAMAGES, DIRECT OR INDIRECT, WHICH MAY RESULT FROM THE USE OR POSSESSION OF THIS DATA; OR FOR ANY LOSS OF PROFIT, REVENUE, CONTRACTS OR 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 559 Data is a “commercial item” as that term is defined at 48 C.F.R. (“FAR”) 2.101, is licensed in accordance with this End User License Agreement, and each copy of Data delivered or otherwise 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 560 The software from Gracenote (the “Gracenote Software”) enables this device to do disc and music file identification and obtain music-related information, including name, artist, track, and title information (“Gracenote Data”) from online servers (“Gracenote Servers”), and to 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 561 NEITHER GRACENOTE MAKES ANY REPRESENTATIONS OR WARRANTIES, EXPRESS OR IMPLIED, REGARDING THE ACCURACY OF ANY GRACENOTE DATA FROM THE GRACENOTE SERVERS OR GRACENOTE CONTENT. GRACENOTE COLLECTIVELY AND SEPARATELY RESERVE THE RIGHT TO DELETE DATA AND/OR 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 562 Industry Canada technical specifications were met. The antenna used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 563: Index
Air cleaner filter ..328, 330, 392 Auxiliary powerpoint ....184 Air conditioning ....149, 151 A/V inputs ......145, 499 manual heating and air Axle conditioning system ..149, 151 lubricant specifications ..386 Air filter ........330 refill capacities ......386 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 564 Getting assistance outside the U.S. and Canada ....294 Cell phone use ......16 Getting roadside assistance ...285 Changing a tire ......375 Getting the service you Changing the air filter ....330 need .........290 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 565 ...195, 384–385 coolant ........316 quality ........194 fail-safe cooling .......319 running out of fuel ....195 idle speed control ....324 safety information relating to lubrication specifications ..386 automotive fuels .....193 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 566 How to use voice commands ...475 fog lamps ........92 headlamps .........90 headlamps, flash to pass ..90 instrument panel, dimming ..91 Ignition .......189, 384–385 interior lamps ......93 replacing bulbs ....333, 337 Illuminated visor mirror ...101 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 567 ....65 POI categories ......535 side view mirrors (power) ..97 signal .........99 Point of Interest (POI) .....535 Moon roof ........102 Power deployable running Motorcraft parts ....339, 392 boards ........257 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 568 Satellite Radio ...135, 139, 488 message ......435, 505 Recommendations for Scheduled Maintenance Guide Normal Scheduled attaching safety restraints for children ........24 Maintenance and Log .....406 SD card ......145, 494, 533 Relays ........298–299 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 569 Text messaging ....435, 504 Snowplowing ....15, 281–283 Text messaging (sending, downloading, deleting) ..435, 437 SOS Post Crash Alert ....50 Tilt steering wheel ......83 Spark plugs, specifications .....384–385, 392 Tires ......353–354, 375 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)
Page 570 Windshield washer fluid and Transmission wipers ..........88 brake-shift interlock checking and adding fluid ..323 (BSI) ........207, 209 replacing wiper blades ...327 fluid, checking and adding (automatic) ......322 Wrecker towing ......274 2013 F-150 (f12) Owners Guide gf, 1st Printing USA (fus)

This manual is also suitable for:

2013 f-150

Save PDF
