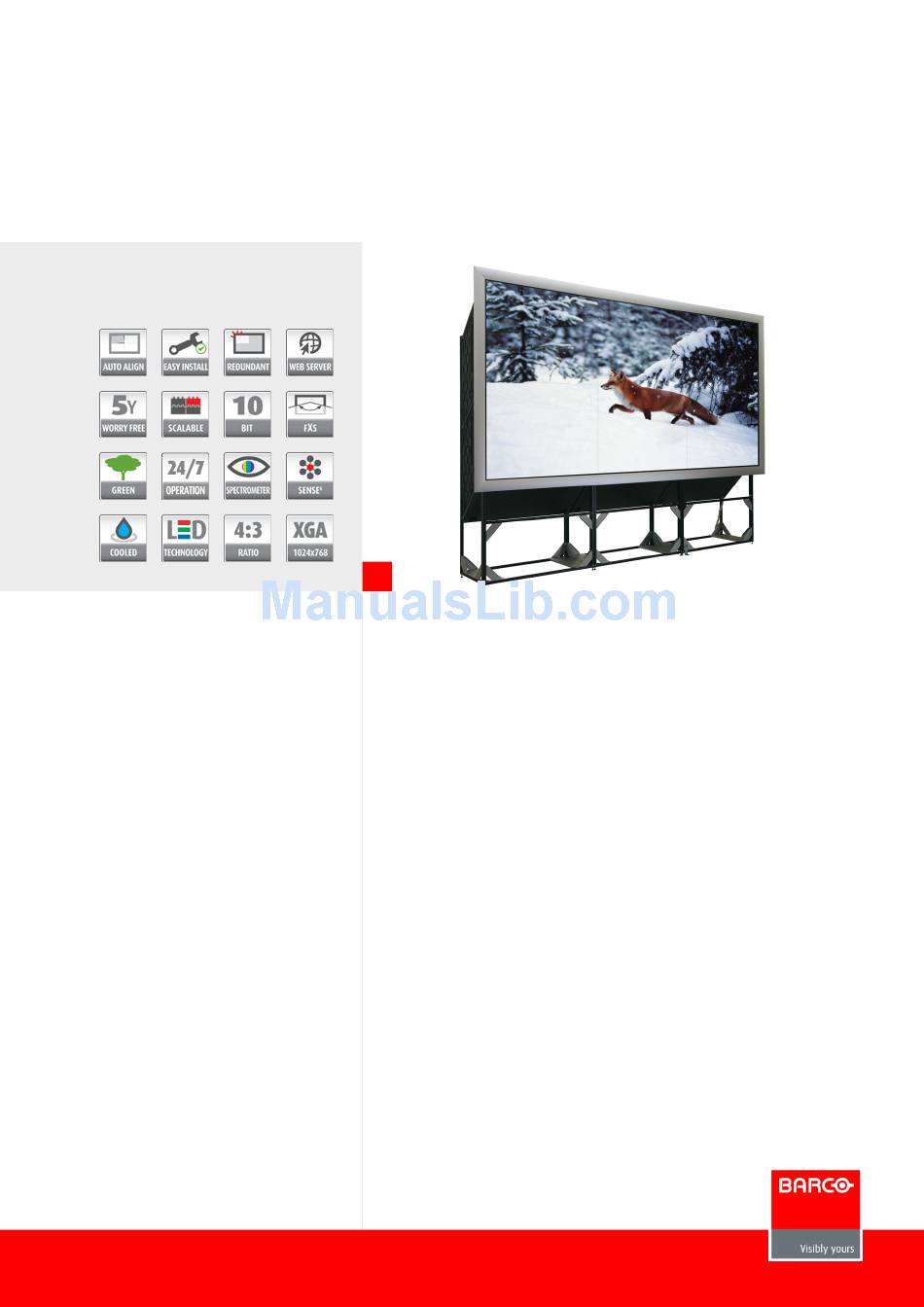

Barco's OverView OVL series LEDlit video
walls are the first choice for 4:3
missioncritical control rooms that require a
guaranteed uptime. The modules' high level
of redundancy, not only of the individual
LEDs, but also of the LEDs' power supplies
and even inputs, ensures nothing can go
wrong, giving users the peace of mind they
need. Featuring a structure that can be
tailored to the requirements of the customer,
the OverView OVL series knows virtually no
limits in size.
Fully redundant 80" XGA 4:3 LED video wall
Ultimate peace of mind
The OverView OVL808 video wall modules have been designed for an
entirely maintenancefree operation over several years, without any need for
consumables. Barco's unique liquid cooling system ensures lower LED
temperature, resulting in longer LED lifetime (>80,000 hours in eco mode).
Displaying the sharpest and most saturated colors in XGA resolution
(1024x768), the OverView OVL808 offers an ergonomically excellent viewing
experience. The availability of alternative screen types makes sure you can
adjust the video wall to your specific needs in terms of viewing angle and
brightness.
Always the most optimal picture
OverView OVL series video walls come with Sense 6 , Barco's unique sensor
technology that provides brightness and color stability over time and across
the entire display. Sense 6 continuously measures brightness and color by
means of a highquality spectrometer, and adjusts the color space to provide
an image that is most convenient for the human eye. This means that no
maintenance or manual adjustments are needed.
OverView OVL808
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Barco OverView OVL808
Summary of Contents for Barco OverView OVL808
- Page 1 OverView OVL series knows virtually no Always the most optimal picture limits in size. OverView OVL series video walls come with Sense 6 , Barco's unique sensor technology that provides brightness and color stability over time and across the entire display. Sense 6 continuously measures brightness and color by means of a highquality spectrometer, and adjusts the color space to provide...
- Page 2 1,000 lumens barrier. This further expands the usability of video walls to control rooms where lighting conditions are particularly challenging. Upgrade for existing modules Thanks to the modular design of the projection engine, the OverView OVL projector can also be used to upgrade existing Barco rearprojection modules of the OverView D series.
- Page 3 • Width: 1,600 mm / 63" • Heigth: 1,200 mm / 47.2" • Depth: 1,023 mm / 40.3" • Aspect ratio: 4:3 • Weight/module 131.3 kg / 289 lbs Light source 3x six fold redundant LED block Light source lifetime > 60,000 h, > 80,000 h (eco) Recommended maintenance interval > 5 yearsNo burnin, no image retention Conditions for operation 10°C40°C, 50°F104°F, 80% humidity (nc) AC input voltage 90 – 240 V, 5060Hz Power typical: 230W, maximum: 350W, eco mode: 170W Heat dissipation typical: 785, maximum: 1,195, eco mode: 580 BTU/h Direct ethernet access Build in web server Graphical user interface All settings and operational parameters Signal input/output 2x Dual link DVI in, 2x Dual link DVI out Pixel clock 320 MHz Input frequency 24 – 62 Hz Genlock 49 – 61 Hz Signal processing Loop through up to 10 cubes / Free cropping, free scaling Integration to third party equipment Web based API Warranty 2 years Generated on: 19 Dec 2013 Technical specifications are subject to change without prior notice. Please check www.barco.com for the latest information.
