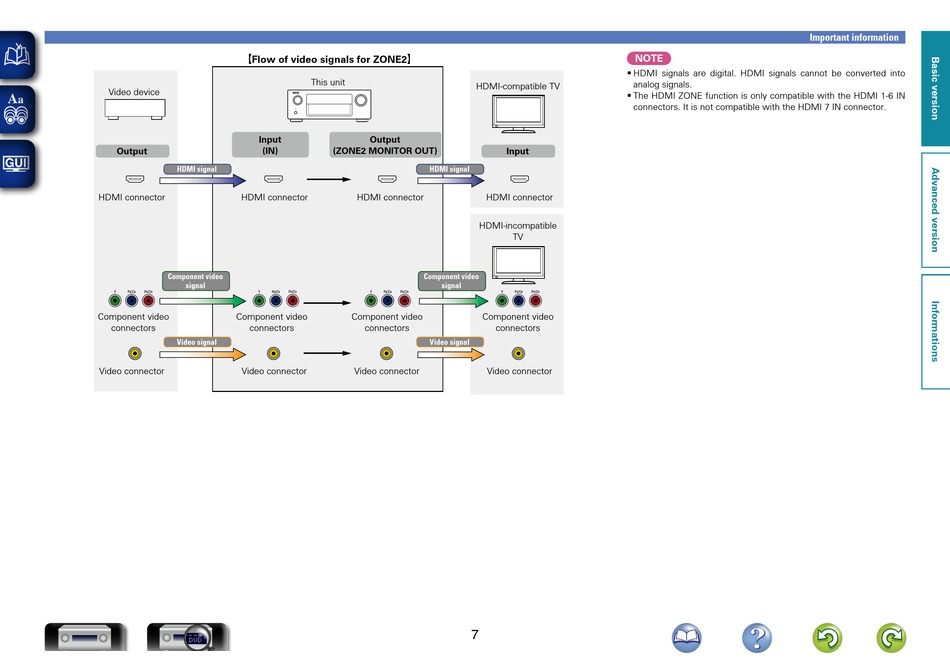

GFlow of video signals for ZONE2H
Video device
Input
Output (IN)
HDMI signal
HDMI connector HDMI connector
Component video
signal
Component video Component video
connectors connectors
Video signal
Video connector Video connector
DVD
This unit
HDMI-compatible TV
Output
(ZONE2 MONITOR OUT)
HDMI signal
HDMI connector HDMI connector
HDMI-incompatible
Component video Component video
signal signal
Component video Component video
connectors
Video signal
Video connector Video connector
7
NOTE
• HDMI signals are digital. HDMI signals cannot be converted into
analog signals.
• The HDMI ZONE function is only compatible with the HDMI 1-6 IN
connectors. It is not compatible with the HDMI 7 IN connector.
