To increase the volume on the center speaker of the Denon AVR-3313CI, follow these steps:

1. Press the AVR button on the remote control to set it to AVR operation mode.
2. Access the Speaker Setup menu.
3. Navigate to Channel Level settings.
4. Select the Center Speaker.
5. Adjust the volume level as needed using the remote control or front panel controls.
6. Confirm and save the settings.

This will increase the center speaker’s volume relative to the other speakers in your system.

This answer is automatically generated

Summary of Contents for Denon AVR-3313CI

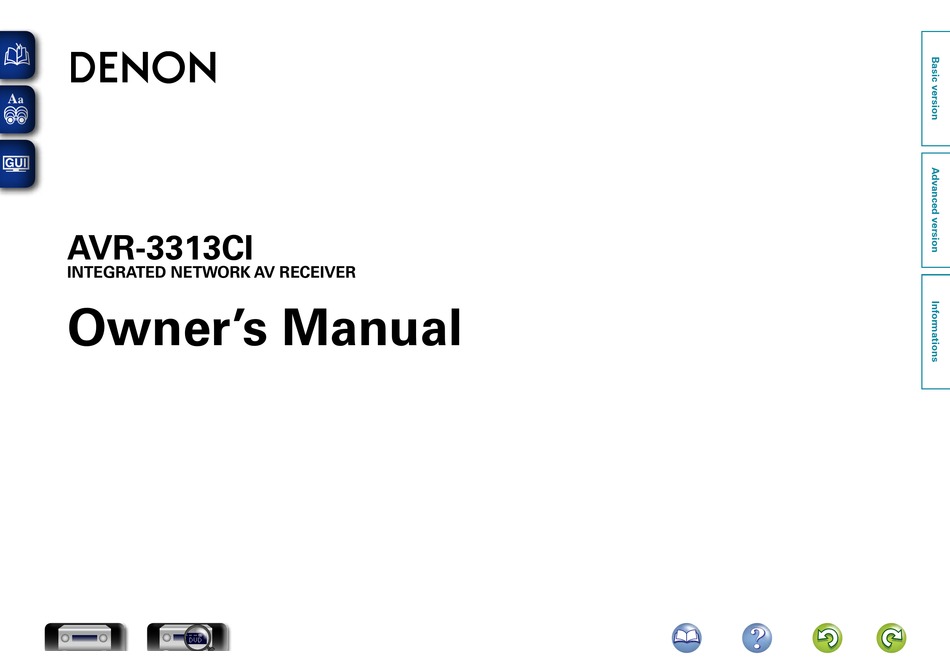

Page 1 AVR-3313CI INTEGRATED NETWORK AV RECEIVER Owner’s Manual...
Page 2: Safety Precautions
The exclamation point within an equilateral triangle is intended approved by DENON may void your authority, granted by the FCC, to use 10. Protect the power cord from being walked on or pinched particularly at to alert the user to the presence of important operating the product.
Page 3 n CAUTIONS ON INSTALLATION NOTES ON USE WARNINGS • Avoid high temperatures. Allow for sufficient heat dispersion when installed in a rack. • Handle the power cord carefully. Hold the plug when unplugging the cord. • Keep the unit free from moisture, water, and dust. • Unplug the power cord when not using the unit for long periods of time.
Page 4: Table Of Contents
Getting started Thank you for purchasing this DENON product. To ensure proper operation, please read this owner’s manual carefully before using the product. After reading them, be sure to keep them for future reference. Contents Advanced version Informations ································································81 ·········································································152 Getting started ··············································································1...
Page 5: Accessories
AM loop antenna ..............1 “Denon Link HD” Supports internet radio, music, and photograph FM indoor antenna ..............1 By connecting to a DENON Blu-ray Disc player compatible with streaming Denon Link HD, the sound localization becomes more precise, Supports AirPlay ® (vpage 73) reproducing a clear and three-dimensional sound image.
Page 6: Cautions On Handling
Features Cautions on handling “Setup Assistant”, providing easy-to-follow setup Simultaneous playback on two HDMI channels • Before turning the power on instructions (except for ZONE2 HDMI output) Check once again that all connections are correct and that there are First select the language when prompted. Then simply follow the This unit is equipped with two HDMI MONITOR outputs.
Page 7: Basic Version
Basic version Basic version Here, we explain the connections and basic operation methods for this unit. F Connections vpage 5 F Setup vpage 29 F Playback (Basic operation) vpage 36 F Selecting a listening mode (Sound Mode) vpage 75...
Page 8: Connections
Connections Important information Make connections before using this unit. n HDMI-compatible device To create a home theater that can play back higher quality video and audio by fully utilizing the capabilities of this unit and your video devices, connect this unit to each of your video devices with HDMI cables.
Page 9 Important information Converting input video signals for output (Video conversion function) Make Settings as Necessary • If you do not want this unit to convert video signals automatically, This unit is equipped with three types of video input connectors (HDMI, Component video and video) and three types of video output connectors use the following setting item to disable this function.
Page 10 Important information NOTE GFlow of video signals for ZONE2H • HDMI signals are digital. HDMI signals cannot be converted into This unit analog signals. HDMI-compatible TV Video device • The HDMI ZONE function is only compatible with the HDMI 1-6 IN connectors. It is not compatible with the HDMI 7 IN connector. Input Output Output...
Page 11: Connecting An Hdmi-Compatible Device
Connecting an HDMI-compatible device You can connect up to ten HDMI-compatible devices (7-inputs/3-outputs) to the unit. When a TV is connected to the HDMI ZONE2 OUT connector, you can play back a video or audio from the device connected to the HDMI 1 - 6 IN connector in ZONE2 ( vpage 103). n Before connecting this unit to TV via HDMI connections (vpage 9) If the device connected to this unit is equipped with an HDMI connector, it is recommended to use HDMI n Connecting this unit to a TV via HDMI connections (vpage 10)
Page 12 Connecting an HDMI-compatible device Before connecting this unit to TV via HDMI connections n About ARC (Audio Return Channel) function This function plays TV audio on this unit by sending the TV audio signal to this unit via HDMI cable. There are 2 methods to connect HDMI-compatible TV to this unit.
Page 13 Connecting an HDMI-compatible device Connecting this unit to a TV via HDMI connections NOTE • The audio signal from the HDMI output connector (sampling frequency, number of channels, etc.) may be When a TV is connected to the HDMI ZONE2 OUT connector, you can play back a video or audio from the limited by the HDMI audio specifications of the connected device regarding permissible inputs.
Page 14 Connecting an HDMI-compatible device Connecting this unit to video devices via HDMI connections Digital camcorder (Primary) Cables used for connections HDMI Audio and video cable (sold separately) HDMI cable • This interface allows transfer of digital video signals and digital audio signals over a single HDMI cable. Blu-ray Digital Disc...
Page 15: Hdmi Function
Connecting a player compatible with the Denon Link HD function HDMI function By making a Denon Link HD connection to a player compatible with the Denon Link HD function, you This unit supports the following HDMI functions: can enjoy higher quality playback compared with when only the HDMI connector connection is made.
Page 16 Connecting an HDMI-compatible device n Deep Color (vpage 168) When a device supporting Deep Color is connected, use a cable compatible with “High Speed HDMI cable” or “High Speed HDMI cable with Ethernet”. n Auto Lip Sync (vpage 120, 168) n “x.v.Color”, sYCC601 color, Adobe RGB color, Adobe YCC601 color (vpage 168, 170) n High definition digital audio format n ARC (Audio Return Channel) (vpage 9)
Page 17: Connecting An Hdmi-Incompatible Device
Connecting an HDMI-incompatible device For high quality video and surround playback, it is recommended to Cables used for connections Changing the source assigned to use an HDMI cable to connect this unit to TV and other video devices (vpage 8 “Connecting an HDMI-compatible device”). connectors This section describes connections when your device does not Video cable (sold separately)
Page 18: Connecting A Tv
Connecting an HDMI-incompatible device Connecting a TV Input connector setting When making the following connection, you must change the input connector settings. • This section describes how to connect when your TV does not support HDMI connections. For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage 8). a DIGITAL AUDIO COAXIAL connector • If the TV connected to this unit is equipped with an HDMI connector that supports ARC, digital audio When connecting to connectors marked as 1, change “CBL/SAT”...
Page 19 Connecting an HDMI-incompatible device Connecting a set-top box (Satellite tuner/cable TV) Satellite tuner/Cable TV AUDIO VIDEO This section describes how to connect when your satellite tuner or cable TV does not support HDMI AUDIO COAXIAL OPTICAL COMPONENT VIDEO VIDEO connections. For instructions on HDMI connections, see “Connecting an HDMI-compatible device”...
Page 20: Connecting A Dvd Player
Connecting an HDMI-incompatible device Connecting a DVD player Input connector setting When making the following connection, you must change the input connector settings. This section describes how to connect when your DVD player does not support HDMI connections. For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage 8). a DIGITAL AUDIO OPTICAL connector When connecting to connectors marked as 1, change “TV AUDIO”...
Page 21 Connecting an HDMI-incompatible device Connecting a Blu-ray Disc player Blu-ray Disc player AUDIO VIDEO This section describes how to connect when your Blu-ray disc player does not support HDMI connections. AUDIO COAXIAL OPTICAL COMPONENT VIDEO For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage 8). n Audio connection The following methods are available for connecting to this unit.
Page 22 Connecting an HDMI-incompatible device Connecting a digital camcorder Digital camcorder VIDEO AUDIO GFront panelH This section describes how to connect when your digital camcorder does not support HDMI connections. VIDEO AUDIO For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage 8). n Audio connection The following methods are available for connecting to this unit.
Page 23 Connecting an HDMI-incompatible device Connecting a media player Input connector setting When making the following connection, you must change the input connector settings. • This section describes how to connect when your media player does not support HDMI connections. For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage 8). a DIGITAL AUDIO COAXIAL connector • When recording analog audio, use the analog connection.
Page 24 BACK • iPod touch DENON does not guarantee that all USB memory devices will operate or receive power. When using a portable USB connection type HDD of the kind to which an AC adapter can be connected to supply power, • iPhone use the AC adapter.
Page 25: Connecting A Cd Player
Connecting an HDMI-incompatible device Connecting a CD player CD player AUDIO You can enjoy CD sound. AUDIO COAXIAL OPTICAL n Audio connection The following methods are available for connecting to this unit. Use either of the methods to make a connection. The numbers prefixed with connectors indicate the recommendation order.
Page 26 Connecting an HDMI-incompatible device Connecting a record player Turntable (MM cartridge) You can enjoy playing records. n Audio connection The following methods are available for connecting to this unit. a AUDIO IN (PHONO) connector This makes an analog audio connection. AUDIO • This unit is compatible with record players with an MM cartridge.
Page 27 Connecting an HDMI-incompatible device Connecting an HD Radio receiver Direction of broadcasting station AM loop antenna (for HD Radio • By connecting a HD Radio antenna to this unit, you can receive HD Radio programs. FM outdoor broadcasting, supplied) • HD Radio broadcasting currentry is available in the United States and select other countries. antenna • To prevent interference, install at least 3.3 • After connecting the antenna and receiving a broadcast signal...
Page 28: Connecting A External Power Amplifier
Connecting a external power amplifier • You can use this unit as a pre-amp by connecting a commercially available power amp to the PRE OUT Subwoofer Subwoofer connector. Adding a power amp to each of the channels provides an even greater sound presence. (Primary) (Secondary) Power amplifier...
Page 29: Connecting An External Control Device
Connecting an external control device REMOTE CONTROL jacks RS-232C connector TRIGGER OUT jacks If this unit is installed in a location that is out of range of the signal When you connect an external control device, you can control this When a device with TRIGGER IN jack is connected, the connected from the remote control unit, you can still operate the unit and the unit with the external control device (such as power supply operation,...
Page 30: Connecting To A Home Network (Lan)
To LAN port details. • The normal shielded-type Ethernet cable LAN port/ LAN port/ • DENON assumes no responsibility whatsoever is recommended. If a flat-type cable or To LAN port Ethernet Ethernet for any communication errors or troubles...
Page 31: Connecting The Power Cord
Connecting the power cord After completing all the connections, insert the power plug into the power outlet. To household power outlet (AC 120 V, 60 Hz) Power cord (supplied) NOTE • Do not plug in the power cord until all connections have been completed. • Do not bundle power cords together with connection cables.
Page 32: Setup
Setup Here, we explain “Audyssey ® Setup”, which allows you to Set up speakers (Audyssey ® Setup) automatically make the optimal settings for your speakers, and “Network”, which allows you to connect this unit to a home network (LAN). This unit lets you play via your home network (LAN) music files stored The acoustic characteristics of the connected speakers and on a computer and music content such as that from Internet radio.
Page 33 Set up speakers (Audyssey ® Setup) Prepare the included setup microphone Set up the subwoofer Preparation Mount the setup microphone on a tripod or stand If using a subwoofer capable of the following and place it in the main listening position. adjustments, set up the subwoofer as shown below.
Page 34 Set up speakers (Audyssey ® Setup) Preparation (Continued) Detection & Measurement (Main) • This step automatically checks the speaker configuration and speaker NOTE Select “Start” and then press size, and calculates the channel level, distance, and crossover ENTER If “Caution!” is displayed on TV screen: frequency.
Page 35 Set up speakers (Audyssey ® Setup) Measurement (2nd – 8th) Calculation • In this step, you will perform measurements at multiple positions Repeat step 10, measuring positions 3 to 8. Select “Calculation” and then press ENTER (two to eight positions) other than the main listening position. When measurement of position 8 is completed, a Measuring results are analyzed, and the frequency response of • Just one position can be measured but measuring multiple positions...
Page 36 Set up speakers (Audyssey ® Setup) Check Store Finish Unplug the setup microphone from the unit’s SETUP ENTER to select the item you Select “Store” and then press MIC jack. want to check, and then press Save the measurement results. ENTER Set Audyssey Dynamic Volume.
Page 37: Error Messages
Set up speakers (Audyssey ® Setup) Error messages NOTE • An error message is displayed if Audyssey ® Setup could not be completed due to speaker placement, the measurement environment, etc. If an error message is displayed, check the relevant items and perform the necessary measures.
Page 38: Making The Network Settings (Network)
Set up speakers (Audyssey ® Setup) Making the network settings Parameter Check (Network) This function enables you to check the measurement results and equalizer characteristics after Audyssey ® This unit can be connected to a home network (LAN) to listen to Internet radio or play back music files and Setup.
Page 39: Playback (Basic Operation)
The desired input source can be selected n Playing a Blu-ray Disc player compatible with the unit. directly. Denon Link HD (vpage 37) The power indicator flashes green and the power turns on. n Playing Super Audio CD (vpage 38) n Playing a CD player (vpage 38) You can also use the following operation to select an input n Playing an iPod (vpage 39)
Page 40: Playing A Blu-Ray Disc Player/Dvd Player
VOLUME df to adjust the The following describes the procedure for playing Blu-ray Disc player/ • Denon Link HD uses the clock of the AV amplifier connected by volume. DVD player. Denon Link to achieve HDMI signal transfer with low jitter when • The...
Page 41: Playing Super Audio
NOTE The following describes the procedure for playing Super Audio CD. The following describes the procedure for playing CD player. • Set the Blu-ray disc player’s “Denon Link” setting to “On”. For Prepare for playback. Prepare for playback. instructions on operation, refer to the Blu-ray disc player’s manual.
Page 42: Playing An Ipod
Playing an iPod You can use the USB cable provided with the iPod to connect the iPod Listening to music on an iPod Operations available through the OPTION button with the unit’s iPod/USB port and enjoy music stored on the iPod. OPTION For information on the iPod models that can be played back with this Press the...
Page 43 • Depending on the type of iPod and the software version, some functions may not operate. Press ENTER • Note that DENON will accept no responsibility whatsoever for any Playback starts. problems arising with the data on an iPod when using this unit in conjunction with the iPod.
Page 44 Playing an iPod n Performing repeat playback (Repeat) n iPod operation buttons n Performing random playback (Random) Operation buttons Function Press OPTION while in Browse mode. OPTION Press while in Browse mode. CH/PAGE df Page search The option menu screen is displayed. The option menu screen is displayed.
Page 45: Playing A Usb Memory Device
Playing a USB memory device Playing back music or still picture (JPEG) files recorded on a USB memory device. Important information • Only USB memory devices conforming to mass storage class and MTP (Media Transfer Protocol) GCompatible formatsH standards can be played on this unit. Sampling frequency Bit rate Extension...
Page 46 Playing back still images in sequential order or folder, then press ENTER (Slideshow) (vpage 72) • Note that DENON will accept no responsibility whatsoever for any to select the file, then problems arising with the data on a USB memory device when using press ENTER this unit in conjunction with the USB memory device.
Page 47 Playing a USB memory device n USB memory device operation buttons Operation buttons Function CH/PAGE df Page search Display of information such as the INFO source name, volume, and sound mode name Text Search / Repeat playback / OPTION Random playback / Picture View / Slideshow Cursor operation /...
Page 48: Listening To Hd Radio Stations
Listening to HD Radio stations For antenna connections, see “Connecting an HD Radio receiver” (vpage 24). How to tune in Important information The modes for receiving FM broadcasts consists of “Auto” mode that automatically searches available n Using the HD Radio™ receiver broadcast stations and “Manual” mode that lets you tune in using buttons to change the frequency. The HD Radio stations offer higher sound quality than conventional FM/ AM broadcasts.
Page 49 Listening to HD Radio stations n Changing the screen display duration Listening to HD Radio stations to select “FM” or “AM”, then press ENTER Make this setting at “Audio Display” (vpage 123) in the menu. TUNER Press to switch the input source to The default setting is “30s”.
Page 50 Listening to HD Radio stations n Changing the tuning mode (Tune Mode) n Selecting audio programs to select tuning mode, then press ENTER You can change the mode for tuning into FM/AM broadcasts. HD Radio Technology enables stations to broadcast multiple Audio Program and data services on HD2 / HD3 / HD4 channels.
Page 51 Listening to HD Radio stations n Tuning in by entering the radio frequency 0 – 9 to select a number and press (Direct Tune) The screen that lets you enter the frequency is displayed. You can enter the receiving frequency directly to tune in. GTV ScreenH Press TUNER...
Page 52 Listening to HD Radio stations Presetting broadcast stations Press ENTER The unit starts to tune in to radio stations automatically and n Tuning in to radio stations and presetting them preset them. automatically (Auto Preset Memory) GTV ScreenH Up to 56 stations can be preset. HD Radio If “Auto Preset Memory”...
Page 53 Listening to HD Radio stations n Presetting the current broadcast station Channel Default Settings 0 – 9 to select the channel you want to (Preset Memory) 87.50 / 87.90 / 89.10 / 93.30 / 97.90 / 98.10 / 98.90 / ENTER preset, then press 1 –...
Page 54 Listening to HD Radio stations n Specify a name for the preset broadcast station to select the group of the broadcast station to select a name label, then press ENTER (Preset Name) ENTER you want to name then press The screen that lets you edit the preset name is displayed. You can set the name to the preset broadcast station or change it.
Page 55 Listening to HD Radio stations n Skipping preset broadcast stations GTo set the stations you want to skip by groupsH GTo set the stations you want to skip by stationsH (Preset Skip) q Use to select the group of broadcast q Use to select the group of broadcast You can set in advance, the stations you do not want to be stations you want to skip.
Page 56 Listening to HD Radio stations Cancelling preset skip n Check the HD Radio reception information n Tuner (HD Radio reception) operation buttons Operation buttons Function STATUS Press on the main unit while an HD Radio While the Preset Skip screen is displayed, use TV X TV power on/standby broadcast is being received.
Page 57: Network Contents
Network contents Listening to internet radio Internet radio refers to radio broadcasts distributed over the Internet. Listening to internet radio to select the item you want to play, then Internet radio stations from around the world can be received. press ENTER Prepare for playback.
Page 58 Listening to internet radio n Adjusting the sound quality (Restorer) Operations available through the OPTION button n Playing the last played Internet radio station Make this setting at “Restorer” (vpage 115) in the menu. This unit memorizes the last played Internet radio station. If you OPTION Press the button to display a menu of functions that can be...
Page 59 Listening to internet radio n Using vTuner to add Internet radio stations to n Internet radio operation buttons Select the radio station of your choice from the list, favorites and then click the Add to Favorites icon. Operation buttons Function There are many Internet radio stations in the world, and this unit The screen that lets you create a favorite group is displayed.
Page 60: Playing Back Files Stored On A Pc And Nas
Playing back files stored on a PC and NAS This unit can play back music files and playlists (m3u, wpl) stored on a PC and on Network Attached Storage (NAS) that supports DLNA. Important information • The network audio playback function of this unit connects to the server using technologies shown below. GSpecifications of supported filesH • Windows Media Player Network Sharing Service Sampling frequency...
Page 61 Playing back files stored on a PC and NAS Applying media sharing settings When using Windows Media Player 12 When using Windows Media Player 11 (Windows 7) Here, we apply the settings to share music files stored on a PC and Start up Windows Media Player 11 on the PC.
Page 62 Playing back files stored on a PC and NAS Playing back files stored on a PC and NAS n Adjusting the sound quality (Restorer) Make this setting at “Restorer” (vpage 115) in the menu. • When a WMA (Windows Media Audio), MP3 or MPEG-4 AAC file Use this procedure to play music files, image files or playlists.
Page 63 Playing back files stored on a PC and NAS Operations available through the OPTION button n Media server operation buttons OPTION Press the button to display a menu of functions that can be Operation buttons Function used on the TV screen. Select the function you want to use from this TV X TV power on/standby menu.
Page 64: Using Online Services
To listen to Pandora you will need a free Pandora account. If you do not have a Pandora account, you can create one at www.pandora.com or from the Pandora smartphone application. It is necessary to associate this machine with a Pandora account by visiting http://www.pandora.com/denon from your PC.
Page 65 Using online services Viewing photographs on the Flickr site n Going back to the previous screen In “Contact”, add the screen name (user name you BACK Press want to view) you want to add. You can view photographs shared by particular users, or all of the photographs shared on Flickr.
Page 66 Using online services n Viewing all photographs on Flickr n Flickr operation buttons Operation buttons Function to select “All Content”, then press ENTER TV X TV power on/standby TV INPUT Switch TV input CH/PAGE df Page search Flickr [1/2] Display of information such as the Add Flickr Contact INFO source name, volume, and sound mode...
Page 67 When “Cancel input?” is displayed, I am new to Pandora ENTER select “Yes”, then press Please go to http://www.pandora.com/denon and follow the instructions there to create a new account. Your activation code is : zzzzzz Cancel...
Page 68 Using online services n Creating a new station n Listening to an existing station to select “Search by Artist” or “Search by You can create up to 100 radio stations. ENTER Track”, then press and select the radio station to select “New Station”, then press ENTER You can search and display a list by track or artist.
Page 69 Using online services n Giving Feedback and Managing Stations n Pandora operation buttons NOTE You can personalize your stations by providing feedback. • You can Skip up to 6 Tracks that are being played back within 1 hour. Operation buttons Function • You can create up to 100 Stations (radio stations).
Page 70 Using online services Listening to SiriusXM Satellite Radio n Going back to the previous screen Select “Sign in”, then press ENTER BACK Press Over 120 channels of the SiriusXM programming you love, including commercial-free music plus sports, talk, news and entertainment. Listen anywhere on your computer or smartphone.
Page 71 Using online services n Sign out n SiriusXM operation buttons Disassociate this unit from your SiriusXM account. Operation buttons Function While the SiriusXM top menu is displayed, press CH/PAGE df Page search BACK Display of information such as the INFO source name, volume, and sound mode When the popup menu appears, use to select...
Page 72: Convenient Functions
Convenient functions Here, we explain how to use convenient functions for NETWORK Searching content with keywords n Playing back a search result content sources and USB sources. The source names under the titles of each function’s description are sources that allow use of these functions. (Text Search) to select the content you ENTER...
Page 73 Convenient functions Performing repeat playback (Repeat) Performing random playback (Random) The random playback randomly selects a track to play back from all Media Server Media Server tracks every time a track ends. Therefore, the same track may be played back consecutively. OPTION OPTION While content is playing, press...
Page 74 Convenient functions Favorites function Playing back content added in “Favorite Memory” FAVORITE STATION Contents that can be added to the button differ NETWORK There are two ways to add content to favorites: Press depending on the input source. q Add to favorites from the Option menu FAVORITE STATION w Add to the button...
Page 75 Convenient functions n Deleting content added to favorites Playing back music and a favorite picture Playing back still images in sequential (Remove Favorites) at the same time (Picture View) order (Slideshow) Press NETWORK You can play back still image (JPEG) files stored on a USB memory Internet Radio Media Server device or media server and pictures on Flickr website as a slide show.
Page 76: Airplay Function
My Computer this unit from the list. This Computer • For details, see your device’s manual. DENON AVR-3313CI Startup iPhone, iPod touch, or iPad music or iPod AirPlay Device app. is displayed on the iPhone, iPod touch or iPad screen.
Page 77 AirPlay function n Perform iTunes playback operations with the remote control unit of this unit • is displayed on the menu screen while With this unit’s remote control unit, you can perform iTunes song AirPlay is being operated. play, pause, and auto search (cue) operations. • Source input will...
Page 78: Selecting A Listening Mode (Sound Mode)
Selecting a listening mode (Sound Mode) This unit allows you to enjoy various kinds of surround and stereo Selecting a listening mode playbacks. Multi-channel audio formats are adopted by many of the contents Play the selected device (vpage 37 – 68). Direct playback including Blu-ray disc and DVD as well as digital broadcasting and Internet-delivered movies and music.
Page 79 Selecting a listening mode n Listening mode MOVIE MUSIC GAME PURE • The following listening modes can be selected using the , and buttons. • Adjust the sound field effect with the menu “Surround Parameter” (vpage 113) to enjoy your favorite sound mode. z1 2-channel also includes analog input.
Page 80 Selecting a listening mode z1 2-channel also includes analog input. Operation Operation Input signal Listening mode Input signal Listening mode z2 This mode plays back 2-channel source in 5.1 or 7.1-channel button button playback. It cannot be selected when headphones are used, or STEREO DTS-HD HI RES / when only front speakers are used.
Page 81 Selecting a listening mode Views on the TV screen or display Operation Operation Input signal Listening mode Input signal Listening mode button button STEREO DIRECT DOLBY PLgx Game PURE DIRECT DOLBY PLg Game Blu-ray z1 2-channel also includes analog input. DOLBY PLg Game A-DSX DOLBY D + PL z 2-channel...
Page 82 Selecting a listening mode n Description of listening mode types Dolby listening mode DTS listening mode Listening mode type Description Listening mode type Description DOLBY PLgx This mode can be selected when a Dolby Pro Logic gx decoder is used to DTS NEO:6 This mode can be selected when a DTS NEO:6 decoder is used to play back 2-channel source in 6.1/7.1-channel surround sound including the surround...
Page 83 Selecting a listening mode Audyssey DSX listening mode STEREO listening mode Listening mode type Description Listening mode type Description Audyssey DSX This mode creates playback for the new channels (front wide or front height) in STEREO This is the mode for playing in stereo. The tone can be adjusted. (A-DSX) 5.1-channel systems.
Page 84: Advanced Version
Advanced version Advanced version Here, we explain functions and operations that let you make better use of this unit. F Installation/connection/setup of speakers (Advanced) vpage 82 F Playback (Advanced operation) vpage 95 F Playback in ZONE2/ZONE3 (Separate room) vpage 103 F How to make detailed settings vpage 106...
Page 85: Installation/Connection/Setup Of Speakers (Advanced)
Installation/connection/setup of speakers (Advanced) Speaker installation Procedure for speaker settings • Determine the speaker system depending on the number of speakers Speaker installation you are using and install each speaker and subwoofer in the room. Here, we explain how to install the speakers using a typical example. Use the illustration below as a guide for how high each speaker should • The speaker impedance should be from 6 to 16 Ω.
Page 86 Speaker installation When 7.1-channel speakers are installed When 6.1ch speakers are installed When 5.1ch speakers are installed using surround back, front height, and front wide speakers When using Audyssey DSX ® , install front wide speakers or front height speakers. When using Dolby Pro Logic gz, install front height speakers.
Page 87: Connecting The Speaker Cables
Speaker connection Here, we connect the speakers in the room to this unit. Connecting the speaker cables This section explains how to connect them using a typical example. Carefully check the left (L) and right (R) channels and + (red) and – (black) polarities on the speakers being connected to this unit, and be sure to interconnect the channels and polarities correctly.
Page 88 Speaker connection Connecting 7.1-channel speakers using surround back, front height, and front wide speakers The illustration on the right shows a connection example for performing 7.1-channel playback using the surround back, front height or front wide speakers. If you connect the surround back, front height and front wide speakers before you start playback, the audio is played back by automatically switching the speakers in accordance with the surround mode or input signals.
Page 89 Speaker connection Connecting 6.1-channel speakers using one surround back speaker If using only one surround back speaker, connect to the “L” side of the SURROUND BACK terminal. For speaker settings in this case, see “When 6.1ch speakers are installed” (vpage 83). To perform 6.1-channel playback using the surround back speaker, set “Assign Mode”...
Page 90 Speaker connection Connecting 5.1-channel speakers To perform 5.1-channel playback, set “Assign Mode” to “Main Only” in steps 3 to 5 for “Set up “Amp Assign”” (vpage 92). Cables used for connections Audio cable (sold separately) Speaker cable Subwoofer cable NOTE • For speaker cable connections, see page 84. • For speaker impedance , see page 84.
Page 91 Speaker connection Connecting front A/B speakers You can connect a second set of speakers to this unit and use them for playback. In this case, set “Assign Mode” to “Front B” in steps 3 to 5 for “Set up “Amp Assign”” (vpage 92). Cables used for connections Audio cable (sold separately) Speaker...
Page 92 Speaker connection Connecting 2.1-channel speakers Cables used for connections Audio cable (sold separately) Speaker cable Subwoofer cable NOTE • For speaker cable connections, see page 84. • For speaker impedance , see page 84. n For connecting two subwoofers Two subwoofers can be connected to this unit. The same signal is output from each subwoofer terminal.
Page 93 Speaker connection Connecting front speakers with a bi-amp connection • You cannot use surround back speakers in a bi-amp connection. Use front speakers that support a bi-amp connection and connect the speakers to the FRONT speaker terminals and the SURROUND BACK speaker terminals.
Page 94 Speaker connection Connecting 5.1-channel + 2-channel speakers Multi channel playback (Sound mode) You can connect the other front speakers for 2-channel playback using the DIRECT mode or STEREO mode. The speakers used exclusively for 5.1-channel playback and the speakers used exclusively for 2-channel playback are automatically switched for playback in accordance with the surround mode.
Page 95: Set Up Speakers
Set up speakers around items indicate the settings. This section describes detailed settings for Audyssey ® Setup. First install and connect the speakers to this unit. Before Audyssey ® Setup measurement, the settings shown below can be made. • Changing the amplifier assignment (Amp Assign) The signal output from the SURROUND BACK speaker terminal of this unit can be switched to match your speaker environment (vpage 92 “Set up “Amp Assign””).
Page 96 Set up speakers to select the to select a channel, and then press ENTER Set up “Channel Select” configuration of the connected to select “Channel Select”, and then press speakers, and then press Front Select for setting the front speakers to be used. In this ENTER ENTER case, go to step 9.
Page 97 Set up speakers NOTE to set whether or not a After performing Audyssey ® Setup, do not change the speaker subwoofer channel is measured, connections or subwoofer volume. In event of a change, perform and then press ENTER Audyssey ® Setup again. Measure Set for measuring a subwoofer.
Page 98: Playback (Advanced Operation)
Playback (Advanced operation) HDMI control function Setup (vpage 29) If you connect the unit and an HDMI control function compatible TV or n Setting procedure player with an HDMI cable and then enable the HDMI control function Playback (Basic operation) (vpage 36) setting on each device, the devices will be able to control each other.
Page 99 HDMI control function NOTE • When “HDMI Control” is set to “On”, it consumes more standby If the HDMI control function does not operate properly, check the power. following points. • The HDMI control function controls operations of a TV that is • Is the TV or player compatible with the HDMI control function? compatible with the HDMI control function.
Page 100: Sleep Timer Function
Sleep timer function • You can have the power automatically switched to standby once a set time has elapsed. This is convenient for viewing and listening while going to sleep. • The sleep timer setting is canceled if this unit’s power is set to • The sleep timer function can be set for each zone (vpage ...
Page 101: Quick Select Function
Quick select function You can save settings such as the input source selection, volume n Changing the settings QUICK SELECT 1 – 4 level, and sound mode at the buttons. QUICK SELECT You can simply press one of the set buttons for Set the items below to the settings you want to save.
Page 102: Rec Out Mode
REC OUT mode • When using the audio/video recording connectors (MEDIA PLAYER outputs), you can record the audio or video from a different program source while listening to the currently played track. ZONE2 / REC SOURCE • To cancel, press until • For the connection method, see “Connecting a media player”...
Page 103: Web Control Function
INDEX For example, if the IP address of this unit is “192.168.100.19”, (vpage 27 “Connecting to a home network (LAN)”) in order to DENON AVR-3313CI enter “http://192.168.100.19/”. use the web control function. Web Controller • Depending on the settings of your security-related software, you http://192.168.100.19/index.asp...
Page 104 Web control function Operate. GExample 2H Setup menu screen GExample 4H Network audio operating screen GExample 1H MAIN ZONE control screen VIDEO (MAIN ZONE) NETWORK DENON AVR-3313CI AUDIO PICTURE ADJUST ZONE CONTROL Contrast MAIN ZONE SLEEP VIDEO NETWORK Network Brightness...
Page 105: Various Memory Functions
Various memory functions Personal memory plus function This function sets the settings (input mode, sound mode, HDMI output mode, MultEQ ® XT, Dynamic EQ, audio delay etc.) last selected for the individual input sources. The surround parameters, tone settings and the volumes of the different speakers are stored for the individual sound modes.
Page 106: Playback In Zone2/Zone3 (Separate Room)
Playback in ZONE2/ZONE3 (Separate room) • You can operate this unit so as to enjoy audio in a room (ZONE2, ZONE3) other than the MAIN ZONE Audio output (room where the unit is located). • You can simultaneously play back the same source in both the MAIN ZONE, ZONE2 and ZONE3. You can It is possible to play 2-channel audio in rooms other than the MAIN ZONE where multi-channel playback is also play back separate sources in the MAIN ZONE, ZONE2 and ZONE3.
Page 107: Video Output
NOTE NOTE In ZONE2 or ZONE3, the digital audio signals input from the HDMI, COAXIAL, OPTICAL connector or Denon Link HD cannot be played back. When playing back in ZONE2 or ZONE3, make an analog connection. The menu screen is not output.
Page 108: Playback
Playback Sleep timer function ZONE2 ZONE3 • This is convenient for viewing and listening while going to sleep in Press to switch Adjusting the volume ZONE2 or ZONE3. the zone mode. • The sleep timer function can be set by zone. VOLUME df to adjust the volume.
Page 109: How To Make Detailed Settings
Make settings for wired LAN. Settings Video Component Video Out Sets whether to use the component video output Use when receiving maintenance from a DENON Maintenance Mode connector for MAIN ZONE or ZONE2. service engineer or custom installer. Volume Display Sets where to display the master volume level.
Page 110 Menu map Setting items Detailed items Description Page Language Sets the language for display the menu on the TV screen. Makes settings for audio playback in a ZONE2 ZONE2 Setup system. General ZONE3 Setup Makes settings for audio playback in a ZONE3 system.
Page 111: Examples Of Menu Screen Displays
Examples of menu screen displays Typical examples are described below. GExample 1H GExample 2H Audyssey ® Setup screen (with illustration) Menu selection screen (Top menu) Audyssey Setup Setup Menu Audio Your AV receiver can automatically measure the acoustics of your room then optimize your speakers using the included Video microphone.
Page 112: Examples Of Menu And Front Display
Examples of menu and front display Below we describe typical examples of displays on the TV screen and on the set’s display window. Menu display Front display Description Top menu display SETUP q Press to display the menu screen. Setup Menu w TV screen: Displays the selected line.
Page 113: Inputting Characters
Inputting characters Keyboard screen On this unit, you can change the name displayed on the following n Input method screens to the names that you prefer. Display the screen for inputting • Text Search (vpage 69) Select a character on the TV screen to input characters. • Preset Name (vpage 51) characters (vpage 106...
Page 114 Inputting characters 10 Key input screen Using the cursor buttons Place the cursor at the character to be changed with and press the number button ( 0 – 9 ) until the When the keyboard screen is n Display of a 10 Key input screen desired character is displayed.
Page 115: Audio
Audio Make audio-related settings. Items that can be set with the “Audio” procedure Menu operation Surround Parameter (vpage 113) MAIN Press to switch the zone mode to the MAIN ZONE. Tone (vpage 115) MAIN lights. SETUP Press Dialogue Level (vpage 115) The menu is displayed on the TV screen. to select the menu to be set or operated.
Page 116 Audio Surround Parameter Setting items Setting details Default settings are underlined. Center Image 0.0 – 1.0 (0.3) You can adjust the surround audio sound field effects to match your preferences. Distributes the dialogue The smaller the value, the more dialogue is concentrated on the center The items (parameters) that can be adjusted depend on the signal being input and the currently set output from the center channel.
Page 117 Audio Setting items Setting details Setting items Setting details Delay Time 0ms – 300ms (30ms) Speaker Select Surround Back : Sound is output from the surround back speakers. Adjust the audio delay time Make settings for the Height : Sound is output from the front height speakers. against video to extend the speakers outputting sound Wide : Sound is output from the front wide speakers.
Page 118 Audio Tone Subwoofer Level Default settings are underlined. Default settings are underlined. Adjust the tonal quality of the sound. Sets the subwoofer on/off and its output level. Setting items Setting details Setting items Setting details Tone Control On : Allow tone adjustment (bass, treble). Subwoofer On : The subwoofer is used.
Page 119: Audio Delay
Audio Audio Delay Audyssey Default settings are underlined. Default settings are underlined. Set Audyssey MultEQ ® XT, Audyssey Dynamic EQ ® and Audyssey Dynamic Volume ® . These can be While viewing video, manually adjust the time to delay audio output. selected after Audyssey ®...
Page 120 Audio Setting items Setting details Setting items Setting details Audyssey DSX ® Dynamic EQ On : Use Dynamic EQ. On–Height– : Turn on A-DSX processing for height expansion. Solve the problem of Off : Do not use Dynamic EQ. Provides more immersive On–Wide–...
Page 121 Audio Graphic EQ Default settings are underlined. Use the graphic equalizer to adjust the tone of each speaker. “Graphic EQ” can be set when “MultEQ ® XT” setting (vpage 116) is “Graphic EQ”. Setting items Setting details Speaker Selection All : Adjust the tone of all speakers together. Select whether to adjust Left/Right : Adjust the tone of left and right speakers together.
Page 122: Video
Video Make video-related settings. Items that can be set with the “Video” procedure NOTE When HDMI ZONE2 function is used, these settings are not available. Picture Adjust (vpage 120) Menu operation HDMI Setup (vpage 120) Press MAIN to switch the zone mode to the MAIN ZONE. MAIN lights.
Page 123 Video Picture Adjust HDMI Setup Default settings are underlined. Default settings are underlined. Picture quality can be adjusted. Make settings for HDMI video/audio output. We recommend leaving the settings unchanged from the default settings. First adjust the display image Setting items Setting details quality on your TV, and use this menu only when you want to make fine adjustments.
Page 124 Video Output Settings Setting items Setting details Default settings are underlined. HDMI Control On : Use HDMI control function. Makes screen-related settings. You can link operations with Off : Do not use HDMI control function. z “Blu-ray”, “GAME”, “AUX2”, “TV AUDIO” or “CD” can be set when “HDMI” or “COMP” devices connected to HDMI (vpage 126) has been assigned.
Page 125 Video Setting items Setting details Setting items Setting details i/p Scaler Analog : Use i/p scaler function for analog video signal. Progressive Mode Auto : The video signal is automatically detected and the appropriate Convert the input source Analog & HDMI : Use i/p scaler function for analog and HDMI video signal. Set an appropriate mode is set.
Page 126 Video Volume Display TV Format Default settings are underlined. Default settings are underlined. Sets where to display the master volume level. Set the video signal format to be output for the TV you are using. Setting items Setting details Setting items Setting details Bottom : Display at the bottom.
Page 127: Inputs
Inputs Perform settings related to input source playback. Items that can be set with the “Inputs” procedure • You do not have to change the settings to use the unit. Make settings when needed. Menu operation Input Assign (vpage 125) Press MAIN to switch the zone mode to the MAIN ZONE.
Page 128 Inputs Input Assign Setting items Setting details HDMI HDMI 1 / HDMI 2 / HDMI 3 / HDMI 4 / HDMI 5 / HDMI 6 / HDMI 7 : Assign This unit has certain input sources such as “CBL/SAT” assigned to audio and video connectors by default. Set this to change the HDMI an HDMI input connector to the selected input source.
Page 129 ENTER If you select “Set Defaults” and press to the input sources. connection is established to a player compatible with the Denon Link HD setting. the message “Reset to the default values?” function (vpage 12). is displayed. Select “Yes” or “No”, and then CBL/SAT None : Do not assign a digital input connector to the selected input source.
Page 130 Inputs Hide Sources Input Select Default settings are underlined. Default settings are underlined. Remove from the display input sources that are not used. Set the audio input mode and decode mode of each input source. The input modes available for selection may vary depending on the input source. Setting details Setting items Setting details...
Page 131 Inputs Video Source Default settings are underlined. Video of another input source is played back combined with the playing audio. Setting details Default : Play the picture and sound of the input source. Blu-ray / DVD / TV AUDIO / CBL/SAT / GAME / MEDIA PLAYER / AUX1 / AUX2 / CD : Select video input source to view.
Page 132: Speakers
Speakers Set when changing Audyssey ® Setup settings. Items that can be set with the “Speakers” procedure • If you change the speaker settings after performing Audyssey ® Setup, it will not be possible to set Audyssey MultEQ ® XT, Audyssey Dynamic EQ ® and Audyssey Dynamic Volume ® (vpage 116). • Can be used without changing the settings.
Page 133 Speakers Manual Setup Setting items Setting details Default settings are underlined. Speaker Config. Front : Set the front speaker size. Perform when setting the speakers manually or when changing settings made in Audyssey ® Setup. Indicate speaker presence • Large : Use a large speaker that can adequately play back low • If you change the speaker settings after performing Audyssey ®...
Page 134 Speakers Setting items Setting details Setting items Setting details Speaker Config. Surr. Back : Set the presence, size and number of surround back speakers. Bass Subwoofer Mode : Select low range signals to be reproduced by (Continued) • Large : Use a large speaker that can adequately play back low Set subwoofer and LFE subwoofer.
Page 135 Speakers Setting items Setting details Setting items Setting details Distances Unit : Set the unit of distance. Levels Test Tone Start : Output test tone. Set distance from listening • Feet / Meters Set the volume of the test • Front L / F. Height L / Center / F. Height R / Front R / F. Wide R / position to speakers.
Page 136 Speakers Setting items Setting details Setting items Setting details Crossovers Crossover : Set the crossover frequency. Front Speaker Setup 2ch Playback : The front speakers used in direct play (2 channel), stereo Set the maximum frequency • 40Hz / 60Hz / 80Hz / 90Hz / 100Hz / 110Hz / 120Hz / 150Hz / 200Hz / Set the front speakers to play and pure direct play (2 channel) are set in advance.
Page 137 Speakers Setting items Setting details 2ch Playback SW Mode : Select low range signals to be reproduced by subwoofer. (Continued) • LFE : When the “2ch Playback – “Front” setting is set to “Large”, the LFE signal alone is output from the subwoofer. Also, when the “2ch Playback”...
Page 138: Network
Network To use this unit by connecting it to a home network (LAN), you must configure network settings. Items that can be set with the “Network” procedure If you set up your home network (LAN) via DHCP, set “DHCP” to “On” (use the default setting). This allows this unit to use your home network (LAN).
Page 139 Setting details Friendly Name / DHCP=On or Off / IP Address / MAC Address Edit Name • The default Friendly Name on first use is “DENON AVR-3313CI”. MAC Address is required to make a vTuner account. Edits Friendly Name. • Up to 63 characters can be input.
Page 140 Network Settings Setting details Default settings are underlined. Make settings for wired LAN. • If you are using a broadband router (DHCP function), there is no need to make the settings at “IP Only set “Settings” when connecting to a network without a DHCP function. Address”...
Page 141 Make the proxy settings only when you connect to the Internet via a proxy server that is on your Setting details internal network or provided by your provider, etc. NOTE Network/Settings Network Only use this function if so instructed by a DENON serviceperson or installer. DHCP Information IP Address 192.168.000.001 IP Control Subnet Mask 255.255.255.000...
Page 142: General
General Make various other settings. Items that can be set with the “General” procedure Menu operation Language (vpage 140) Press MAIN to switch the zone mode to the MAIN ZONE. MAIN lights. ZONE2 Setup / ZONE3 Setup (vpage 140) Press SETUP The menu is displayed on the TV screen. Zone Rename (vpage 141) to select the menu to be set or operated.
Page 143 General Language Setting items Setting details Default settings are underlined. Rch Level –12dB – +12dB (0dB) Set the language for display on the menu screen. Adjust the right channel output level. Setting details Stereo : Select stereo output. Channel English / Français / Español Set the signal output from Mono : Select monaural output.
Page 144 General Zone Rename Auto Standby Default settings are underlined. Change the display title of each zone to one you prefer. When you do not perform any operation on this unit with no audio or video input for a specified time, this unit automatically enters the standby mode.
Page 145 General Information INFO Press to display current source name, volume, sound mode name, and other information at the Show information about receiver settings, input signals, etc. bottom of the screen. NOTE Examples of screen display This item is not compatible with the HDMI ZONE2 function. • Status display screen Items Setting details...
Page 146 General Firmware Setting items Setting details Default settings are underlined. Notifications Update : The notification message is displayed for about 20 seconds when Set whether or not to check for firmware update, update the firmware, and display update and upgrade Displays a notification the power is turned on.
Page 147 “Update retry” appears on the display and update restarts from the point at which update failed. If the error continues despite this, check the network environment. • Information regarding the “Update” function and “Add New Feature” will be announced on the DENON web site each time related plans are defined.
Page 148: Operating External Devices With The Remote Control
Operating external devices with the remote control By registering preset codes for external devices to the provided remote control, you can operate your TV and playback devices (such as Blu-ray Disc player and DVD player) with the remote control. Registering preset codes When preset codes are registered in the included remote control unit, Registering preset codes it can then be used to operate any devices you have, such as DVD...
Page 149: Remote Control
Registering preset codes n Remote control operation modes n Devices that can be registered to input source select buttons on the By default, the input source select buttons on the remote control perform only the input source select remote control operation.
Page 150 Registering preset codes Preset codes that can be registered to TV buttons Default preset Button Available change to preset mode TV group • When you press TV AUDIO that has a preset code registered to it, the “TV” indication on the remote control lights.
Page 151: Operating External Devices
Operating external devices Press the input source select button (vpage 36). • The operation mode of the remote control unit is switched as shown in the table. FAVORITE STATION When the is pressed, the AVR-operation mode starts automatically. NOTE If the mode of the remote control unit is set to other than AVR-operation mode, press to switch the remote control unit to the AVR-operation mode to perform the following operations: SETUP...
Page 152: Operating Devices
Operating devices The supplied remote control unit can control a device other than this n CBL/SAT group (0zzzz) n TV group (1zzzz) unit. (Set top box for satellite (SAT) / cable (CBL) / (TV) operation Press the input source select Media player / IP TV) operation Operation buttons Function...
Page 153 Setup Setup z This may power some devices on. Auto search (cue) Auto search (cue) (Only the power-on operation is available for some Playback Playback DENON model devices as well.) Manual search Manual search (fast-reverse/fast-forward) (fast-reverse/fast-forward) Pause Pause Stop Stop...
Page 154: Specifying The Zone Used With The Remote Control Unit
Specifying the zone used with the Resetting the remote control unit remote control unit All the settings are restored to their defaults. MENU To prevent accidental misuse, you can set the zone for which the Press and hold for at least remote control unit is used.
Page 155: Informations
Information Informations Here, we list various information related to this unit. Please refer to this information as needed. F Part names and functions vpage 153 F Other information vpage 159 F Troubleshooting vpage 171 F Specifications vpage 177 F Index vpage 178...
Page 156: Part Names And Functions
Part names and functions Front panel For buttons not explained here, see the page indicated in parentheses ( ). Power operation button (X) ··················································· (36) Door MASTER VOLUME knob ················································· (37, 105) Turns power to this unit on and off (standby). When you are using buttons and/or connectors behind the door, Master volume indicator press the bottom of the door to open it.
Page 157 Front panel With the door open For buttons not explained here, see the page indicated in parentheses ( ). AUX-HDMI connector ····························································· (11) BACK button ·································· (112, 119, 124, 129, 135, 139) Cursor buttons (uio p) ································· (109, 112, 119, 124, 129, 135, 139) iPod/USB port ········································································· (21) ENTER button ······················· (109, 112, 119, 124, 129, 135, 139) Information button (INFO) ····················································...
Page 158: Display
Display Information display MULTI ZONE indicators Decoder indicator The input source name, sound mode, setting values and other This lights up when ZONE2, ZONE3 (separate room) power is These light when Dolby or DTS signals are input or when the Dolby information are displayed here.
Page 159: Rear Panel
HDMI connectors ······················································· (10, 11, 104) Electrostatic discharge may cause permanent damage to the unit. PRE OUT connectors Denon Link HD connector ······················································· (12) ················································ (25, 85, 86, 87, 88, 89, 90, 91, 104) Digital audio connectors SIGNAL GND terminal ···························································· (23) (DIGITAL AUDIO) ·································...
Page 160: Remote Control Unit
Remote control unit For buttons not explained here, see the page indicated in parentheses ( ). ZONE SELECT buttons AVR-operation mode button ··················· (148) (MAIN, 2, 3) ········································· (30, 105) TV operation buttons Operation mode indicators ············· (145, 151) (TV X / INPUT) ·········································· (145) Device operation buttons VOLUME buttons (df) ······················...
Page 161 Remote control unit Inserting the batteries Operating range of the remote control unit Point the remote control unit at the remote sensor when operating it. q Remove the rear lid in the w Load the two batteries properly direction of the arrow and as indicated by the marks in the remove it.
Page 162: Other Information
Other information Trademark information n Trademark information (vpage 159) n Surround (vpage 160) This product uses the following technologies (Random order): n Relationship between video signals and monitor output (vpage 166) n Explanation of terms (vpage 168) “Made for iPod” and “Made for iPhone” mean that an electronic Manufactured under license from Audyssey Laboratories™.
Page 163: Surround
Surround This unit is equipped with a digital signal processing circuit that lets you play program sources in the sound mode to achieve the same sense of presence as in a movie theater. Sound modes and surround parameters This table shows the speakers that can be used in each sound mode and the surround parameters adjustable in each sound mode. Symbols in the table S This indicates the audio output channels or surround parameters that can be set.
Page 164 Surround z1 During playback in PURE DIRECT mode, the surround Surround Parameter (vpage 113) parameters are the same as in DIRECT mode. Dynamic Low Frequency Speaker PRO LOGIC g/gx Music mode only Height Gain Sound Mode (vpage 75) z15 This item can be selected when a Dolby Digital or DTS Compression Effects Delay Time...
Page 165 Surround Surround Parameter z1 During playback in PURE DIRECT mode, the surround parameters (vpage 113) Audyssey (vpage 116) are the same as in DIRECT mode. Tone Restorer NEO:6 Music mode only Subwoofer z5 Only when “Subwoofer Mode” “LFE+Main” Sound Mode (vpage 75) (vpage 115) MultEQ ®...
Page 166 Surround n Types of input signals, and corresponding sound modes This table shows the input signal that can be played in each sound mode. Check the audio signal of the input source then select the sound mode. Symbols in the table F This indicates the default sound mode.
Page 167 Surround Input signal types and formats DTS-HD DOLBY DOLBY DIGITAL Super Audio CD DTS-HD DOLBY Sound Mode (vpage 75) NOTE DTS-HD DTS ES DTS ES DOLBY DOLBY DOLBY DOLBY ANALOG High DOLBY DIGITAL EX Master DSCRT MTRX DIGITAL DIGITAL EX DIGITAL DIGITAL (multi ch) (2ch)
Page 168 Surround Input signal types and formats DTS-HD DOLBY DOLBY DIGITAL Super Audio CD DTS-HD Sound Mode (vpage 75) NOTE DTS-HD DTS ES DTS ES DOLBY DOLBY DOLBY DIGITAL DOLBY DOLBY ANALOG High DOLBY Master DSCRT MTRX DTS 96/24 DIGITAL DIGITAL EX DIGITAL DIGITAL (multi ch)
Page 169: Relationship Between Video Signals And Monitor Output
Relationship between video signals and monitor output MAIN ZONE MONITOR OUT Input connector Output connector Menu displayed Video Conversion HDMI COMPONENT VIDEO HDMI COMPONENT VIDEO HDMI COMPONENT VIDEO Only the menu is displayed S <VIDEO> S <VIDEO> S (VIDEO) A (VIDEO) S <COMPONENT>...
Page 170 Relationship between video signals and monitor output Video signal resolution conversion table When “Video Conversion” (vpage 121) is set to “On”, “i/p Scaler” (vpage 122) is set to “Analog”, “Analog & HDMI” or “HDMI” are set, the resolution of the input video signal can be converted to a different resolution for output (vpage 6 “Converting input video signals for output (Video conversion function)”).
Page 171: Explanation Of Terms
AL24 Processing Plus in traditional 7.1 systems. Audyssey DSX ® then Dolby Pro Logic gx Denon Link HD uses the clock of the AV amplifier AL24 Processing for All Channels creates a pair of Height channels to reproduce the Dolby Pro Logic gx is a further improved version of...
Page 172 Explanation of terms Dolby TrueHD DTS-HD Dolby TrueHD is a high definition audio technology This audio technology provides higher sound quality FLAC HDCP developed by Dolby Laboratories, using lossless and enhanced functionality than the conventional FLAC stands for Free lossless Audio Codec, and is a When transmitting digital signals between devices, coding technology to faithfully reproduce the sound DTS and is adopted as an optional audio for Blu-ray...
Page 173 Explanation of terms Progressive (sequential scanning) Windows Media DRM x.v.Color This is a scanning system of video signal that This is a copyright protection technology developed This function lets HDTVs display colors more displays 1 frame of video as one image. Compared by Microsoft.
Page 174: Troubleshooting
After turning on the • This unit amplifier circuit has failed. Turn off the power and please – • The input source on this unit power, the power contact the DENON service adviser. automatically indicator is blinking red in intervals of changes. approximately 0.5 seconds.
Page 175 GAudioH Symptom Cause/Solution Page Symptom Cause/Solution Page When the HDMI • Make sure that “HDMI Audio Out” in the menu is set to “AVR”. ZONE2 function is When a same input source is selected for MAIN ZONE and Audio is not output. • Check the connections for all devices.
Page 176 Symptom Cause/Solution Page Symptom Cause/Solution Page No sound is • Check the subwoofer connections. 85, 6, 7, “Restorer” cannot • Check that an analog signal or PCM signal (Sample Rate=44.1/48 produced from 89, 90, 91 be selected. kHz) is input. For playback of multichannel signals such as Dolby subwoofer.
Page 177 • A USB memory device that the set cannot recognize is connected. – • If connection is restricted, set audio equipment as the connection – This is not a malfunction. DENON does not guarantee that all USB target. memory devices will operate or receive power. Server is not found, • The computer’s or router’s firewall is activated.
Page 178 (Password is not displayed.) • Insert the batteries in the proper direction, checking the q and “Password” is http://www.pandora.com/denon w marks. displayed.) • The set’s remote control sensor is exposed to strong light (direct GAirPlayH sunlight, inverter type fluorescent bulb light, etc.). Move the set...
Page 179: Resetting The Microprocessor
Resetting the microprocessor Perform this procedure if the display is abnormal or if operations cannot be performed. When the microprocessor is reset, all the settings are reset to their default values. INFO BACK Turn off the power using Press while simultaneously pressing INFO BACK Once the display starts flashing at intervals of about 1 second, release the two...
Page 180: Specifications
Specifications n Audio section n Video section • Power amplifier • Standard video connectors Rated output: Front: Input/output level and impedance: 1 Vp-p, 75 Ω 125 W + 125 W (8 Ω, 20 Hz – 20 kHz with 0.05 % T.H.D.) 5 Hz – 10 MHz — 0, –3 dB Frequency response: 165 W + 165 W (6 Ω, 1 kHz with 0.7 % T.H.D.) • Color component video connector...
Page 181 Coaxial digital cable·········································· 14 Delay Time ······················································· 114 FLAC ································································ 169 2ch Playback ···················································· 133 Component video cable ··································· 14 Denon Link HD ····································· 12, 37, 168 Flickr ····························································· 61, 62 3D ······································································· 12 Ethernet cable·················································· 14 Dialogue ··························································· 115 FM indoor antenna ·············································...
Page 182 Text Search ························································ 69 CD player ························································· 38 Operating devices ·········································· 149 Lch Level ·························································· 140 Tone ································································· 115 Denon Link HD ················································ 37 Operating external devices ···························· 148 Levels ······························································· 132 Tone Control ····················································· 115 Direct ························································· 75, 80 Registering preset codes ·······························...
Page 183 List of preset codes CBL/PVR Combination Allvision 01334 Edision 01631 Motorola 00856 Amstrad 00847, 01175 Elbe 02418 Movistar 02262 Bright House 01376, 01877 Denon 73347 Ansonic 02418 Energy Sistem 01631, 02418 Multichoice 00879 Cable One 01376, 01877 ASCI 01334 Europhon 01334 MySky 01356...
Page 184 Strong 00879, 01284, 01409, 02418 Fuji Onkyo 01631 D-Vision 10556 11037 SuperTech 10556 Systec 01334 Humax 01377, 01176, 01427, 01808 Daewoo 10556 Memorex 11037 Sylvania 11864 Sytech 02418 ID Sat 01334 Dantax 11037 Metronic 10625 12429 TBoston 02418 00775 Dual 11037 Metz 11037...
Page 185 11037 Accurian 30675 Polk Audio 30539 Panasonic 12170 DVD-R CD-R 30675 Presidian 30675 Philips 11454, 10556 Akai 30675 30539 Accurian 30675 Denon 42868 Samsung 12051 Alba 30539 Radionette 30741 Denon 30490 Sony 40000 11037 Aristona 30539 30571 Emerson 30675 Yamaha...
Page 186 Dimensions Unit : in. (mm) 17 3/32 (434.0) 2 23/64 (60.0) 1 27/32 1 27/32 (47.0) 13 25/64 (340.0) (47.0) Weight : 26 lbs 7 oz (12.0 kg)
Page 187 D&M Holdings Inc. 3520 10084 00AD...

Denon AVR-3313CI Owner's Manual

Quick Links

Need help?

Questions and answers

Related Manuals for Denon AVR-3313CI

Summary of Contents for Denon AVR-3313CI

Table of Contents
