PT925DN
GE Profile 30" Built-In Single/Double Convection Wall Oven
™

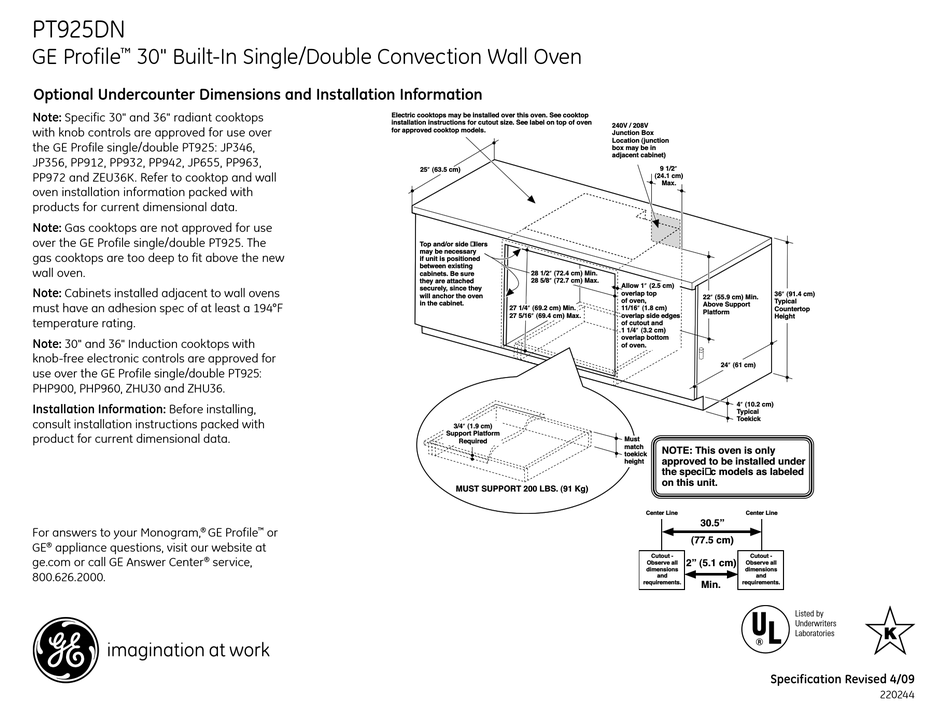

Optional Undercounter Dimensions and Installation Information
Note: Specific 30" and 36" radiant cooktops
with knob controls are approved for use over
the GE Profile single/double PT925: JP346,
JP356, PP912, PP932, PP942, JP655, PP963,
PP972 and ZEU36K. Refer to cooktop and wall
oven installation information packed with
products for current dimensional data.
Note: Gas cooktops are not approved for use
over the GE Profile single/double PT925. The
gas cooktops are too deep to fit above the new
wall oven.
Note: Cabinets installed adjacent to wall ovens
must have an adhesion spec of at least a 194°F
temperature rating.
Note: 30" and 36" Induction cooktops with
knob-free electronic controls are approved for
use over the GE Profile single/double PT925:
PHP900, PHP960, ZHU30 and ZHU36.
Installation Information: Before installing,
consult installation instructions packed with
product for current dimensional data.
For answers to your Monogram, GE Profile
®
GE appliance questions, visit our website at
®
ge.com or call GE Answer Center
®
800.626.2000.
A
Electric cooktops may be installed over this oven. See cooktop
installation instructions for cutout size. See label on top of oven
for approved cooktop models.
or
™
service,

Installation Instructions

Cutout for 30
(76.2 cm)
Oven Under Counter
25" (63.5 cm)
Top and/or side llers
may be necessary
if unit is positioned
between existing
28 1/2" (72.4 cm) Min.
cabinets. Be sure
they are attached 28 5/8" (72.7 cm) Max.
securely, since they
will anchor the oven
in the cabinet.
27 1/4" (69.2 cm) Min.
27 5/16" (69.4 cm) Max.
3/4" (1.9 cm)
Support Platform
Required
MUST SUPPORT 200 LBS. (91 Kg)
Single Double
240V / 208V
Junction Box
Location (junction
box may be in
adjacent cabinet)
9 1/2"
(24.1 cm)
Max.
Allow 1" (2.5 cm)
overlap top
22" (55.9 cm) Min.
of oven,
Above Support
11/16" (1.8 cm)
Platform
overlap side edges
of cutout and
1 1/4" (3.2 cm)
overlap bottom
of oven.
24" (61 cm)
4" (10.2 cm)
Typical
Toekick
Must
match NOTE: This oven is only
toekick
approved to be installed under
height
the speci c models as labeled
on this unit.
Center Line Center Line
30.5"
(77.5 cm)
Cutout - Cutout -
2" (5.1 cm)
Observe all Observe all
dimensions dimensions
and and
Min.
requirements. requirements.
5
Specification Revised 4/09
36" (91.4 cm)
Typical
Countertop
Height
