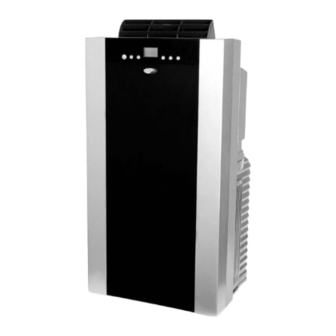

Whynter ARC-14SH Instruction Manual
Eco-friendly 14,000 btu portable air conditioner with heater
Hide thumbs
Also See for ARC-14SH:
- User manual (13 pages) ,
- Instruction manual (20 pages) ,
- Instruction manual (20 pages)
Table of Contents
Advertisement
Quick Links
WHYNTER ECO-FRIENDLY 14,000 BTU PORTABLE AIR CONDITIONER WITH HEATER
MODEL#: ARC-14SH
Instruction Manual
Congratulations on your new WHYNTER product. To ensure proper operation, please read this Instruction
Manual carefully before using this product. Keep this manual in a safe place for future reference.
Advertisement
Table of Contents
Related Manuals for Whynter ARC-14SH
Summary of Contents for Whynter ARC-14SH
- Page 1 WHYNTER ECO-FRIENDLY 14,000 BTU PORTABLE AIR CONDITIONER WITH HEATER MODEL#: ARC-14SH Instruction Manual Congratulations on your new WHYNTER product. To ensure proper operation, please read this Instruction Manual carefully before using this product. Keep this manual in a safe place for future reference.
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION SAFETY PRECAUTIONS IDENTIFICATION OF ACCESSORIES IDENTIFICATION OF PARTS OPERATING YOUR AIR CONDITIONER INSTALLATION INSTRUCTIONS 11-12 AIR FILTERS INSTALLATION OPERATION INSTRUCTIONS 14-15 WATER DRAINAGE REMOTE CONTROL CARE AND MAINTENANCE TECHNICAL DATA 20-21 TROUBLESHOOTING WARRANTY INFORMATION 2IPage... -
Page 3: Introduction
We trust that your Whynter air conditioner will provide the performance and reliability that we stand for. -
Page 4: Safety Precautions
Your safety and the safety of others are very important to us. To reduce the risk of fire, electrical shock or injury when using your appliance, follow these basic precautions. SAFETY PRECAUTIONS Before the portable air conditioner is used, it must be properly positioned and installed as detailed in this manual. - Page 5 the manufacturer or an...
- Page 6 • If the power cord on this unit is damaged it must be replaced by the manufacturer, its service agent or qualified persons in order to avoid a hazard. • This appliance is not intended for use by children or other persons without assistance or supervision if their physical, sensory or mental capabilities prevent them from using it safely.
- Page 7 DANGER- Risk Of Fire Or Explosion. Flammable Refrigerant Used. To Be Repaired Only By Trained Service Personnel. Do Not Puncture Refrigerant Tubing. CAUTION - Risk Of Fire Or Explosion. Dispose Of Properly In Accordance With Federal Or Local Regulations. Flammable Refrigerant Used. Caution, risk of fire OPERATING CONDITION MODE...
-
Page 8: Identification Of Accessories
IDENTIFICATION OF ACCESSORIES Note: Please visit whynter.com for optional accessories information IMAGE ACCESSORY NAME QUANTITY Intake and Exhaust hose 2 pieces 2 pieces Fixtures ** attached to the covers upon unboxing ** Screws 8 pieces Hose connectors 4 pieces �... -
Page 9: Identification Of Parts
IDENTIFICATION OF PARTS Front 1. Air vent 2. Control panel Rear 3. Evaporator air intake / air filter 4. Air intake hose 5. Air exhaust hose 6. Casters 7. Drain plug 8. Power cord <'.'.'.J 91Page... -
Page 10: Operating Your Air Conditioner
OPERATING YOUR AIR CONDITIONER Before you begin, thoroughly familiarize yourself with the control panel, remote control and all of the functions. Follow the symbol for the desired function. The unit can be controlled by the unit control panel alone or with the remote control. CONTROL PANEL •... -
Page 11: Installation Instructions
Only extend the hose to the necessary length, keeping it as short and as straight as possible. We do not recommend extending the hose more than 9' long. If you are interested in purchasing an additional exhaust hose, please contact support@whynter.com for retail sales information or visit www.whynter.com for a list of optional accessories. IPage... - Page 12 Window kit Installation The window kit has been designed to fit most standard vertical and horizontal windows. However, it may be necessary to modify the installation procedures to accommodate your window. NOTE: • If your window opening is smaller than the minimum length of the window slider kit, the window slider kit can be cut to fit the window opening.
-
Page 13: Air Filters Installation
AIR FILTERS INSTALLATION Your Whynter portable air conditioner is equipped with a washable Pre-Filter and an Activated Carbon Filter. The washable Pre-Filter removes large particles such as dust, pet hair and dander. The Activated Carbon filter is designed to remove smoke and other odors. It is recommended you replace the Activated Carbon filter every 2-3 months or as needed. -
Page 14: Operation Instructions
The temperature setting range of this air conditioner is from 61°F to 89°F. To set the temperature, press the + or - buttons. This air conditioner has a 5°F temperature cushion; if the set temperature is within 5°F of the ambient temperature, the fan will switch to low speed and run approximately 5 minutes before it shuts off. - Page 15 In this mode, the air conditioner heats the room. To activate heating mode, press the Mode Control button until the indicator comes on. When the heating mode is set, the rear fan will start first, followed by the compressor then the air output fan into the room. If the outside temperature is lower than the room temperature, the air intake hose should be removed and the included cover placed onto the window air intake fixture.
-
Page 16: Water Drainage
3. Remove the drain cover and rubber plug and the condensed water will drain out automatically. 4. Once all the condensed water is drained, replace the drain rubber plug and cover into the drain firmly. Note: Please contact support@whynter.com for retail sales information or visit whynter.com for a list of optional accessories... -
Page 17: Remote Control
REMOTE CONTROL The portable air conditioner can be switched on by the remote control. NOTE: • Other appliances in the same room controlled by a remote control (TV, radio, stereo, etc.), may cause interferences. • Electronic and fluorescent lamps may interfere with the signal transmissions between the remote control and the air conditioner. -
Page 18: Care And Maintenance
Drain all collected condensation from the upper and lower drain ports. -
Page 19: Technical Data
16'' W x 19'' D x 35.5'' H Noise Level : <51 low / <56 high dBA... -
Page 20: Troubleshooting
• The power cord is damaged. • Contact Whynter Service Department. Only authorized personnel should replace damaged power cord or power plug. • The L.C.D.I. power plug for the • Press the Reset button on the L.C.D.I. power plug. - Page 21 • Possible loose connection • Contact Whynter Service Department • Fan speed differences are not • The fan speed difference is not very Fan speed cannot be very noticeable noticeable when the compressor is on.
-
Page 22: Warranty Information
2023...
