GE Spacemaker DSXH43EVWW Dimensions And Installation Information

GE Appliances
DSXH43GVWW—GE 6.0 Cu. Ft. Capacity Spacemaker

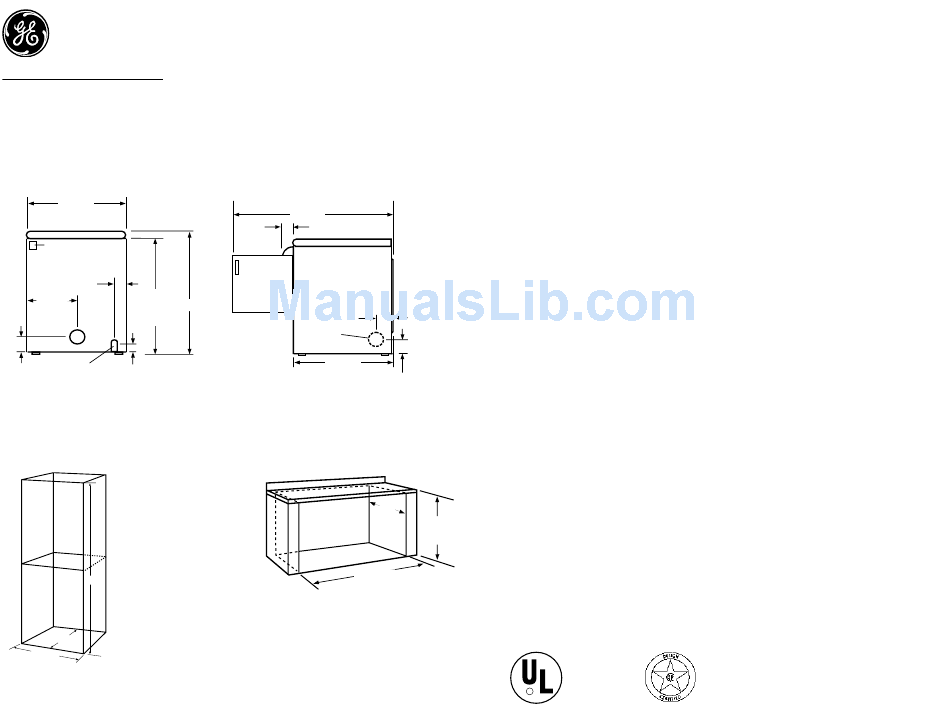

Dryer Dimensions (in inches)
26-7/8
Electric
Connection
2-9/16
Under
13-9/16
Counter
34-5/8"
3-3/4
1
3/16"
Gas Pipe Connection
REAR VIEW
Dryer Installation Options
Stacked in Cabinet Installation
27 Min.
Note:
Closet Installation Requires Additional
Minimum Clearances:
Top of Dryer to Ceiling
Back of Dryer to Wall
Front of Dryer/Washer
to Closet Door
A Minimum of 120 Square Inches of Openin
Equally Divided at the Top and Bottom of
the Closet Door is Required.
70-5/8
27" Min.
27" Min.
Note:
Specification Revised 6/00
47-1/2
3/4
36
4-3/8
Door Open
90°
Optional
Vent Knockout
25-3/4
SIDE VIEW
Undercounter Installation
15"
4"
1"
54" Min.
Custom Sized
Countertop Required
®

Gas Dryer

Exhaust Options:
Gas—3-way via rear, right and bottom. Dryer is shipped exhausted to the rear. Alternate
exhausting knockouts are supplied.
Gas Dryer Electric Rating: 120V, 60Hz, 6A
An individual properly-grounded branch circuit, with a three-prong grounding-type receptacle,
protected by a 15 or 20 amp circuit breaker or a time-delay fuse is required.
Gas (BTU/HR): 22,000. Factory-equipped for natural gas. Tested for LP gas. LP gas supply
requires a conversion kit. Check installation instructions for correct kit and have a qualified
gas technician install a conversion kit. See dryer ducting information for proper installation.
Note: Dryer wall outlet must be located within 36" of service cord entry and accessible
4-3/4
when dryer is mounted in position.
Installation Information: For complete information, see installation instructions packed
with your dryer.
27"
Min.
34-5/8"
Min.
