4.2
Unit Location
(1)
The unit is not suitable for external installation. It must be installed vertically on
a flat vertical wall which is capable of supporting its weight.
(2)
Decide upon the position of the unit taking into consideration the clearances
required (Refer Sect 2.5)
(3)

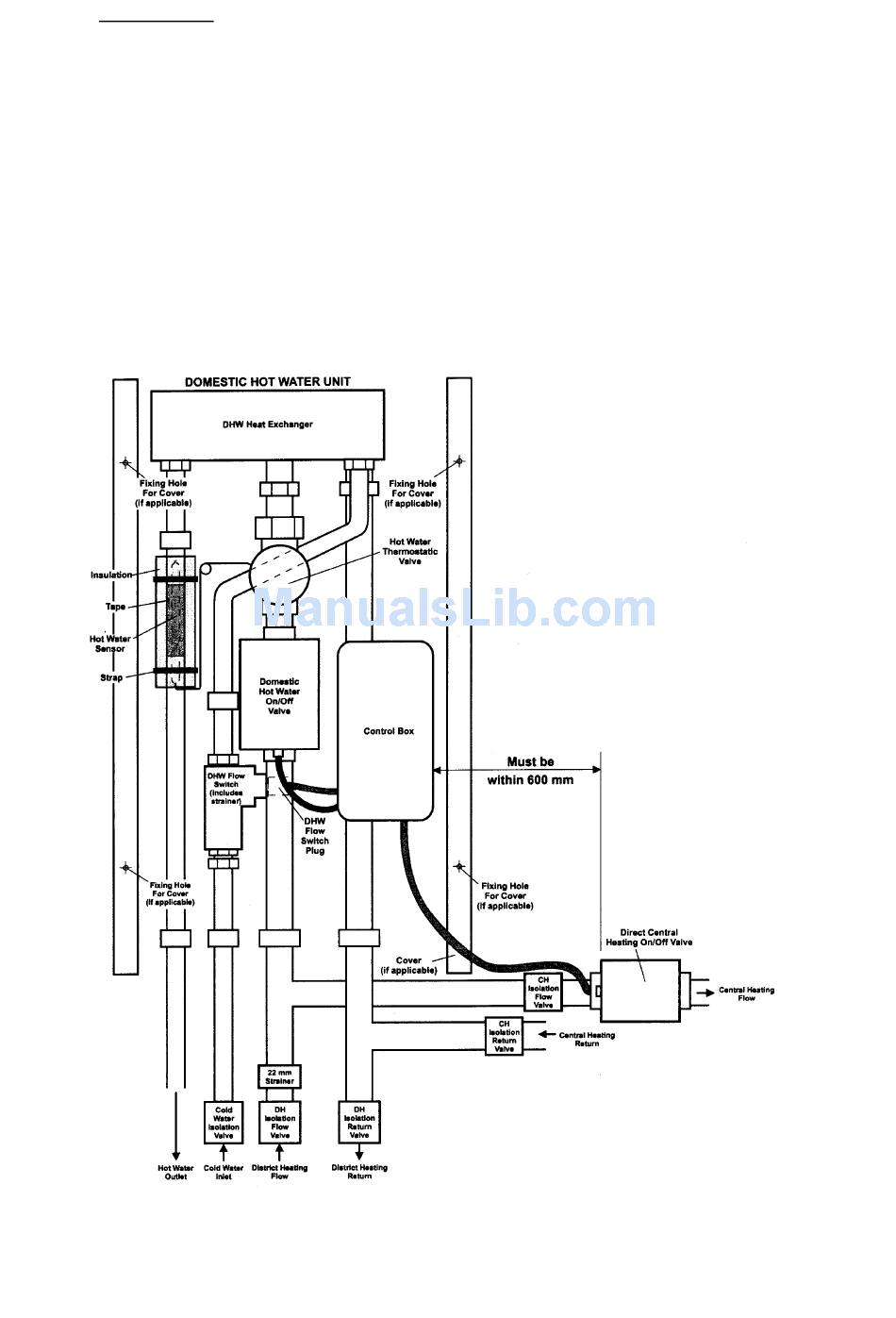

Refer to diagram below for the layout and location of the two units:
7
