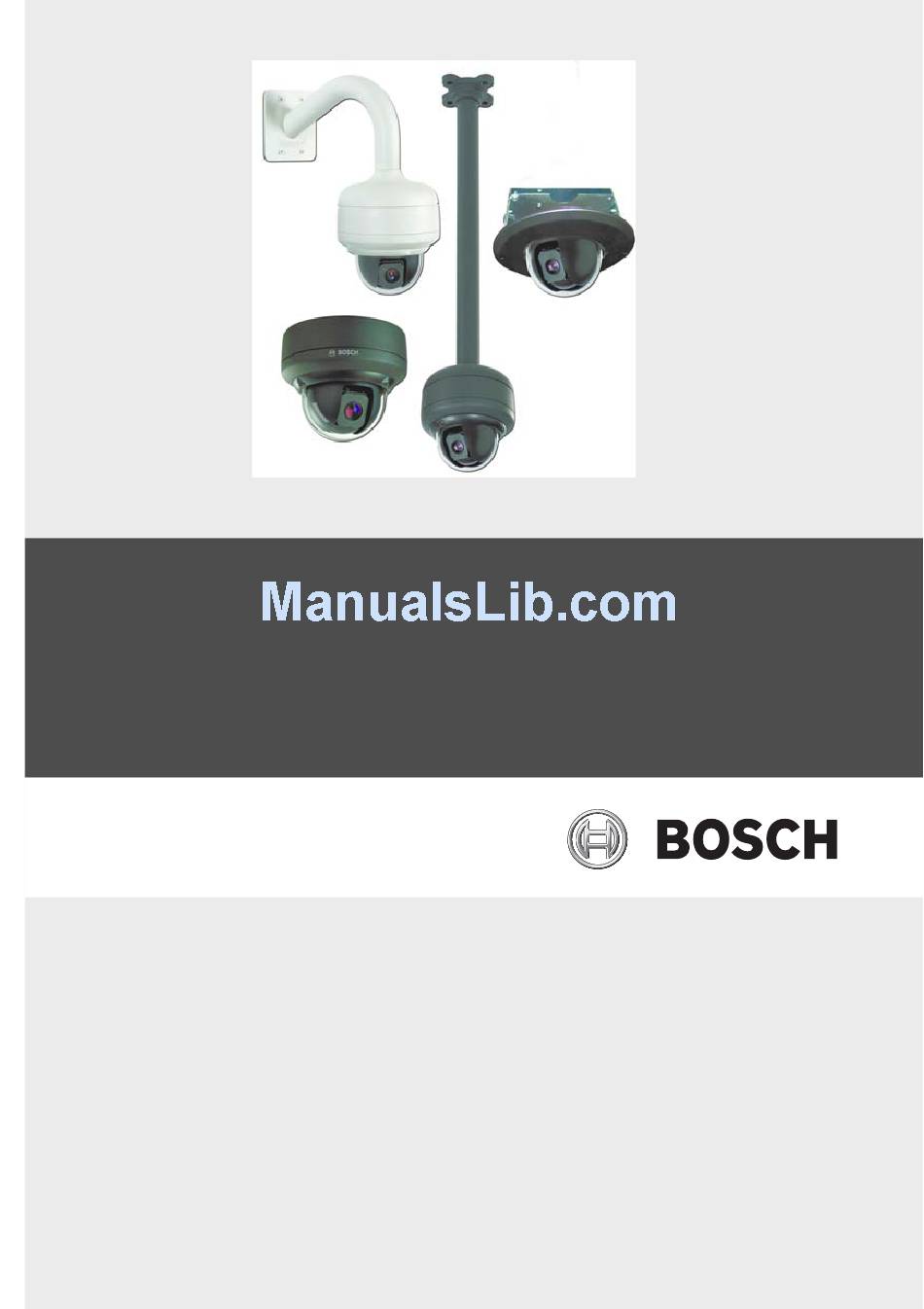

- Page 1 AutoDome Junior VJR-A3-IC Installation Manual...
-
Page 3: Table Of Contents
Table of Contents | en Table of Contents Installing a Recessed Mount Description 1.1.1 Additional Requirements 1.1.2 Preparing the Ceiling for Installation 1.1.3 Installing the Camera to the Mounting Plate Bosch Security Systems, Inc. Installation Manual F.01U.168.034 | 3.0 | 2010.12... -
Page 4: Installing A Recessed Mount
Appropriate tool for cutting a hole in drywall or ceiling tile (if applicable) – 4 in. x 4 in. junction box (optional) – T-10 Torx wrench – VJR-A3-SP, support kit for VJR-A3-IC mounting kit F.01U.168.034 | 3.0 | 2010.12 Installation Manual Bosch Security Systems, Inc. -
Page 5: Preparing The Ceiling For Installation
Optional: if installing the AutoDome Junior HD to a suspended ceiling tile or any other surface where additional support is required, the VJR-A3-SP mounting kit is recommended (supplied separately). Bosch Security Systems, Inc. Installation Manual F.01U.168.034 | 3.0 | 2010.12... - Page 6 The ceiling/ drywall must have a maximum thickness of 41.7 mm (1.64 in.) and an minimum thickness of 12.7 mm (0.50 in.). F.01U.168.034 | 3.0 | 2010.12 Installation Manual Bosch Security Systems, Inc.
- Page 7 NOTICE! If you need to install the the VJR-A3-SP Support Bracket, refer to the guide included with the bracket. Once the bracket is installed, continue with the next section. Bosch Security Systems, Inc. Installation Manual F.01U.168.034 | 3.0 | 2010.12...
-
Page 8: Installing The Camera To The Mounting Plate
Route wires on the side of mounting plate with the crescent shaped cut-out. Connect the mating connectors (supplied in the accessory kit) with the flying leads to the user supplied wiring. F.01U.168.034 | 3.0 | 2010.12 Installation Manual Bosch Security Systems, Inc. - Page 9 Installing a Recessed Mount | en Plug the matching connectors from the camera into the mating connectors from the ceiling. Figure 1.5 Match Connectors Locking Screw Crescent Shape Mounting Plate Vertical Tab Bosch Security Systems, Inc. Installation Manual F.01U.168.034 | 3.0 | 2010.12...
- Page 10 Figure 1.6 Tab/Slot Alignment Detail Vertical Tab (on mounting plate) Locking Screw Recessed Slot (on dome housing) Brass Button (total of three on housing) Slotted Tab (total of three on mounting plate) F.01U.168.034 | 3.0 | 2010.12 Installation Manual Bosch Security Systems, Inc.
- Page 11 The recessed mounting bracket is provided with an additional safety tether point. To prevent injury, attach a safety wire from a secure anchor point above the ceiling to this tether point. Bosch Security Systems, Inc. Installation Manual F.01U.168.034 | 3.0 | 2010.12...
- Page 12 Note: Unit should not turn. 13. Use the supplied T-10 Torx wrench to secure the trim ring’s two (2) safety locking screws to the mounting bracket. F.01U.168.034 | 3.0 | 2010.12 Installation Manual Bosch Security Systems, Inc.
- Page 14 Bosch Security Systems, Inc. 850 Greenfield Road Lancaster, PA 17601 U.S.A. www.boschsecurity.com © Bosch Security Systems, Inc., 2011...
