SmartRack
6U
200
6 Rack Units
200 lb
Load Rating

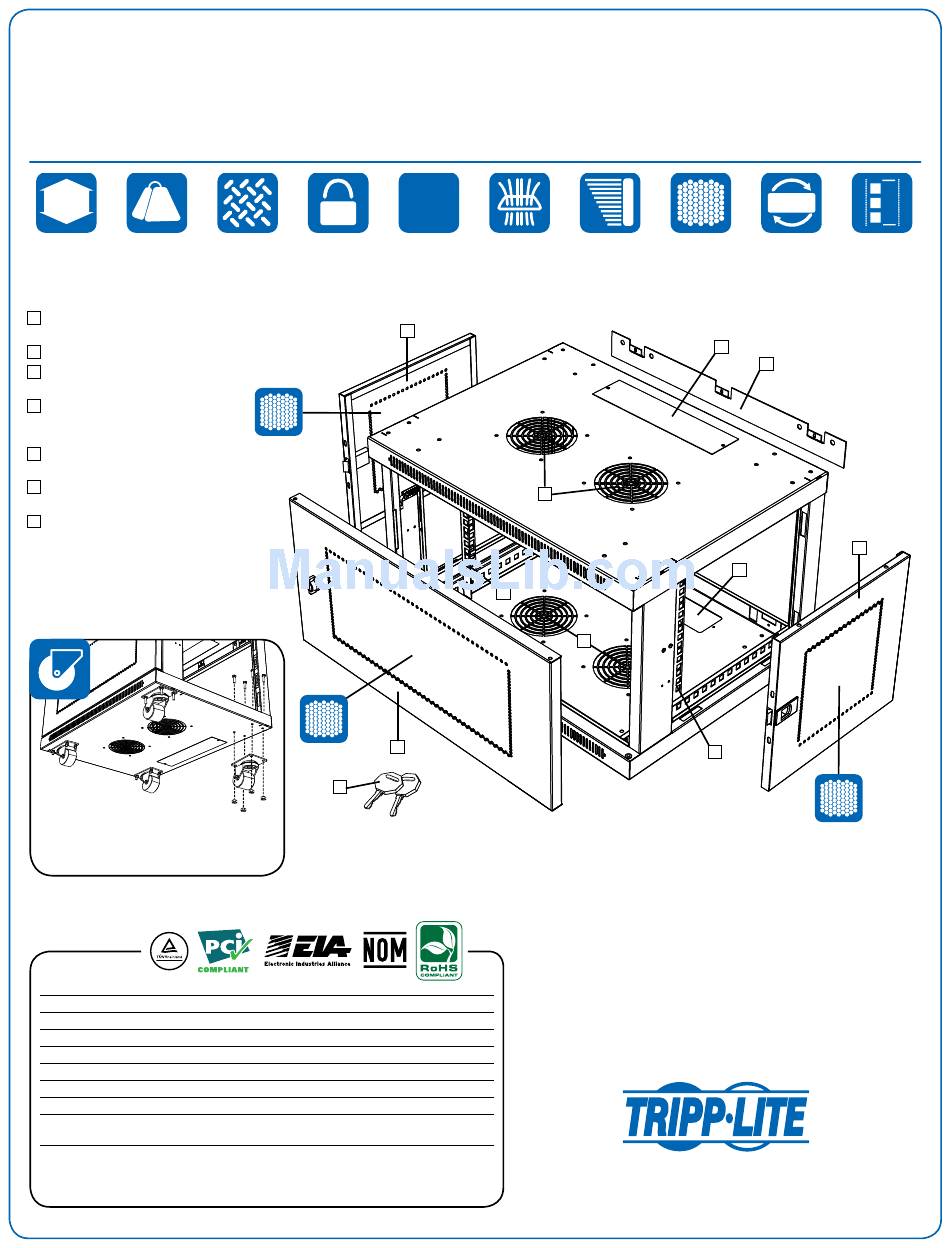

A
Front Door
(Lockable/Removable/Reversible)
B
Adjustable Mounting Rails (2)
C
Side Panels (2)
(Lockable/Removable)
D
Mounting Plate
(Removable. Includes mounting
hooks for cabinet.)
E
Cable Access Port Covers (2)
(Removable)
F
Ventilation Fan Ports (4)
(Support optional SRFANWM fan kit.)
G
Keys (2)
Also Includes: Owner's manual, mounting
plate screws (3), cabinet ground screw, pre-
installed front door ground wire and rackmount
equipment mounting hardware (12 cage nuts,
12 mounting screws, 12 nylon cup washers).
Floor-Standing Installation: Optional SRCASTER
kit adapts cabinet to roll under desks, tables or
counters. (Kit includes 4 casters.)
Specifications
Model
Rack Spaces
Equipment Mounting Depth
Load Rating*
Unit Dimensions (H x W x D)
Shipping Dimensions (H x W x D) 17.5 x 26.5 x 20.5 in (445 x 673 x 521 mm)
Unit Weight
Shipping Weight
Standards
* The load rating includes the combined weight of the unit and installed equipment. The unit must be
mounted to a stable surface with user-supplied anchors capable of bearing the full load. Tripp Lite
has a policy of continuous improvement. Specifications are subject to change without notice.

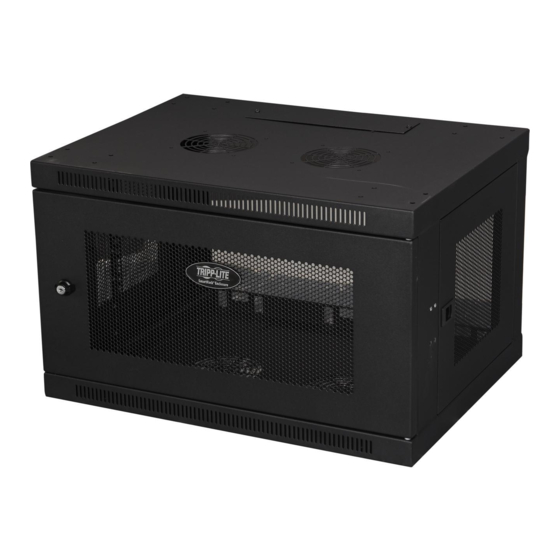

SRW6U
Wall-Mount Rack Enclosure Cabinet
®
Sturdy Steel
Locking Doors
Construction
& Side Panels
19" Rack Width
A
G
SRW6U
6U
Up to 16.5 in (419 mm)
200 lb (90.7 kg)
14.5 x 23.63 x 17.5 in (368 x 600.2 x 445 mm)
29 lb (13.2 kg)
32 lb (14.5 kg)
Tested to EIA-310-E, IEC 60297-3-100, DIN 41494,
IP20, UL 60950, RoHS, PCI-DSS, NOM
MODEL:
EIA
310-E
Standard
Convenient
Cable Access
Mounting Rails
C
F
B
F
• Wall-mount enclosures provide convenient, locking
storage for rackmount IT devices and other equipment
that should be off the floor, out of the way and secure
• The cabinet is fully reversible, allowing installers
to change door hinges from left to right by simply
rotating the unit 180 degrees before mounting
SEE NEXT PAGE FOR DETAILED UNIT MEASUREMENTS
Adjustable
Ventilated for
Ample Airflow
E
D
E
B
