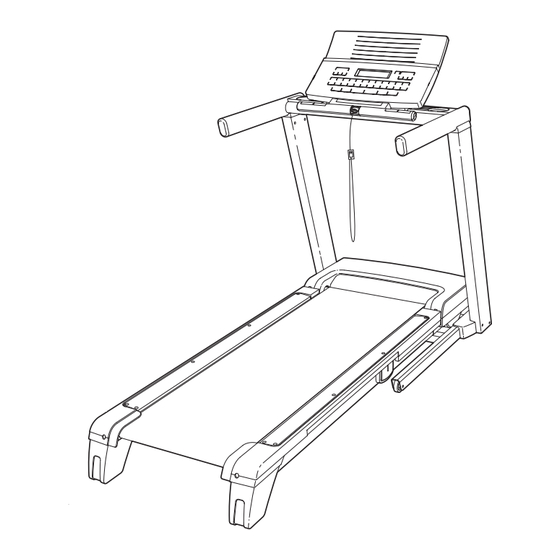

ProForm 5.2 Treadmill User Manual

Uk manual

Hide thumbs Also See for 5.2 Treadmill:

Gebruiksaanwijzing (32 pages)

Bedienungsanleitung (32 pages)

Manuel de l'utilisateur (32 pages)

Table Of Contents

Model No. PETL41307.0

Serial No.

Write the serial number in the space

above for reference.

Serial

Number

Decal

QUESTIONS?

As a manufacturer, we are commit-

ted to providing complete customer

satisfaction. If you have questions,

or if there are missing parts,

please contact us at the numbers

or addresses listed below:

Call: 08457 089 009

Outside UK: 0 (44) 113 3877133

Fax: 0 (44) 113 3877125

E-mail: csuk@iconeurope.com

Write:

ICON Health & Fitness, Ltd.

Unit 4

Revie Road Industrial Estate

Revie Road, Beeston

Leeds, LS11 8JG,

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

USER'S MANUAL

Table of Contents

Need help?

Do you have a question about the 5.2 Treadmill and is the answer not in the manual?

Questions and answers

Summary of Contents for ProForm 5.2 Treadmill

Page 1 Model No. PETL41307.0 USER'S MANUAL Serial No. Write the serial number in the space above for reference. Serial Number Decal QUESTIONS? As a manufacturer, we are commit- ted to providing complete customer satisfaction. If you have questions, or if there are missing parts, please contact us at the numbers or addresses listed below: Call: 08457 089 009...
Page 2: Table Of Contents
Apply the decal in the loca- tion shown. Note: The decals may not be shown at actual size. PROFORM is a registered trademark of ICON IP, Inc.
Page 3: Important Precautions
IMPORTANT PRECAUTIONS WARNING: To reduce the risk of serious injury, read all important precautions and in- structions in this manual and all warnings on your treadmill before using your treadmill. ICON as- sumes no responsibility for personal injury or property damage sustained by or through the use of this product.
Page 4 20. Do not attempt to raise, lower, or move the DANGER: Always unplug the power treadmill until it is properly assembled. (See cord immediately after use, before cleaning the ASSEMBLY on page 6, and HOW TO FOLD treadmill, and before performing the mainte- AND MOVE THE TREADMILL on page 21.) nance and adjustment procedures described in You must be able to safely lift 45 lbs.
Page 5: Before You Begin
® ing this manual, please see the front cover of this man- PF 5.2 treadmill. The PF 5.2 treadmill offers an impres- ual. To help us assist you, note the product model sive array of features designed to make your workouts number and serial number before contacting us.
Page 6: Assembly
ASSEMBLY Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton.
Page 7 2. With the help of a second person, carefully tip the treadmill onto its left side. Partially fold the Frame (56) so that the treadmill is more stable; Hole do not fully fold the Frame yet. Cut the tie securing the Upright Wire (38) to the Base (83).
Page 8 5. Hold a Bolt Spacer (80) inside the lower end of the Right Upright (78). Insert a 3/8" x 4 1/4" Bolt (6) with a 3/8" Star Washer (9) into the Right Upright and the Bolt Spacer. Repeat this step with a second Bolt Spacer (80), 3/8"...
Page 9 8. See the upper inset drawing. Orient the Right Wire Tie Handrail Spacer (98) with the Right Upright (78) as shown. Insert the Upright Wire (38) and wire tie through the Right Upright Spacer and press the Spacer onto the Upright. Have a second person hold the Handrail (96) View A near the Right Upright (78).
Page 10 10. With the help of a second person, hold the con- sole assembly near the Handrail Base (96). Connect the Handrail Wire (52) to the console wire. See the lower inset drawing in step 8. Console The connectors should slide together easily Assembly and snap into place.
Page 11 12. Raise the Frame (56) to the position shown. Have a second person hold the Frame until this step is completed. Orient the Storage Latch (53) so that the large barrel and the Latch Knob (54) are oriented as shown. Attach the Latch Bracket (109) and Storage Latch (53) to the Base (83) with two 3/8"...
Page 12: How To Use The Chest Pulse Sensor
HOW TO USE THE CHEST PULSE SENSOR HOW TO PUT ON THE CHEST PULSE SENSOR each use, it may remain activated longer than nec- essary, draining the battery prematurely. The chest pulse sensor consists of two components: • Store the chest pulse sensor in a warm, dry place. the chest strap and the sensor unit (see the drawing Do not store the chest pulse sensor in a plastic bag below).
Page 13: Operation And Adjustment
OPERATION AND ADJUSTMENT THE PRE-LUBRICATED WALKING BELT Your treadmill features a walking belt coated with high-performance lubricant. IMPORTANT: Never apply sili- cone spray or other substances to the walking belt or the walking platform. Such substances will deterio- rate the walking belt and cause excessive wear. HOW TO PLUG IN THE POWER CORD This product must be earthed.
Page 14 CONSOLE DIAGRAM Clip FEATURES OF THE CONSOLE sonal trainer workout, see page 17. To use the iFIT Competition Training Center, see page 18. To use This revolutionary treadmill console offers a selection the settings mode, see page 19. To use the infor- mation mode, see page 20.
Page 15 HOW TO TURN ON THE POWER HOW TO USE THE MANUAL MODE IMPORTANT: If the treadmill has been exposed to 1. Insert the key into the console. cold temperatures, allow it to warm to room tem- perature before turning on the power. If you do not See HOW TO TURN ON THE POWER to the left.
Page 16 5. Follow your progress with the display. (see page 12 for information about the chest pulse sensor). Note: If you hold the handgrip pulse sensor The console offers several display options. The dis- and wear the chest pulse sensor at the same time, play option you select will determine which workout the console will not display your heart rate accu- information is shown.
Page 17 HOW TO USE A PERSONAL TRAINER WORKOUT The program will continue in this way until the last segment of the profile flashes in the display and 1. Insert the key into the console. the last segment ends. The walking belt will then slow to a stop.
Page 18 HOW TO USE THE IFIT COMPETITION TRAINING 3. Follow your progress with the display. CENTER The console offers several display options. The dis- 1. Insert the key into the console. play option you select will determine which workout information is shown. Press the Display button re- See HOW TO TURN ON THE POWER on page peatedly to select the desired display option.
Page 19 • A profile of the incline settings of the race. HOW TO USE THE SETTINGS MODE 1. Insert the key into the console. • A status bar showing your progress in the race. • Your average speed. See HOW TO TURN ON THE POWER on page •...
Page 20 THE INFORMATION MODE HOW TO ADJUST THE CUSHIONING SYSTEM The console features an information mode that allows Remove the key from the console and unplug the you to select a unit of measurement for the console, power cord. The treadmill features a cushioning sys- turn on or turn off the display demo mode, and change tem that reduces the impact as you walk or run on the the contrast of the display.
Page 21: How To Fold And Move The Treadmill
HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL FOR STORAGE Before folding the treadmill, adjust the incline to the lowest position. If you do not do this, you may damage the treadmill when you fold it. Remove the key and unplug the power cord.
Page 22: Troubleshooting
TROUBLESHOOTING Most treadmill problems can be solved by following the simple steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, call the telephone number listed on the back cover of this manual. PROBLEM: The power does not turn on SOLUTION: a.
Page 23 Remove the three 3/4" Screws (12) and carefully pivot the Hood (61) off. Locate the Reed Switch (71) and the Magnet (50) on the left side of the Pulley (51). Turn the Pulley until the Magnet is aligned with the Reed Switch. 1/8 in.
Page 24 PROBLEM: The walking belt is off-center or slips when walked on SOLUTION: a. If the walking belt is off-center, first remove the key and UNPLUG THE POWER CORD. If the walking belt has shifted to the left, use the hex key to turn the left rear roller bolt clockwise 1/2 of a turn;...
Page 25: Exercise Guidelines
EXERCISE GUIDELINES Burning Fat—To burn fat effectively, you must exer- WARNING: cise at a low intensity level for a sustained period of Before beginning this time. During the first few minutes of exercise, your or any exercise program, consult your physi- body uses carbohydrate calories for energy.
Page 26: Part List
PART LIST—Model No. PETL41307.0 R1207A To locate the parts listed below, see the EXPLODED DRAWING near the end of this manual. Key No. Qty. Description Key No. Qty. Description 1/2" Screw Front Roller/Pulley 1" Screw Handrail Wire Hex Key Storage Latch 3/8"...
Page 27 Key No. Qty. Description Key No. Qty. Description Console Ground Wire Transformer Cushion Track Filter Front Cushion Electronics Bracket Lift Motor Spacer Chest Pulse Sensor #8 x 2" Screw – 4" Black Wire, M/F Reset/Off Circuit Breaker – 4" Black Wire, 2F Lift Frame Ground Wire –...
Page 28: Exploded Drawing
EXPLODED DRAWING A—Model No. PETL41307.0 R1207A...
Page 29 EXPLODED DRAWING B—Model No. PETL41307.0 R1207A...
Page 30 EXPLODED DRAWING C—Model No. PETL41307.0 R1207A...
Page 31 EXPLODED DRAWING D—Model No. PETL41307.0 R1207A...
Page 32: Ordering Replacement Parts
ORDERING REPLACEMENT PARTS To order replacement parts, see the front cover of this manual. To help us assist you, please be prepared to pro- vide the following information when contacting us: • the model number and the serial number of the product (see the front cover of this manual) •...
