ProForm 400 C Treadmill User Manual page 11

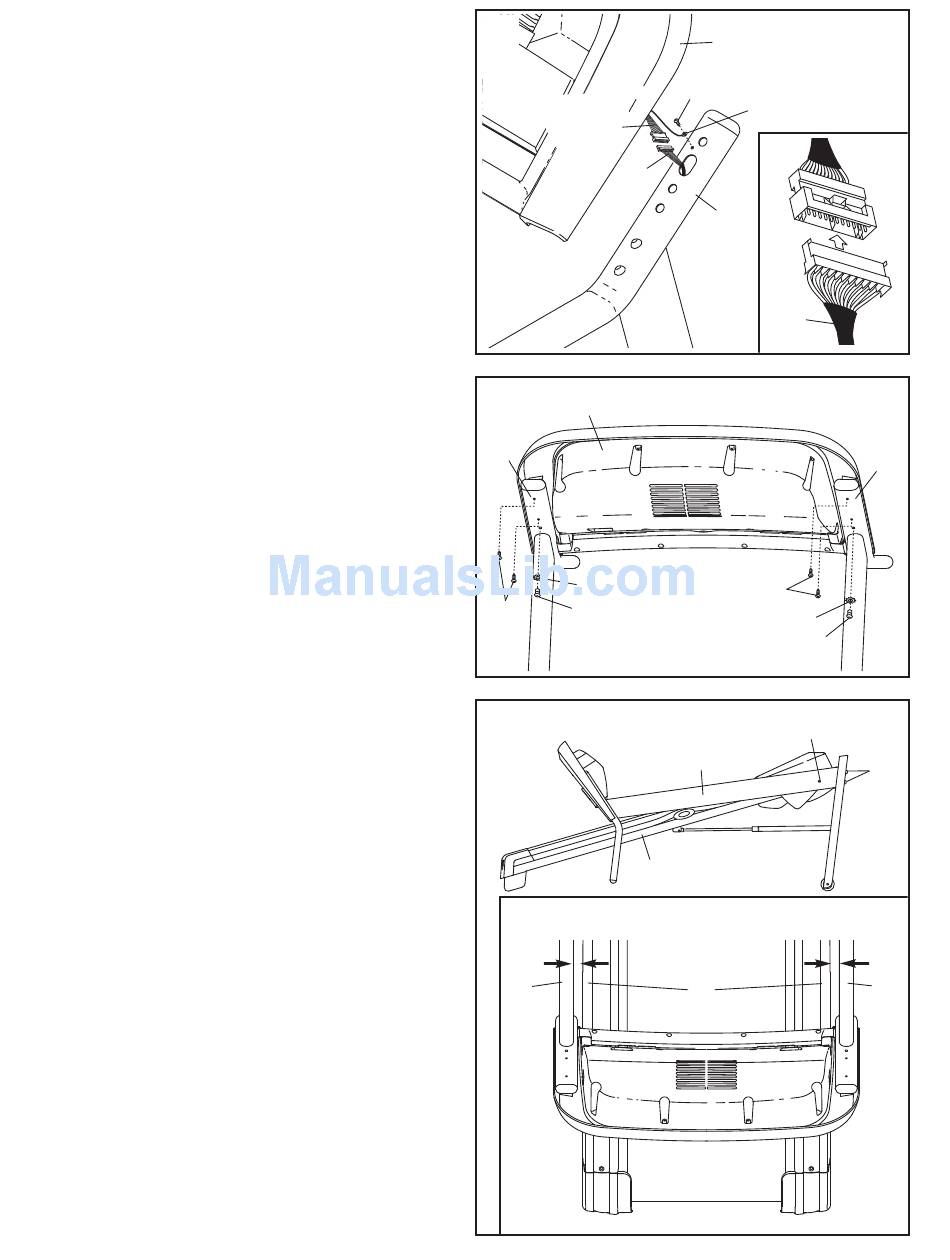

10. Attach the ground wire on the Console Base (67)
to the right Handrail (40) with a Silver Ground
Screw (10).
Connect the wire harness on the Console Base
(67) to the Upright Wire (69) as shown in the
inset drawing. Important: If the connectors are
oriented correctly, they will slide together
easily and snap into place. If the connectors
are not oriented correctly, the console may
be damaged when the power is turned on.
Insert the connectors and excess wire into the
Console Base (67).
11. Attach the Console Base (67) to the Handrails
(40) with four 3/4" Screws (3); do not tighten
the Screws yet. Next, tighten two Console Bolts
(2) with 1/4" Star Washers (8) into the Handrails
and the Console Base. Then, tighten the four
Screws.
12. Lower the Uprights (38, 39) as shown.
See the inset drawing. Push the Uprights (38,
39) sideways so that the treadmill Frame (36) is
centered between the Uprights.
Firmly tighten the Upright Bolts (4) and the
Frame Bolt (1) on each side of the treadmill. Do
not overtighten the Frame Bolts.
10
Wire
Harness
69
11
67
40
8
3
2
12
36
View from Above
38
11
67
Ground
10
Wire
40
69
Front View
3
8
2
Side View
1
38, 39
36
40
4
39
