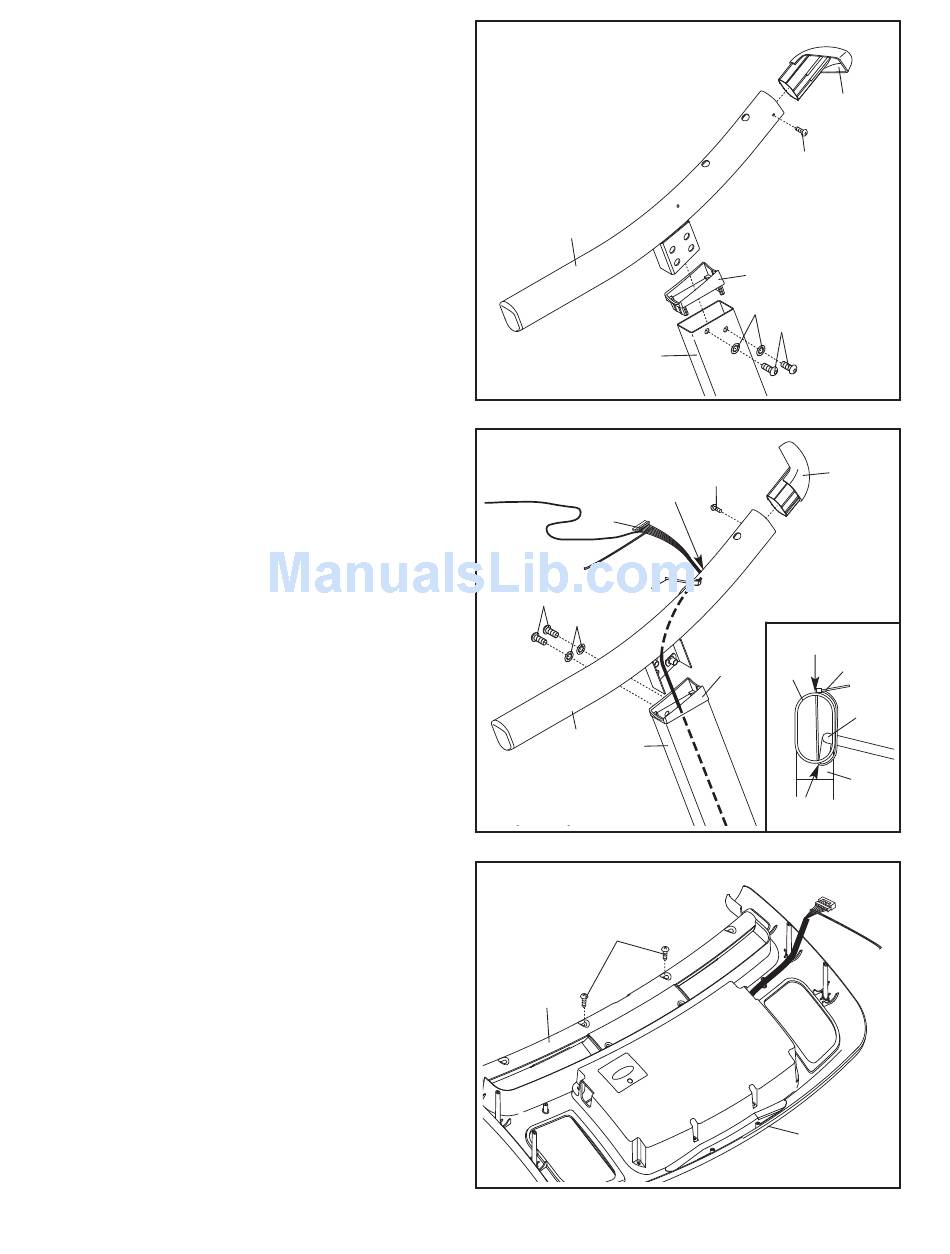

8. Press a Front Handrail Endcap (97) into the Left
Handrail (35). Attach the Front Handrail Endcap
with a #8 x 3/4" Handrail Screw (15).
Press an Upright Insert (110) into the Left
Upright (74). Set the Left Handrail (35) on the
Upright Insert.
Attach the Left Handrail (35) with two 3/8" x 1
1/4" Bolts (7) and two 3/8" Star Washers (9).
Firmly tighten the Bolts.
9. Hold the Right Handrail (33) near the Right
Upright (78). Insert the Upright Wire (38)
through an Upright Insert (110), into the hole in
the bottom of the Right Handrail, and out of the
large hole in the side of the Right Handrail.
Insert the included plastic tie through the holes
in the Right Handrail (33) as shown. Look inside
the Right Handrail. Make sure that the plastic
tie holds the Upright Wire (38) to the side as
shown in the inset drawing. Tighten the plas-
tic tie.
Press a Front Handrail Endcap (97) into the
Right Handrail (33). Attach the Front Handrail
Endcap with a #8 x 3/4" Handrail Screw (15).
Attach the Right Handrail (33) with two 3/8" x
1 1/4" Bolts (7) and two 3/8" Star Washers (9).
Firmly tighten the Bolts.
10. Set the console assembly face down on a soft
surface to avoid scratching the console assem-
bly. Remove the two indicated screws (B) from
the Pulse Bar Bottom (95). Discard the screws.
