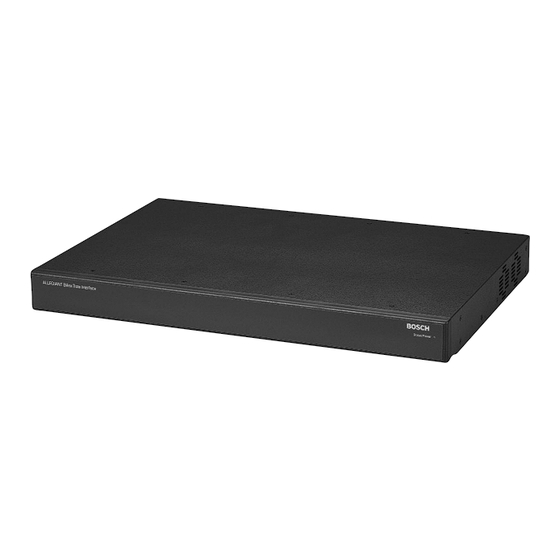

Bosch LTC 8016/90 Instruction Manual
Allegiant bilinx data interface
Hide thumbs
Also See for LTC 8016/90:
- Instruction manual (126 pages) ,
- Instruction manual (104 pages) ,
- Instruction manual (24 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Bosch LTC 8016/90
Summary of Contents for Bosch LTC 8016/90
- Page 1 LTC 8016/90 Instruction Manual EN Allegiant Bilinx Data Interface...
-
Page 2: Important Safeguards
EN | 2 LTC 8016/90 | Instruction Manual | Important Safeguards Important Safeguards 1. Read, Follow, and Retain Instructions - All safety 10. Power Sources - Operate the unit only from the type and operating instructions should be read and of power source indicated on the label. -
Page 3: Safety Precautions
EN | 3 LTC 8016/90 | Instruction Manual | Safety Precautions Safety Precautions For Indoor Product 1. Water and Moisture - Do not use this unit near water - for example, in a wet basement, in an unprotected outdoor installation or in any area classified as a wet location. -
Page 4: Fcc & Ices Information
EN | 4 LTC 8016/90 | Instruction Manual | FCC & ICES Information FCC & ICES INFORMATION Sicherheitshinweise (U.S.A. and Canadian Models Only) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:... - Page 5 EN | 5 LTC 8016/90 | Instruction Manual | Safety Precautions Veiligheidsmaatregelen Medidas de Segurança VOORZICHTIG: OPEN DE BEHUIZING OF DE ACHTERKANT CUIDADO: PARA REDUZIR O RISCO DE CHOQUE VAN HET APPARAAT NIET. ZO VERMINDERT U HET RISICO ELÉCTRICO, NÃO RETIRE A TAMPA (OU A PARTE OP ELEKTRISCHE SCHOKKEN.
-
Page 6: Table Of Contents
EN | 6 LTC 8016/90 | Instruction Manual | Table of Contents Table of Contents Important Safeguards ..............2 FCC &... -
Page 7: Unpacking
Verify that all parts shown in the Parts List have been 16 Bilinx-capable cameras. Full control of included. If any items are missing, notify your Bosch pan/tilt/zoom functions and processing of camera Security Systems Sales or Customer Service alarm/events are supported. -
Page 8: Installation
EN | 8 LTC 8016/90 | Instruction Manual | Installation • Any Dinion Series Cameras manufactured 4.2 Connections to AC Power after April 2004. Connect the appropriate power cord to the AC main source. If the cord termination is not suitable for •... -
Page 9: Group Id Number
EN | 9 LTC 8016/90 | Instruction Manual | Installation These switches are used to identify the group of Coax LTC 4630 cameras to be connected to the Interface Unit. Each F/O Module Bilinx-enabled group consists of 16 cameras in consecutive order,... - Page 10 EN | 10 LTC 8016/90 | Instruction Manual | Installation 4.4.1 Group ID Settings When Using Allegiant Set the Group ID switches using the supplied screwdriver, as follows: RS-232 or RS-485 Protocol When using the Allegiant data interface protocol, the...
- Page 11 EN | 11 LTC 8016/90 | Instruction Manual | Installation 4.4.2 Switch Settings When Interfacing to Biphase The Interface Unit is set to 901 by default, and no Controller Devices change is required when only one Interface Unit is When using a biphase data interface, the Group used in a system for cameras 1 to 16.
-
Page 12: Video Connections To The Controller Unit
EN | 12 LTC 8016/90 | Instruction Manual | Installation The video connections from the Interface Unit MUST 4.5 Video Connections to be kept in consecutive order, and the group must the Controller Unit always end at an exact multiple of 16. For example, Video connections from the Interface Unit vary based the lowest camera group range is from 1 to 16. - Page 13 EN | 13 LTC 8016/90 | Instruction Manual | Installation 4.5.2 Video Connections to Products via ends to the video inputs on the rear panel of the LTC 8508/01 Ribbon-to-BNC Cable controller that corresponds to the physical camera Video connections to Allegiant models LTC 8100,...
-
Page 14: Allegiant Series Switcher Data Interface
EN | 14 LTC 8016/90 | Instruction Manual | Installation IntuiKey Series Keyboard: 4.6 Allegiant Series Switcher Data From the main Allegiant screen, navigate to the User Interface Functions menu screen, then press [Enter User 4.6.1 Allegiant Interface Configurations Command]. Key in 39, then press [Enter]. -
Page 15: Data Connection To A Biphase Generating Device
EN | 15 LTC 8016/90 | Instruction Manual | Installation 4.6.2 Allegiant Data Connections Using a Single 4.6.3 Allegiant Data Connections Using Multiple Interface Unit Interface Units Use the supplied 3 m (10 ft) data interface cable to Up to 31 units can be connected to a single connect the Allegiant to the Interface Unit. -
Page 16: Data Connections Using Biphase Rs-232 Protocol
9600, 19200, 57600, or 115200 baud, RS-232 Protocol with 8 data bits, no parity, and 1 stop bit, can be The Interface Unit can be connected directly to Bosch connected to the Interface Unit. Security System products that generate biphase control data in RS-232 format. -
Page 17: Typical Configuration Diagrams
EN | 17 LTC 8016/90 | Instruction Manual | Typical Configuration Diagrams 4.8.1 Connecting to DiBos Digital Video Connect one end of the RS-232 data cable to the Recorders COM2 port on the DESA, and the other end of the A RS-232 grade data cable (not supplied) is required cable to the PC port on the Interface Unit. - Page 18 EN | 18 LTC 8016/90 | Instruction Manual | Typical Configuration Diagrams Video + Data Max Cable Lengths: Bilinx-enabled RG-59U = 300 m (1000 ft) AutoDomes Bilinx-enabled RG-6 or RG-11 = 600 m (2000 ft) Dinion Series Cameras Video + Data...
- Page 19 EN | 19 LTC 8016/90 | Instruction Manual | Typical Configuration Diagrams Control Data Video Video + Data LTC 8016/90 BOSCH Allegiant Bilinx Data Interface POWER / DATA Bilinx-enabled Additional LTC 8016/90 AutoDomes units can be connected via the Biphase data...
-
Page 20: Operation
EN | 20 LTC 8016/90 | Instruction Manual | Operation video amplitude level drops below 15 IRE. When the OPERATION Interface is connected to an Allegiant system using the Once installation is finished, operation of this unit is Allegiant data interface, messages can be sent to the completely automatic. -
Page 21: Supplied Serial Data Cable Pinouts
EN | 21 LTC 8016/90 | Instruction Manual | Maintenance 9-Pin RS-485 OUT Connectors Industry type straight through RS-232 Data Cable (Required if connecting the LTC 8016 to a Connection Watchdog/PTZ connector on the DESA DVR) –– RXD+ 9-Pin Male... -
Page 22: Troubleshooting
EN | 22 LTC 8016/90 | Instruction Manual | Troubleshooting Description 10.0 TROUBLESHOOTING Behavior Condition Problem Possible Cause and Solution ON steady • The Interface Unit is operating normally, and has received the Allegiant’s logical-to-physical camera Complete lack a) Three to five seconds after being powered up,... -
Page 23: Appendix A - Group Id Settings For Large Systems
EN | 23 LTC 8016/90 | Instruction Manual | Appendix A APPENDIX A - Group ID Settings for Large Systems 1025 to 1040 2305 to 2320 3585 to 3600 4865 to 4880 6145 to 6160 7425 to 7440 8705 to 8720... - Page 24 F01U011012_01 05-33 | Updated August 18, 2005 | Data subject to change without notice. Windows is a registered trademark of Microsoft Corporation. Bilinx, Allegiant, AutoDome, and Dinion are registered by Bosch Security Systems, Inc. in the US patent trademark office.
