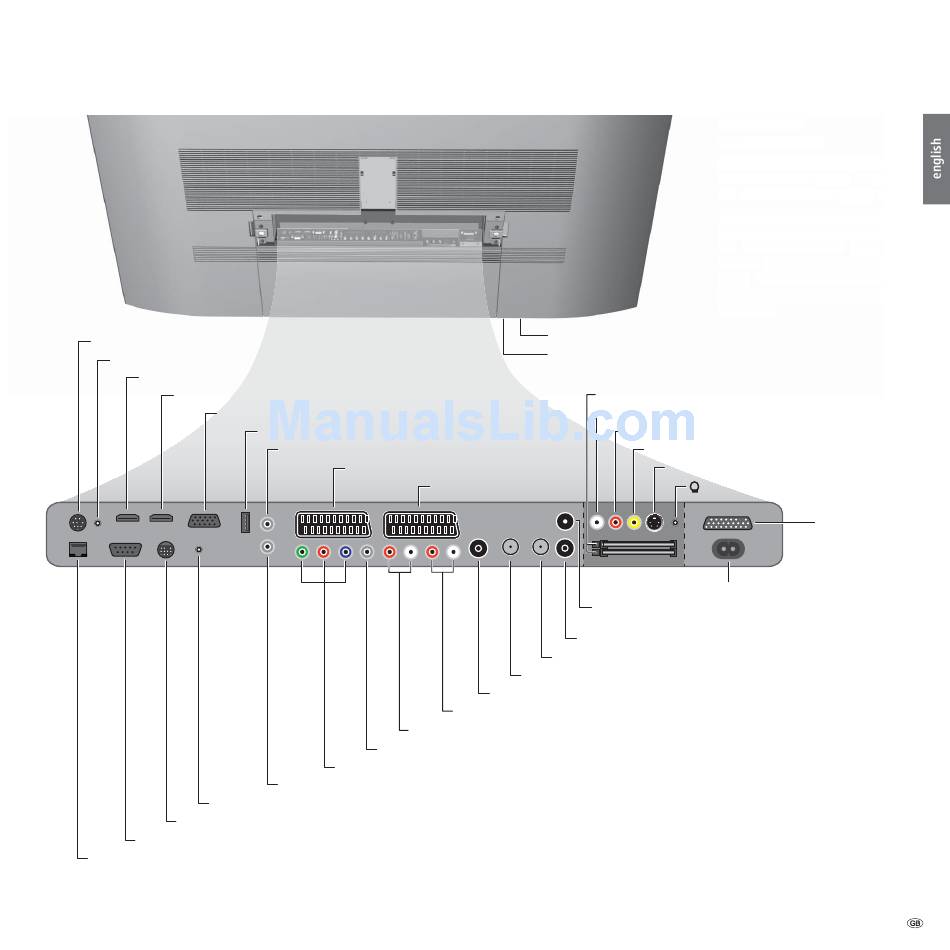

Connections rear side of the device

SERVICE - service socket
AUDIO IN2 - audio input (analogue)
HDMI2 - HDMI (DVI) input 2
HDMI1 - HDMI (DVI) input 1
PC IN - VGA/XGA input
IR-Link - Output for infrared transmitter
CONTROL - rotating stand control
RS-232C - serial interface
LAN - network connection
USB - USB connection 2 (USB stick/card reader)
AUDIO DIGITAL OUT - digital audio output
AV2 (RGB) - Euro-AV socket 2
AV1 - Euro-AV socket 1
AUDIO IN1 L/R - audio input left/right (analogue)
AUDIO IN1 C - centre audio input (analogue)
SD/HD-COMPONENT IN Cb/Pb–Cr/Pr–Y - component video inputs
AUDIO DIGITAL IN - digital audio input
mains switch
USB connection 1
(USB stick/card reader)
CI - Common Interface (CI-Slot 1 / 2)
AUDIO L - Audio in left (AVS)
AUDIO R - Audio in right (AVS)
ANT OUT - Connect antenna output
ANT2 - Antenna/cable analogue/digital (Tuner 2)
ANT SAT2 - Satellite antenna (Sat tuner 2)
ANT SAT - Satellite antenna (Sat tuner 1)
ANT-TV - Antenna/cable analogue/digital (Tuner 1)
AUDIO OUT L/R - audio output left right (analogue)
Factory setting: Factory setting:
AV2: DVD recorder AV2: DVD recorder
You can change this during the You can change this during
initial installation (page 13) or in initial installation (page 13) o
the connection wizard (page 4 the connection wizard (page 48).
Before you connect other devices Before you connect other dev
or make any changes, please s or make any changes, please start
the connection wizard (page the connection wizard (page 48)
and the sound components wiz and the sound components wizard
(page 56), and then follow (page 56), and then follow the
instructions that are displayed instructions that are displayed on
the TV set. the TV set.
VIDEO - Video in (AVS)
AV-S - S-VHS connection (AVS)
- Headphones connection
surround audio outputs
220-240V~ 50/60Hz - mains connection
with ANT-TV (tuner 1)
AUDIO LINK
(analogue)
