1.
POWER SUPPLY
There are two methods of powering the UC16. Only use one method at one time
AC Power
You can also use an AC adapter (not included) with the following specification: 9-12V DC
output, 250-300mA, centre positive.
Connect to the USB port on your computer. The UC16 is powered from USB.
Note: Do not leave the adapter plugged in for long periods of time if the unit is not in use.
2.
Preparation

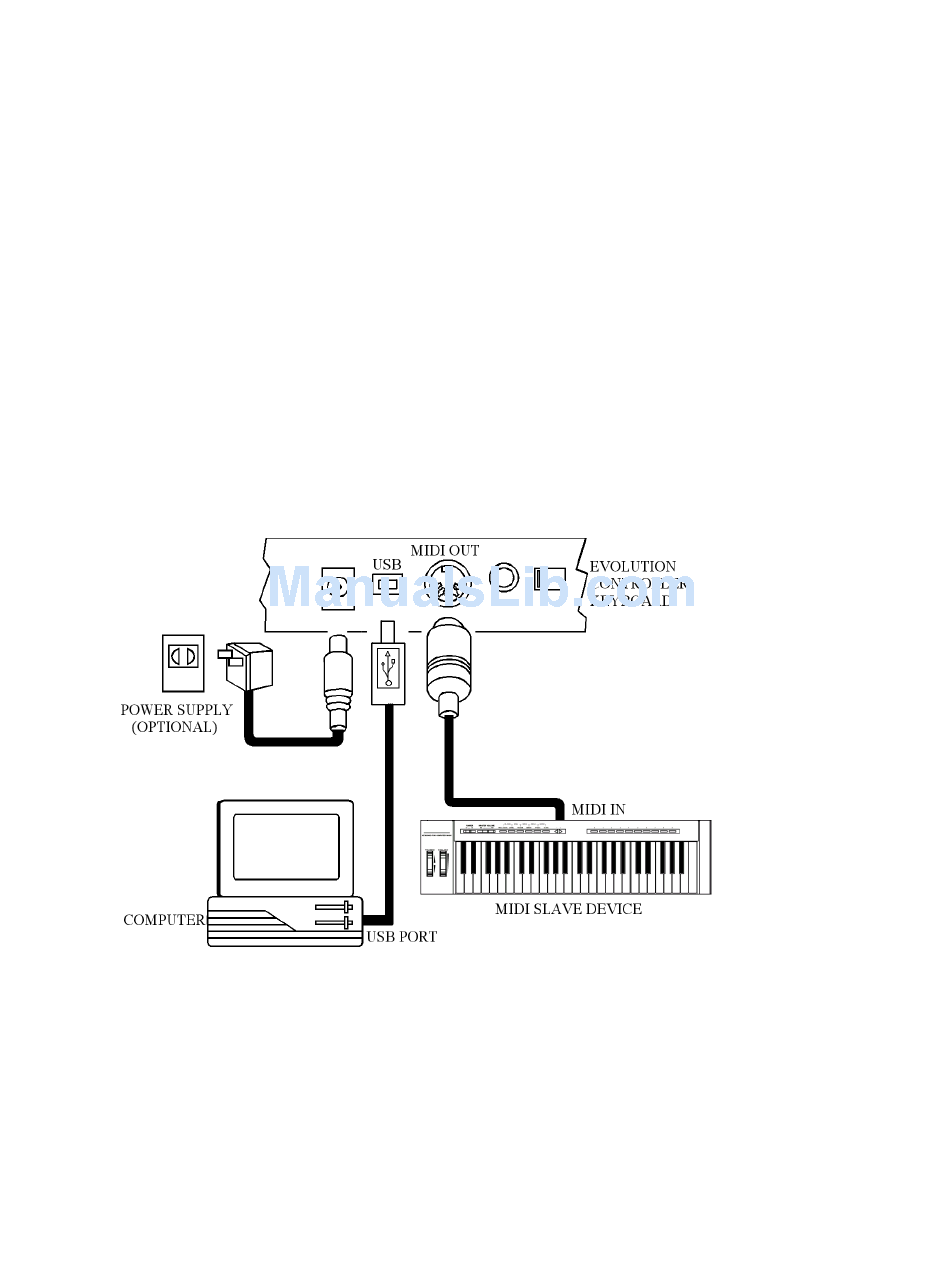

Connect the unit with other MIDI equipment you may have:
The UC16 will act as a MIDI interface for any other MIDI equipment you may have. Note
however, that it will only act as a MIDI THRU device. It will receive data from the USB port of
the computer and pass this data on to the connected device. It can not transmit data from a
connected device to the computer.
Turn on the POWER switch.
Turn all other equipment on.
