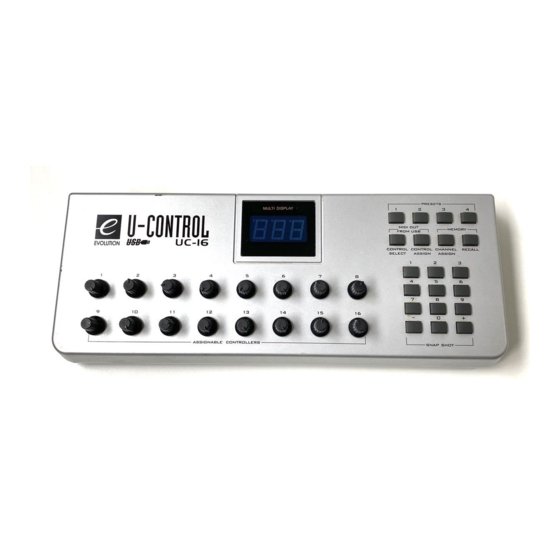

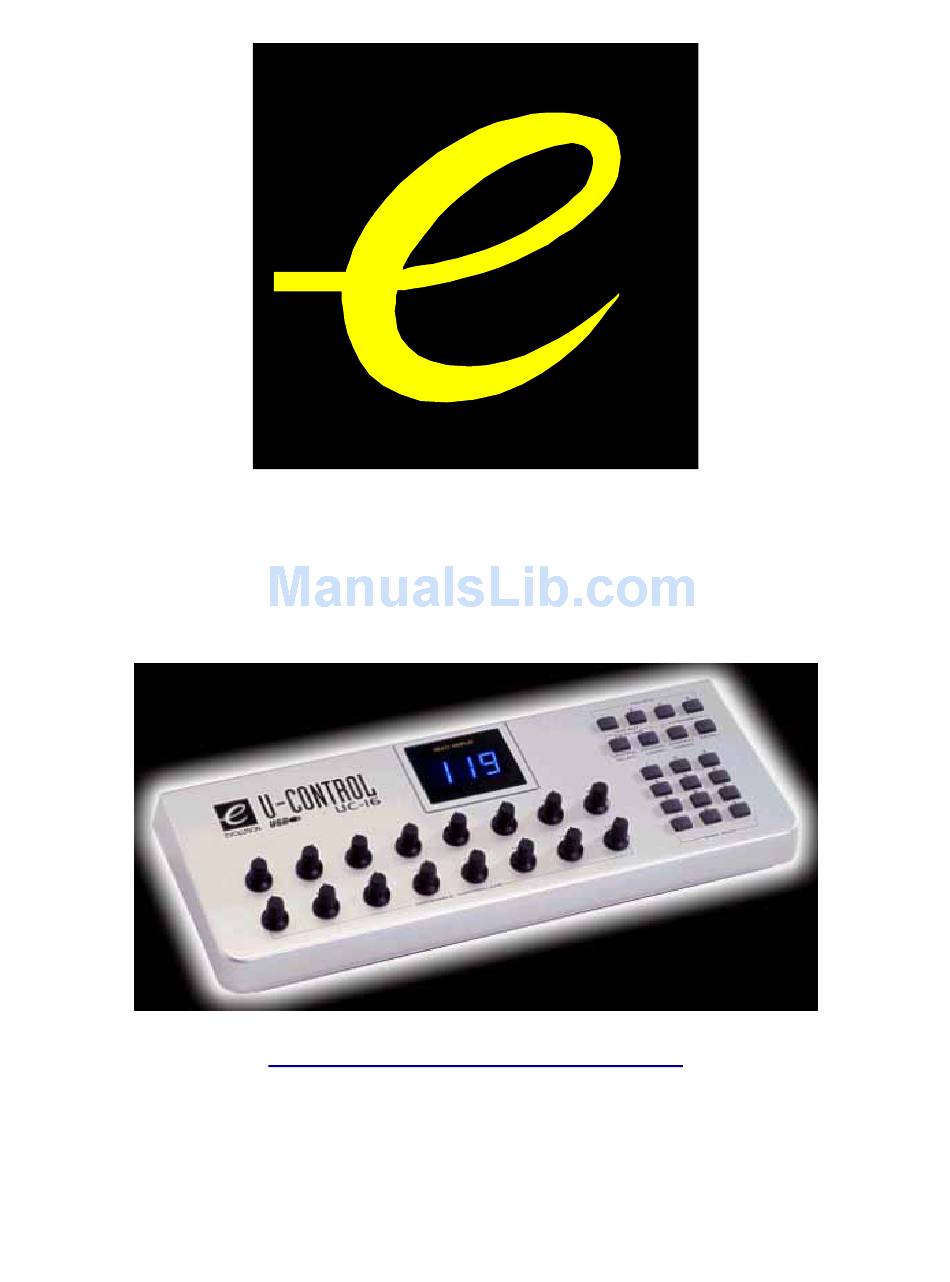

- Page 1 Evolution UC16 USB MIDI Controller with 16 rotary programmable controllers, 25 Memory Banks and USB WWW.EVOLUTION.CO.UK EVOLUTION UC16 USB MIDI CONTROLLER MANUAL...
-
Page 2: Power Supply
POWER SUPPLY There are two methods of powering the UC16. Only use one method at one time AC Power You can also use an AC adapter (not included) with the following specification: 9-12V DC output, 250-300mA, centre positive. Connect to the USB port on your computer. The UC16 is powered from USB. Note: Do not leave the adapter plugged in for long periods of time if the unit is not in use. - Page 3 Assignable Rotary controllers There are 16 assignable controllers selected by the CONTROL SELECT & CONTROL ASSIGN functions. ‘ Assignable Controllers’ refers to any of the 16 assignable Knobs. The basic operation is:- Select the controller by moving it. Alternatively, you can press the CONTROL SELECT button and then type in the number using the keypad or ‘+’, ‘-‘...
-
Page 4: Entering Numbers
000-013, 100-132 Snap Shot When both SNAP SHOT keys are pressed the UC-16 sends out the settings for all of the Assignable Controllers. The settings will be sent out on whichever channel each rotary dial is assigned to (see channel assignment later). This feature lets you record the settings of the Knobs into your sequencer. - Page 5 Memory banks and Presets There are 25 memory banks in total. Memory banks 1-4 are accessible using the Preset buttons 1-4 respectively. This allows you to store settings you use a lot and makes for easy access to them. By default the 4 presets are: 1.
-
Page 6: Setting The Midi Transmit Channel
Setting the MIDI Transmit Channel The MIDI channel can be set for each rotary controller individually. To do this press the CHANNEL ASSIGN button. The channel the currently selected rotary dial is assigned to will flash on the LED display. For example, if the last selected dial is currently assigned to channel 1, the LED display will flash ‘c1’. -
Page 7: Midi Implementation Chart
X X 0 X :Active Sense :Reset Notes: • : Can be set to 0 or X For support email support@evolution.co.uk Latest drivers and information at www.evolution.co.uk Join the Evolution User’s group at Yahoo groups, www.yahoogroups.com/group/evolution-users or e-mail to this address: evolution-users-subscribe@yahoogroups.com... - Page 8 APPENDIX B STANDARD CONTROLLER NUMBERS Controller No. Controller Controller Bank Select Expression LSB Controller 86 Modulation Controller 44 Controller 87 Breath Control Controller 45 Controller 88 Controller 3 Controller 46 Controller 89 Foot Control Controller 47 Controller 90 Porta Time Gen Purpose 1 LSB Reverb Depth Data Entry...
