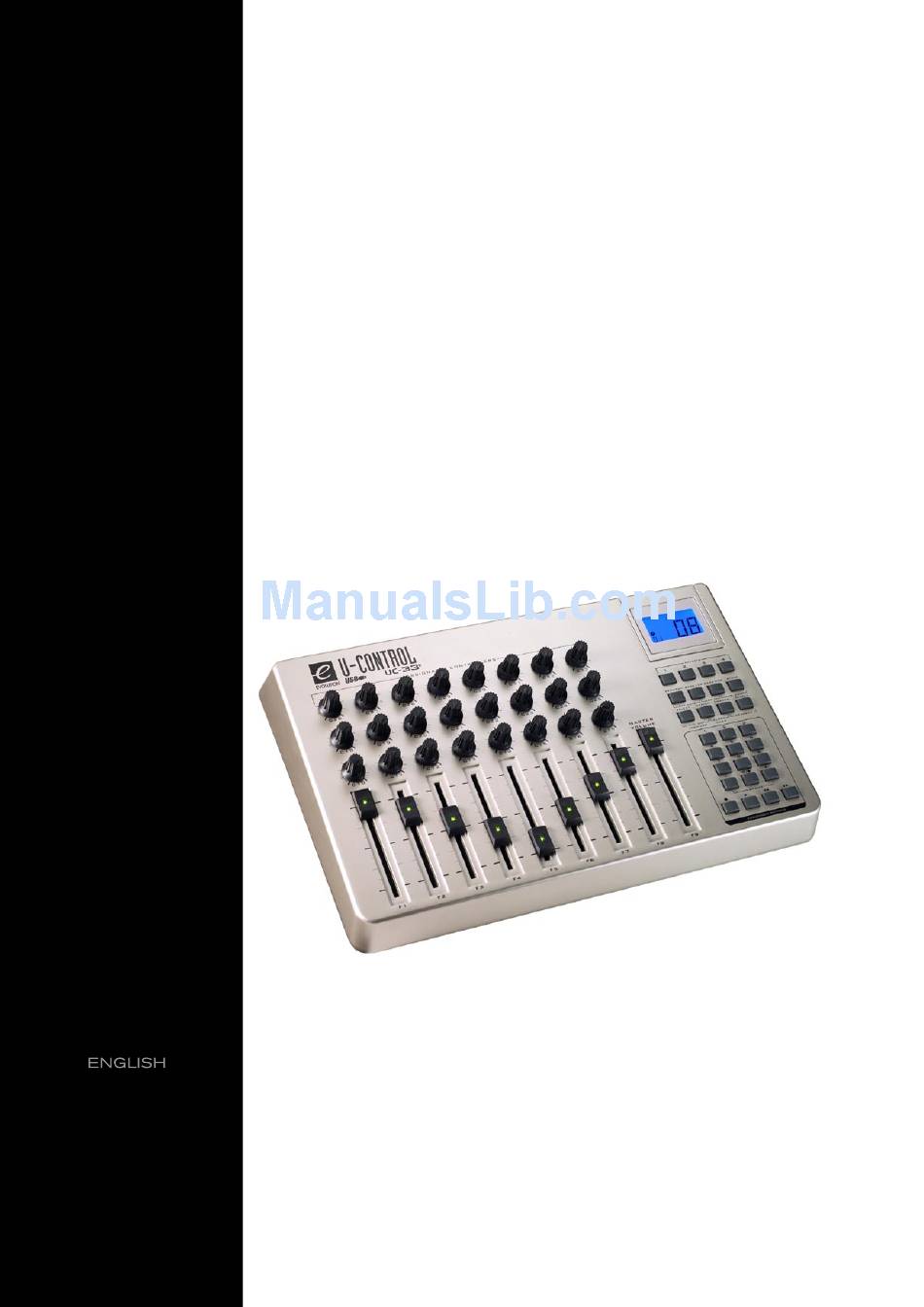

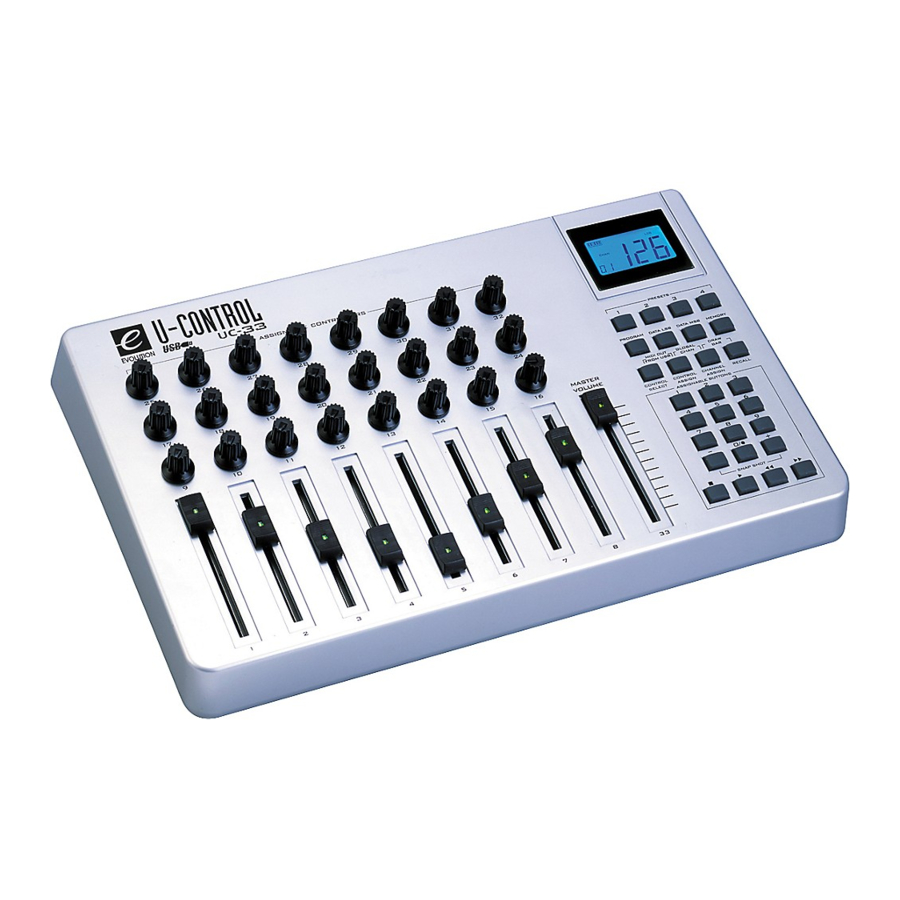

  • Page 1 UC-33e User Guide...

  • Page 2: Table Of Contents

    Resetting The UC-33 To The Factory Default Setting ....... . .
  • Page 3 Appendix B - Assignable MIDI CC’s on the UC-33 ....... .

  • Page 4: Evolution Uc-33 User Guide

    Edit Mode describes the short period after a function button has been pressed during which the parameters of that function can be altered. The numeric keypad can be used to alter a parameter during this time. No data is sent out of the UC-33 when it is in Edit mode except for program and bank changes.

  • Page 5: Sending Snap Shot

    When you first press the CTR MUTE buttons, you will see the LCD display ’OFF’. Changing the position of a controller with controller mute engaged, the LCD will always display OFF to indicate no data is being sent out by the UC-33. To cancel the controller mute function, simply press a function key (or keys) or one of the assignable buttons.

  • Page 6: Programming & Editing The

    For a complete list of standard MIDI controller numbers from 0 to 131, please see Appendix E on page XX. Any of the 47 real-time controllers on the UC-33 can be assigned to a MIDI cc number however the 14 assignable buttons have slightly different options from the 9 faders or 24 rotary controllers.

  • Page 7: Selecting A Controller For Editing

    Selecting A Controller For Editing Before you can assign a MIDI cc to one of the UC-33’s controllers, you will need to select it for editing. There are 2 methods for doing this: Press CONTROL SELECT. The LCD will display the CONTROLLER symbol. The symbol will be flashing to indicate the controller settings can be altered.

  • Page 8: Assigning An Individual Midi Channel

    If the controller is assigned to channel 00, it will transmit on the global channel. Changing The Global MIDI Channel The UC-33’s global MIDI channel affects only the controllers that have the individual MIDI channel assigned to value 00, as described in the previous section.

  • Page 9: Assigning Mmc Control To A Button

    You will find most data sheets for synths that make use of NRPN’s will give the MSB and LSB values that you should enter into DATA MSB and DATA LSB banks (also see Appendix F). However, some manuals may only give the hex values. The UC-33 requires you to enter the decimal value. You can easily convert hexadecimal values to decimal using the windows calculator.

  • Page 10: About Sysex Messages & Device Id

    Assigning A Device ID To The UC-33 Pressing the “DEV. ID” buttons will allow you to assign a Device ID to the UC-33. The default Device ID is 127, which means when a memory dump is performed, that dump can be received by any UC-33, regardless of the Device ID setting.

  • Page 11: Midi In/Out & Midi Messages Explained

    Important note: The UC-33 is not a MIDI THRU device and as such, MIDI data received at the UC-33’s MIDI IN plug can never be sent directly to the UC-33’s MIDI OUT plug. However, if the UC-33 is connected via USB to a computer, data received at the MIDI IN can be transmitted to the MIDI OUT plug, since the data is sent to the computer, and received back from the computer.

  • Page 12: Rpn/Nrpn's Explained

    It should be noted that a SysEx message is not transmitted on any specified channel. All SysEx messages contain a device ID, that is used to single out devices to respond to the SysEx message. All other devices are ignored. If you are using a SysEx message on the UC-33, the global channel is ignored.

  • Page 13: The Evolution Librarian Software

    425C/449C/461C keyboards but is also compatible with the Evolution UC-33e USB controller. That means you can use one librarian package for both your keyboard and your controller, if you own a UC-33e And even better, you can swap patches between Evolution products that are supported by the Librarian so you never have to create the same patch twice.

  • Page 14: Viewing The Contents Of A Memory

    Future Development Of The Librarian We stronglyrecommend you register your ownership of the Evolution Librarian if you would like to be kept informed about future development. As you can see from the version number, the software is at an early version 1.0 stage and we will continue to work on enhancements for the software.

  • Page 15: Technical And Warranty Info

    Evolution UC-33e Technical and Warranty Info Technical Info Caution: The normal function of the product may be disturbed by Strong Electro Magnetic Interference. If so, simply reset the product to resume normal operation by following the instruction manual. In case the function could not resume, please use the product in other location.

  • Page 16: Contact

    Contact If you have any questions, comments or suggestions about this or any M-Audio product, we invite you to contact us by using the following information: M-Audio USA M-Audio Germany 5795 Martin Rd., Irwindale, CA 91706 Kuhallmand 34, D-74613 Ohringen, Germany Technical Support Technical Support tel (pro products): .

  • Page 17: Appendix A-G & Factory Preset List

    Evolution UC-33e Appendix A-G & Factory Preset List Appendix A - MIDI IMPLEMENTATION CHART � � � � � � � � � � � � � � � � � � � � � � � � � � �...

  • Page 18: Appendix B - Assignable Midi Cc's On The Uc-33

    Appendix B - Assignable MIDI CC’s on the UC-33 B1 - The Faders and rotary Controllers: MIDI CC Description Data Lsb (Press Twice) Data Msb (Press Twice) 0-119 �������� ���� ���� � � 120-127 ������� ���� �������� � � �...

  • Page 19: Appendix C - Hexadecimal Conversion Chart

    Evolution UC-33e Appendix C - Hexadecimal Conversion Chart Hexadecimal to Decimal Conversion Chart Hexadecimal Decimal Hexadecimal Decimal Hexadecimal Decimal Value Value Value Value Value Value...

  • Page 20: Appendix D - Useful Midi Data

    Appendix D - Useful MIDI data General MIDI Instruments PianoA Bass Reed Synth Effects 0 Acoustic Grand Piano 32 Acoustic Bass 64 Soprano Sax 96 SFX Rain 1 Bright Acoustic Piano 33 Fingered Bass 65 Alto Sax 97 SFX Soundtrack 2 Electric grand Piano 34 Electric Picked Bass 66 Tenor Sax...

  • Page 21: Midi Note Numbers

    Evolution UC-33e MIDI Note Numbers Octave (n) Note Numbers Appendix F - Roland GS and Yamaha XG NRPN Support to Roland JV/XP NRPN NRPN Data Data CC99 CC98 CC06 CC38 00-7F n/a (-64 - 0 - +63) Vibrato Rate (relative change)

  • Page 22: Appendix H - Uc-33 Preset Chart

    Appendix H - UC-33 Preset Chart * Requires setup or song file. Please check the Evolution Installer CD-ROM/Application Files Factory Preset 01 Cubase multi-channel & channel strip(1-8) * 02 Native Instruments B4 03 Native Instruments Pro-53 04 Reason Mixer 05 Reason Malstrom...
