NT-1810
TM
Smith Attachment
Revision B

Advertisement

loading
Need help?

Need help?

Do you have a question about the NT 1810 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Nautilus NT 1810

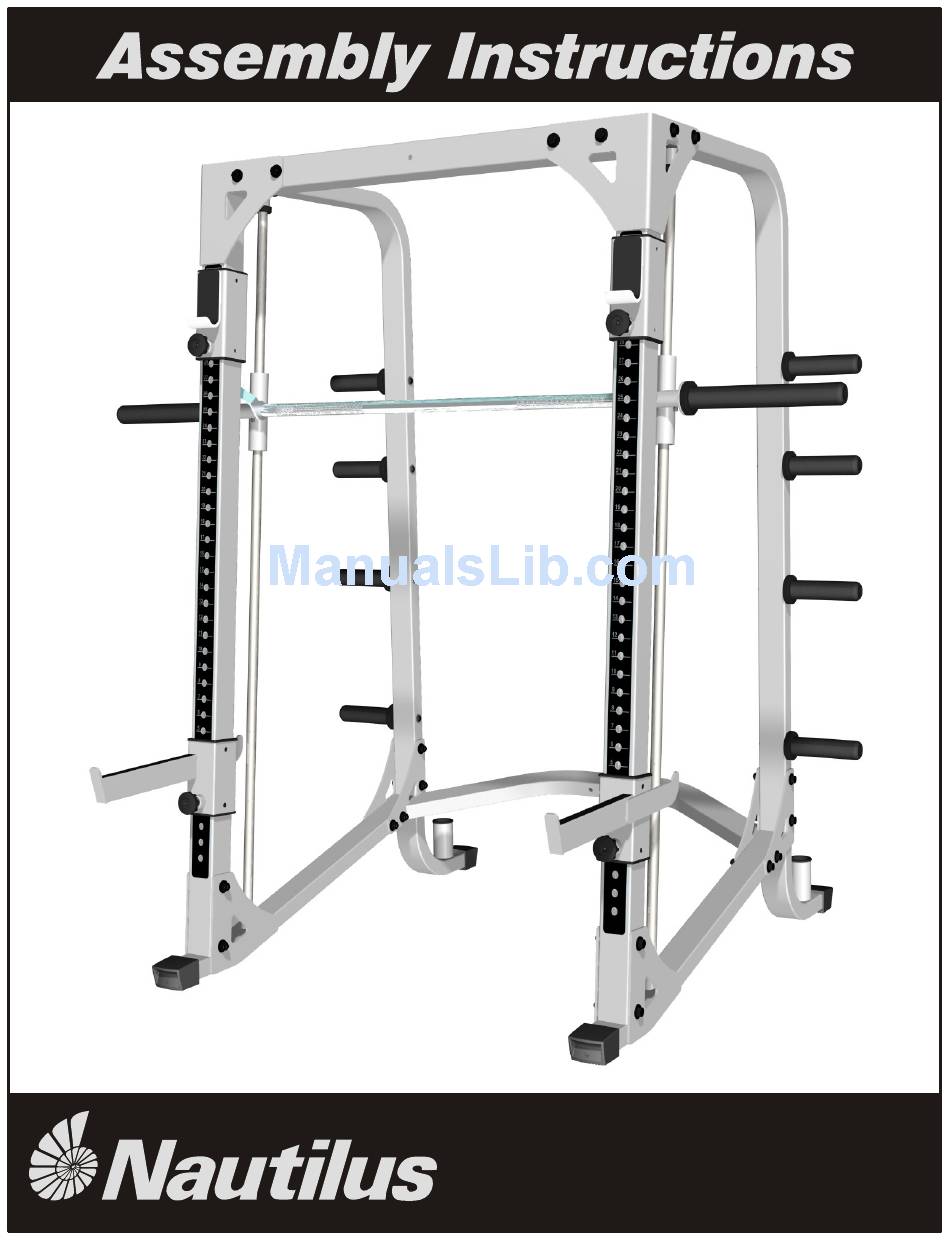

  • Page 1 NT-1810 Smith Attachment Revision B...
  • Page 2 Complete Components List Part # Smith Guide Rod 15868 Smith Guide Rod Holder 15872 Left Smith Slider Assembly 15875 Right Smith Slider Assembly 15876 Smith Bar 15874 Smith Catch Assembly 15873 Bronze Bushing 15075 Rubber Bumper 15470 International Smith Adapter 15877 Hardware And Tools 15021...
  • Page 3: Required Tools

    Hardware Size Chart Qty: 4 Qty: 4 1/2" L Required Tools: 3/16" (Included with Smith), and 5/32" Allen Wrench (Included with Cage) Compare the Bill of Materials to the box contents to insure that all parts are present before installation begins. NOTE: Some hardware may be pre- installed.
  • Page 4 step Step #1 Materials: Slide the LEFT SMITH SLIDER ASSEMBLY (3) onto a SMITH GUIDE ROD (1) in the orientation shown. Place the SMITH Qty. Description GUIDE ROD (1) in the Left Lower Guide Rod Holder (A). Place a SMITH GUIDE ROD HOLDER (2) on top of the Smith Guide Rod SMITH GUIDE ROD (1) with the hole for the set screw in the Smith Guide Rod Holder...
  • Page 5 step Detail Step B Step #2 Materials: Ensure that the SMITH SLIDER ASSEMBLIES (A) are both positioned above the saftey spotters on the cage for the following steps. Qty. Description With the assistance of a helper, sandwich a BRONZE Smith Bar BUSHING (6), the SMITH CATCH ASSEMBLY (5), and Smith Catch Assembly another BRONZE BUSHING (6), between the 2-SMITH...
  • Page 6 step Step B Step C Slide the entire Smith Bar Assembly (A) to the top of the cage, and engage the safety hooks into the cage, so that it is in the racked position. Thoroughly tighten the Set Screws (D) in the 2-Guide Rod Holders (B).
  • Page 7 step Step #4 Materials:...
  • Page 8 The NT 1810 is rated to 800lbs (not included users weight). Maximum user weight limit is 350lbs.
