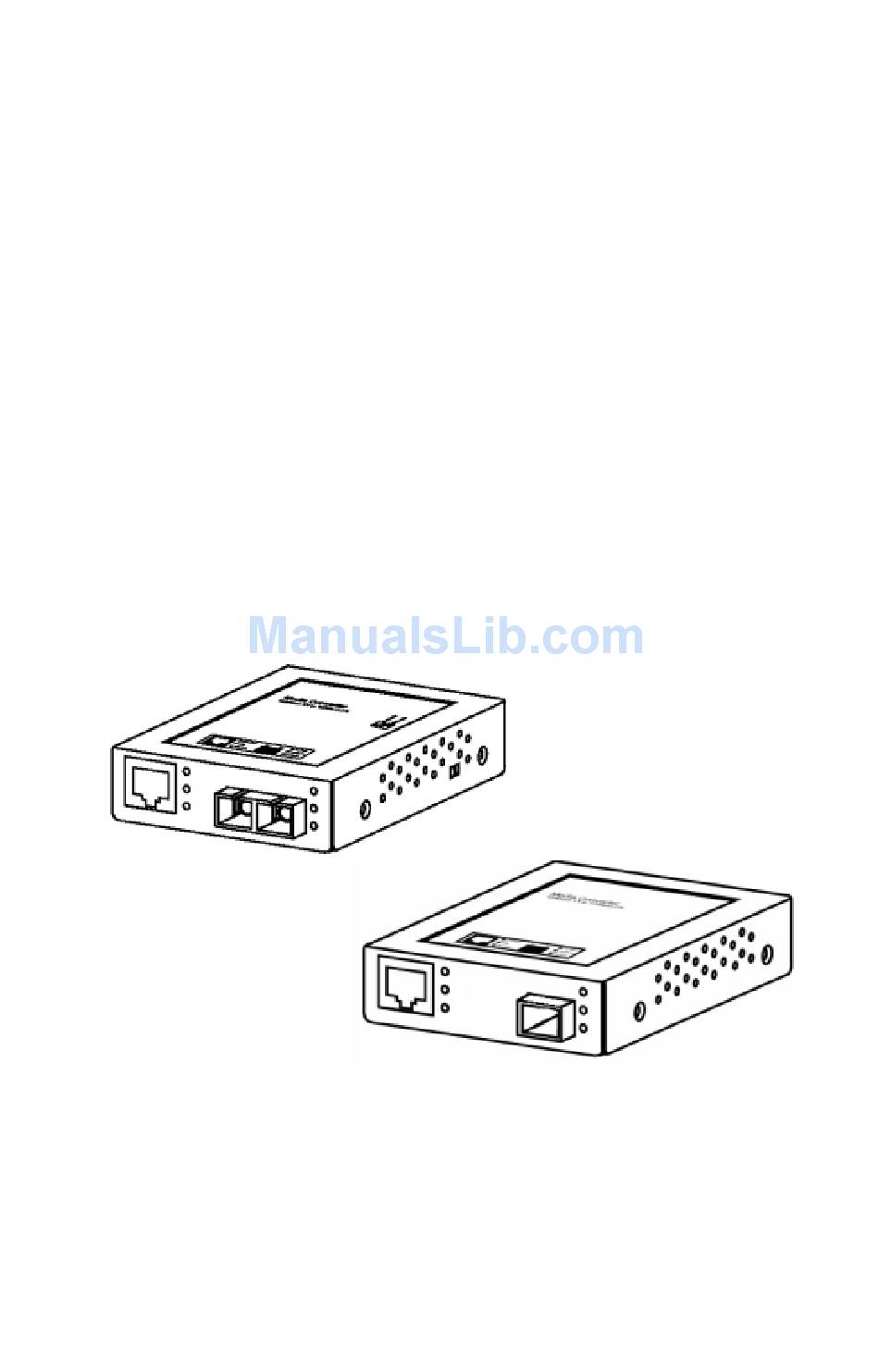

- Page 1 10/100/1000BaseT to 1000BaseSX/LX Media Converter Series User’s Manual...
- Page 2 FCC Warning This device has been tested and found to comply with limits for a Class B digital device, pursuant to Part 2 and 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 3 Introduction This Gigabit Ethernet Media Converter Series is designed to bridge a 10/100/1000BaseT(X) signal to a 1000BaseSX/LX signal. It’s used to extend the distance connection between two Gigabit Ethernet twisted-pair devices via fiber cables transparently without any performance degradation. This Media Converter Series is based on the switching hub design.
- Page 4 Key Features Compliant with IEEE 802.3 10BaseT, IEEE 802.3u,100BaseTX, IEEE 802.3ab 1000BaseT and IEEE 802.3z 1000BaseSX/LX Standards 1x 10/100/1000BaseT(X) Ethernet TP Port and 1x 1000BaseSX/LX Gigabit Ethernet Fiber Port or 1x Gigabit SFP Open Slot Fiber port One SFP open slot can support either Multi-Mode or Single- Mode SFP Module ...
- Page 5 II. TP port (RJ-45) device port support Auto-MDIX, Auto-Negotiation and Flow Control functions. The cable length up to 100 meters is for Cat5, Cat5e or Cat6 shielded/unshielded twisted-pair cable. III. The Fiber Port There’re different types of fiber connectors, such as SC, LC and SFP for multi-mode or single-mode fiber cables.
- Page 6 connect. Note : Warning : When the setting of the DIP switch is changed, the power has to be turned off and the new setting will be effective after turned on again.
- Page 7 LEDs LED Indicators of Fast Ethernet Media Converter Status Description Power Power on Fiber Link LINK/ACT Flashing Data active Link on 10/100M 10/100M/ACT Flashing Data active Link on 1000M 1000M/ACT Flashing Data active Connections Multi-Mode Fiber (MMF) Single-Mode Fiber (SMF)
- Page 8 Technical Specifications IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX Standards IEEE 802.3ab 1000BaseT IEEE 802.3z 1000BaseSX/LX IEEE 802.3x Flow Control Number of Port: 1 10/100/1000BaseT with Features RJ-45 Connector 1 Gigabit Fiber port with SC, ST, LC or SFP Open Slot Data Transfer 2000Mbps/Full-Duplex Rate...
- Page 9 (TX):10/100M/ACT,1000M/ACT (FX): Link/ACT Indicators Per Unit: Power Power DC 5V Requirement Power 5 Watts (Max) Consumption Dimensions 102 × 75 × 23 mm (L x W x H) Weight 210 g Operating 0 to 45℃ Temperature Storage -20 to 90℃ Temperature 10 to 90% RH Humidity...
