Page 1: Media Converter

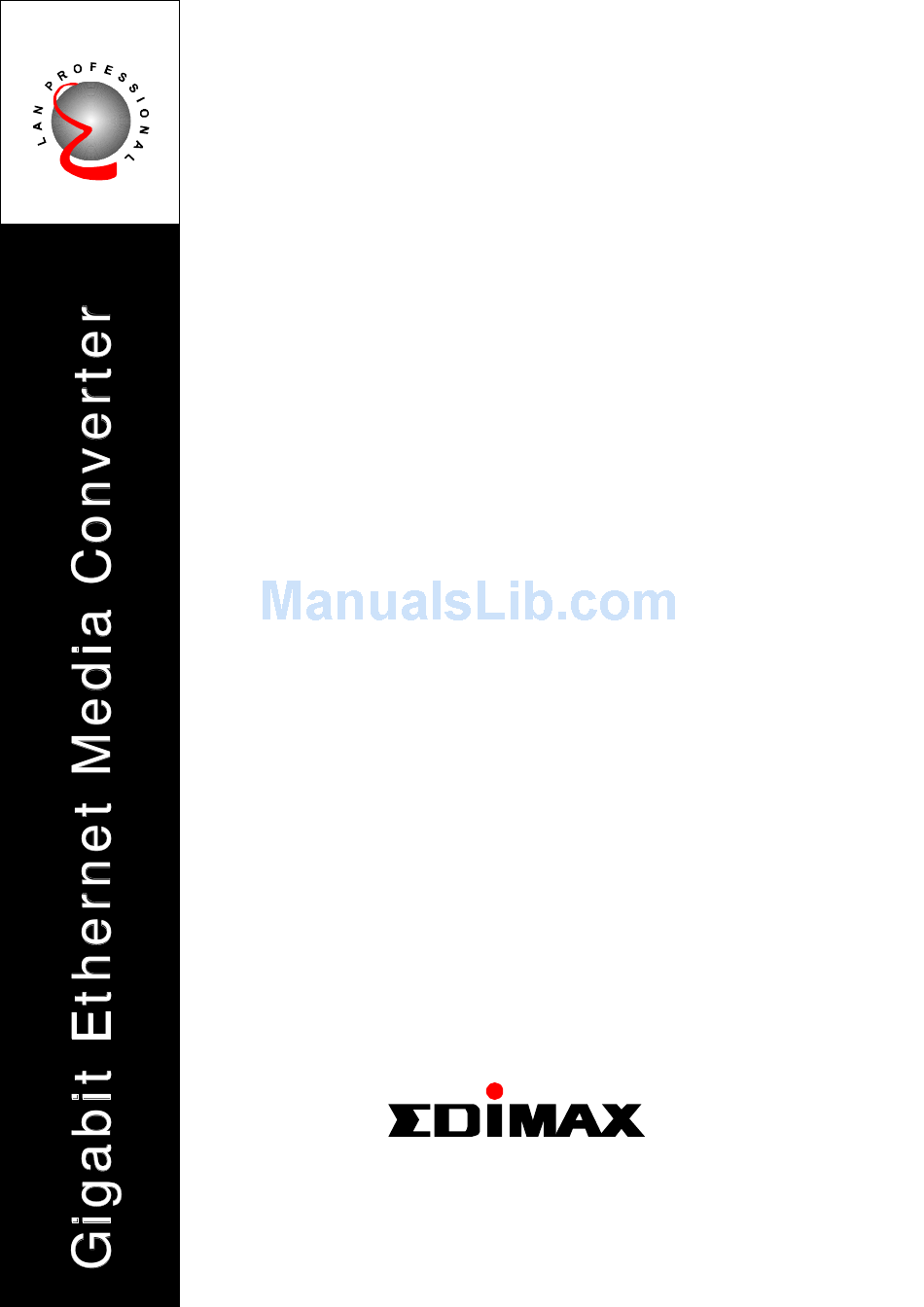

Gigabit Ethernet Media Converter ET-9006SCSX User’s Manual... -
Page 2: Fcc Compliance Statement
FCC COMPLIANCE STATEMENT This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the instructions provided with the equipment, may cause interference to radio and TV reception. The equipment has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide... -
Page 3: Table Of Contents
Contents 1. Introduction ................1 2. Features & Specifications............2 3. Package Contents ..............3 4. Physical Description............... 4 5. Installation ................5 6. Trouble-shooting ..............8... -
Page 4: Introduction
1. Introduction Congratulations on your purchase of this product. This is a Gigabit Ethernet standard compliant media converter. This media converter allows users to convert the Gigabit Ethernet transmission media from UTP to fiber or fiber to UTP. This media converter comes with a 1000BaseT twisted pair port and a 1000BaseSX fiber optic port. -
Page 5: Features & Specifications
2. Features & Specifications (1) Features ! Comply with IEEE 802.3ab, IEEE 802.3z industrial standards. ! Provides 1000Mbps UTP and fiber media link. ! Fiber connectivity of up to 550m. ! Transparent translation between different media segments. ! Complete sets of diagnostic LEDs. ! Plug and play installation. -
Page 6: Package Contents
3. Package Contents ! One Gigabit Ethernet Converter ! One Power Adapter ! User’s Manual ET-9006SCSX Multi-mode... -
Page 7: Physical Description
4. Physical Description (1) Panel ET-9006SCSX (2) LED Number of Status Description Power is supplied One for the Power converter No Power A valid link is established Fiber One for the Data packets are Flash fiber port Link/Activity received No link is established A valid link is established One for the... -
Page 8: Installation
5. Installation (1) Operating Environment This converter must be installed and operated within the limits of specified operating temperature and humidity (see previous section under Specifications). Do not place objects on top of the unit. Do not position the converter near any heating source such as heater, radiator, or direct exposure to sun. - Page 9 Standalone Configuration Back-to-Back Configuration...
- Page 10 (3) Connecting the cable Make sure the UTP and fiber cables are properly connected to the converter. Using the four pairs of category 5 UTP cable for connecting to the UTP port. Using 50/125 or 62.5/125 micron multi- mode fiber for connecting to 1000BaseSX fiber port. (4) Connecting the power Connect the output end of the power adapter to the power connector on the rear panel of the converter.
-
Page 11: Trouble-Shooting
6. Trouble-shooting 1. UTP or Fiber Link LED is not lit ! Check the power switch on the network device connected to the converter, make sure it is turned ON. ! Verify that the two nodes are operating at 1000Mbps. ! Check the network cable;...
