Page 1: Media Converter

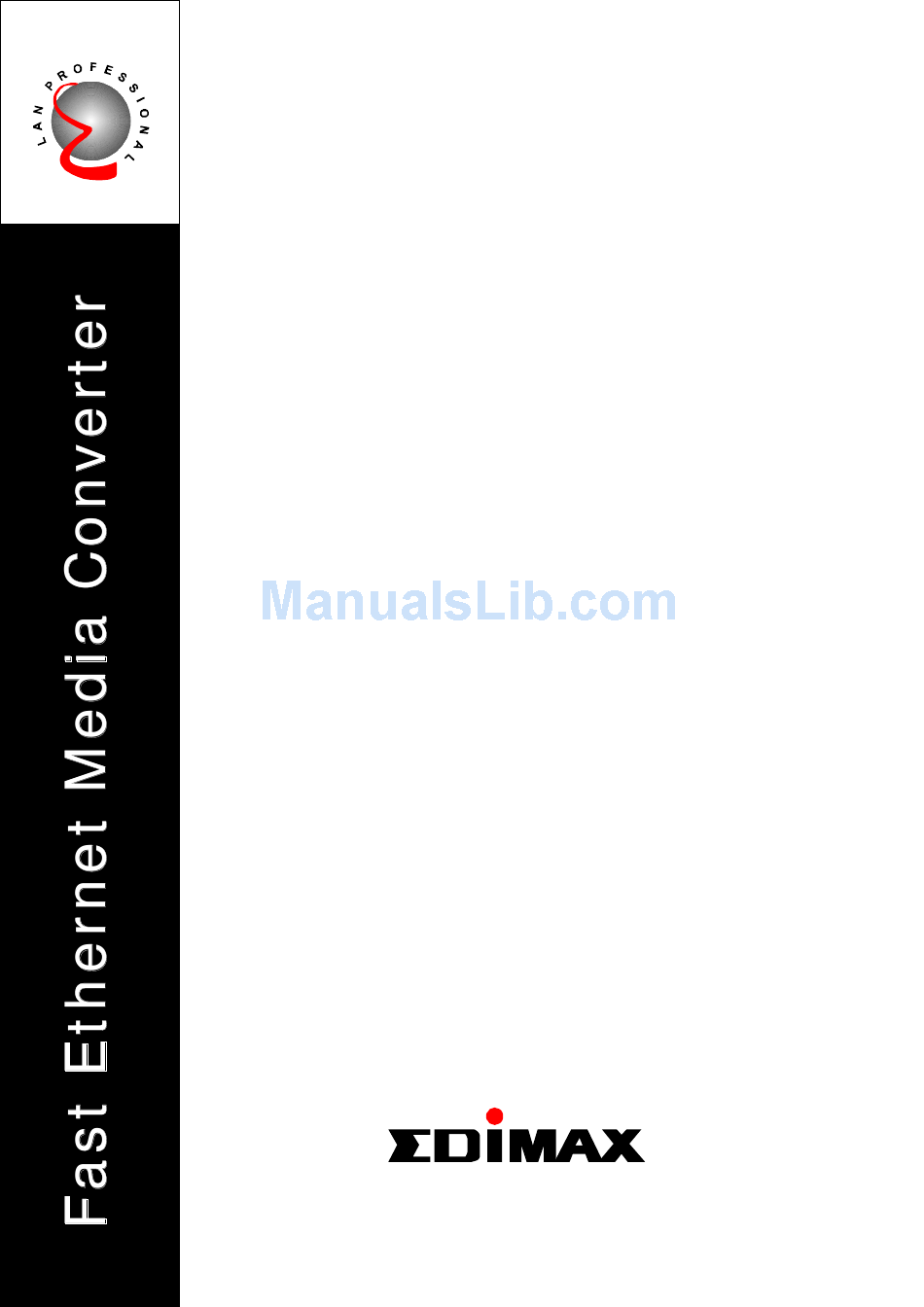

Fast Ethernet Media Converter ET-9003STM ET-9003SCM ET-9003SCS-15 ET-9003SCS-30 ET-9003SCS-60 ET-9003MTS-15 User’s Manual... -
Page 2: Fcc Compliance Statement
FCC COMPLIANCE STATEMENT This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the instructions provided with the equipment, may cause interference to radio and TV reception. The equipment has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide... -
Page 3: Table Of Contents
Contents 1. Introduction ................. 1 2. Features & Specifications ............ 2 3. Package Contents..............4 4. Physical Description ............6 5. Installation ................9 6. Trouble-shooting ............... 12... -
Page 4: Introduction
1. Introduction Congratulations on your purchase of this product. This is a Fast Ethernet standard compliant media converter. This media converter allows users to convert the Fast Ethernet transmission media from UTP to fiber or fiber to UTP. This media converter comes with two 100BaseTX twisted pair ports and a 100BaseFX fiber optic port. -
Page 5: Features & Specifications
2. Features & Specifications (1) Features ! Complies with IEEE 802.3u 100BaseTX and 100BaseFX. ! Provides 100Mbps UTP and fiber media link. ! Fiber connectivity of up to 2 Km (Multi-mode) or 60 Km (Single-mode). ! Transparent translation between different media segments. - Page 6 ! Distance: 2Km (ET-9003SCM, ET-9003SCM) 15Km (ET-9003SCS-15, ET-9003MTS-15) 30Km (ET-9003SCS-30) 60Km (ET-9003SCS-60) ! Transmission Mode: Full-Duplex or Half-Duplex (according to connected device) ! LEDs: Power, Full-Duplex, Fiber Link/Activity, UTP Link/Activity ! Dimensions: 24 (H) x 123(W) x 83(D) mm (ET-9003STM) 24 (H) x 123(W) x 84(D) mm (ET-9003SCM, ET9003SCS- 15/30/60) 24 (H) x 123(W) x 86(D) mm (ET-9003MTS-15)
-
Page 7: Package Contents
3. Package Contents ! One Fast Ethernet Converter ! One Power Adapter ! User’s Manual ET-9003STM Multi-mode ET-9003SCM Multi-mode ET-9003SCS-15 Single-mode ET-9003SCS-30 Single-mode... - Page 8 ET-9003SCS-60 Single-mode ET-9003MTS-15 Single-mode...
-
Page 9: Physical Description
4. Physical Description (1) Panel ET-9003STM ET-9003SCM... - Page 10 ET-9003SCS-15 ET-9003SCS-30 ET-9003SCS-60...
- Page 11 ET-9003MTS-15 (2) LED Color Status Description Number of LED Power is supplied One for the Power Green converter No Power This converter runs at Full-Duplex One for the Green converter This converter runs at Half-Duplex A valid link is established Fiber One for the fiber Data packets are...
-
Page 12: Installation
5. Installation (1) Operating Environment This converter must be installed and operated within the limits of specified operating temperature and humidity (see previous section under Specifications). Do not place objects on top of the unit. Do not position the converter near any heating source such as heater, radiator, or direct exposure to sun. - Page 13 Standalone Configuration Back-to-Back Configuration...
- Page 14 (3) Connecting the cable Make sure the UTP and fiber cables are properly connected to the converter. Using the normal category 5 UTP straight-through cable for connecting the UTP normal port to PC/adapter or connecting the UTP uplink port to hub port. Using 50/125 or 62.5/125 micron multi-mode fiber to connect to the fiber port of multi-mode media converter.
-
Page 15: Trouble-Shooting
6. Trouble-shooting 1. UTP or Fiber Link LED is not lit ! Check the power switch on the network device connected to the converter, make sure it is turned ON. ! Check the network cable; make sure the UTP cable complies with EIA/TIA 568 specification and fiber optic cables comply with industry standards.
