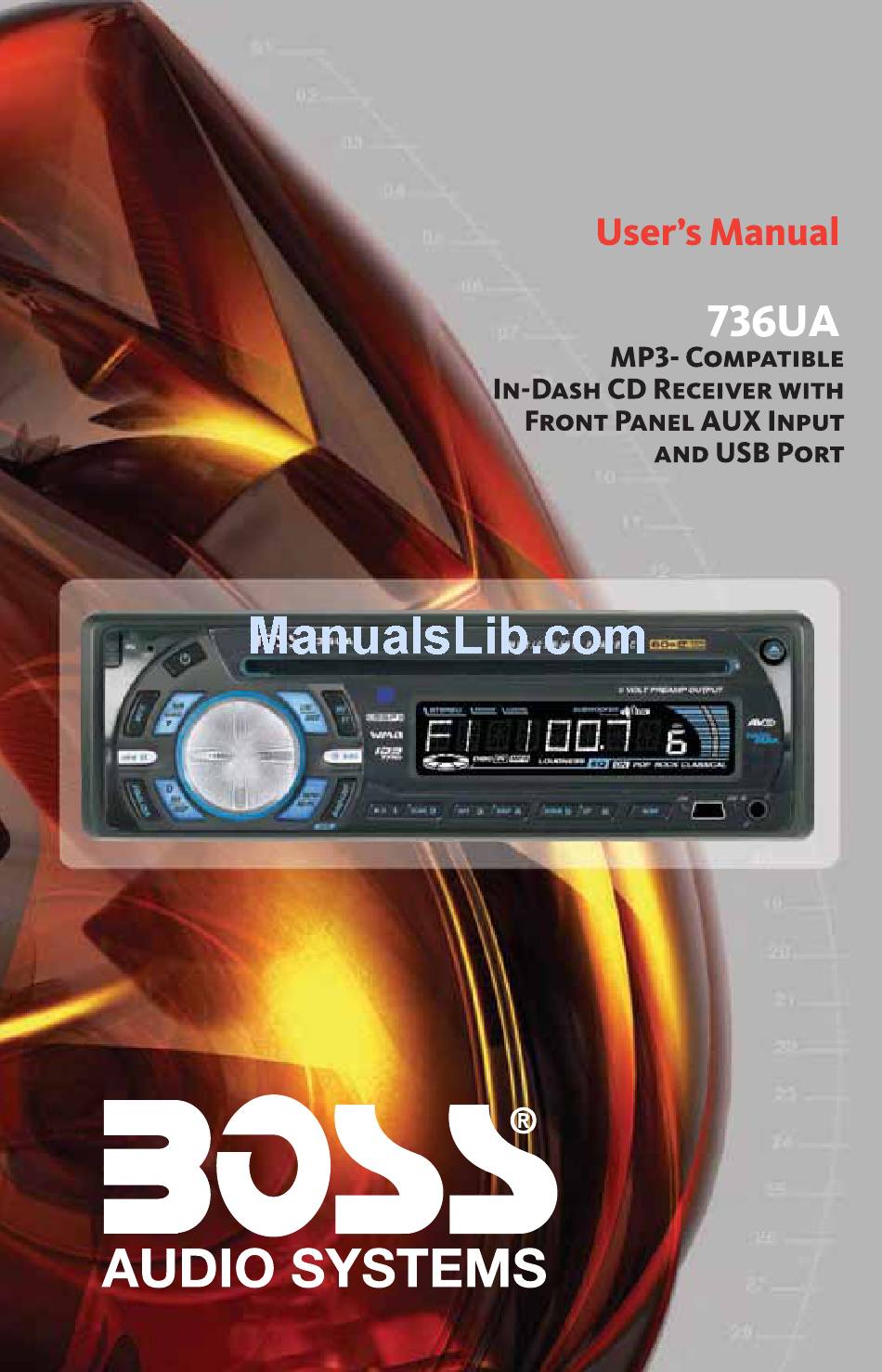

Summary of Contents for Boss Audio Systems 736UA
-
Page 2: Buttons Location And Functions
1. BUTTONS LOCATION AND FUNCTIONS 1. Panel Release Button 1. Tecla para remover o painel frontal 2. Mute Button 2. Tecla Mute 3. Tecla para ejetar o disco 3. CD Eject Button 4. Audio Button 4. Tecla de ajuste de audio 5. -
Page 3: Handling Compact Discs
2. HANDLING COMPACT DISCS MOISTURE CONDENSATION On a rainy day or in a very damp area, moisture may condense on the lenses inside the unit. Should this occur, the unit will not operate properly. In such a case, remove the disc and wait for about an hour until the moisture has evaporated. -
Page 4: Installation
3. INSTALLATION Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and system work properly. Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions. -
Page 5: Din Rear-Mount (Method B)
Removing the unit a. Frame b. Insert fingers into the groove in the front of frame and pull out to remove the frame. (When re-attaching the frame, point the side with a groove down wards and attach it.) c. Insert the levers supplied with the unit into the grooves at both sides of the unit as shown in figure until they click. -
Page 6: Detachable Control Panel (D.c.p .)
4. DETACHABLE CONTROL PANEL (D.C.P .) Removing The Detachable Control Panel (D.C.P .). 1. Turn the power off 2. Press the D.C.P . release button 3. Remove the D.C.P . PANEL RELEASE BUTTON Attaching the DCP 1. Attach the panel at the right side first, with point B on the main unit touching point A on the D.C.P . - Page 7 5. WIRING DIAGRAM (20 PIN HARNESS PLUG) FUSE SICHERUNG FUSIBLE ANTENNA CABLE INPUT FUSíVEL FUSIBLE ANTENNENVERLÄ NGERUNGS KABEL FUSIBILE CÂBLE D'EXTENSION D' ANTENNE ENTRADA PARA CABO DE ANTENA CABLE DE ANTENA CAVO ANTENNA ESTENDIBILE 20-PIN AUDIO/POWER HARNESS (See Figure 1) WHITE 20-PIN AUDIO/STROM- KABELGESCHIRR WEISS...
-
Page 8: Basic Operations
6. BASIC OPERATIONS 1) PANEL RELEASE BUTTON (REL) Press this button to remove the control panel. 12) POWER ON/OFF BUTTON Press this button to turn on or off the power. 5) DISPLAY BUTTON (DISP) Press this button briefly, the LCD will display the clock for about 2 seconds, then return to previous display mode. -
Page 9: Audio Operations
7. AUDIO OPERATIONS 10) VOLUME KNOB Turn this knob to adjust desired volume level. 4) AUDIO BUTTON Press this button to select desired audio function. ORDER OF FUNCTION: VOLUME(VOL) -> BASS(BAS) -> TREBLE(TRE) ->BALANCE(BAL) ->FADER(FAD) While the selected function is displayed, turn Volume Knob to adjust the level within 5 seconds, otherwise the unit will return to volume adjustment mode. -
Page 10: Radio Operations
8. RADIO OPERATIONS 11) AUTO MEMORY STORE/PRESET SCAN BUTTON (AS/PS) 1. PRESET SCAN: Press AS/PS button briefly to enter Preset Scan mode, it will scan all the preset stations in the memories, you can hear that it will stay on each station for about 5 seconds. 2. - Page 11 9.CD OPERATIONS M1) PAUSE BUTTON (PAUSE) Press this button to pause CD play, press again to release pause. M2) SCAN BUTTON (SCAN) Press this button, the first 10 seconds of each track will be played sequentially until this button is pressed again, then normal play will resume at the current track. M3) REPEAT BUTTON (REPEAT) Press this button, the current track will be played repeatedly until this button is pressed again.
-
Page 12: Usb Drive Operations
PLEASE READ THIS INSTRUCTION CAREFULLY BEFORE OPERATING THE UNIT 10. USB DRIVE OPERATIONS COMPATIBILITY Due to the fast changing technology world, this unit may or may not P .1 be compatible to all the USB drive / device available with all the future technology, especially those USB drive / device which require to install a driver. -
Page 13: Sd/Mmc Operations
11. SD/MMC OPERATIONS 1. Press panel release button to release the front panel.(P .1) 2. The SD/MMC card slot is located on the unit as indicated in (P .2). 3. Insert the SD/MMC card into the card slot in the correct direction until a “CLICK” sound is heard.(P .3) 4. -
Page 14: Mp3/Wma Operations
12. MP3/WMA OPERATIONS Notes : - An MP3 directory is shown in this manual as “D irectory ”, and an MP3 file is shown as “Track”. - Maximum length of file name : 28 characters. - Maximum length of directory : 16 characters. - Supports Multi-Session recording. - Page 15 Press MP3 ENTER BUTTON and continue to search the directory or file name in the directory by TUNE UP / DOWN Button (TUNE DOWN First). The selected file can be played by pressing MP3 Enter Button The distribution of alphabetical characters are listed as follow : Button DISP MODE TUNE DN TUNE UP...
-
Page 16: Remote Control
13. REMOTE CONTROL OPERATIONS: Radio Mode CD Player Mode MP3 Mode 1. Power Power On/Off Power On/Off Power On/Off Adjust Vol,Bas, Adjust Vol,Bas, Adjust Vol,Bas, 2. Volume Up/Down Tre,Fad,Bal Tre,Fad,Bal Tre,Fad,Bal 3. ID3/DISP Display Clock Display Clock ID3 tag information Display Clock, Numeric key 0* 4.Stereo/Mono... -
Page 17: Specifications
SPECIFICATIONS CD PLAYER CD Player Compact disc audio system Sistema: Sistema áudio CD System Compact disc Usable disc Tipo de disco: 44.1KHz Frequência de Amostragem: Sampling frequency 44.1KHz 1bit Conversor D/A: 1bit No of quantization bits 5-20,000Hz Resposta de frequencia 5-20,000Hz Frequency 2 stereo... -
Page 18: Troubleshooting
TROUBLE SHOOTING Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer. Symptom Cause Solution If the power supply is properly connected No power The car ignition is not on. - Page 19 10 R - 02 0896...
