U-CONTROL UCA222 User Manual
Registering your purchase and equipment with us helps us
process your repair claims more quickly and efficiently.
Thank you for your cooperation!

2. System Requirements

The UCA222 is PC and Mac-compatible. Therefore, no installation
procedure or drivers are required for the correct functioning of
the UCA222.
To work with the UCA222, your computer must fulfill the
following minimum requirements:
PC
Intel or AMD CPU, 400 MHz or higher G3, 300 MHz or higher
Minimum 128 MB RAM
USB 1.1 interface
Windows XP, 2000
2.1 Hardware connection
Use the USB connecting cable to connect the unit to your
computer. The USB connection also supplies the UCA222 with
current. You can connect a variety of devices and equipment to
the inputs and outputs.
Mac
Minimum 128 MB RAM
USB 1.1 interface
Mac OS 9.0.4 or higher,
10.X or higher

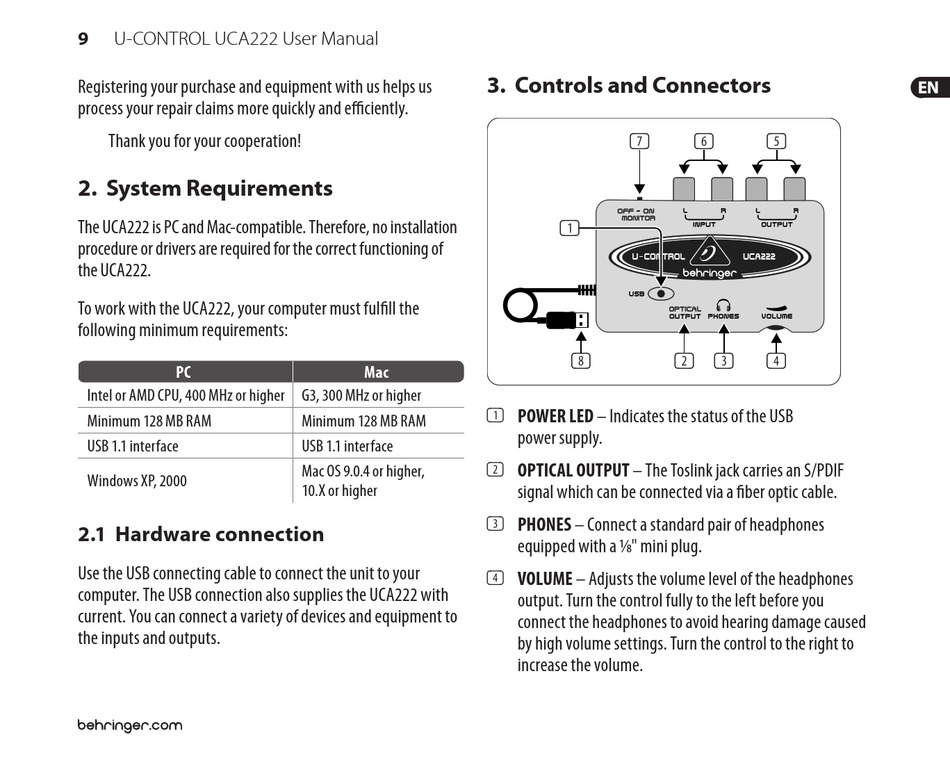

3. Controls and Connectors

(7)
(1)
(8)
(1) POWER LED – Indicates the status of the USB
power supply.
(2) OPTICAL OUTPUT – The Toslink jack carries an S/PDIF
signal which can be connected via a fiber optic cable.
(3) PHONES – Connect a standard pair of headphones
equipped with a 1/8" mini plug.
(4) VOLUME – Adjusts the volume level of the headphones
output. Turn the control fully to the left before you
connect the headphones to avoid hearing damage caused
by high volume settings. Turn the control to the right to
increase the volume.
(6) (5)
(2) (3) (4)
