VIA Technologies EPIA-CN13000G - VIA Motherboard - Mini ITX Specifications

Mini-ITX Series
VIA
EPIA CN
Mini-ITX C7® Board with
MPEG-2 & TV Support
Features
„ Integrated VIA UniChrome™
Pro IGP graphics with MPEG-2
decoding acceleration
„ Supports DDR2 400/533
SDRAM
„ Supports TV-out
„ Supports two SATA
„ Supports eight USB 2.0
(four as pin headers)

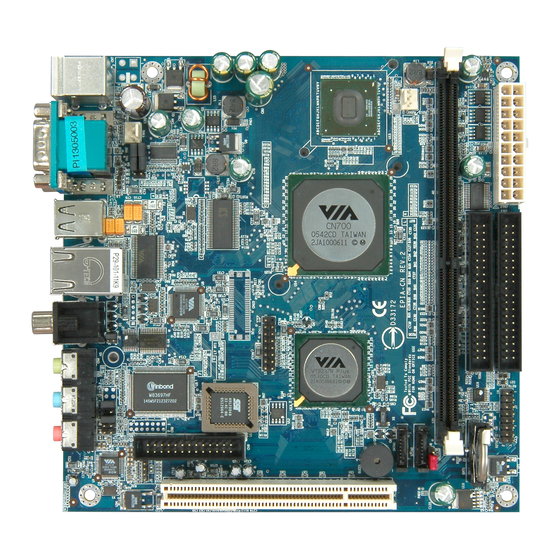

Board Placement
PS2 KB/MS
USB 2.0
10/100 Mbps Ethernet
RCA/SPDIF
Audio Jacks/VIA
Smart5.1 Surround Sound
WLAN USB module

Specifications

Model Name EPIA CN13000G
Processor
1.3GHz VIA C7®
Chipset
VIA CN700 North Bridge
VIA VT8237R Plus South Bridge
System Memory
1 DDR2 400/533 DIMM slot
Up to 1GB memory size
VGA
Integrated VIA UniChrome™ Pro IGP graphics with MPEG-2 decoding acceleration
Expansion Slot
1 x PCI slot
Onboard IDE
2 x UltraDMA 133/100/66 connectors
Onboard LAN
1 x VIA VT6103 10/100 Mbps Ethernet PHY
Onboard Audio
VIA VT1618 Muliti-channel AC'97 Codec
Onboard TV Out
VIA VT1625 Encoder
Onboard I/O Connectors
1 x USB connector for four additional USB 2.0 ports
2 x SATA connectors
1 x LPT connector
1 x CD-in connector
1 x CIR connector (switchable for KB/MS)
1 x Front panel connector
1 x Front panel audio connector for Line-out and Mic-in
2 x Fan connectors for CPU and system fans
1 x ATX power connector
Back Panel I/O
1 x PS2 mouse port
1 x PS2 keyboard port
1 x VGA port
1 x Serial port
1 x GigaLAN port
4 x USB 2.0 ports
1 x RCA port (S/PDIF or TV-out)
1 x S-Video port
3 x Audio jacks: Line-out, Line-in and Mic-in (Horizontal, Smart 5.1 support)
BIOS
Award BIOS
4/8Mbit flash memory
Operating System
Windows XP, Windows Embedded CE, Windows Embedded Standard, Linux
System Monitoring &
CPU voltage monitoring
Management
Wake-on LAN, Keyboard Power-on, Timer Power-on
System power management
AC power failure recovery
Operating Temperature
0° C ~ 50° C
Operating Humidity
0% ~ 95% (relative humidity; non-condensing)
Form Factor
Mini-ITX (4-layer)
17 cm x 17 cm
VIA C7® processor
VIA CN700 North Bridge
DDR2 400/533 SDRAM DIMM
2 x IDE ATA 133/100
VIA VT8237R Plus South Bridge
PCI
EPIA CN10000EG
1.0GHz VIA C7®
