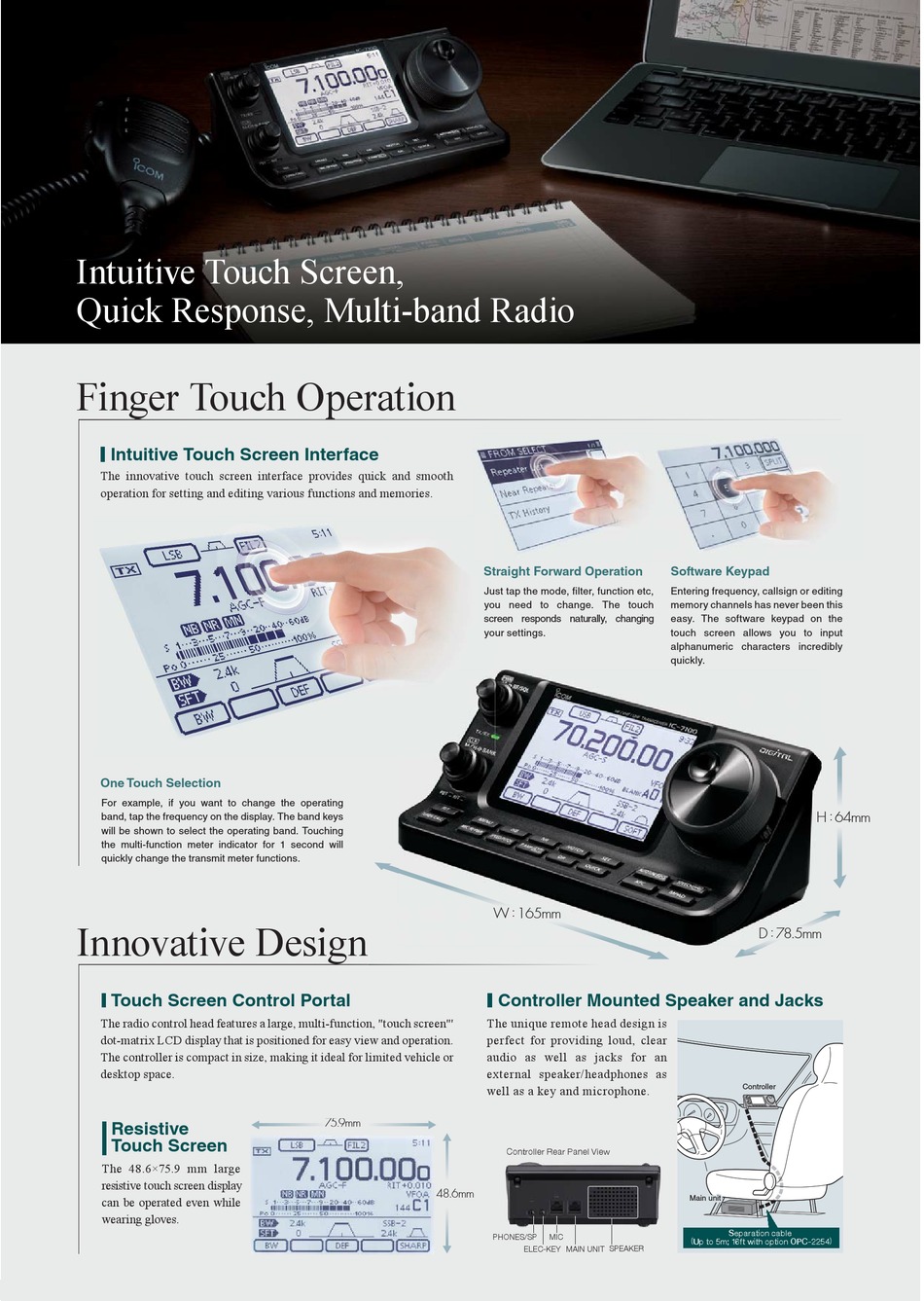

Icom IC-7100 Finger Touch Operation page 2

Intuitive Touch Screen,
Quick Response, Multi-band Radio
Finger Touch Operation
Intuitive Touch Screen Interface
The innovative touch screen interface provides quick and smooth
operation for setting and editing various functions and memories.
One Touch Selection
For example, if you want to change the operating
band, tap the frequency on the display. The band keys
will be shown to select the operating band. Touching
the multi-function meter indicator for 1 second will
quickly change the transmit meter functions.
Innovative Design
Touch Screen Control Portal
The radio control head features a large, multi-function, "touch screen"'
dot-matrix LCD display that is positioned for easy view and operation.
The controller is compact in size, making it ideal for limited vehicle or
desktop space.
Resistive
Touch Screen
The 48.6×75.9 mm large
resistive touch screen display
can be operated even while
wearing gloves.
St Straight Forward Operation
Ju Just tap the mode, filter, function etc,
yo you need to change. The touch
screen responds naturally, changing scr
yo your settings.
W : 165mm
Controller Mounted Speaker and Jacks
The unique remote head design is
perfect for providing loud, clear
audio as well as jacks for an
external speaker/headphones as
well as a key and microphone.
75.9mm 75.9mm
48.6mm
PHONES/SP
Software Keypad
Entering frequency, callsign or editing
memory channels has never been this
easy. The software keypad on the
touch screen allows you to input
alphanumeric characters incredibly
quickly.
Controller Rear Panel View
MIC
ELEC-KEY MAIN UNIT SPEAKER
H : 64mm
D : 78.5mm
Controller
Main unit Main unit
Separation cable
( )
Up to 5m; 16ft with option OPC-2254
