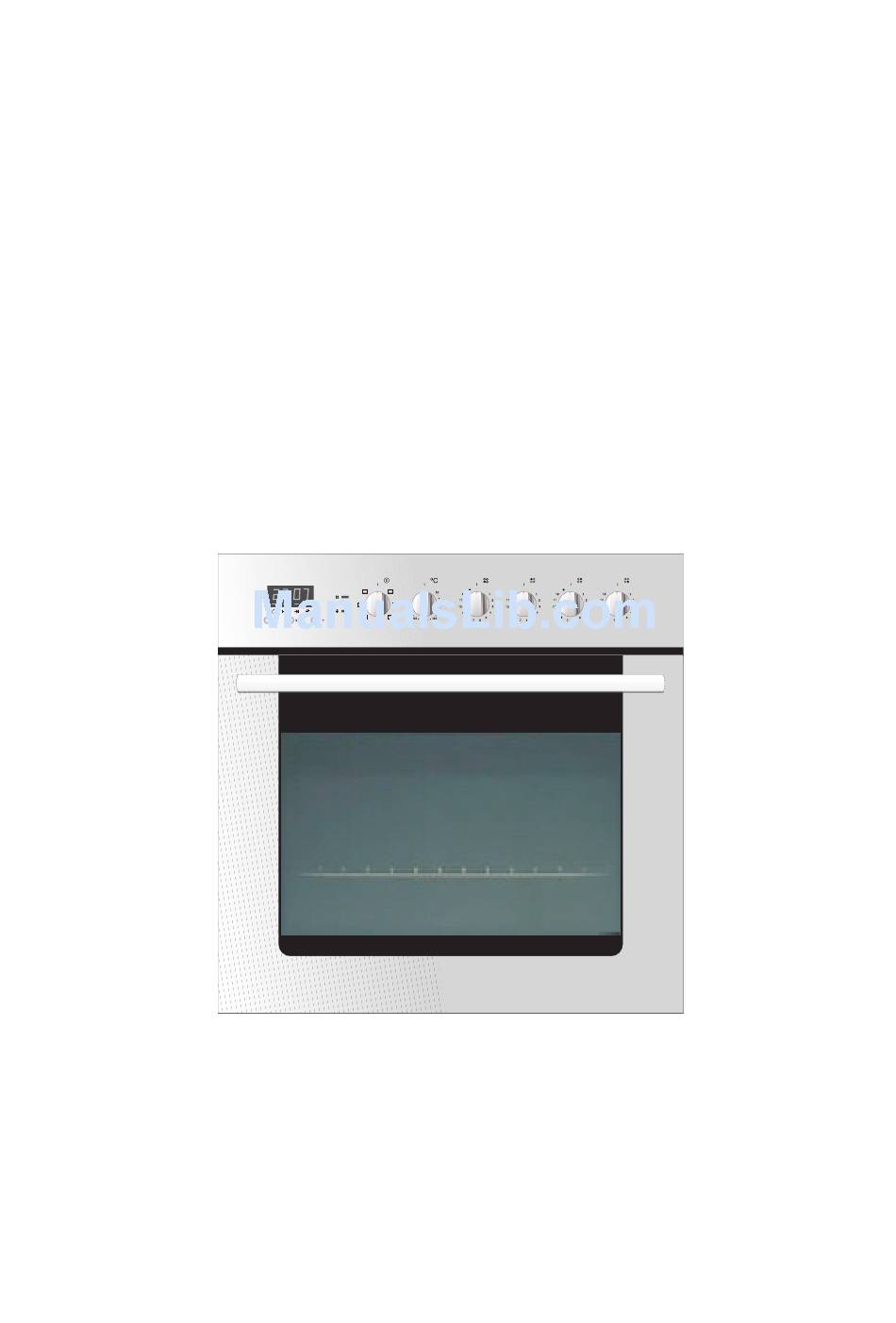

- Page 1 MEB 1000 E MEB 3000 E MEB 4000 E MEB 6000 E Musterring...
-
Page 2: Before Using Your Oven For The First Time
Index Before Using your Oven for the First Time Carefully read this Instruction Manual to Before Using your Oven achieve the best results from your oven. for the First Time Page 29 Due to the manufacturing process there may be residues of grease and other substances. Ecological Packaging To eliminate these, proceed as follows: •... -
Page 3: Important Safety Instructions
Important Safety Instructions Electrical Safety • Do not store oils, fats or inflammable materials inside the oven, as it could be • Any repairs must be carried out by an dangerous if the oven is switched on. authorised Service Agent, using original •... -
Page 4: Control Panel
Control Panel Models EB1000E / EB3000E Models EH1000E / EH3000E Models EB4000E / EB6000E Models EH4000E / EH6000E 1 Electronic timer (depending on the model). 4 Function selector. 2 Heating indicator light. Indicates that the 5 Temperature selector. heat is going to the food and it goes out 6 Control knobs for the hob. -
Page 5: Oven Functions
Oven Functions MaxiGrill Allows greater surfaces to be prepared, than Models EB1000E / EH1000E with the grill, together with higher power reducing the time required for browning of the food. MaxiGrill with fan Models EB3000E / EH3000E Allows uniform roasting at the same time as surface browning. -
Page 6: Use Of The Oven
3 Subsequently, the indicator that was Use of the Oven flashing will light, indicating that the oven will switch itself off automatically. 1 Select a temperature and a cooking func- tion. 4 The clock will then show the current time. 2 Set the controls in position to switch off 5 Select a temperature and cooking function. - Page 7 3 Subsequently, the indicator that was In the event of a power cut, all the flashing will remain lit. programming of the electronic clock will be erased. The correct time has to be reset and 4 Press the mode button until the indicator the watch reprogrammed.
- Page 8 DATENBLATT/ BROCHURE Hersteller Manufacturer ASTROH ASTROH ASTROH ASTROH EB 1000E EB 3000E EB 4000E EB 6000E Modell Model EH 1000E EH 3000E EH 4000E EH 6000E Energieeffizienz- Energy klasse auf efficiency einer Skala class on a von A scale of A (niedriger (more efficient) Verbrauch)
-
Page 9: Coocking Tables
Coocking Tables The Cooking Tables show examples of temperature ranges and approximate cooking times. The cooking mode depends on the model. For the best results we recommend the oven to be preheated with the function . The preheating time finishes when the heating pilot light switches off. - Page 10 Cooking Weight Tray Position Temperat. Time Receptacle FISH Mode 180-200 30-35 Tray Red Bream 170-190 25-30 190-210 25-30 Salted Dorado Tray 180-200 25-30 190-210 30-35 Casserole dish Fish Pastry 180-200 30-35 170-190 15-20 Sole Tray 160-180 10-15 190-210 20-25 Sea-bass Tray 180-200 15-20...
- Page 11 Weight Tray Position Cooking Temperat. Time Receptacle MEAT 190-210 75-85 170-190 65-75 Tray Suckling Pig 180-200 80-85 180-200 60-65 Rabbit 160-180 45-50 Tray 170-190 45-50 190-210 50-55 Tray 170-190 45-50 Lamb 180-200 50-55 170-190 35-40 Casserole dish Joint of Meat 160-180 30-35 170-190...
- Page 12 Weight Tray Position Cooking Temperat. Time Receptacle CAKES AND DESSERTS 170-190 35-40 Cake Mould Sponge Cake 160-180 30-35 170-190 10-15 Swiss Roll Tray 160-180 10-15 160-170 60-65 Flan Bread Mould 160-170 55-60 160-180 20-25 Biscuits Tray 150-170 15-20 170-190 15-20 Vol-au-vents Tray 0,25...
-
Page 13: Cleaning And Maintenance
Cleaning and Maintenance Caution • Turn the screw (A) and lower the grill element as far as possible. Before carrying out any work, the appliance • Clean the upper part of the oven and return must be disconnected from the mains the grill element to its original position. -
Page 14: Cleaning The Oven Exterior And Accessories
Instructions for Removing the Supports and 4 To disassemble the back panel, remove the Flat Panels. screw (D). 1 Remove the accessories from inside the oven. 2 Ease out the supports (B), releasing them from the bolt (C) 3 Undo the bolt (C), which releases the flat catalytic panels. -
Page 15: Cleaning The Oven Door
Caution 4 Take hold of the door on both sides. Pull the oven door forward until it is totally free from Never metallic scouring pads the hinges (F). commercial or scouring powders that could scratch the enamel. For stainless steel surfaces, proceed with care and only use sponges or cloths that cannot scratch them. -
Page 16: Changing The Oven Bulb
4 Clean the interior glass and the inside of Changing the Oven Bulb the oven door. 5 Insert the supports on the interior glass Caution into the grooves at the top of the door (B). To change the bulb, first ensure that the oven is disconnected from the power supply. -
Page 17: Troubleshooting
Trouble Shooting The oven does not work Smoke is given off while the oven is working Check the connection to the electrical circuit. This is normal during its first use. Check the fuses and current limiter Periodically clean the oven. of your installation. -
Page 18: Technical Information
Technical Information providing a minimum depth of 580 mm. (See figures 1 and 2 describing oven fitting on the page 68). • To fit multifunction ovens in their locations, If the equipment does not work, please the back part of the unit corresponding to contact the Technical Service Department and the shaded area of figure 3, must not have advise them of the problem, indicating:... -
Page 19: Installing The Oven
230 V 1 230 V 1 3 x 1,5mm 3 x 4mm 400 V 2N 400 V 3N 5 x 1,5mm 4 x 2,5mm 2 Fix the oven to the unit by means of the 4 Installing the Oven screws supplied via the holes that can be seen when the door is opened. - Page 20 Fig. 1 Fig. 2 M ín. 4 0 Fig. 3 a) Horno Convencional/ Forno Convencional/Conventional Oven/Four Conventionnel/Konventioneller Herd b) Horno Multifunción/ Forno Multifunções/Multi-function Oven/Four Multifonction/Universalherd...
