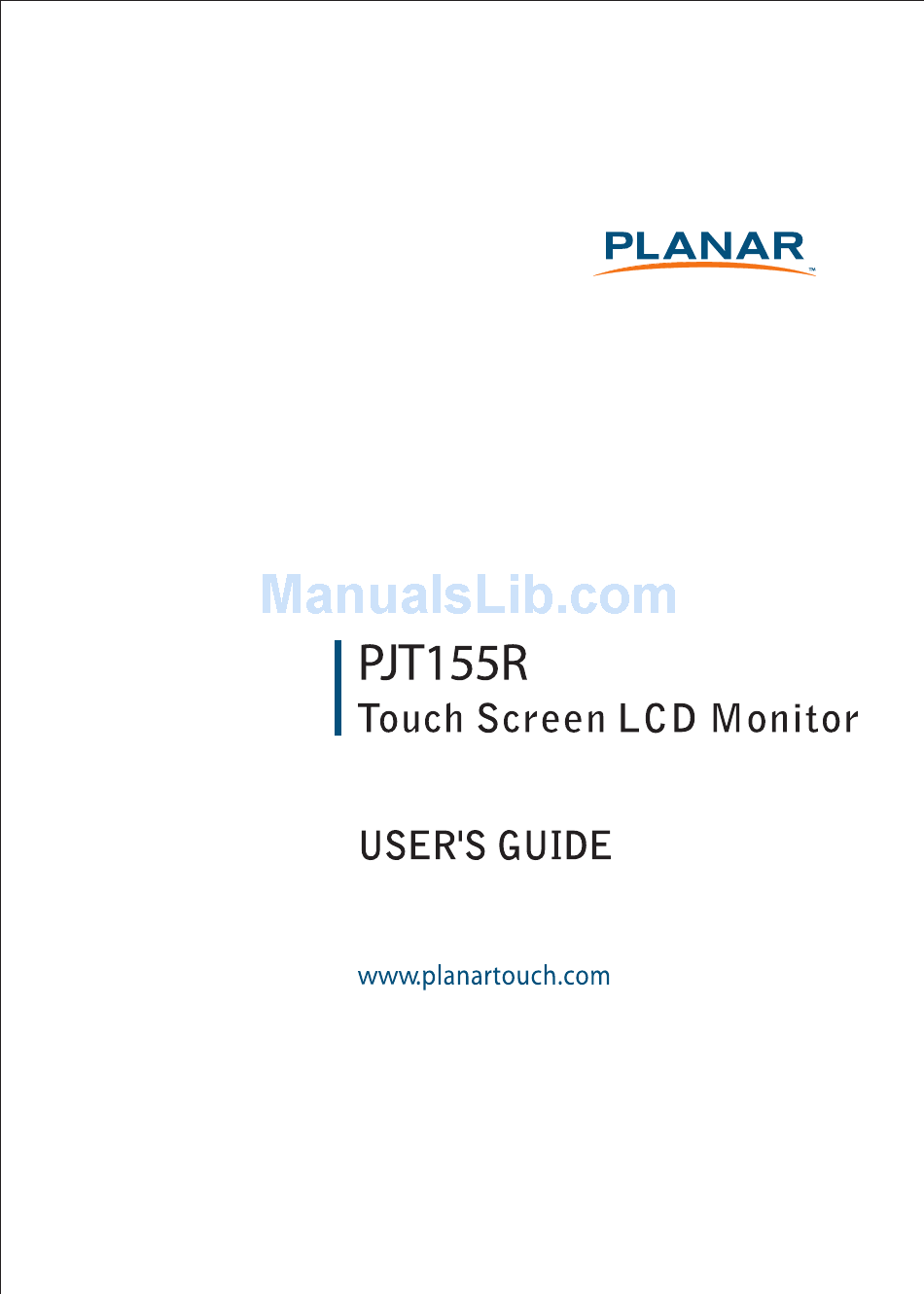

Planar PJT155R User Manual

Touch screen lcd monitor

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PJT155R and is the answer not in the manual?

Questions and answers

Summary of Contents for Planar PJT155R

  • Page 2: Table Of Contents

    Contents Preface.........................2 Installation.........................4 Unpacking ....................................4 Viewing Angle Adjustment...............................5 Detaching LCD Monitor from Its Stand........................5 Interface for Arm Applications ............................5 Connecting the Display..............................5 Connecting the AC Power..............................6 Connecting the Audio Cable............................6 Connecting the USB Cable..............................6 Setting Up the LCD Monitor.............................6 Power Management System ............................6 Display Controls.......................7 User Controls..................................7 Adjusting the Monitor's Display .............................7...
  • Page 3: Preface

    Preface This manual is designed to assist users in setting up and using the LCD Monitor. Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice.
  • Page 4: Important Safety Instructions

    Important Safety Instructions Please read the following instructions carefully. This manual should be retained for future use. 1. To clean the LCD Monitor screen: -- Power off the LCD Monitor and unplug the AC Cord. -- Spray a non-solvent cleaning solution onto a rag. -- Gently clean the screen with dampened rag.
  • Page 5: Installation

    Installation Unpacking Before unpacking the LCD Monitor, prepare a suitable workspace for your Monitor and computer. You need a stable and clean surface near a wall power outlet. Make sure that the LCD Monitor has enough space around it for sufficient airflow. Though the LCD Monitor uses very little power, some ventilation is needed to ensure that the Monitor does not become too hot.
  • Page 6: Viewing Angle Adjustment

    Viewing Angle Adjustment +90° The LCD Monitor is designed to allow users to have a -2° comfortable viewing angle. The viewing angle can be adjusted from -2°to +90°.(See fig. 1-1) Figure 1-1 Warning Do not force the LCD Monitor over its maximum viewing angle settings as stated above. Attempting this will result in damaging the Monitor and Monitor stand.
  • Page 7: Connecting The Ac Power

    Connecting the AC Power Connect the power cord to the LCD Monitor.(See Fig. 1-5) Connect the power cord to an AC power source. Figure 1-5 Connecting the Audio Cable Connect the audio cable to the “LINE OUT “ jack on your PC's audio card or to the front panel's “AUDIO OUT”...
  • Page 8: Display Controls

    Display Controls User Controls A brief description and the location of all LCD Monitor functions controls and indicators: Figure 2-1 Power LED will be Green when the monitor is on, Yellow when in power saving mode, and Dark when the monitor is off. Press this button to turn on and turn off the monitor.
  • Page 9: Function Description

    Function Description Icon Function Function Description Brightness 101 scales of brightness are available to choose from (0 to 100). Contrast 101 scales of contrast are available to choose from (0 to 100). H. Position This function let's you adjust the display's horizontal position. V.
  • Page 10: Osd Lock Out Function

    OSD Lock Out Function When monitor is in normal display, you can enable the “OSD Lock Out” function. Option 1: OSD lock – all 4 buttons are locked except the “POWER” button. Press and hold the buttons for same time 3 seconds to lock the buttons. The monitor will show an “OSD Lock Out”...
  • Page 11: Technical Information

    Technical Information Specifications LCD Panel Size 15" (38.1 cm) Display Type Active matrix color TFT LCD Resolution 1024 x 768 Display Dot 1024 x (RGB) x 768 Display Area (mm) 304.128 x 228.096 (H x V) Display Color 16.7M (RGB 6 bits+Hi-FRC data) Lamp Voltage (typical) 560 Vrms Lamp Current (typical)
  • Page 12 Power Management Mode Power Consumption* AC Input LED Color DPM ON 25W maximum 240 VAC GREEN DPM OFF 2W maximum 240 VAC Yellow DC switch off 1W maximum 240 VAC Dark Meeting VESA DPM requirements measured from AC Input end of AC power cord. Sync Input Analogue Signal...
  • Page 13: Standard Timing Table

    Standard Timing Table If the selected timing is NOT included in table below, this LCD monitor will use the most suitable available timing. FH(kHZ) SYNC FRONT SYNC TOTAL ACTIVE BACK PIXEL FV(HZ) WIDTH PORCH PORCH POLARITY (DOT/ (DOT/ FOREQ TIMING (DOT/LINE) (DOT/LINE) (DOT/LINE)
  • Page 14: Troubleshooting

    Troubleshooting This LCD Monitor has been pre-adjusted using factory standard VGA timings. Due to the output timing differences among various VGA cards in the market, users may initially experience an unstable or unclear display whenever a new display mode or new VGA card is selected. Attention This LCD Monitor Supports Multiple VGA Modes.
  • Page 15: Touch Screen Driver Installation

    Touch Screen Driver Installation The PJT155R/ PJT175R/ PJT195RW is available with USB connection. The touch software is located on the enclosed CD-ROM for these operating systems: Windows® 7, VISTA, XP, 2000, ME, 98, NT4.0, CE, XP Embedded, Linux, Apple® Mac OS Please Note: The PJT155R/ PJT175R/ PJT195RW is Microsoft®...
  • Page 16 PJT155R/ PJT175R/ PJT195RW Install Instructions If you are using a PC running Windows® 7, VISTA, XP, 2000, ME, 98, NT4.0, follow the instructions below: 1. Power on the PC. 2. Be sure the USB cable is connected from the PC to the LCD display.
  • Page 17: Product Registration And Technical Support

    Product Registration and Technical Support Register Your Planar Products Today Thank you choosing Planar. To assure you receive all the benefits of your Planar product and services, register your Planar product today. Visit our website to register your product at http://www.planar.com/support/product_registration.html...
  • Page 18 Hours: 24 hours a day, 7 days a week 2012 Planar Systems, Inc. Planar is a registered trademark of Planar Systems, Inc. Other brands and names are the property of their respective owners. Technical information in this document is subject to change without notice.
