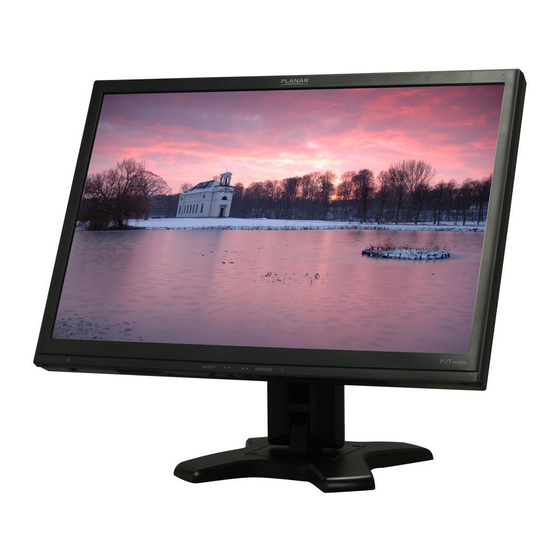

Contents Preface ..................2 Installation ...................4 Unpacking.......................................4 Package Overview ..................................4 Viewing Angle Adjustment ...............................5 Detaching LCD Monitor from Its Stand..........................5 Interface for Arm Applications ..............................5 Connecting the Display ................................5 Connecting the AC Power .................................6 Connecting the Audio Cable ..............................6 Connecting the USB Cable ................................6 Setting Up the LCD Monitor..............................6 Power Management System..............................6 Display Controls ................7... -
Page 3: Preface
Preface This manual is designed to assist users in setting up and using the LCD Monitor. Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. -
Page 4: Important Safety Instructions
Important Safety Instructions Please read the following instructions carefully. This manual should be retained for future use. 1. To clean LCD Monitor screen; -- Power off LCD Monitor and unplug the AC Cord. -- Spray a non-solvent cleaning solution onto a rag. -- Gently clean the screen with dampened rag. -
Page 5: Installation
Installation Unpacking Before unpacking the LCD Monitor, prepare a suitable workspace for your Monitor and computer. You need a stable and clean surface near a wall power outlet. Make sure that LCD Monitor has enough space around it for sufficient airflow. Though the LCD Monitor uses very little power, some ventilation is needed to ensure that the Monitor does not become too hot. -
Page 6: Viewing Angle Adjustment
Viewing Angle Adjustment +90° The LCD Monitor is designed to allow users to have a comfortable viewing angle. The viewing angle can be adjusted -2° from -2°to +90°.(See fig. 1-1) Figure 1-1 Warning Do not force the LCD Monitor over its maximum viewing angle settings as stated above. Attempting this will result in damaging the Monitor and Monitor stand. -
Page 7: Connecting The Ac Power
Connecting the AC Power 1. Connect the power cord to the LCD Monitor.(See Fig. 1-5) 2. Connect the power cord to an AC power source. Figure1-5 Connecting the Audio Cable 1. Connect the audio cable to the "LINE OUT" jack on your PC's audio card or to the front panel's “AUDIO OUT”... -
Page 8: Display Controls
Display Controls User Controls A brief description and the location of all LCD Monitor functions controls and indicators: Figure 2-1 Power LED will be Green when monitor is on, be yellow when in power saving mode, be dark when monitor in off mode. Power ON/OFF switch. -
Page 9: Adjusting The Monitor's Display
Adjusting the Monitor's Display Main OSD Main Menu icon Sub Menu item Description Menu item STANDARD Default Setting. Reflects native display capability. Displays scenes in clearest detail. Pictures and MOVIE photographs appear in vibrant colors with sharp detail. GAME Enhances color. Preset Mode Optimal balance of brightness and contrast TEXT... - Page 10 FULL Selects wide format for display. Expansion Mode ASPECT Selects 4:3 format for display. Auto adjusts the H/V Position, Phase and Clock of Auto Adjustment picture. (available in analog mode only) Adjusts the horizontal position. H. Position (available in analog mode only) Adjusts the vertical position.
- Page 11 Shows the resolution, H/V frequency and input port Information of current input timing. Icon Function Description Sets the CIE coordinate color temperature to 9300°K CIE coordinated Color Temperature of 9300°K 9300 CIE coordinated Color Temperature of 7500°K Sets the CIE coordinate color temperature to 7500°K 7500 Sets the CIE coordinate color temperature to 5000°K CIE coordinated Color Temperature of 6500°K...
-
Page 12: Osd Lock Out Function
OSD Lock Out Function When monitor is in normal display, you can enable the “OSD LOCK OUT” function. Option 1: OSD & Power button lock-all 5 buttons including the “POWER” button are locked. Press and hold the “Auto/Exit” and “ ”buttons at the same time for 3 seconds to lock all 5 buttons The monitor will show an “OSD LOCKED !”... -
Page 13: Technical Information
Technical Information Specifications LCD Panel Size 19W" Display Type Active matrix color TFT LCD Resolution 1440 x 900 Display Dot 1440x (RGB) x 900 Display Color 16.7M with FRC or Dithering Video Input Signal Analog RGB 0.7Vp-p Input Impedance 75 Ohm ± 2% Polarity Positive, Negative Amplitude... - Page 14 Power Management Mode Power Consumption* AC Input LED Color DPM On 42 W maximum 240 VAC Green DPM Off 2 W maximum 240 VAC Yellow DC switch off 1 W maximum 240 VAC Dark *Meeting VESA DPM requirements measured from AC Input end of AC power cord. Sync Input Analog TMDS...
-
Page 15: Standard Timing Table
Standard Timing Table If the selected timing is NOT included in table below, this LCD monitor will use the most suitable available timing. SYNC FRONT BACK FH (KHz) SYNC TOTAL/ ACTIVE PIXEL TIMING NAME WIDTH PORCH PORCH FV (Hz) POLARITY (DOT / LINE) FOREQ.(MHz) (DOT / LINE) - Page 16 SYNC FRONT BACK FH (KHz) SYNC TOTAL/ ACTIVE PIXEL WIDTH PORCH PORCH TIMING NAME FV (Hz) POLARITY (DOT / LINE) FOREQ.(MHz) (DOT / LINE) 1024x768 60.023 1312 1024 78.75 VESA-768-75Hz 75.029 1024x768 60.24 – 1328 1024 1152x864 54.054 1480 1152 (60Hz) 59.27 1152x864...
-
Page 17: Troubleshooting
Troubleshooting This LCD Monitor has been pre-adjusted using factory standard VGA timings. Due to the output timing differences among various VGA cards in the market, users may initially experience an unstable or unclear display whenever a new display mode or new VGA card is selected. Attention This LCD Monitor Supports Multiple VGA Modes. -
Page 18: Touch Screen Driver Installation
Touch Screen Driver Installation The PJT155R/ PJT175R/ PJT195RW is available with USB connection. The touch software is located on the enclosed CD-ROM for these operating systems: Windows® 7, VISTA, XP, 2000, ME, 98, NT4.0, CE, XP Embedded, Linux, Apple® Mac OS Please Note: The PJT155R/ PJT175R/ PJT195RW is Microsoft®... - Page 19 PJT155R/ PJT175R/ PJT195RW Install Instructions If you are using a PC running Windows® 7, VISTA, XP, 2000, ME, 98, NT4.0, follow the instructions below: 1. Power on the PC. 2. Be sure the USB cable is connected from the PC to the LCD display.
-
Page 20: Product Registration And Technical Support
Product Registration and Technical Support Register Your Planar Products Today Thank you choosing Planar. To assure you receive all the benefits of your Planar product and services, register your Planar product today. Visit our website to register your product at http://www.planar.com/support/product_registration.html... - Page 21 Hours: 24 hours a day, 7 days a week 2012 Planar Systems, Inc. Planar is a registered trademark of Planar Systems, Inc. Other brands and names are the property of their respective owners. Technical information in this document is subject to change without notice.
