Husqvarna LTH126 Parts List

Hide thumbs

Advertisement

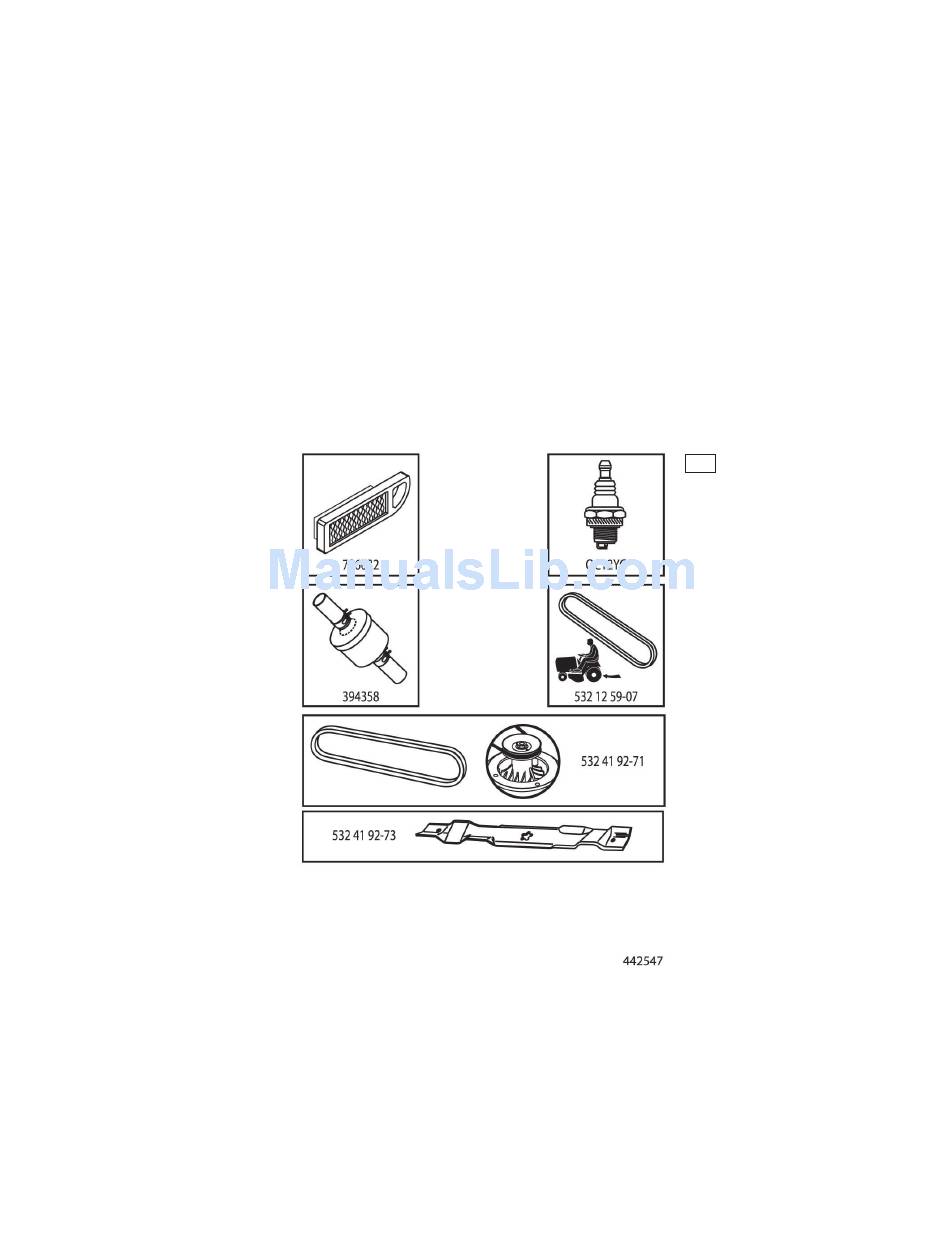

ILLUSTRATED PARTS LIST
MODEL NO. 96041019903
CUSTOMER CATALOG NO. LTH126
PROD. NO. 960 41 01-99
586 12 24-01
47
47

Advertisement

loading

  Related Manuals for Husqvarna LTH126

  Summary of Contents for Husqvarna LTH126

  • Page 1 ILLUSTRATED PARTS LIST MODEL NO. 96041019903 CUSTOMER CATALOG NO. LTH126 PROD. NO. 960 41 01-99 586 12 24-01...
  • Page 2: Wheels And Tires

    TRACTOR - - MODEL NO. LTH126 (96041019903), PROD. NO. 960 41 01-99 DECALS 27 PART PART DESCRIPTION DESCRIPTION 581 57 97-01 Decal, Warning Engine 581 57 80-01 Decal, Saddle Brake Parking 581 62 73-01 Hood Emblem 581 72 48-01 Decal, Bypass...
  • Page 3 TRACTOR - - MODEL NO. LTH126 (96041019903), PROD. NO. 960 41 01-99 SCHEMATIC 38 SCH12 BATTERY SOLENOID STARTER FUSE AMMETER BLACK (OPTIONAL) ELECTRIC CLUTCH WHITE PTO SWITCH WHITE BLACK (DISENGAGED) WHITE BLACK GRAY CLUTCH/BRAKE (PEDAL UP) REVERSE SWITCH (NOT IN REVERSE)
  • Page 4 TRACTOR - - MODEL NO. LTH126 (96041019903), PROD. NO. 960 41 01-99 ELECTRICAL 32 TR08S With Service Minder Option...
  • Page 5 TRACTOR - - MODEL NO. LTH126 (96041019903), PROD. NO. 960 41 01-99 ELECTRICAL 32 PART DESCRIPTION 532 16 34-65 Battery 874 76 04-12 Bolt Hex Head 1/4-20 x 3/4 532 19 32-28 Box Battery 532 17 61-38 Switch Interlock Push-In...
  • Page 6: Chassis And Enclosures

    TRACTOR - - MODEL NO. LTH126 (96041019903), PROD. NO. 960 41 01-99 CHASSIS AND ENCLOSURES 39 chassis-tex_TEX LT HUSQ_29_r1...
  • Page 7 TRACTOR - - MODEL NO. LTH126 (96041019903), PROD. NO. 960 41 01-99 CHASSIS AND ENCLOSURES 39 PART PART DESCRIPTION DESCRIPTION 581 05 63-01 Logo 532 41 34-85 Plate Deck Lift 532 43 89-66 Dash 532 44 13-42 Vent Side Hood RH...
  • Page 8 TRACTOR - - MODEL NO. LTH126 (96041019903), PROD. NO. 960 41 01-99 DRIVE 40 drive-tex_T2_pedal_28_r1...
  • Page 9 TRACTOR - - MODEL NO. LTH126 (96041019903), PROD. NO. 960 41 01-99 DRIVE 40 PART PART DESCRIPTION DESCRIPTION – – – – – – Transaxle, Hydro T2-BABC-1X2B- 532 42 91-64 Nut Push .625 1GX1 (421645) (Order parts from 532 40 52-57 Latch Brake Parking transaxle manufacturer.)
  • Page 10 TRACTOR - - MODEL NO. LTH126 (96041019903), PROD. NO. 960 41 01-99 ENGINE 24 OPTIONAL EQUIPMENT engine-tex_BS_32 Spark Arrester...
  • Page 11 TRACTOR - - MODEL NO. LTH126 (96041019903), PROD. NO. 960 41 01-99 ENGINE 24 PART DESCRIPTION – – – – – – Engine Briggs Model No. 21R707-0006-B1 (585403801) (Order parts from engine manufacturer.) 532 17 97-58 Muffler 532 19 43-19...
  • Page 12: Steering Assembly

    TRACTOR - - MODEL NO. LTH126 (96041019903), PROD. NO. 960 41 01-99 STEERING ASSEMBLY 41 steering-tex_HUSQSR_35...
  • Page 13 TRACTOR - - MODEL NO. LTH126 (96041019903), PROD. NO. 960 41 01-99 STEERING ASSEMBLY 41 PART DESCRIPTION 532 43 97-40 Wheel, Steering 532 41 81-68 Axle Asm., Front 532 41 68-45 Spindle Asm., LH 532 41 68-46 Spindle Asm., RH...
  • Page 14: Mower Deck

    TRACTOR - - MODEL NO. LTH126 (96041019903), PROD. NO. 960 41 01-99 MOWER DECK 44 tex-deck_SRD_27...
  • Page 15 TRACTOR - - MODEL NO. LTH126 (96041019903), PROD. NO. 960 41 01-99 MOWER DECK 44 PART PART DESCRIPTION DESCRIPTION 532 44 20-48 Deck Weldment 30" Srd 532 42 08-95 Pin Hinge 30 532 19 51-61 Stud Fastner w/'D'anti-Rotatio 532 19 70-26 Spring Torsion Dfl 38/42/46 Gr.
  • Page 16: Mower Lift

    TRACTOR - - MODEL NO. LTH126 (96041019903), PROD. NO. 960 41 01-99 MOWER LIFT 45 101* lift-tex_18_r4 *Key 91 may be substituted for Key 101 PART PART DESCRIPTION DESCRIPTION 532 42 20-27 Shaft Asm., Lift 817 00 06-12 Screw Hex Wsh. THDR 3/8-16 x 3/4 532 19 52-31 Lever Asm., Lift RH...
  • Page 17: Seat Assembly

    TRACTOR - - MODEL NO. LTH126 (96041019903), PROD. NO. 960 41 01-99 SEAT ASSEMBLY 42 seat-tex_6-tex LT PART PART DESCRIPTION DESCRIPTION 532 43 98-19 Seat 873 80 05-00 Nut, Lock 5/16-18 unc 532 18 01-66 Bracket Pivot Fender 532 19 76-61...
  • Page 18 10.03.13 TH...
