Video Flex ®
Discovery Scope Kit
EXPLORER DISCOVERY SCOPE KIT
For use with Video Flex
Tweezer-Clamp Attachment
for holding 35mm Slides, or
anything else you can grab
onto!

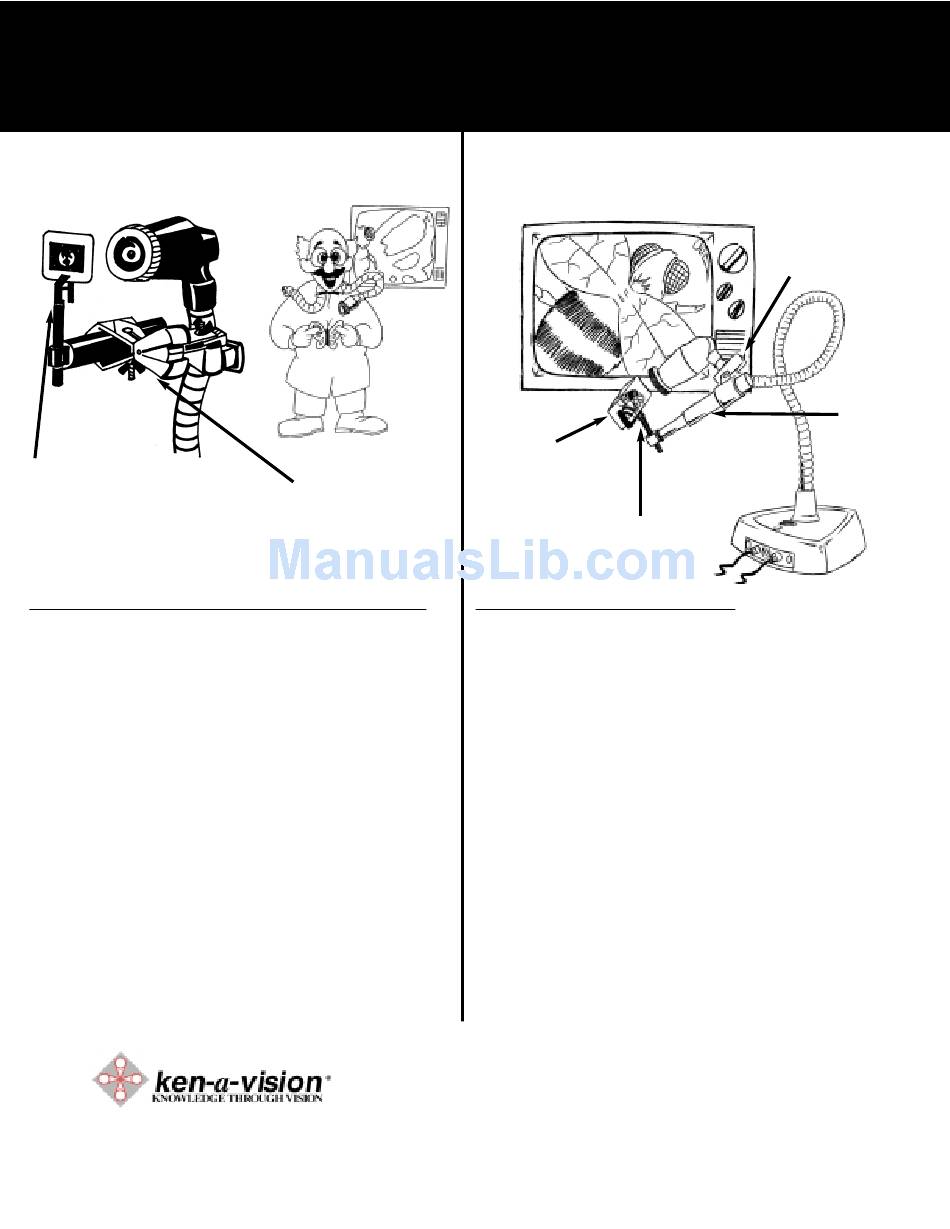

ASSEMBLY INSTRUCTIONS:
EXPLORER DISCOVERY SCOPE KIT (VFDS2000)
1. Attach Explorer clamp onto the neck of the Video Flex
spaced approximately 1" down from camera head. Gently
tighten the wing-nut down on the tweezer clamp.
2. Attach the Telescoping Tube to the other end of explorer
clamp as shown above. Gently tighten the wing-nut on the
2nd tweezer-clamp.
3. Select which attachment you would like to use (either the
tweezer-clamp for 35mm slides and other grippable items, or
the specimen "Bug" box holder), then slide the attachment
shaft through the opening located at the end of the telescop-
ing tube
4. Adjust the telescoping tube and attachment holders to
position the object directly in front of the Video Flex
lens. You can quickly and easily interchange the attachment
holders to suit your needs.
You are only limited by your imagination!
5615 RAYTOWN ROAD-KANSAS CITY, MO 64133
816.535.4787-FAX 816.358.5072
E-mail: info@ken-a-vision.com
® 2000 series
Explorer Clamp
(required to mount
Explorer Discovery
Scope kit to VF2000
series
®
® camera
vision.com
http://www.ken-a-
DISCOVERY SCOPE KIT
For use with all Video Flex
"Bug Box"
(kit includes 2
specimen boxes)
Specimen Box Attachment
for live specimens or anything
else you can stuff into it!
DISCOVERY SCOPE KIT (VFDS)
1. Attach the Discovery Scope Clamp onto the neck of the
,
Video Flex ® , space approximately 1/2" down from camera head.
Simply push clamp onto neck.
2. Attach the Telescoping Tube to the other clamp opening as
shown above.
3. Select which attachment you would like to use either the
tweezer-clamp for the 35mm slides and other grippable items,
or the specimen "Bug" box holder, then slide the attachment
shaft through the opening located at the end of the telescoping
tube.
4. Adjust the telescoping tube and attachment holders to posi-
tion the object directly in front of the Video Flex
Voila-that's it! You can quickly and easily interchange the
attachment holders to suit your needs.
You are only limited by your imagination!
Learn more about the complete line of Video Flex
multi-purpose flexible video microscopes,
Microprojectors, and Microscopes-
call 1-800-334-8407 or explore our
website at: www.ken-a-vision.com
ASSEMBLY & USE
® except 2000 series
Discovery
Scope Clamp
Telescoping
(for close-up
adjustment)
® camera lens.
Tube
®
