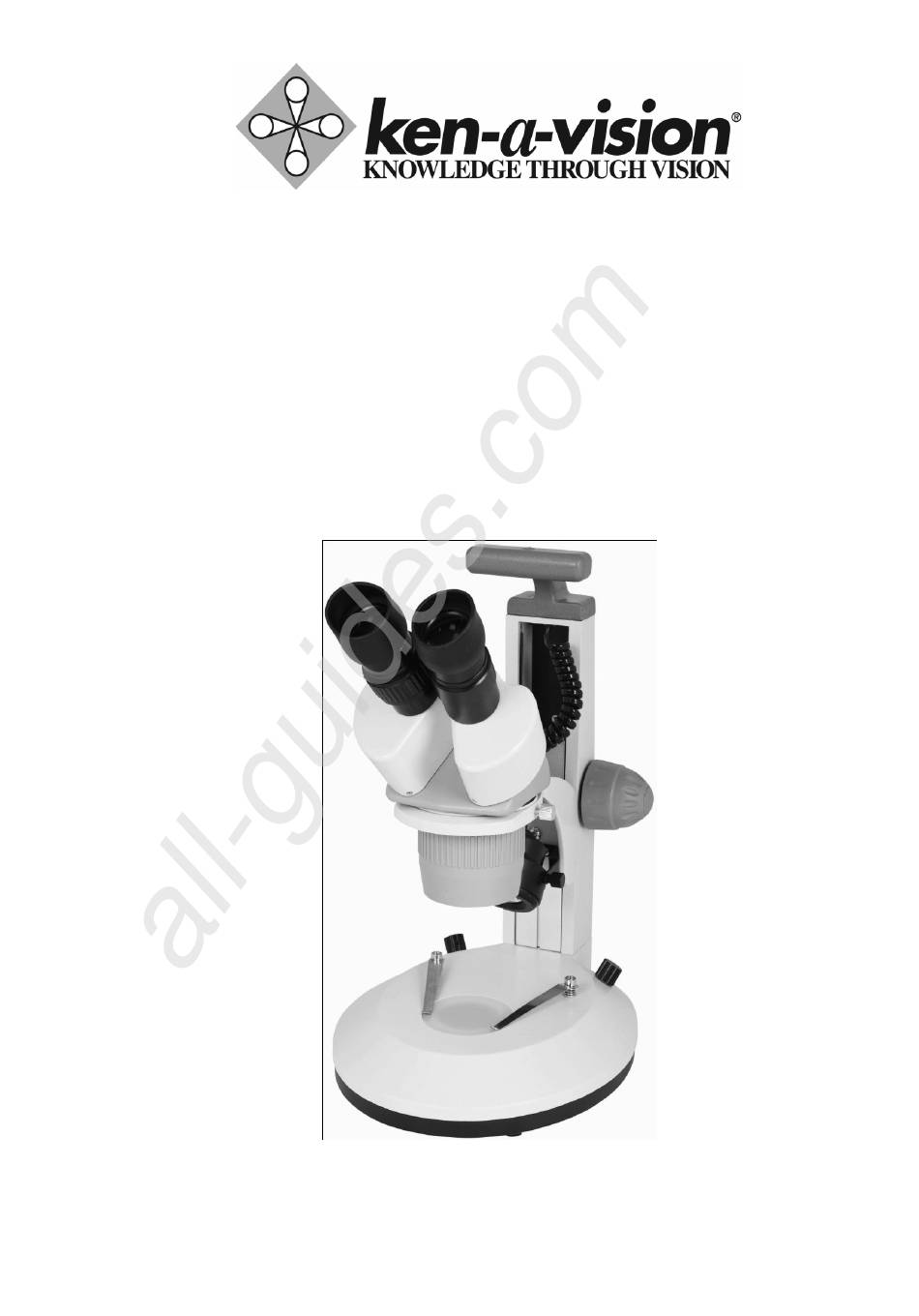

- Page 1 All manuals and user guides at all-guides.com Vision Scope 2 Stereo Microscope Instruction Manual T-22XXX Series T-26001 www.ken-a-vision.com...
-
Page 2: Table Of Contents
All manuals and user guides at all-guides.com Contents 1. Before use ...……………………………………………………2 2. Nomenclature ……………………………………………….…3 3. Assembly ..……………………………………………………..4 4. Operation 4-1 Position the glass stage………….…………………………5 4-2 Adjust the degree of tightness of the focusing arm…..…5 4-3 Set the specimen slide…...……..…………...………………5 Adjust focusing knobs and diopter ..…………………...…...5 4-5 Adjust the interpupillary distance……….…………...…….6 5. -
Page 3: Before Use
All manuals and user guides at all-guides.com 1 Before use Notice 1) Microscope should be stored in a dry and clean environment. Do not expose the microscope to the direct sunlight. Avoid high temperatures and violent vibration. 2) This microscope is a precision instrument. Handle with care. Avoid impact and abrupt movement during transportation. -
Page 4: Nomenclature
All manuals and user guides at all-guides.com 2 Nomenclature Eyepiece shield Diopter adjustment ring Handle Eyepiece Lock screw Head Illumination device Focusing knob Glass stage Clip Power Dimmer knob Base - 3 -... -
Page 5: Assembly
All manuals and user guides at all-guides.com 3 Assembly Eyepiece shield Eyepiece Head Lock screw Illumination device Glass stage Clip Base - 4 -... -
Page 6: Operation
All manuals and user guides at all-guides.com 4 Operation Position the glass stage 1) Place the microscope base on a flat, firm surface and position the frosted stage plate on the base. (Figure 1) Figure 1 Adjust the degree of tightness of the focusing arm 1) Check the coarse focus knob on either side of the main support. -
Page 7: Adjust The Interpupillary Distance
All manuals and user guides at all-guides.com Adjust the interpupillary distance 1) Adjust the two eyepieces along the direction of the arrow shown in Figure 4 until eyepiece feels comfortable and a single image is seen. 2) Use the left rheostat (dimmer knob) to adjust light intensity Figure 4 of the bottom (transmitted) light. -
Page 8: Configuration
All manuals and user guides at all-guides.com 5 Configuration chart T-22XXX Series Configuration Product Number T-22001 T-22011 T-22021 T-22041 T-22051 T-22061 Magnifications 10x & 30x 15x & 45x 20x & 60x 20x & 40x 30x & 60x 40x & 80x 2 –... -
Page 9: Technical Specifications
All manuals and user guides at all-guides.com 6 Technical specifications T-22XXX Series optical specifications Eyepiece Eyepieces (optional) Working Objective SC6EP10 SC6EP15 SC6EP20 Distance Mag. Objective Objective Objective (mm) Mag. Mag. Mag. field field field T-22XXX SERIESX T-22XXX 3.75 SERIESX Auxiliary objectives for T-22XXX Series Auxiliary objectives Magnification Working distance（mm）... - Page 10 All manuals and user guides at all-guides.com Configuration specifications of T-22XXX Series Model T-22001 T-22041 Objective 1X、3X 2X、4X magnification Working distance 100mm Observation angle 45° Interpupillary Linkage between left and right eyepiece tube range of single distance adjustment adjustment: 54-75mm Head Range of single adjustment ：±5D Diopter adjustment...
-
Page 11: Troubleshooting
All manuals and user guides at all-guides.com 7 Trouble shooting Trouble Cause Remedy Interpupillary distance is not Adjust the interpupillary correct distance Diopter adjustment 1.Double images Adjust the diopter correct Left and right eyepieces are Mount eyepieces of the different magnifications. same magnification Dirt on the specimen Clean the specimen... - Page 12 All manuals and user guides at all-guides.com Ken-A-Vision Mfg. Co., Inc. Vision Mfg. Co., Inc. 5615 Raytown Road, Kansas City, MO 64133 USA 5615 Raytown Road, Kansas City, MO 64133 USA Phone : (816) 353 (816) 353-4787 Fax: (816) 358-5072 www.ken...
