About The Dot Rta - DOD RTA Signal Processors Owner's Manual

Signal Processors 18-0121-B
4
R
RTA
series
real time audio analyzer
I
NTRODUCTION
A real-time audio analyzer (RTA) is an audio measurement tool that graphically
shows two kinds of information:
1. The frequency response of an audio system or device, and
2. The frequency response of the listening environment.
This kind of information is very useful for equalizing a P.A. system, finding
feedback hot spots, or "nodes", in reinforcement situations, and flattening the
frequency response of other audio equipment.
RTAs that show both the entire audible frequency spectrum (20 Hz to 20 kHz)
and its entire dynamic range (loudness from 0 dB to 120 dB) are called spec-
trum analyzers. RTAs that show portions of the dynamic range are called
"window" RTAs.
ABOUT THE DOD RTA

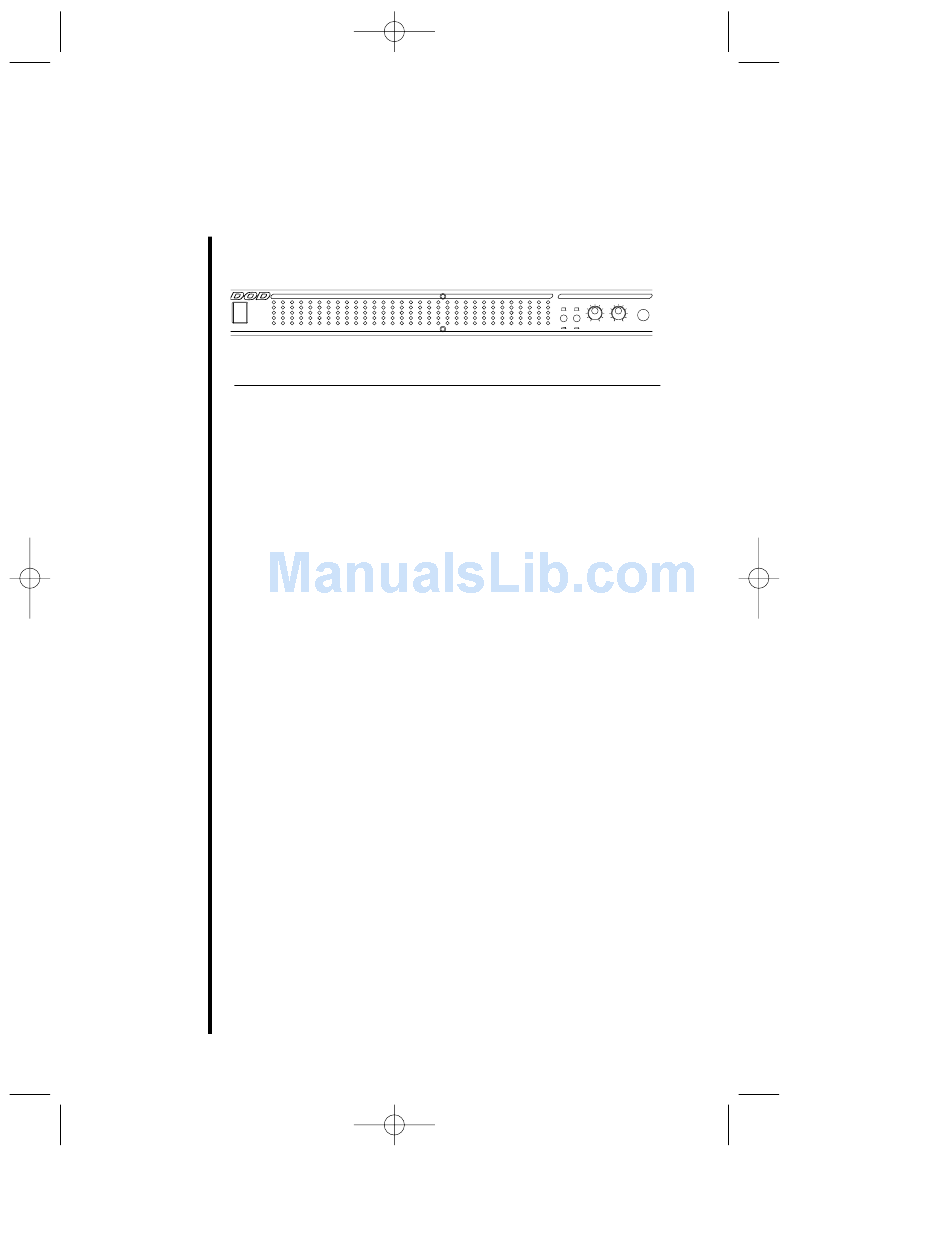

The DOD Electronics RTA Series II is a window-type RTA. It covers the audi-
ble frequency spectrum (20 Hz to 20 kHz), and has a five LED level meter for
each of the 31 audio frequency bands that it covers.
The RTA Series II includes a calibrated audio measurement microphone. This
microphone is equipped with a 40 foot cable which enables you to position the
microphone in several locations in the reinforcement area as you make your
evaluations of the audio system. ONLY THIS MICROPHONE SHOULD BE
PLUGGED INTO THE JACK ON THE FRONT OF THE PANEL OF THE RTA. Other
microphones may be damaged or give inaccurate readings.
The sensitivity of the RTA can be modified using the input level control, and
the window of the RTA may be widened or narrowed using the Resolution
switch. This switch allows you to choose the LED display range in dB per
LED. You can choose either a 1 dB per LED step (for a 4 dB wide window) or
a 3 dB per LED step (for a 12 dB wide window).
6/8/99 10:24 AM
S
TA ERIES II
20 25 31.5 40 50 63 80 100 125 160 200 250 315 400 500 630 800 1K
2/6
1/3
0/0
-1/-3
-2/-6
II
Page 4
1.25K 1.6K 2K 2.5K 3.15K 4K 5K 6.3K 8K 10K 12.5K 16K 20K
WINDOW PINK
RES. NOISE
3dB OFF
MIN MAX MIN
1dB ON
PINK
NOISE
MAX
INPUT CALIBRATED
GAIN MICROPHONE
