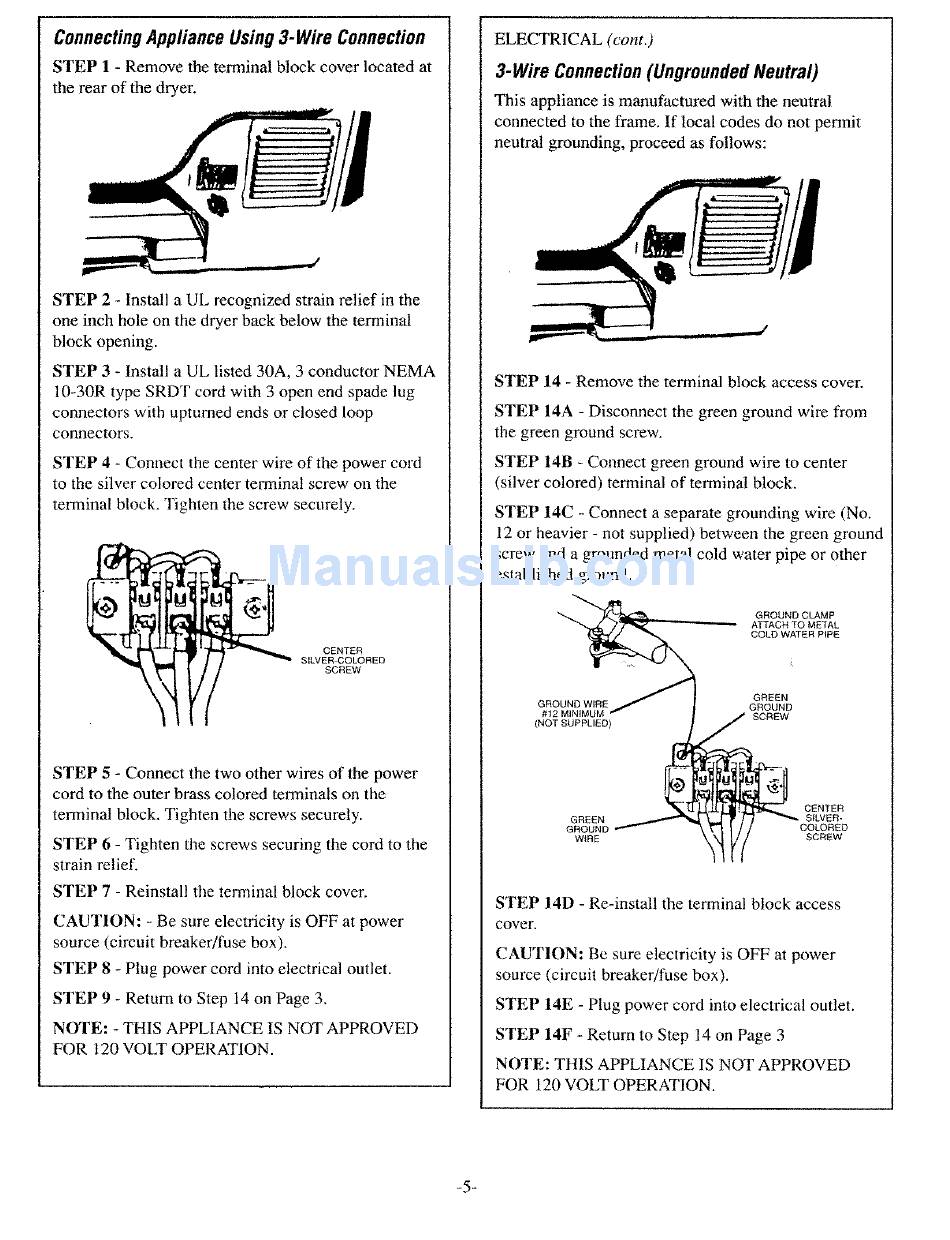

Connecting ApplianceUsing3-Wire Connection
STEP 1 - Remove the terminal block cover located at
the rear of the dryer.
STEP 2 - Install a UL recognized strain relief in the
one inch hole on the dryer back below the terminal
block opening.
STEP 3 - Install a UL listed 30A, 3 conductor NEMA
10-30R type SRDT cord with 3 open end spade lug
connectors with upturned ends or closed loop
connectors.
STEP 4 - Connect the center wire of the power cord
to the silver colored center terminal screw on the
ternainal block. Tighten the screw securely.
CENTER
SILVER COLORED
SCREW
STEP 5 - Connect the two other wires of the power
cord to the outer brass colored terminals on the
terminal block. Tighten the screws securely.
STEP 6 - Tighten the screws securing the cord to the
strain relief.
STEP 7 - Reinstall the terminal block cover.
CAUTION: - Be sure electricity is OFF at power
source (circuit breaker/fuse box),
STEP 8 - Plug power cord into electrical outlet.
STEP 9 - Return to Step 14 on Page 3,
NOTE: - THIS APPLIANCE IS NOT APPROVED
FOR 120 VOLT OPERATION.
ELECTRICAL (cont,)
3-Wire Connection (Ungrounded
Neutral)
This appliance is manufactured with the neutral
connected to the frame. If local codes do not permit
neutral grounding, proceed as follows:
STEP 14 - Remove the terminal block access cover.
STEP 14A - Disconnect the green ground wire from
the green ground screw.
STEP 14B - Connect green ground wire to center
(silver colored) terminal of terminal block.
STEP 14C - Connect a separate grounding wire (No.
12 or heavier - not supplied) between the green ground
screw and a grounded metal cold water pipe or other
established ground.
GROUND CLAMP
ATTACH TO METAL
COLD WATER PIPE
GROUND WIRE
#12 MINIMUM
(NOT SUPPLIED)
2g#2D
W{RE
GREEN
GROUND
SCREW
__CENTER
SILVER-
COLORED
SCREW
STEP 14D - Re-install the terminal block access
cover.
CAUTION: Be sure electricity is OFF at power
source (circuit breaker/fuse box),
STEP 14E - Plug power cord into electrical outlet.
STEP 14F - Return to Step 14 on Page 3
NOTE: THIS APPLIANCE IS NOT APPROVED
FOR 120 VOLT OPERATION.
-5-
