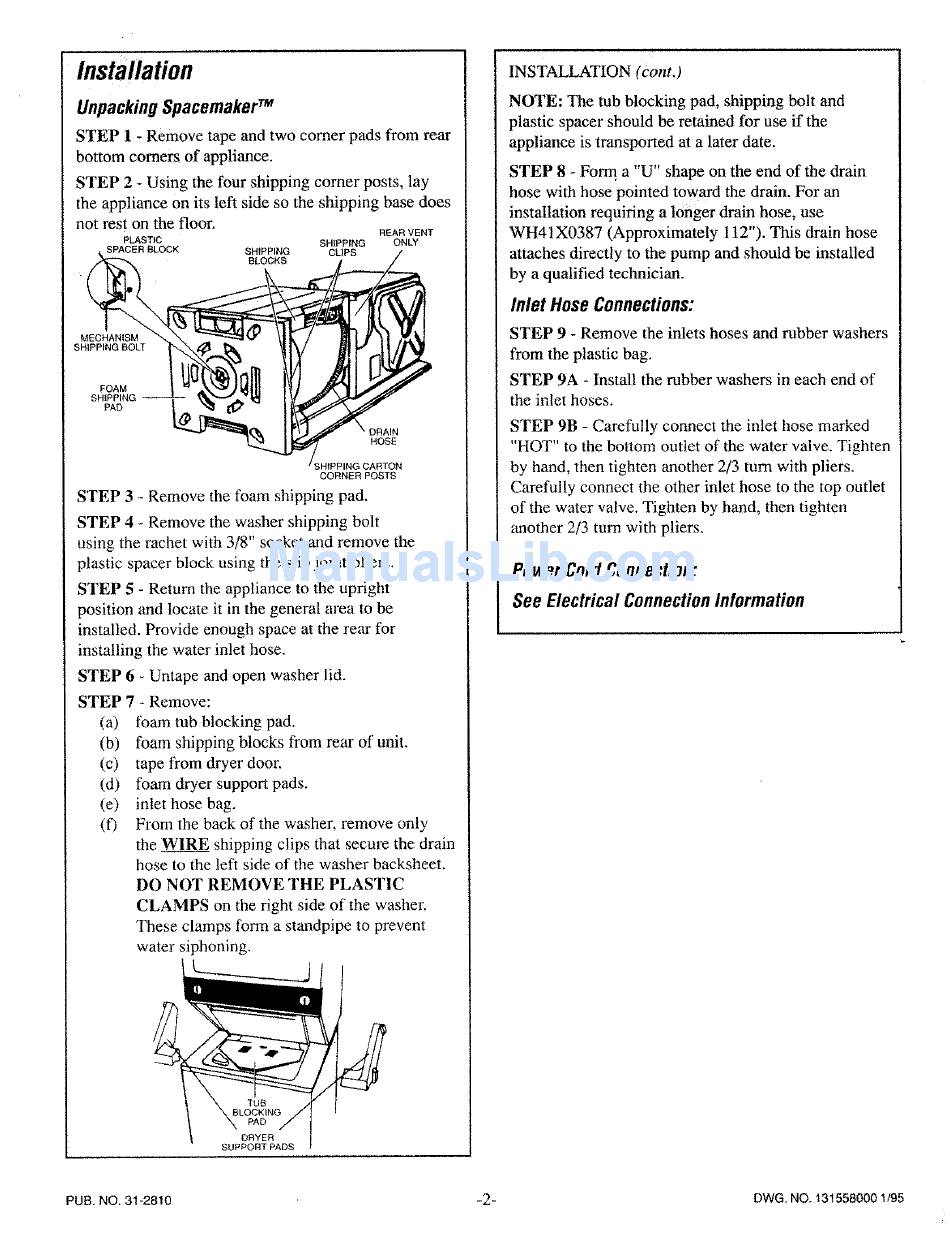

Installation
Unpacking Spacemaker _
STEP 1 - Remove tape and two comer pads from rear
bottom comers of appliance.
STEP 2 - Using the four shipping corner posts, lay
the appliance on its left side so the shipping base does
not rest on the floor.
REAR VENT
PLASTIC SHIPPING ONLY
SPACER BLOCK SHIPPING CLIPS
BLOCKS
FOAM
PAD
HOSE
3HIPFqNG CARTON
CORNER POSTS
STEP 3 - Remove the foam shipping pad,
STEP 4 - Remove the washer shipping bolt
using the rachet with 3/8" socket and remove the
plastic spacer block using the slip joint pliers.
STEP 5 - Return the appliance to the uptight
position and locate it in the general area to be
installed. Provide enough space at the rear for
installing the water inlet hose.
STEP 6 - Untape and open washer lid.
STEP 7 - Remove:
(a) lbam tub blocking pad.
(b) foam shipping blocks from rear of unit.
(c) tape from dryer door.
(d) foam dryer support pads.
(e) inlet hose bag.
(l) From the back of the washer, remove only
the WIRE shipping clips that secure the drain
hose to the left side of the washer backsheet.
DO NOT REMOVE THE PLASTIC
CLAMPS on the right side of the washer.
These clamps form a standpipe to prevent
water siphoning.
TUB
BLOCKING
PAD
DRYER
SUPPORTPADS
INSTALLATION (Cont.)
NOTE: The tub blocking pad, shipping bolt and
plastic spacer should be retained for use if the
appliance is transported at a later date.
STEP 8 - Form a "U" shape on the end of the drain
hose with hose pointed toward the drain. For an
installation requiting a longer drain hose, use
WH41X0387 (Approximately 112"). This drain hose
attaches directly to the pump and should be installed
by a qualified technician.
Inlet Hose Connections:
STEP 9 - Remove the inlets hoses and rubber washers
from the plastic bag,
STEP 9A - Install the rubber washers in each end of
the inlet hoses.
STEP 9B - Carefully connect the inlet hose marked
"HOT" to the bottom outlet of the water valve. Tighten
by hand, then tighten another 2/3 turn with pliers.
Carefully connect the other inlet hose to the top outlet
of the water valve. Tighten by hand, then tighten
another 2/3 turn with pliers.
PowerCordConnection:
See ElectricalConnection Information
PUB, NO. 31-2810 -2- DWG. NO, 131558000 1/95
