Getting To Know Your Router - Draper Router Instructions Manual

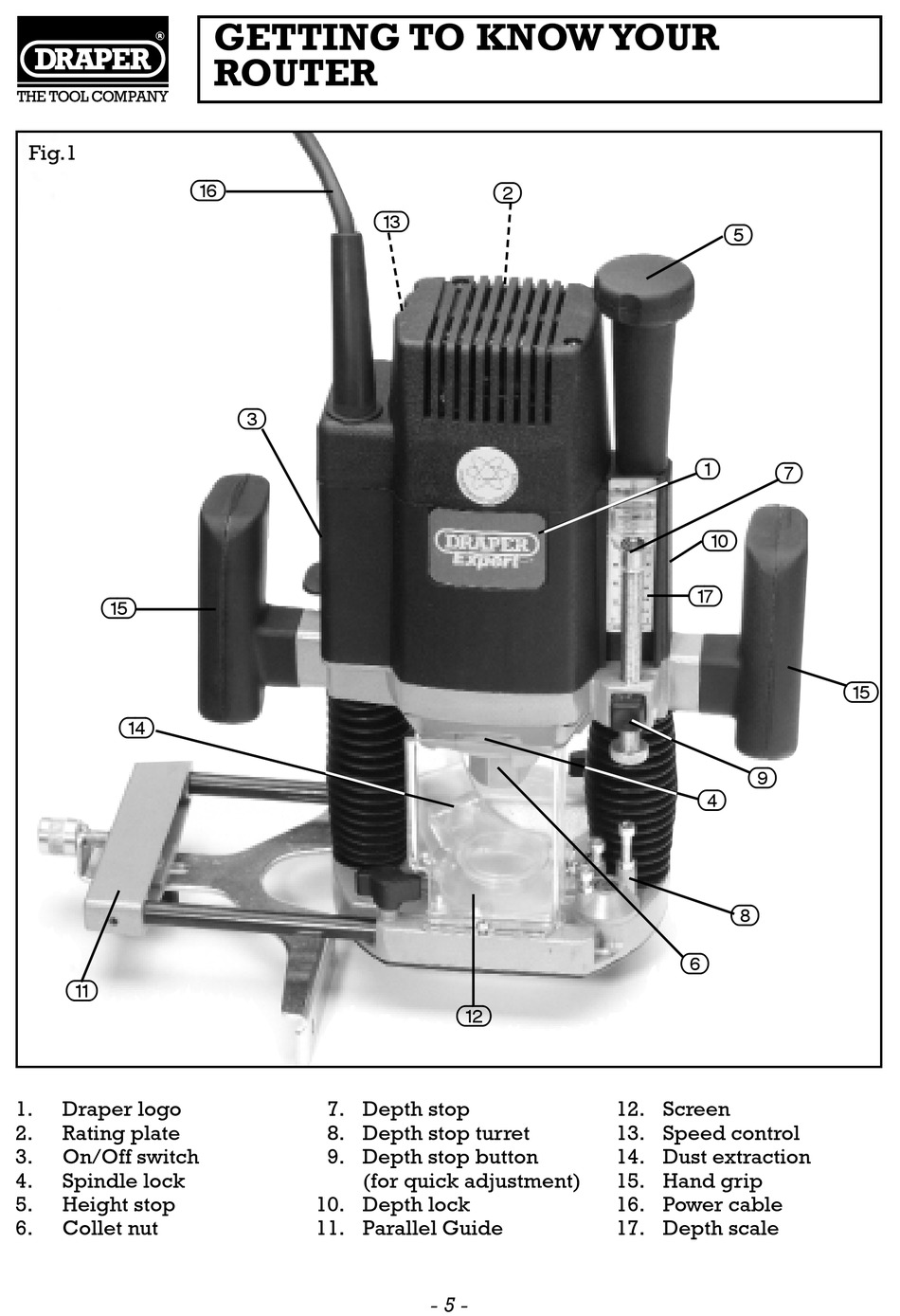

Fig.1
✕✙✌
✕✘✌
✕✕✌
1. Draper logo
2. Rating plate
3. On/Off switch
4. Spindle lock
5. Height stop
6. Collet nut
GETTING TO KNOW YOUR
ROUTER
✕✚✌
✗✌
7. Depth stop
8. Depth stop turret
9. Depth stop button
(for quick adjustment)
10. Depth lock
11. Parallel Guide
✖✌
✕✗✌
✕✖✌
- 5 -
✙✌
✕✌
✛✌
✕✔✌
✕✛✌
✢✌
✘✌
✜✌
✚✌
12. Screen
13. Speed control
14. Dust extraction
15. Hand grip
16. Power cable
17. Depth scale
✕✙✌
