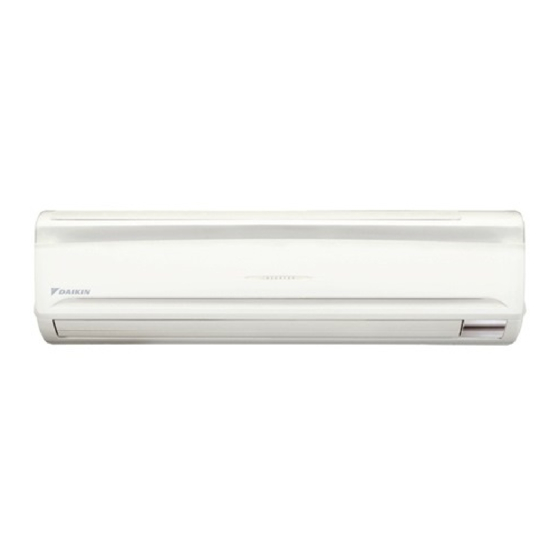

Daikin FXAQ07MVJU Installation Manual
Vrv system inverter air conditioners
Hide thumbs
Also See for FXAQ07MVJU:
- Operation manual (6 pages) ,
- Service manual (312 pages) ,
- Serivce manual (273 pages)
Advertisement
Table of Contents
- 1 Installation Manual
- 2 Table of Contents
- 3 Safety Considerations
- 4 Before Installation
- 5 Selecting Installation Site
- 6 Indoor Unit Installation
- 7 Refrigerant Piping Work
- 8 Drain Piping Work
- 9 Electric Wiring Work
- 10 Wiring Example and How to Set the Remote Controller
- 11 Field Settings
- 12 Test Operation
- Download this manual
Advertisement
Table of Contents
Related Manuals for Daikin FXAQ07MVJU
Summary of Contents for Daikin FXAQ07MVJU
-
Page 1: Installation Manual
INSTALLATION MANUAL SYSTEM Inverter Air Conditioners MODELS Wall-mounted type FXAQ07MVJU FXAQ09MVJU FXAQ12MVJU FXAQ18MVJU FXAQ24MVJU Read these instructions carefully before installation. Keep this manual in a handy place for future reference. This manual should be left with the equipment owner. -
Page 2: Table Of Contents
VRV SYSTEM Inverter Air Conditioners Installation manual CONTENTS 1. SAFETY CONSIDERATIONS ..................1 2. BEFORE INSTALLATION ....................3 3. SELECTING INSTALLATION SITE ................5 4. INDOOR UNIT INSTALLATION ..................7 5. REFRIGERANT PIPING WORK .................. 10 6. DRAIN PIPING WORK....................13 7. - Page 3 DANGER • Do not ground the unit to water pipes, telephone wires or lightning rods as incomplete grounding could cause a severe shock hazard resulting in severe injury or death, and to gas pipes because a gas leak could result in an explosion which could lead to severe injury or death. •...
-
Page 4: Before Installation
(b) where corrosive gas, such as sulfurous acid gas, is produced. Corroding copper pipes or soldered parts may result in refrigerant leakage. (c) near machinery emitting electromagnetic waves. Electromagnetic waves may disturb the operation of the control system and result in a malfunction of the equipment. (d) where flammable gases may leak, where there are carbon fiber or ignitable dust suspensions in the air, or where volatile liquids such as thinner or gasoline are handled. - Page 5 • For the installation of an outdoor unit, refer to the installation manual attached to the outdoor unit. • When using the wireless remote controller, refer to the installation manual attached to the wireless remote controller. • Do not install or operate the unit in rooms mentioned below. •...
-
Page 6: Selecting Installation Site
FOR THE FOLLOWING ITEMS, TAKE SPECIAL CARE DURING CONSTRUCTION AND CHECK AFTER INSTALLATION IS FINISHED. 1. Items to be checked after completion of work Items to be checked If not properly done, what is likely to occur Check Are the indoor and outdoor unit fixed The units may drop, vibrate or make noise. - Page 7 • Where the wall is not significantly tilted. • Where piping between indoor and outdoor units is possible within the allowable limit. (Refer to the installation manual of the outdoor unit.) • Install the indoor and outdoor units, power supply wiring and connecting wires at least 3.5ft. away from televisions or radios in order to prevent image interference or noise.
-
Page 8: Indoor Unit Installation
4. INDOOR UNIT INSTALLATION • Use only accessories and parts which are of the designated specification when installing. CAUTION • Install so that the unit does not tilt to either side or forward. • Do not hold the unit by the horizontal flaps when lifting it. (This may damage the horizontal flaps.) (1) Open the piping through-hole. - Page 9 (4) Remove the front panel and the service lid. (Refer to Fig. 5) < How to remove the front panel and service lid > (1) Open the front panel to the point where it stops. (2) Push the axes on either side of the front panel towards the center of the main unit and remove. (You can also remove it by sliding the front panel either to the left or right and pulling it forward.) (3) Remove the screw from the service lid and pull the handle forward.
- Page 10 • Remove the drain plug, the insulation tube, and the drain hose from the drain pan and replace. (Refer to Fig. 8) • Connect the local refrigerant piping ahead of time, matching it to the liquid pipe and gas pipe marks engraved on the installation panel (accessory) (1).
-
Page 11: Refrigerant Piping Work
(8) Connect the piping. (See “5.REFRIGERANT PIPING WORK” and Fig. 10) Refrigerant piping Secure with vinyl tape. Drain hose Transmission wiring and remote controller wiring Transmission wiring and remote controller A arrow view Refrigerant piping wiring Conduit Seal with putty corking material. Wrap the insulating tape overlapping at least half the width with each wrap. - Page 12 NOTE • Use a pipe cutter and flare suitable for the type of refrigerant. • To prevent dust, moisture or other foreign matter from infiltrating the tube, either pinch the end or cover it with tape. • Do not allow anything other than the designated refrigerant to get mixed into the refrigerant circuit, such as air, etc.
- Page 13 CAUTION • CAUTION TO BE TAKEN WHEN BRAZING REFRIGERANT PIPING “Do not use flux when brazing refrigerant piping. Therefore, use the phosphor copper brazing filter metal (BCuP) which does not require flux.” (Flux has an extremely negative effect on refrigerant piping systems. For instance, if chlorine based flux is used, it will cause pipe corrosion.
-
Page 14: Drain Piping Work
6. DRAIN PIPING WORK (1) Install the drain piping. (Refer to Fig. 16) • The drain pipe should be short with a downward slope and should prevent air pockets from forming. • Watch out for the points in the figure 16 when performing drain work. Make sure the drain Drain hose Drain hose... -
Page 15: Electric Wiring Work
7-2 ELECTRICAL CHARACTERISTICS Units Power supply Fan motor Model Volts Voltage range FXAQ07MVJU FXAQ09MVJU Max. 253 FXAQ12MVJU 208-230 Min. 187 FXAQ18MVJU FXAQ24MVJU MCA: Min. Circuit Amps (A);... -
Page 16: Wiring Example And How To Set The Remote Controller
8. WIRING EXAMPLE AND HOW TO SET THE REMOTE CONTROLLER 8-1 HOW TO CONNECT WIRINGS • Conduit for power supply wiring Unscrew and remove the conduit mounting plate from the electric parts box. (Refer to Fig. 20) Fix a conduit to the plate with a lock nut and reattach them at original position. Conduit Lock nut Conduit mounting plate... - Page 17 Power supply < Wiring clamp method > terminal block (3P) Clamp small (accessory) (5) In the case of using the power supply terminal together with Power supply wiring Ground terminal the other connecting wirings Ground wiring Insulating tube Transmission wiring Remote controller wiring Ground wiring...
- Page 18 [ PRECAUTIONS ] 1. Use round crimp-style terminals for connecting wires to the power supply terminal block. (Refer to Fig. 23) If unavailable, observe the following points when wiring. • Do not connect wires of different gauge to the same power supply terminal. (Looseness in the connection may cause overheating.) •...
- Page 19 1. When using 1 remote controller for 1 indoor unit. (Normal operation) Power supply Power supply Power supply Power supply 208-230V 208-230V 208-230V 208-230V Outdoor unit 60Hz 60Hz 60Hz 60Hz Control box IN/D OUT/D No. 1 System Most downstream Indoor Indoor Indoor indoor unit...
- Page 20 NOTE 1. A single switch can be used to supply power to units on the same system. However, branch switches and branch circuit breakers must be selected carefully. 2. Do not ground the equipment on gas pipes, water pipes, lightning rods or telephone ground wires. Improper grounding could result in electric shock.
-
Page 21: Field Settings
(2) Actuation • The following table explains FORCED OFF and ON/OFF OPERATIONS in response to Input A. FORCED OFF ON/OFF OPERATION Input OFF → ON turns ON unit. Input “ON” stops operation (impossible by remote controllers). Input ON → OFF turns OFF unit. Input OFF enables control by remote controller. -
Page 22: Test Operation
9-2 SETTING AIR FLOWRATE INCREASE MODE • It is possible to raise set air flow (HIGH and LOW) from the field. Change the SECOND CODE NO. as shown in Table 4 to suit your needs. (SECOND CODE NO. is factory set to “01” for Standard.) Table 4 Setting Mode No. - Page 23 3PN07521-1 EM04A013B (0609) HT...
