- Page 1 DAIKIN ROOM AIR CONDITIONER Operation Manual MODELS FDXS09DVJU FDXS12DVJU...
-
Page 2: Table Of Contents
CONTENTS READ BEFORE OPERATION Safety precautions ............... 2 Names of parts................4 Preparation Before Operation ............7 OPERATION AUTO · DRY · COOL · HEAT · FAN Operation......10 POWERFUL Operation.............. 12 OUTDOOR UNIT SILENT Operation......... 13 HOME LEAVE Operation............14 TIMER Operation ............... -
Page 3: Safety Precautions
Do not attempt to repair, relocate, modify or reinstall the air conditioner by yourself. Incorrect work or modifications could cause electric shocks, fire or other damage. For repairs and reinstallation, consult your Daikin dealer for advice and information. • If the air conditioner is not cooling (heating) properly, the refrigerant may be leaking, contact your authorized dealer or qualified service repairman. -
Page 4: Installation Site
Arrange the drain hose to ensure smooth drainage. Improper drainage may cause water damage to the building, or it’s furnishing. • Depending on the usage environment, water may leak from the air conditioner. If this happens, contact your Daikin Dealer. •... -
Page 5: Names Of Parts
Names of parts I Indoor Unit IEnglish... -
Page 6: I Outdoor Unit

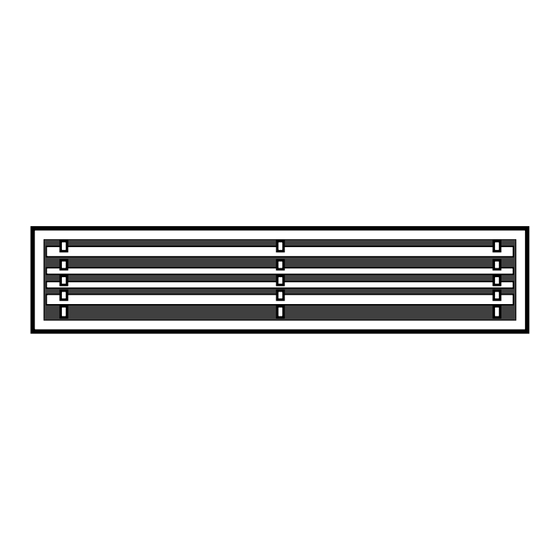

I Outdoor Unit I I I I Indoor Unit 1. Air outlet 8. TIMER lamp (yellow): (page 16.) 2. Air outlet grille: (Field supply) 9. HOME LEAVE lamp (red): • Appearance of the Air outlet grille and Air inlet • Lights up when you use HOME LEAVE grille may differ with some models. -
Page 7: Remote Controller
I Remote Controller 〈 ARC433A63 〉 1. Signal transmitter: 7. MODE selector button: • It selects the operation mode. • It sends signals to the indoor unit. (AUTO/DRY/COOL/HEAT/FAN) (page 10.) 2. Display: 8. SILENT button: OUTDOOR UNIT SILENT • It displays the current settings. operation (page 13.) (In this illustration, each section is shown with all its displays ON for the purpose of... -
Page 8: Preparation Before Operation
Preparation Before Operation I To set the batteries Position + and 1. Slide the front cover to take it off. – correctly! 2. Set two dry batteries (AAA). 3. Set the front cover as before. ATTENTION I I I I About batteries •... - Page 9 Preparation Before Operation I To operate the remote controller • To use the remote controller, aim the transmitter at the indoor unit. If there is anything to block signals between the unit and the remote controller, such as a curtain, the unit will not operate. •...
- Page 10 I To set the clock 1. Press “CLOCK button”. is displayed. blinks. 2. Press “TIMER setting button” to set the clock to the present time. Holding down “ ” or “ ” button rapidly increases or decreases the time display. 3.
-
Page 11: Auto · Dry · Cool · Heat · Fan Operation
AUTO · DRY · COOL · HEAT · FAN Operation OPERATION The air conditioner operates with the operation mode of your choice. From the next time on, the air conditioner will operate with the same operation mode. I To start operation 1. -
Page 12: To Change Airflow Rate Setting
I To change the air flow rate setting 5. Press “FAN setting button”. DRY mode AUTO or COOL or HEAT or FAN mode Five levels of air flow rate setting from “ ” to “ ” plus “ ” “ ”... -
Page 13: Powerful Operation
POWERFUL Operation POWERFUL operation quickly maximizes the cooling (heating) effect in any operation mode. You can get the maximum capacity. I To start POWERFUL operation 1. Press “POWERFUL button”. • POWERFUL operation ends in 20 minutes. Then the system automatically operates again with the settings which were used before POWERFUL operation. -
Page 14: Outdoor Unit Silent Operation
OUTDOOR UNIT SILENT Operation OUTDOOR UNIT SILENT operation lowers the noise level of the outdoor unit by changing the frequency and fan speed on the outdoor unit. This function is convenient during night. I To start OUTDOOR UNIT SILENT operation 1. -
Page 15: Home Leave Operation
HOME LEAVE Operation HOME LEAVE operation is a function which allows you to record your preferred temperature and air flow rate settings. I To start HOME LEAVE operation 1. Press “HOME LEAVE button”. • “ ” is displayed on the LCD. •... - Page 16 I What’s the HOME LEAVE operation? Is there a set temperature and air flow rate which is most comfortable, a set temperature and air flow rate which you use the most? HOME LEAVE operation is a function that allows you to record your favorite set temperature and air flow rate.
-
Page 17: Timer Operation
TIMER Operation Timer functions are useful for automatically switching the air conditioner on or off at night or in the morning. You can also use OFF TIMER and ON TIMER in combination. I To use OFF TIMER operation • Check that the clock is correct. If not, set the clock to the present time. - Page 18 I To use ON TIMER operation • Check that the clock is correct. If not, set the clock to the present time. (page 9.) 1. Press “ON TIMER button”. is displayed. blinks. 2. Press “TIMER Setting button” until the time setting reaches the point you like.
-
Page 19: Care And Cleaning
Care and Cleaning CARE CAUTION • Only a qualified service person is allowed to perform maintenance. • Before cleaning, be sure to stop the operation and turn the breaker OFF. I Cleaning the air filter 1. Removing the air filter. •... -
Page 20: Before A Long Idle Period
• The suction grille is option. • Do not use water or air of 122°F or higher for cleaning air filters and outside panels. • Ask your DAIKIN dealer how to clean it. Check Check that the base, stand and other fittings of the outdoor unit are not decayed or corroded. -
Page 21: Trouble Shooting
Trouble Shooting TROUBLE SHOOTING These cases are not troubles. The following cases are not air conditioner troubles but have some reasons. You may just continue using it. Case Explanation Operation does not start soon. • This is to protect the air conditioner. •... - Page 22 Check again. Please check again before calling a repair person. Case Check The air conditioner does not • Hasn’t a breaker turned OFF or a fuse blown? operate. • Isn’t it a power failure? (OPERATION lamp is off.) • Are batteries set in the remote controller? •...
-
Page 23: Disposal Requirements
Call the service shop immediately. WARNING I When an abnormality (such as a burning smell) occurs, stop operation and turn the breaker OFF. Continued operation in an abnormal condition may result in troubles, electric shocks or fire. Consult the service shop where you bought the air conditioner. I Do not attempt to repair or modify the air conditioner by yourself. -
Page 24: Fault Diagnosis
Fault diagnosis. FAULT DIAGNOSIS BY REMOTE CONTROLLER In the ARC433A series, the temperature display sections on the main unit indicate corresponding codes. 1. When the TIMER CANCEL button is held down for 5 seconds, a indication flashes on the temperature display section. “... - Page 25 MEMO IEnglish...
- Page 26 3P131999-4H M05B077 (0602)
