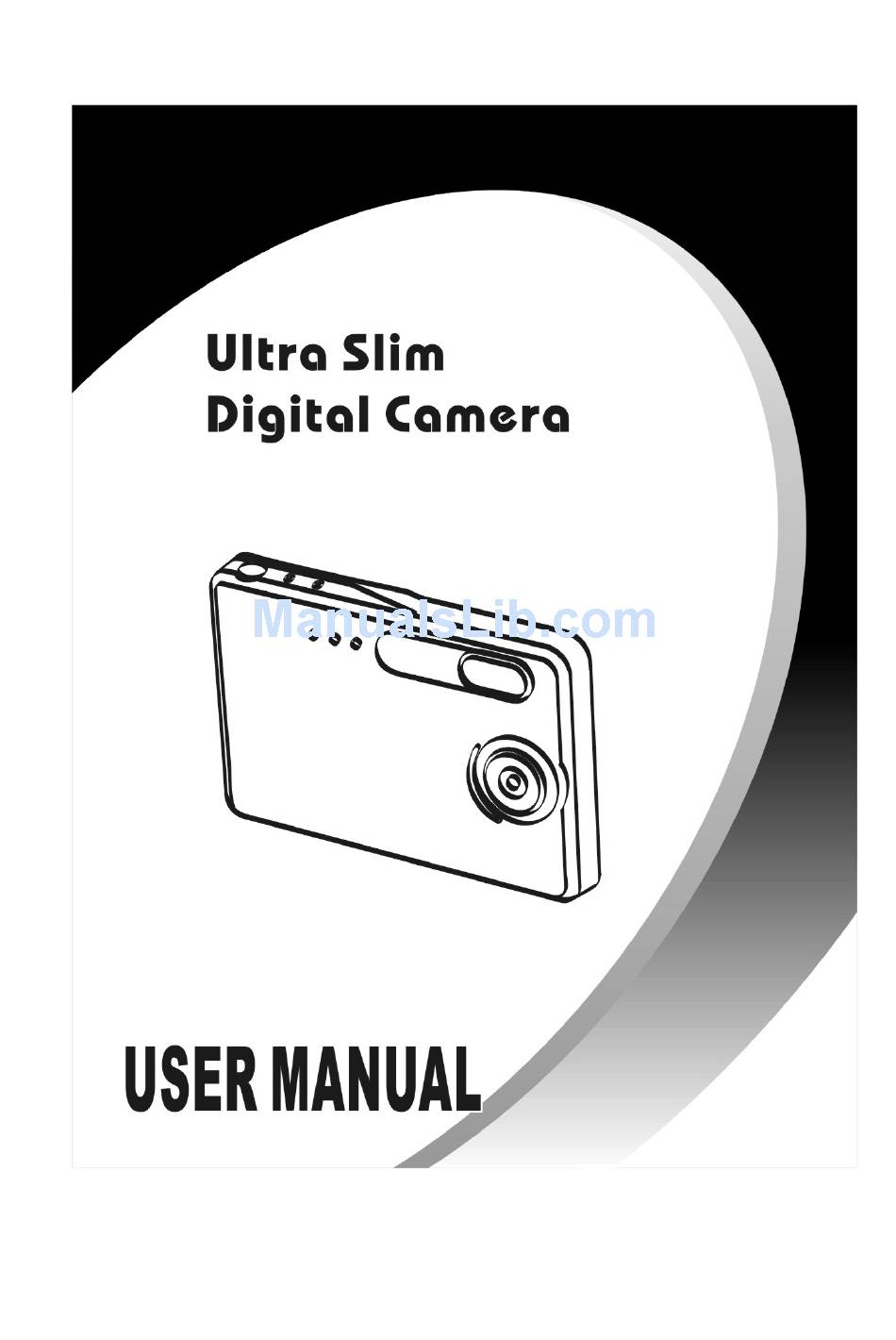

Easypix Ultra Slim User Manual

Hide thumbs Also See for Ultra Slim:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ultra Slim and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Easypix Ultra Slim

Summary of Contents for Easypix Ultra Slim

  • Page 2: Table Of Contents

    Table of Contents 1 Brief Description......................... 2 Package Contents ......................2 2 Before Using Your Camera ....................2 Digital Still Camera Specification ................2 Capturing good pictures....................3 Identifying the parts ...................... 4 3 Using Your Digital Camera ....................5 Charging the battery......................

  • Page 3: Brief Description

    Brief Description Your digital camera with color LCD display is similar to the size of a credit card - only 14 mm thick. The camera’s portability and convenience are enabled by its “worry free” rechargeable battery, simple user interface, and easy image download when you connect the camera to a PC with the supplied USB Docking Station.

  • Page 4: Capturing Good Pictures

    Capturing good pictures • Hold the camera steadily. • Under dimmer environment, the camera needs longer time to capture a picture. • Make sure your fingers will not block the lens and flash.

  • Page 5: Identifying The Parts

    Identifying the parts Front View Shutter Button Flash Strap Holder Lens SD Card Slot Red LED Back View Power On/Off LCD On/Off Capture/Playback Modes Switch Blue LED Up Button Menu Button Select Button USB Connector Liquid Crystal Blue LED Down Button Display (LCD)

  • Page 6: Using Your Digital Camera

    Using Your Digital Camera Charging the battery Long battery life is one of the key benefits of this camera compared to other digital cameras. On a full charge, the camera will take hundreds of images. Your camera battery has already been charged prior to shipment.

  • Page 7: Turning On The Camera

    Turning on the camera Press the Power button once to turn on the camera. Press it again to turn the camera off. Note: • The camera has an automatic time-out feature to conserve battery life. After one minute (or 2 minutes) the camera will time-out (turn off). When timed out, the camera will not take a photo when you push the shutter button.

  • Page 8: Capture Mode

    Capture mode The blue LED will remain ON when the camera is ready to take pictures. If the blue LED blinks, the camera is not ready. It blinks for one second while storing an image and for five seconds while recharging the flash. Capture mode menus •...

  • Page 9: Capture Mode With Timer On

    Typical capture mode menu displays Capture mode with timer on Note: The timer icon is in the center of the display. When the timer is on, and set to 10 seconds (for example), the front red LED begins blinking when the shutter button is pressed. It begins counting down with 8 seconds of slow blinking (with audio beeps if the sound is on) and 2 seconds of fast blinking (with audio beeps).

  • Page 10: Playback Mode

    Playback mode Use the Playback mode to review images you have captured and to review images in order to delete them. Select Playback mode by sliding the mode switch on the right hand side of the camera. The last picture taken is displayed first. If the camera is empty, the display will say “No pictures on camera.”...

  • Page 11: Using Secure Digital (Sd) Memory Cards

    Using Secure Digital (SD) memory cards Note: Only Secure Digital (SD) memory cards are compatible with the camera. To use a SD card, insert the card into the SD slot in your camera. The SD card indicator on the LCD is shown. SD card icon is displayed When card is inserted Insert SD card in...

  • Page 12: Turning Sound On/Off

    Turning sound on/off • Turn the camera on and press the mode button. • Select Sound and then select ON or OFF. Taking pictures To take pictures using your Digital Camera: • Turn the camera on. • In low light conditions, check to make sure the flash is ready. Be sure the Flash is set to AUTO.

  • Page 13: Deleting An Image/Images

    Deleting an image/images To delete an image or images: • Turn the camera on and slide the Capture/Playback modes switch on the right hand side of your camera to Playback mode. • Press the Menu button and select “DELETE”. • Use the up/down arrow buttons to select “Yes” to delete the image or “No” to save the image.

  • Page 14: Installing The Software

    Installing the Software System requirements Windows • Windows ME, 2000, or XP • 266 MHz Pentium or above • 32MB RAM • 200MB available Hard Drive space • CD-ROM or DVD Drive • Available USB port...

  • Page 15: Photoimpression 5.0 Installation

    PhotoImpression 5.0 Installation 1. Insert installation CD into your PC’s CD-ROM drive. 2. The introduction screen will appear automatically. 3. Click “ArcSoft PhotoImpression 5.0”. 7. Click “Next”. 4. Choose Setup Language. 8. Click “Next”. 5. Click “Next”. 9. Click “Finish”. 6.

  • Page 16: Connecting The Digital Camera To Your Pc

    Connecting the Digital Camera to Your PC After the software has been installed on your computer, plug the camera into an available USB port using the provided USB cable. The Windows operating system requires that you install drivers for the camera so that the camera and computer can communicate properly. •...
  • Page 17 • Click “GETMYPIX.EXE” • Click “Transfer” or right box to browse a destination folder to download the photos. • Photos transferring, this may take a few moments.
  • Page 18 • Click “Close” when “Transfer Done!” appears. The photos have been downloaded to the specific folder.

  • Page 19: Troubleshooting

    Troubleshooting Problem Symptom Likely Cause Solution No power Camera will not Battery is out of power Recharge the internal turn on battery (section 3) Capturing Image appears The camera or subject Hold the camera blurred or dark was moving when the firmly shot was taken The subject is too close...
  • Page 20 Check computer Connect the camera to the PC with the USB cable and select [My Computer] – [Control Panel] – [System] – [Device Manager]. In the [Device Manager] window delete [Compose USB device] or [Unknown device] in [Other devices]. Then disconnect the camera and install the software before...

  • Page 21: Safety Notes

    Safety Notes We strongly recommend that you read these Safety Notes (and associated materials) before using your camera. WARNING • The enclosed disk is a computer CD-ROM. Never attempt to play this disk on an ordinary music CD player as it may produce extremely high noise levels that could damage your hearing or your audio equipment.
  • Page 22 Handling Your Digital Camera Safely This camera contains precision electronic components. To ensure that images are recorded correctly, do not subject the camera to impact or shock while an image is being recorded. Places to Avoid Do not use or store the camera in the following types of locations: •...

  • Page 23: Trademarks

    Trademarks Autobrite is a registered trademark of SMaL Camera Technologies, Inc. of Cambridge, Massachusetts, USA. Microsoft and Windows are trademarks of the Microsoft Corporation of the U.S. and other countries. Windows is an abbreviated term referring to the Microsoft Windows Operating System.
