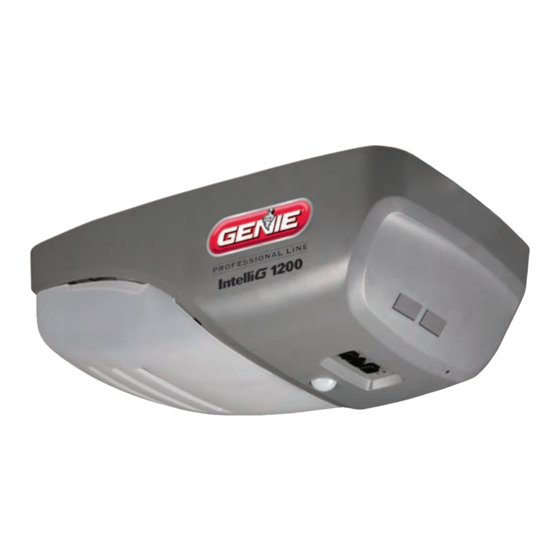

Genie IntelliG 1200 Product Manual

P R O D U C T S P E C I F I C A T I O N S
PRODUCT DESIGN
Motor Type: DC, 140 volts
Drive: Features Belt or optional Chain
Lighting System: Two 100 Watt bulbs with integrated motion detector
Color: Stone Gray (Pantone Q716-1-3)
Assembled in USA
MOTOR & ELECTRICAL
Gearbox: Integrated with Motor
Power: ¾ HPc* Power Plus
Application: Any residential garage door as follows: sectional doors
up to 14 ft high; one-piece doors up to 8 ft high
Adjustable Lift Force Level: 9 electronic settings - factory set to typical
steel residential garage door - single or double wide
Lubrication: No lubrication on belt (normal chain lubrication)
Voltage: 120 Volts, 60 Hz, 5 Amps
Length of power cord: Model 4024 - 44 in, Model 4024H - 68 in
Type of power cord: 3 prong
DRIVE & RAILS
Rail Type: C-Channel
Standard Rail: 9 foot 8 inch rail for 7 foot doors
Rails Available: Assembled and pre-tensioned rails for doors up to
7 ft, 8 ft and 10 ft high. Two-piece rails with center hanger support for
doors up to 12 ft and 14 ft high. Belt drive system or chain drive system
in C-Channel rail
Drive Type: Steel-reinforced belt or full length chain
LIGHTING SYSTEM
Recommended bulbs: Two 100 Watts (maximum) incandescent bulbs
Light Activated: Via motion detector, wall console or opener activation
Light On: 4 minutes
POWERHEAD BOX CONTENTS
IntelliG ® 1200 Powerhead model 4024/4024H
Owner's Manual
One 3-button remote
One wall console
Safe-T-Beam System and wiring
®
Assembly hardware
RAIL PACKAGE
Outer: Stretch wrapped for weather protection
Color Code: Red–belt, black–chain
INSTALLATION
Headroom Clearance Required: 1.5 inches
Limit Setting: Electronic push button
Force Setting: Automatic with electronic adjustability
* 3/4 Horsepower Comparable (HPc) Power Plus designates that this garage door opener
exceeds Genie's lifting force specification for 3/4 horsepower garage door openers.
** + /– 0.5 inches per second. Speed will slow with one-piece doors.
To find a sales center:
1-888-SLS-CNTR
For customer service:
www.GenieCompany.com
1-800-35-GENIE
One Door Drive
Mt Hope, OH 44660 USA
PRODUCT CERTIFICATIONS
UL and CUL approved
DIMENSIONS AND WEIGHT
Powerhead: L - 16.8" x W - 10.0" x H - 7.4", Weight - 7.7 lbs
Assembled Powerhead and 7 ft Rail: Total length - 10.6 ft, Belt -
19.95 lbs, Chain - 22.6 lbs
Powerhead: Boxed: 19" x 10.5" x 11", 11 lbs
All rails are stretch wrapped.
7 ft door Rail: 116.5" x 1.75" x 3.25" - Belt: 13 lbs, Chain: 15 lbs
8 ft door Rail: 128.5" x 1.75" x 3.25" - Belt: 14 lbs, Chain: 17 lbs
10 ft door Rail: 152.5" x 1.75" x 3.25" - Belt: 17 lbs, Chain: 20 lbs
12 ft door: two-piece rail: 88.5"x 3.125"x 3.75"- Belt: 20 lbs, Chain: 23 lbs
14 ft door: two-piece rail: 100.5"x 3.125"x 3.75"- Belt: 23 lbs, Chain: 26 lbs
Powerhead Pallet Size: 32
Rail Pallet Size: 32
STANDARD ACCESSORIES
One 3-button remote
Wall console
REMOTE SPECIFICATION
System Design: Intellicode ® Access Security System
Remote Size: 2.75" x 1.62" x .73" without clip
Frequency: Auto seek frequency (315 and 390 MHz)
Range: 500 ft open field. Per UL recommendations, remote should be
used within line of sight of garage door.
Minimum Operating Temperature: -40° F, -40° C
Maximum Operating Temperature: 158° F, 70° C
Battery Used: CR2032
STANDARD WARRANTIES
Lifetime Motor / Gearbox Warranty: see manual for details
15 Year Belt Warranty: see manual for details
5 Year Chain Warranty: see manual for details
5 Year Parts Warranty: see manual for details
1 Year Accessories Warranty: see manual for details
GenieSense ™ MONITORING & DIAGNOSTIC TECHNOLOGY
Force profiling technology delivers the power needed at every
movement of the door.
Powerhead intelligence captures performance data.
Safety monitoring system will stop movement of the door when door
service may be required.
ADDITIONAL INTELLIGENCE & SAFETY
Safe-T-Beam System
®
Intellicode ® Access Security System
Sure-Lock System
™
OPERATION**
Door Opening Speed – factory set: 9.0 in/second @ 30 – 60 lbs
Door Opening Speed – maximum: 9.0 in/second @ 30 – 60 lbs
Door Closing Speed – factory set: 9.0 in/second
Door Closing Speed – maximum: 9.0 in/second
D E A L E R S E R V I C E S
Your Genie Professional Line sales person or Wayne-Dalton Genie
® ®
Centers are available to answer any questions you have on this or any
Genie ® Professional Line product. Call us to set up an appointment to view
this innovative and profit-driving product today.
