Summary of Contents for Denver LED-3255DVBT

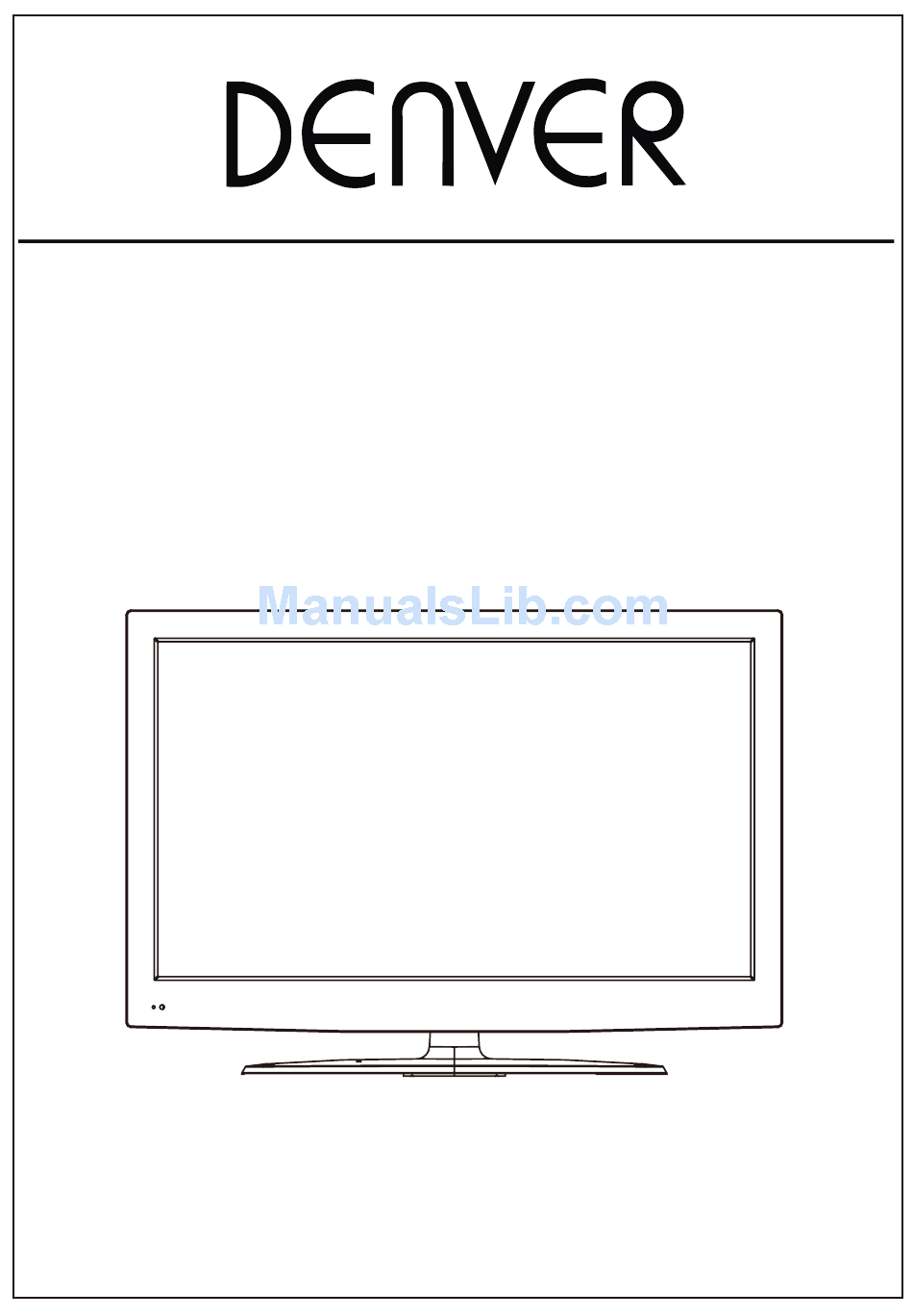

- Page 1 32" hd ready led tv with atv and mpeg-2 dvb-t + c.i + usb input + PVR function Model NO.: LED-3255DVBT Instruction Manual...
-
Page 3: Table Of Contents
Contents Contents Caution Safety Information Accessories Technical Specification Product Introduction Front View Rear View Connections Remote Control Basic Operation OSD Menu 9-16 1. CHANNEL menu 9-10 2. PICTURE menu 3. SOUND menu 4. TIME menu 5. OPTION menu 6. LOCK menu 15-16 Hotel mode 17-19... -
Page 4: Caution
Caution Caution The lightening flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of un-insulated “dangerous voltage” within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to the persons. The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 5: Safety Information
Safety Information Safety Information To ensure reliable and safe operation of this equipment, please read carefully all the instructions in this user guide, especially the safety information below . Electrical safety • The TV set should only be connected to a mains supply which matches that stated on the label on the mains adaptor. -
Page 6: Accessories
Accessories & Technical Specification Accessories POWER MUTE REC LIST CH/LIST SUBTITLE REPEAT TV/AV DISPLAY MENU EXIT PICTURE SOUND SLEEP SCREEN TV/TXT CANCEL REVEAL NICAM/A2 HOLD SIZE SUBPAGE INDEX Converter cable User’s Manual Remote control Batteries AV cable for YPBPR video * Note: The configuration of the components may look different from the following illustration Technical Specification - TV System... -
Page 7: Product Introduction
Product Introduction Product Introduction Front View INPUT: Display the input source menu. MENU: Display/exit the OSD menu. CH+/-: Scan through channels. VOL+/-: Adjust the volume. POWER: Turn on/standby the TV set. SWITCH: Turn on/off the power supply. LED indicator Remote Control window(keep clear) (IR) Infrared Receiver: Receives IR signals from the remote control. -
Page 8: Connections
Connections Connections Headphone:Connect Headphone CI:CI slot (pay as you view card slot) COAX:Output to audio amplifier RF:Connect to antenna or cable source (AUDIO)L/R IN:Audio signal input for AV(Shared with YPbPr) Video:Connect to the video output of external devices YPbPr:Connect to the YPbPr output on external devices with the converter cable. SCART PC audio USB:Connect to USB device for multimedia... -
Page 9: Remote Control
Remote Control Remote Control The remote control is using Infra-Red(IR). Point it towards the front of the LED TV. The remote control may not work correctly if it is operated out of range or out of angle. POWER: Turn the TV on/standby. POWER MUTE MUTE: Press to mute the sound, press again or press... - Page 10 Remote Control Remote Control POWER MUTE REC LIST CH/LIST SUBTITLE REPEAT INPUT DISPLAY MENU EXIT CH / : Scan through channels. VOL / : Adjust the volume. PICTURE: Select the picture mode. EPG: To show the Electronic Program Guide during no-menu state only in DTV mode.
-
Page 11: Basic Operation
Basic Operation Basic Operation Power on/off 1. Connect to the power supply with the power cord. 2. -To turn on the TV Press POWER button on the TV or remote control. Input Source -To turn off the TV Press POWER button on the TV or remote control. SCART Input Source select YPBPR... -
Page 12: Osd Menu
OSD Menu OSD Menu 1. CHANNEL menu Description Auto Scan Sweden Press OK button to enter the hint menu, and select the Country and Tune Type mode for the TV, then press OK button to start auto tuning. LCN: Press > to select on/off. DTV Manual Tuning Press OK button to enter the DTV Manual Tuning menu, select a DTV channel, and press OK button to start searching. - Page 13 OSD Menu OSD Menu Programme Edit Press OK button to enter the Program Edit menu as the following picture. Rename Delete: Select a channel and press RED button, “Delete” will appear on the right of the program edit menu next to the channel you have chosen, then press RED button again, the program will be deleted.
-
Page 14: Picture Menu
OSD Menu OSD Menu 2. PICTURE menu Description Picture Mode: Choose from Standard, Dynamic, User and Mild. Note: Contrast, Brightness, Color and sharpness are only available and can be adjusted in the User mode option in the Picture Mode Settings. Contrast: Controls the difference between the brightest and darkest regions of the picture. -
Page 15: Sound Menu
OSD Menu OSD Menu 3. SOUND menu SPDIF MODE Description Sound Mode: Allows you to select among: Standard, Music, Movie, Sports and User. Treble(Could be adjusted when the sound mode is User): Controls the relative intensity of higher pitched sounds. Bass (Can be adjusted when the sound mode is set to User): Controls the relative intensity of lower pitched sounds. -
Page 16: Time Menu
OSD Menu OSD Menu 4. TIME menu Description Clock: Use the buttons to select the position, and use the buttons to set the time. Note: User can not change time manually during DTV mode, for time is from signal source directly. -
Page 17: Option Menu
OSD Menu OSD Menu 5. OPTION menu OSD Duration Country Description OSD Language: Allows you to select menu language. Audio Language 1st/2nd (can be selected in DTV mode): Allows you to select first and second audio language. Subtitle Language 1st/2nd (can be selected in DTV mode): Allows you to select first and second subtitle language. -
Page 18: Lock Menu
OSD Menu OSD Menu 6. LOCK menu Hotel model Description Lock System: Turn on/off the Lock System function. Note: You should enter the code to operate the menu.(original code is 0000) Set Password: Set pin code. If the Pin code has been changed you must enter the present code. -
Page 19: Hotel Mode
OSD Menu OSD Menu Hotel Mode... -
Page 20: Multimedia Operation
Multimedia Operation Multimedia Operation Basic Operation 1). Press the INPUT button on the remote control to display the input source menu, select USB source by the buttons, and press OK button to enter the Multimedia menu seen below. Input Source SCART YPBPR HDMI1... - Page 21 Multimedia Operation Multimedia Operation 1. Photo Play the photo ZOOM IN ZOOM OUT Press button to select the option on the table, and press OK button to change. Repeat: Select the repeat mode from Repeat All, Repeat 1, Repeat None. Music: Play/pause the music program (you can only play or pause the music you have programed).
-
Page 22: Multimedia Operation
Multimedia Operation Multimedia Operation 3. Movie Play the movie GOTO Time Press button to select the option on the table, and press OK button to change. Repeat: Select the repeat mode from Repeat All, Repeat 1, Repeat None. Set A-B: Select and play the preferable paragraph of the program by seting A and B at the beginning and end, and there will be a sign on the left screen, press OK button again to cancel. -
Page 23: Recording Operation
Recording Operation Recording Operation PVR settings Press the MENU button, and select CHANNEL menu. Recording Timer 1). Recorded List Display the recorded list Recorded list: Display the Recorder List menu, and changed the mode of program. INFO: Display the information of the program you recorded. RED button: Delete the program you select. - Page 24 Recording Operation Recording Operation 3). Schedule List Display the recorder shedule Note: a. Could’t add shedules which have existent on the list; b. Could’t add shedules when the list is full, you have to delete some schedules; c. You could delete a schedules by RED button on the remote control. 4).
- Page 25 Recording Operation Recording Operation 5) Record Start When you finish the settings above, you could start recording by select Record Start in the menu and press OK button in DTV mode. (You can also start recording by press the button on the remote control) Record buttons Recording: Press to enter the recording mode.
-
Page 26: Simple Troubleshooting
Trouble shooting Trouble shooting Do not use other functions that are not mentioned in this user’s manual. In case a problem occurs with your TV, please take the following steps first. If you still have the problem, turn the power off and contact your dealer or an authorized service center. i t c Is the power plug pulled out? Insert the power plug. - Page 27 Electric and electronic equipment and included batteries contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment and batteries) is not handled correctly. Electric and electronic equipment and batteries is marked with the crossed out trash can symbol, seen below.
